Подлинная передняя ось грузовика для ISUZU NHR NKR

Описание и отзывы

Трекер стоимости

Характеристики

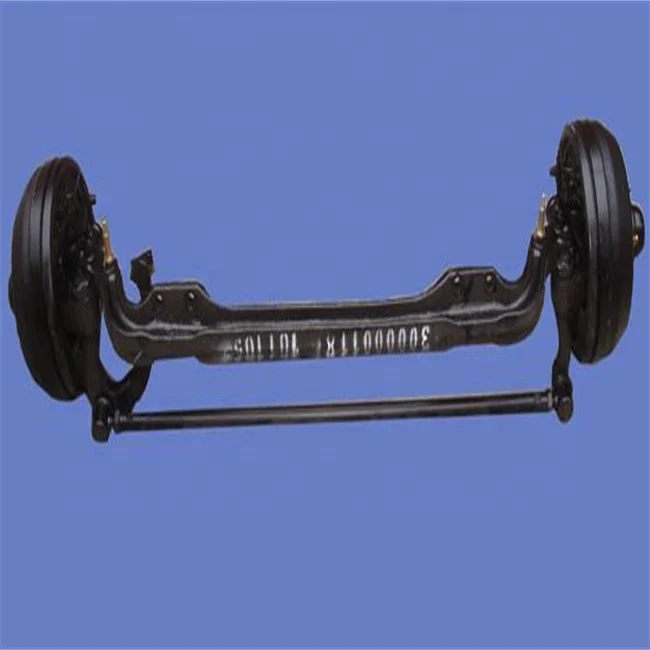

Front Truck  Axle

NHR NKR FRONT AXLE TECHNICAL PARAMETER:
(mm) Front track:	1395
(KN) Leading axle load:	16
(mm) Toe-in:	1.5-3
Inner wheel lock angle/outer wheel lock angle:	38.5°/29.5°
Wheel Inclination of steering knuckle pivot:	7°
Alignment Caster angle:	2°40'
(mm) Clearance from leaf spring o center of wheel:	97
(mm) Center distance of leaf springs:	690
(mm) Width*height of leading axle section:	54*54
Tie rod to center line of front axle:	143.5
Brake type:	Hydraulic dual two leading shone brake
(mm) Brake cylinder diameter:	dia 28.57
(mm) diameter*width of Brake shoe:	dia 280*60
(mm) Wheel bolt&circle diameter of bolts:	6*M12-dia 139.7
(mm) pivot pin diameter:	dia 25
Rim inward deflection:	25









Nanchang Dexiang Automobile Chassis Co.,Ltd. focus on OEM chassis parts manufacturing and sales for ISUZU NKR,NHR,NPR,TFR,TFS serials,JMC pickup,light duty truck serials,JMC TRANSIT serials,TOYOTA serials and MITSUBISHI serials for more than 24 years,including Transmission ASM,Final Drive ASM,Axle ASM,even every parts of whole vehicle.It is our competitive advantage on production,quality and price in the automobile industry.Meanwhile,we are specilized in R&D capabilities to meet various new production development requirements.
