PRODUCT DETAIL

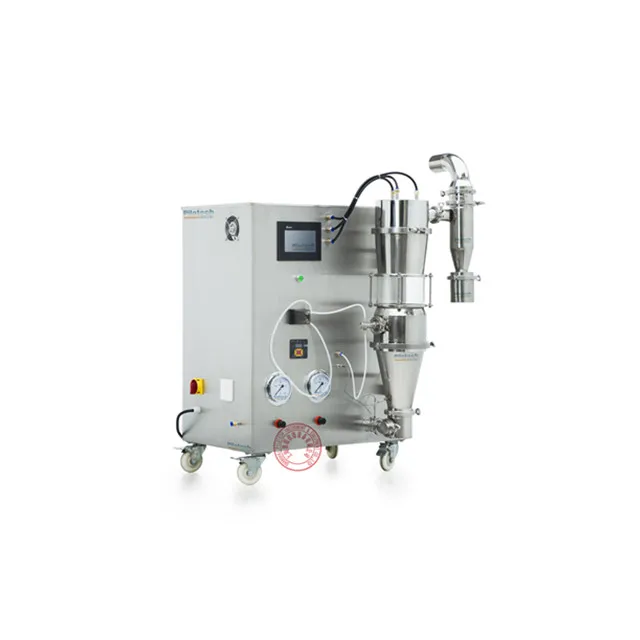

What can YC-1000 LAB SPRAY GRANULATOR do?

Spray dryer:1500ml/h,inlet temperature 105°C -200°C
Spray granulator:Batch size from 50 g up to 1000 g
Coating:Batch size from 50 g up to 1000 g
Mixing:Batch size from 50 g up to 1000 g
Fluidzied bed dryer:Batch size from 50 g up to 1000 g
Designed for trials with small-scale processes especially in R&D as well as Universities

YC-1000 lab spray granulator features

Less occupied area:1 square meters is enough to place.

Low power consumption ,environmental protection and easy operating.

Suitable for heat-sensitive materials and samples of easy dissolving particulates.

PLC operation control. LCD touch screen displays the whole experimental process.

Shutdown protection: press the stop button and the machine (except the fan) stops working immediately so that heating parts will not be burnt due to misuse (forced shutdown of the fan).

Stainless steel machine body and two-fluid spray atomization structure made of SUS 316 stainless steel.

Real-time control on PID temperature.

PRODUCT PARAMETERS

YC-1000 lab spray granulator parameter list

Sr.no	Parameter	Pilotech YC-1000 spray granulator
1	Function	Spray dryer,spray granulator,coating,mixing
2	Power	5KW ,220V,50/60Hz
3	Spray granulator capacity	Max. 1000g/batch
4	Spray dryer capacity	Max. 1500ml/h
5	Minimum sample volume	50g
6	granulator temperature	40-150°c
7	Spray dryer inlet temp.	105-200°c
8	Compressed air	2-4 Bar
9	Temperature precision	±1°c
10	Coating	50-1000g/batch
11	Mixing	50-1000g/batch
12	Nozzle type	Two fluid nozzle
13	Nozzle jet	0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
14	Airflow	0-150m³/h

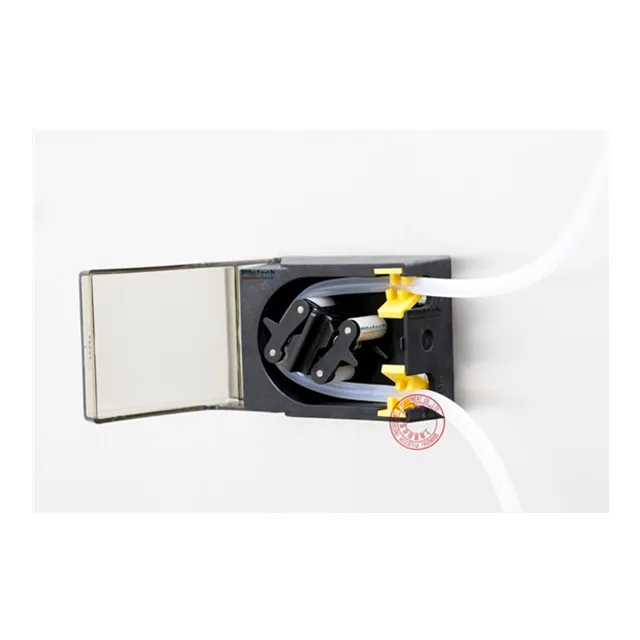

15	Peristaltic pump	Max. 1500ml/h
16	Main chamber volume	10L
17	Heater power	3.5KW
18	Main chamber material	SUS304 Stainless steel &High borosilicate glass
19	Body material	SUS304 Stainless steel
20	Seal of cyclone/cylinder	Silicone
21	Sound	<60db
22	Dimensions	9008001300mm
23	Weight	110KG
24	Operation mode	Automatic/Manual
25	Display	7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency

Sr.no

Parameter

Pilotech YC-1000 spray granulator

Function

Spray dryer,spray granulator,coating,mixing

Power

5KW ,220V,50/60Hz

Spray granulator capacity

Max. 1000g/batch

Spray dryer capacity

Max. 1500ml/h

Minimum sample volume

50g

granulator temperature

40-150°c

Spray dryer inlet temp.

105-200°c

Compressed air

2-4 Bar

Temperature precision

±1°c

Coating

50-1000g/batch

Mixing

50-1000g/batch

Nozzle type

Two fluid nozzle

Nozzle jet

0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)

Airflow

0-150m³/h

Peristaltic pump

Max. 1500ml/h

Main chamber volume

10L

Heater power

3.5KW

Main chamber material

SUS304 Stainless steel &High borosilicate glass

Body material

SUS304 Stainless steel

Seal of cyclone/cylinder

Silicone

Sound

<60db

Dimensions

900*800*1300mm

Weight

110KG

Operation mode

Automatic/Manual

Display

7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency

10002 .jpg

OUR CUSTOMERS

Our company's laboratory equipment is widely used by well-known universities in China such as Tsinghua University, Peking University Fudan University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Wuhan University, Huazhong University of Science and Technology, Sun Yat-Sen University, Zhejiang University and Nanjing University, and world-renowned companies like Coca-Cola and General Electric. It has more than 1,500 users in mainland China.

FAQ

Do all products have English operating interfaces and operating manuals?

Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use. Q:How is the after-sales service of your company?

How is the after-sales service of your company?

We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only .

How is the stability and durability of your products?

The company has been established for over 10 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers.

As for the overseas market, what kind of policy does Pilotech have on dealers?

Pilotech welcomes dealers worldwide to sell our products, and we will provide dealers with strong technical support and competitive prices. Pilotech hopes to grow and develop together with distributors from different countries.
