Самолет УФ отверждения машина

Product name

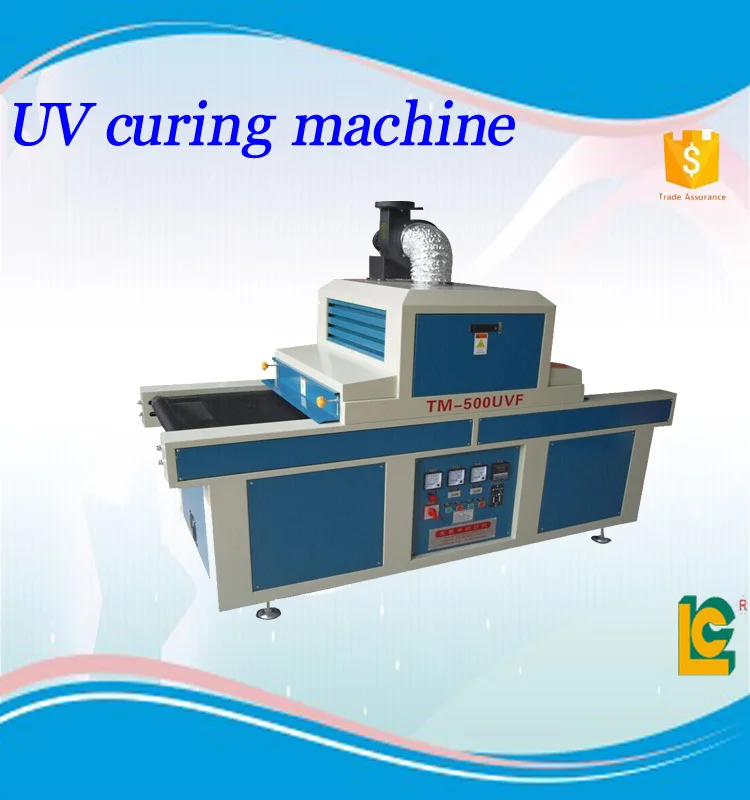

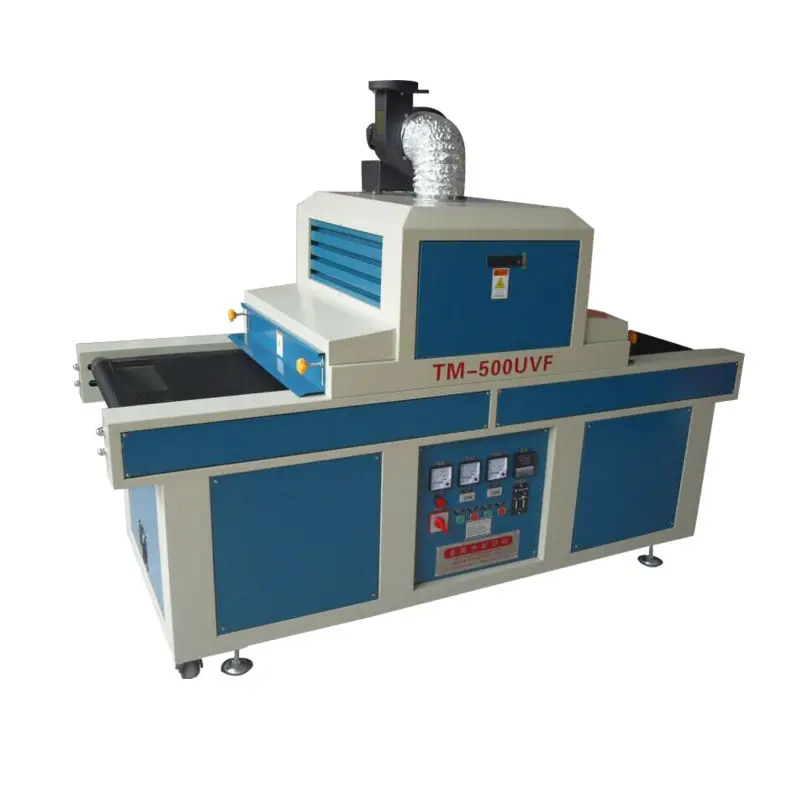

Plane UV curing machine

Model No

TM-500UVF

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Parameter

1.  Model  NO. TM-500UVF
2.  UV Drying  products: 500*100*2000mm
3.  Conveyor belt size: L2000* W500MM
4.  UV drying Lamp power: 2PCS*3KW /380V
5.  Total wattage: 7.5KW
6.  Wind fan wattage: 500W/380V
7.  motor wattage: 1000W/1P/380V
8.  Conveyor speed: 0~10m/min
9.  Speed change ways: Continue

10. UV Machine Dimension: L*W*H2020*700*1350
11. Weight: 250kg

Free fittings

1. 1 bag tooling box
2. 1 pcs English operating instruction

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;

Description

Plane UV curing machine is used for curing printed UV ink,UV glue,UV paint,UV varnish etc.
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Usage

Electron, Hardware, Auto, Toys, Gifts, Plastics parts,Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .

customer

USA, Germany,Europe,South Africa, South Asia,South-east Asia etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc
