 New pro stage audio sound equipment horn loaded super line array

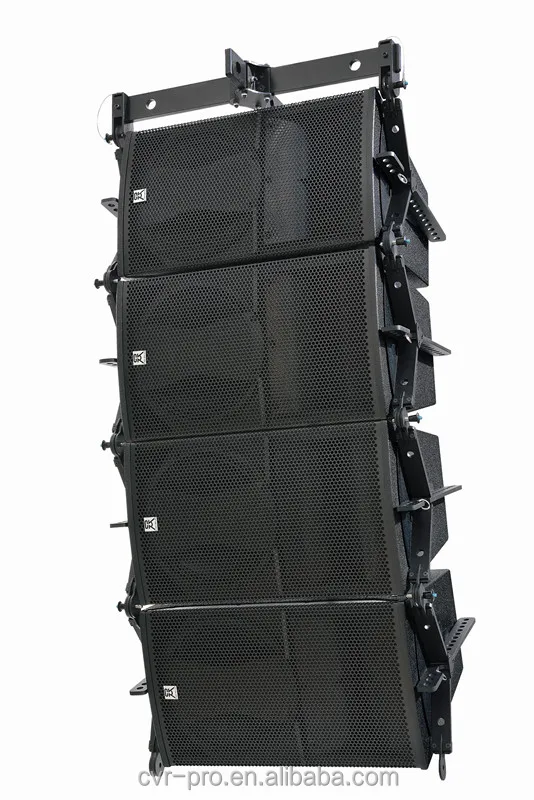

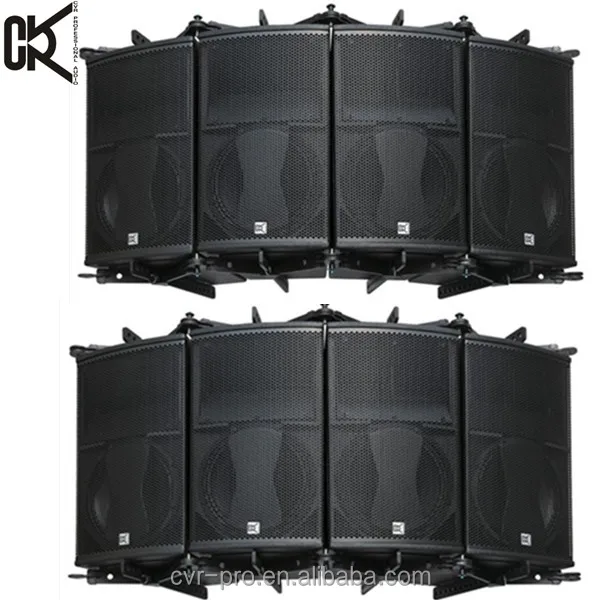

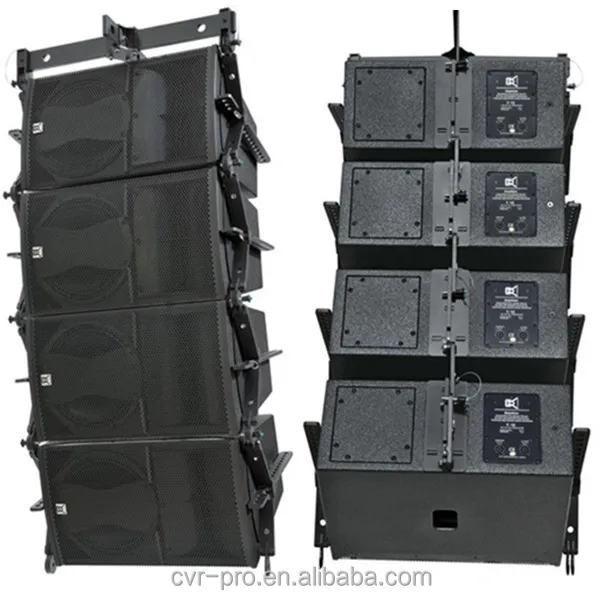

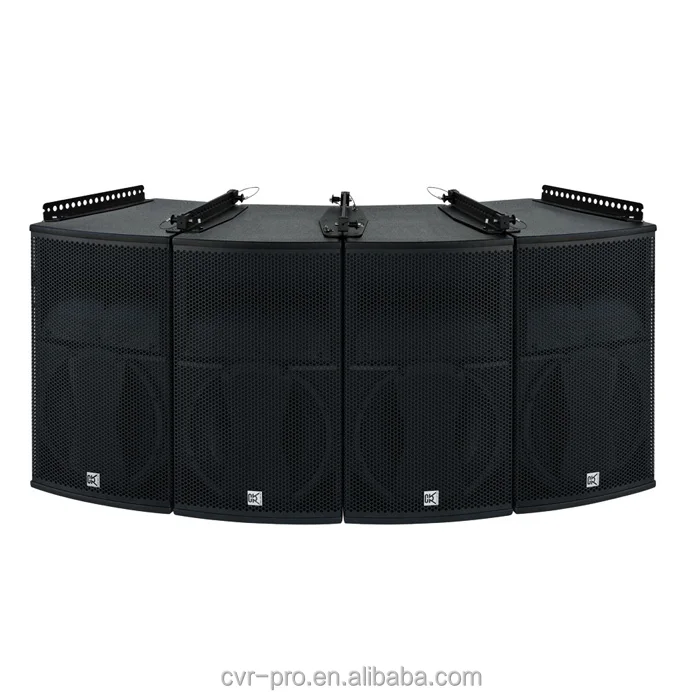

Product pictures

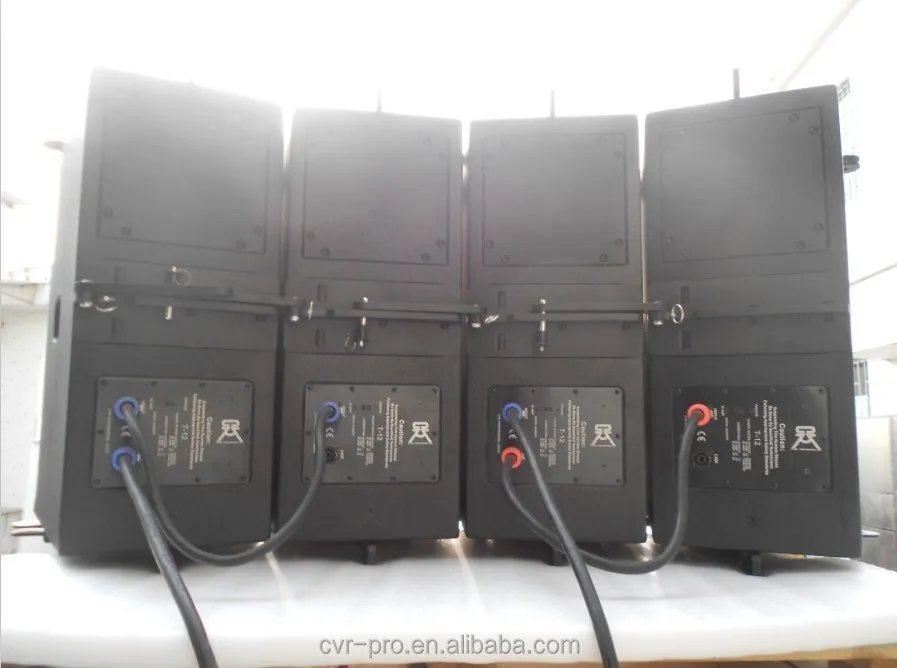

      T 12 BACK LOOK.jpg



Description & application


T-12  is  a bi-amps, line array system which is made of one 12", two 1.75"titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. T-12 is a compact line array enclosure designed to bring superb line array performance to large stadiums, big outdoor concerts and commercial events. The switchable one or bi-amplified two way cabinet is very efficient, It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installations.



Technical specifications


Model

T-12

Type

Line array system

Frequency Response

55Hz -20kHz ± 3dB

Power handling

400W(RMS)800W(PEAK)

Sensitivity

100dB(1W1M)

MaxS.P.L

126dB(PEAK/1M)

LF section

12"(310mm) woofer

75mm(3in)coil

Nominal impedance

8 ohm

HF section

 2×1.75"compression driver with

44mm titanium diaphragm

Nominal impedance

16 ohm

Output section

2-channel

Dispersion pattern

110°H×5°V

Finish

black paint

Speaker cables

Passive 1(+),1(-). Built in
crossover
Bi-AMP LF 1(+),1(-)
HF 2(+),2(-)

Input connectors

2×NL4MP speakon

Dimensions

355×593×434mm(W×H×D)

Package dimensions

425×660×505mm/0.14cbm

Enclosure

plywood

Netweight

28kg

Gross weight

31kg



Packing:



1. Quality carton box with firm belt.
------------------------------------------------------------------------------------------------------------------------
2. Flight case (shockproof,with wheels)
------------------------------------------------------------------------------------------------------------------------

Application



It is particularly suitable for:
1)Large stadiums;
2)Big outdoor concerts;
3)Commercial events;
4)Touring performance;
5)Corporate and fixed installation fields;
……………………


show case.jpg



         CVR PRODUCTS WITH HIGH REPUTATION AMONG ALL OF OUR CUSTOEMERS



application 1.jpg



Company Information

  Guangzhou CVR Pro-Audio Co.,Ltd is a manufacturer specialized in producing professional audio equipment with an own brand “CVR ” since 2005.CVR PRO AUDIO can easily provide you a wide range of professional sound gear like: PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.

  CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.

    C for creativity  V for versatility  R for reliability





TO GET THE BEST GOODS WITH LEAST MONEY IS NOT ONLY CUSTOMERS FAVORITES, BUT ALSO CVR'S TARGET.



cvr plant.jpgcvr plant 1.jpgcvr plant 2.jpg


Project
cvr show case 1.jpgcvr show case 2.jpg

CVR exclusive area
United States, Canada, Australia, Spain, Nigeria, Ghana, Japan, Korea, Cambodia, Fiji, Uganda, Malaysia, Peru.

USA Address:2012 TRANQUILITY LANE,LEAGUE CITY, TX 77573,USA
Japan Address: 329 AOKI YUASA-TOWN ARIDA-GUN, WAKAYAMA-prefecture
Korea Address:408,Onnuriplaza,128-2,Goean-dong,Sosa-gu,Bucheon-si,Kyungki
Ghana Address:No.9,5th Circular road,Labone Accra
Uganda Address: Plot 1175A Mukalazi Road, Bukoto Kampala Uganda. P.O BOX 23217Kampala
Nigeria Address: T. I. REWARD BLOCK, ELECTRONICS MARKET ONITSHA, ANAMBRA STATE.
Certificates
