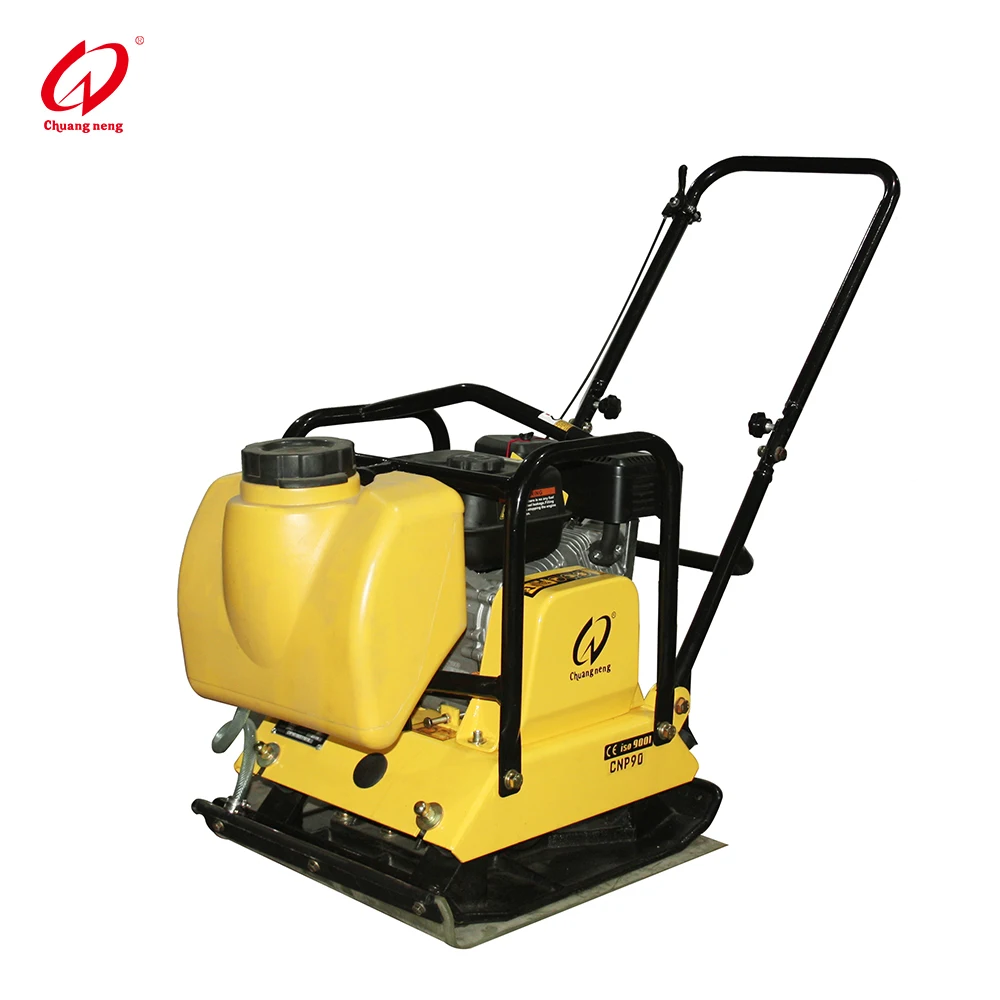

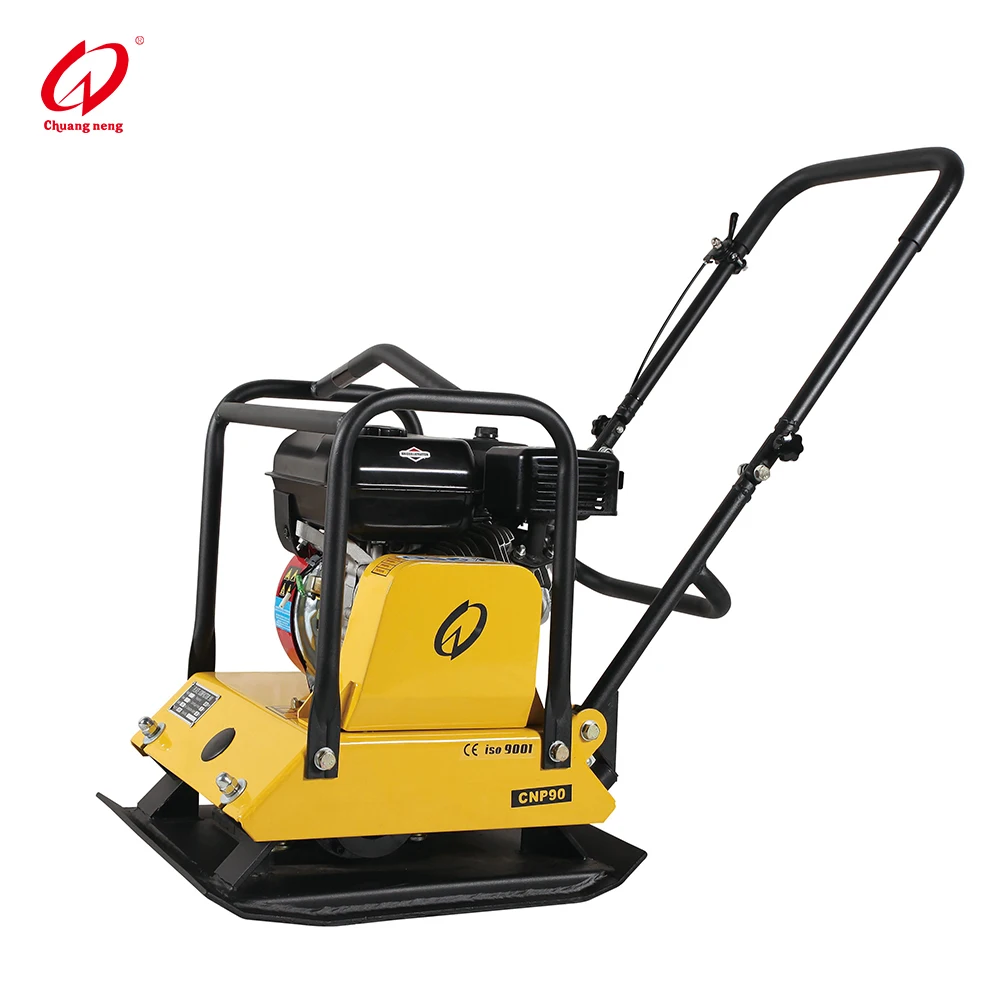

FORWARD PLATE COMPACTOR

1.The open wide base is available for the clean by oneself.

2.Convenient for the transport with wheel, wheel assembly (optional).

3.The front turn-up base is convenient for approaching the corner.

4.The closed strap can prevent the sand entering into the machine.

5.Efficient shock mounts foot can reduce the vibration of upper engine&handle.



Technical Specification:

Model	CNP90
Engine Type	Honda GX160	Chinese Petrol Engine	Chinese Diesel 170F
Power Kw(hp)	3.6(5.5)	4.1(6.5)	2.8(4.2)
Weight kg(lbs)	88.5(195)	88.5(195)	98.5(217)
Frequency vpm	4200
Centrifugal Force kN	15
Compaction Depth cm(in)	30(12)
Travel Speed cm/s(in/s)	38(11.9)
Eifficiency m²/hr(ft²/hr)	602(6476)
Plate Size cm(in)	55*44(20*17)
Package cm(in)	64*48*67(25.2*19*26.3)		64*48*72(25.2*19*28.3)



Optional accessories



1.Protective frame



2.Foldable handle



3.Trolley wheel



4.Rubber mat



Certification







Introduction Of Company

       Wuxi Chuangneng Machinery Manufacturing Co., Ltd. is a high-tech enterprise specialized in research, development and manufacture of light construction machines with a history of over 10 years.  Our products range are covering compaction, concrete, cutting, generator, rebar and other construction fields. Most products have passed the tests by the TüV Rheinland, achieved the CE and GS certificates.
