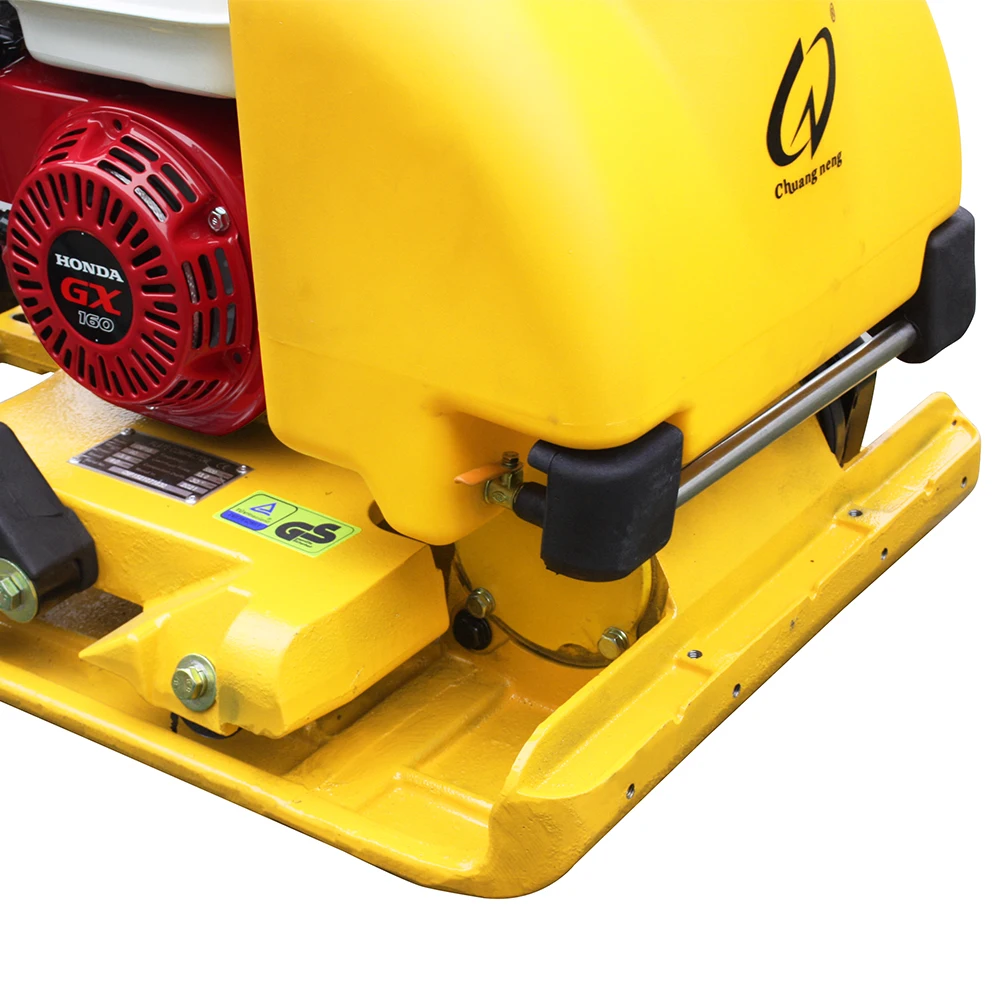

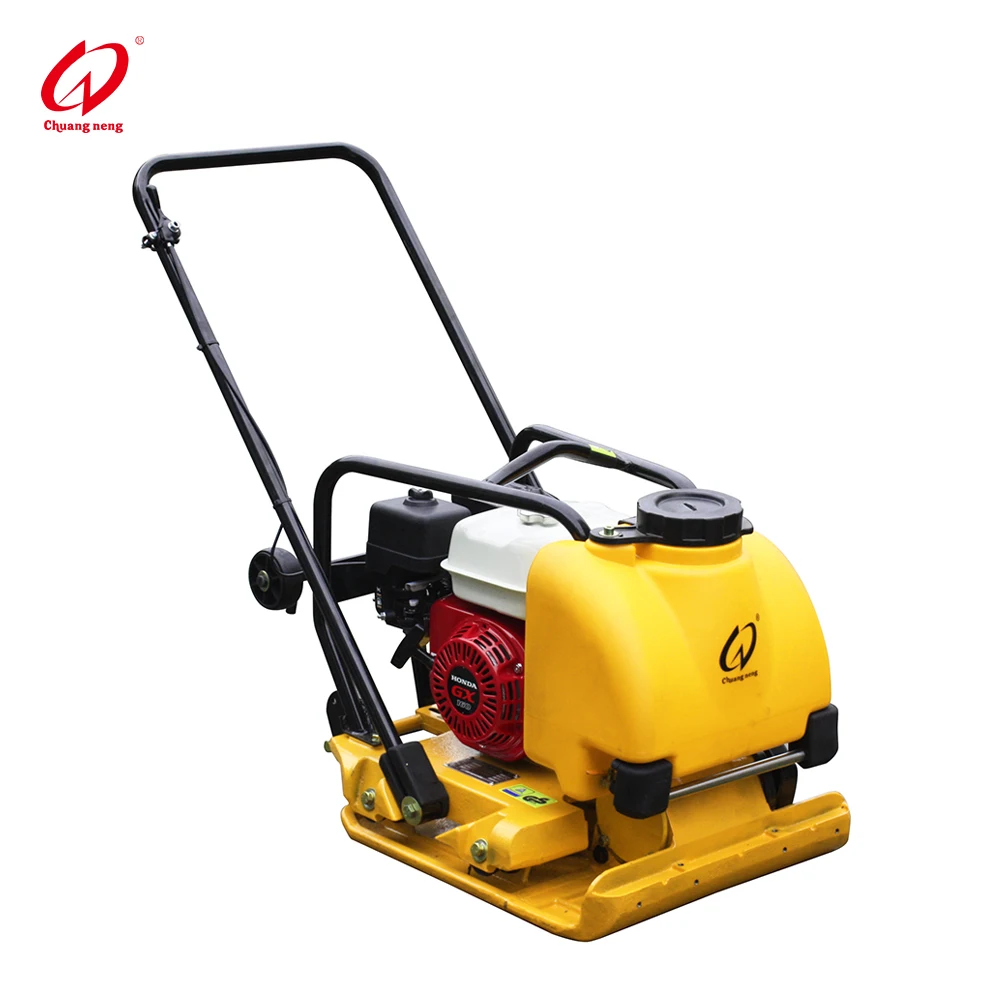

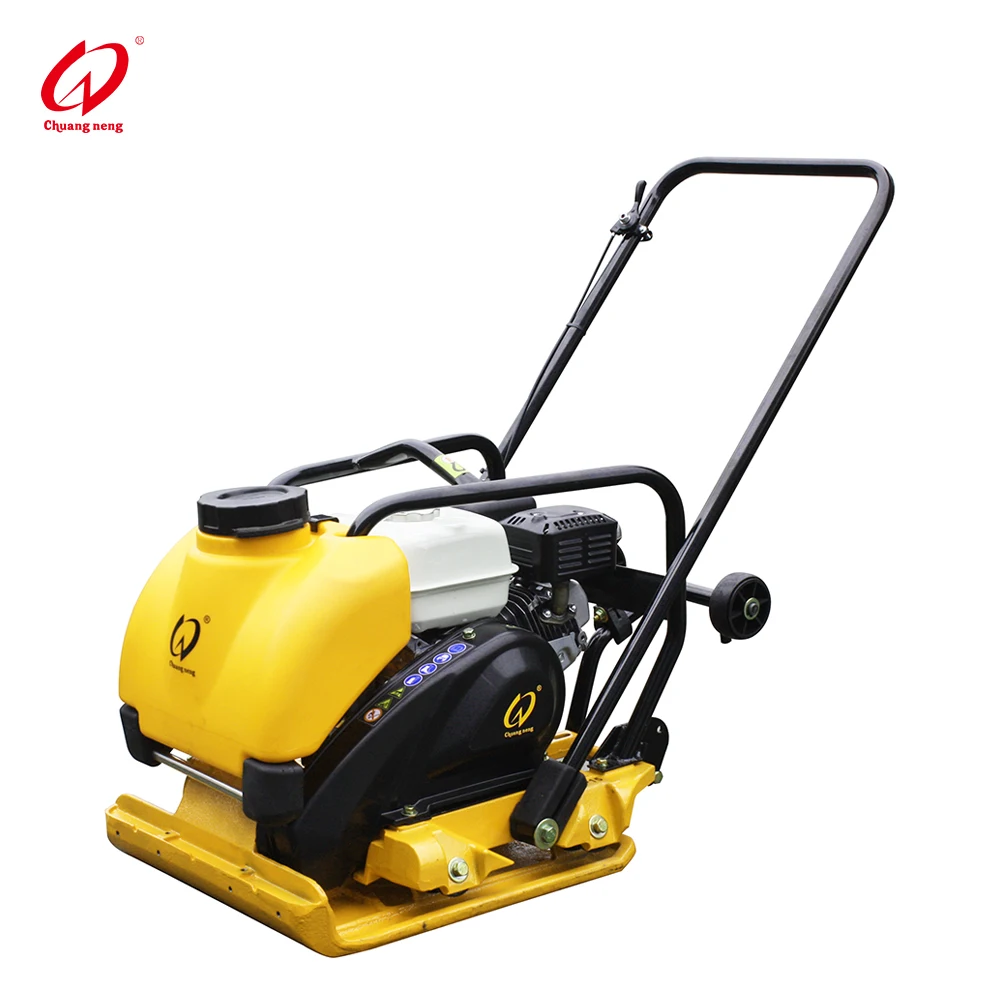

 FORWARD PLATE COMPACTOR

Compact and latest design in plate compactors,suitable for most of compaction work,even brick paving compation (with optional rubber mat).



Technical Specifications:

Model	CNP15
Engine Type	Honda GX160	Chinese Petrol Engine	Chinese Diesel 170F
Power Kw(hp)	3.6(5.5)	4.1(6.5)	2.8(4.2)
Weight kg(lbs)	90(198)	90(198)	100(220)
Frequency vpm	5500
Centrifugal Force kN	13.0
Compaction Depth cm(in)	30(12)
Travel Speed cm/s(in/s)	40(16)
Eifficiency m²/hr(ft²/hr)	720(7747)
Plate Size cm(in)	53*50(21*20)
Water Tank Capacity L	12
Package cm(in)	75*52.5*54(30*20.7*21.3)		75*52.5*68(30*20.7*26.8)





Features:
Foldable handle for easy transportation and storage.
Open plate provides self cleaning.
Built-in wheel for easy transportation.
Heavy-duty shock mounts reduce vibration to the upper engine and handle.
Sealed belt cover to prevent sand and oil in.
Round edge protect the exciter housing and even objects around working site.
Lifting hook as standard part.
Throttle control is available as optional.



Introduction Of Company

       Wuxi Chuangneng Machinery Manufacturing Co., Ltd. is a high-tech enterprise specialized in research, development and manufacture of light construction machines with a history of over 10 years.  Our products range are covering compaction, concrete, cutting, generator, rebar and other construction fields. Most products have passed the tests by the TüV Rheinland, achieved the CE and GS certificates.
