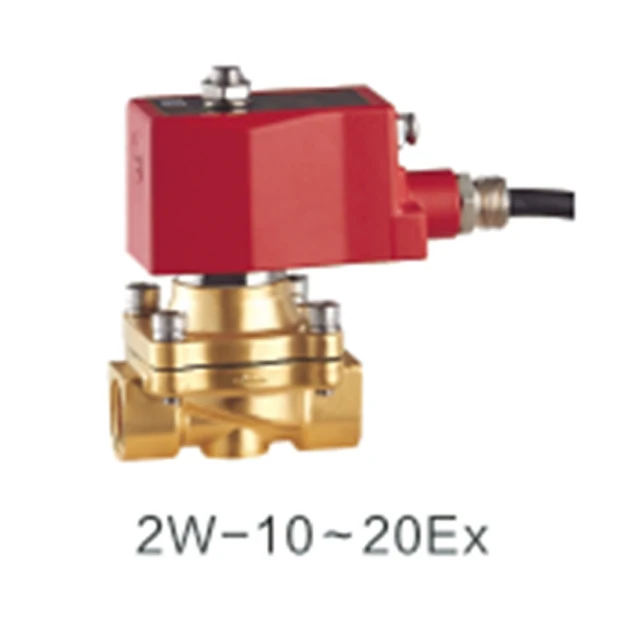

Взрывозащищенный электромагнитный клапан
- Категория: Электромагнитные клапаны >>>
- Поставщик: Yuyao,No.,4,Instrument,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 95.38 $* | 100.99 $* |
| Aug-20-2025 | 94.54 $* | 99.96 $* |
| Jul-20-2025 | 79.64 $* | 83.63 $* |
| Jun-20-2025 | 93.44 $* | 98.74 $* |
| May-20-2025 | 81.35 $* | 85.55 $* |
| Apr-20-2025 | 91.87 $* | 96.0 $* |
| Mar-20-2025 | 90.31 $* | 95.8 $* |
| Feb-20-2025 | 90.83 $* | 95.19 $* |
| Jan-20-2025 | 89.46 $* | 93.44 $* |
Характеристики
Exm explosion proof solenoid valve
-- Media: Water, Air, Oil (below 20cst), Vacuum
--Function type: Normally Closed (N/C)
-- Pressure: 8bar
--Temperature:0 ÷80
-- Ambient temperature: :-10 ÷50
--Body material: Brass,Stainless
--Protection class: IP65/ IP54
--The Certificate of Explosion Proof No.: GYB06624X
--Working situation: Explosive environment; surrounding environment is categorized as IIA, IIB
Model | Connection Size | Orifice | KV Value | L | H | Medium Temperature | Pressure | Power | Manufacturers standard | Explosion Proof sign |
mm | mm | mm | bar | |||||||
ZCSB-5 | M10 | 5 | 0.5 | 40 | 118 | 0 ÷80
(T4135) | 0.3÷8bar (0÷16bar) | AC: 220V~AC: 230V/50-60HZ
AC: 110V~AC: 120V/50-60HZ
DC24;
Range:±10% | GB3836.1-2000 GB3836.2-2000 | Ex: DIIBT4
|
ZCSB-10 | G3/8 | 10 | 3.8 | 95 | 140 | |||||
ZCSB-15 | G1/2 | 15 | 3.8 | 90 | 140 | |||||
ZCSB-20 | G3/4 | 20 | 7.3 | 103 | 154 | |||||
ZCSB-25 | G1 | 25 | 12.2 | 120 | 166 | |||||
ZCSB-32 | G1¼ | 32 | 14 | 135 | 178 | |||||
ZCSB-40 | G1½ | 40 | 24 | 145 | 182 | |||||
ZCSB-50 | G2 | 50 | 35 | 188 | 211 | |||||
ZCSB-65F | Flange2½ | 65 | 50 | 250 | 288 | |||||
ZCSB-80F | Flange 3 | 80 | 70 | 278 | 305 | |||||
ZCSB-100F | Flange4 | 100 | 100 | 350 | 355 | |||||
ZCSB-125F | Flange 5 | 125 | 190 | 425 | 430 | |||||
ZCSB-150F | Flange6 | 150 | 250 | 450 | 460 | |||||
ZCSB-200F | Flange 8 | 200 | 440 | 560 | 570 |
