 Binding Wire Function Electro Galvanized  binding wire

  Galvanized  binding wire

    Electro Galvanized  binding wire



Usage: used in communication equipments, medical devices wire mesh weaving, brushes, cables,

filter, high-presure pipes, construction, craft,  etc.

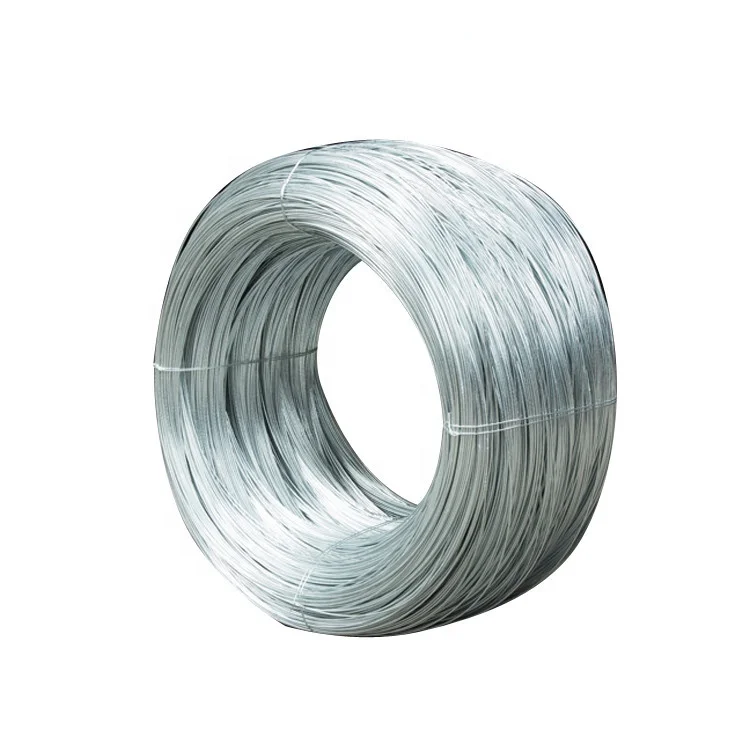

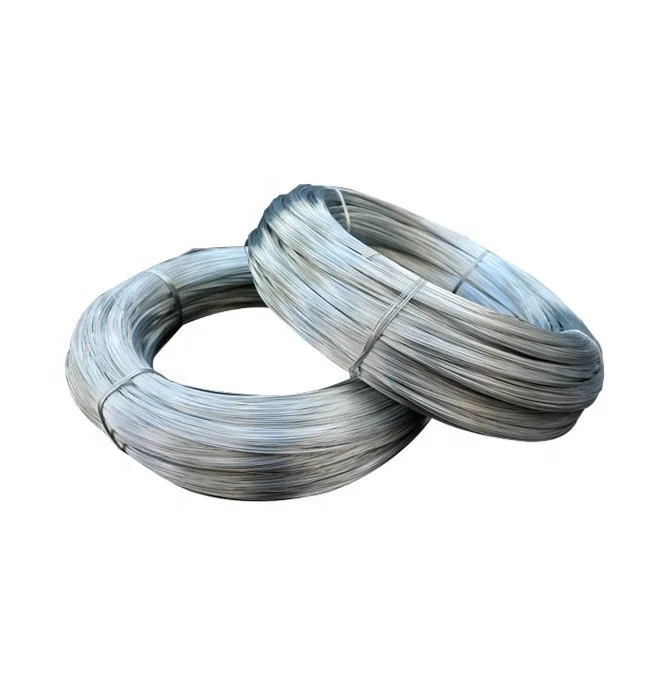

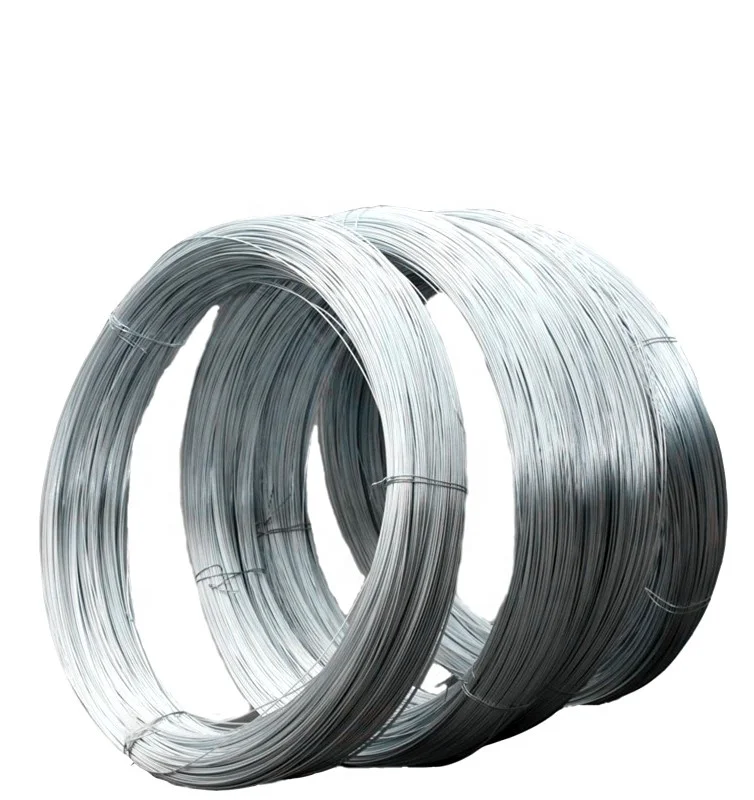

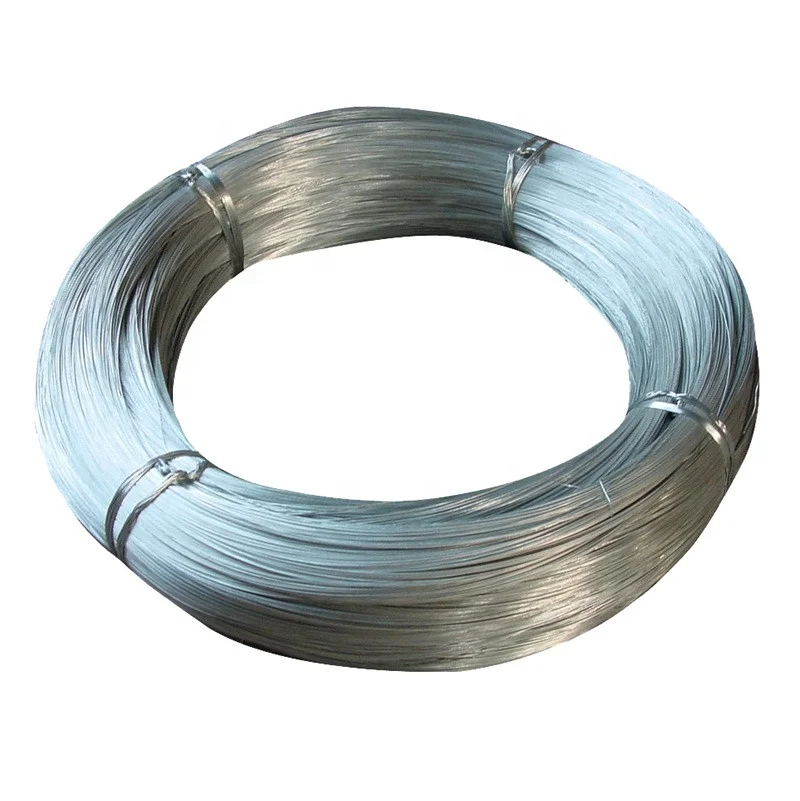

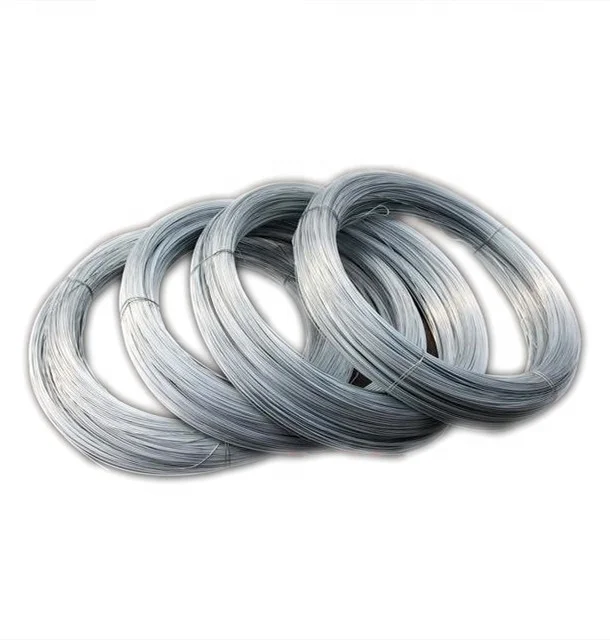

Electro galvanized iron wire

Material: Q195, Q235, 1006, 1008

Wire Diameter:0.71mm-4.06mm

Tensile stength: 300-550N/mm2

Elongation: 15% max



Electro galvanized iron wire ranging from BWG8# to BWG16# is thwe mostly used for customers.

We also offer thinner galvanized wire down to BWG5#to BWG28# upon customers specific order.

Single coil package for electro galvanized iron wire can be as small as 10kg and up to 1000 kg per coil.



Nominal Diameter	Tensile Strength	Stress at 1% Elongation	Twist	Elongation	Standard
mm	Mpa	Mpa	Times/ 360°C	Lo=250mm	As per GB,EN, IEC,JIS, ASTM standard,as well as customer's request
1.24-2.25	≥1340	≥1170	≥18	≥3%
2.25-2.75	≥1310	≥1140	≥16	≥3%
2.75-3.00	≥1310	≥1140	≥16	≥3.5%
3.00-3.50	≥1290	≥1100	≥14	≥3.5%
3.50-4.25	≥1290	≥1100	≥12	≥4%
4.25-4.75	≥1290	≥1100	≥12	≥4%
4.75-5.50	≥1290	≥1100	≥12	≥4%



Processing Of Electro Galvanized Wire:
Electro galvanized wire made by iron wire or high carbon steel wire.

 through the process of wire drawing, acid washing and rust removing, annealing ,galvanized and coiling.



Electro Galvanized Iron Wire Features:
Electro galvanized wire's characteristics is excellent flexibility and softness, has high zinc coated to protect

wire from rust . Zinc coating value can be 15g/m2--50g/m2



Packing:

1-800kg/coil plastic inside and hessian outside/woven bag outside.

Customer special requirments for hot-dip galvanized wire is available.


Electro Galvanized Wire Application:
electro galvanized wire used in construction, handicrafts, woven wire mesh, express way

fencing mesh, packaging of products and other daily uses.











Service we can provide

1. Mixed container, we can mix different items in one container.
2. Quality control, before shipment, free sample for test. after shipment,  keep sample for 3 years.
3. Prompt shipment with professional documents.
4. Packing as your request, with photo before shipment.
5. High quality and competitive price.



Undertaking

All the products from us are high quality without any fake or dangerous materials inside;

All the deliveries will be arranged within 3~5 working days; in case of force majeure, we will keep

you posted in time.
