Сверхмощный стационарный Электрический гидравлический ножничный
- Категория: Lift Tables >>>
- Поставщик: Nu-Lift,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.67 $* | 0.3 $* |
| Aug-16-2025 | 0.48 $* | 0.46 $* |
| Jul-16-2025 | 0.15 $* | 0.31 $* |
| Jun-16-2025 | 0.62 $* | 0.1 $* |
| May-16-2025 | 0.76 $* | 0.99 $* |
| Apr-16-2025 | 0.60 $* | 0.65 $* |
| Mar-16-2025 | 0.16 $* | 0.59 $* |
| Feb-16-2025 | 0.45 $* | 0.7 $* |
| Jan-16-2025 | 0.58 $* | 0.32 $* |
Характеристики
Customs' special requirements are acceptable.
FAQ
Different color is available.
Different voltage is available.
We can make table platform, scissors, table base in hot galvanized, or stainless steel SUS304.
Our standard hydraulic pump station is imported from South Korea. and imported bucher pump is optional.
Our Services
We offer our customers one year free spare parts, and forever free technical support.
Packaging & Shipping
Each piece in one wooden crate

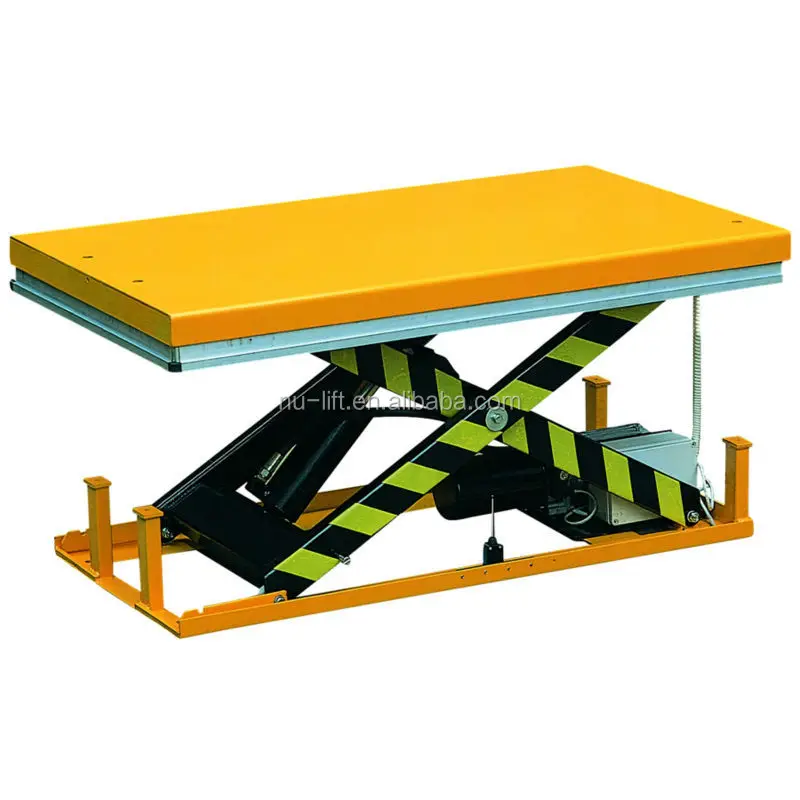

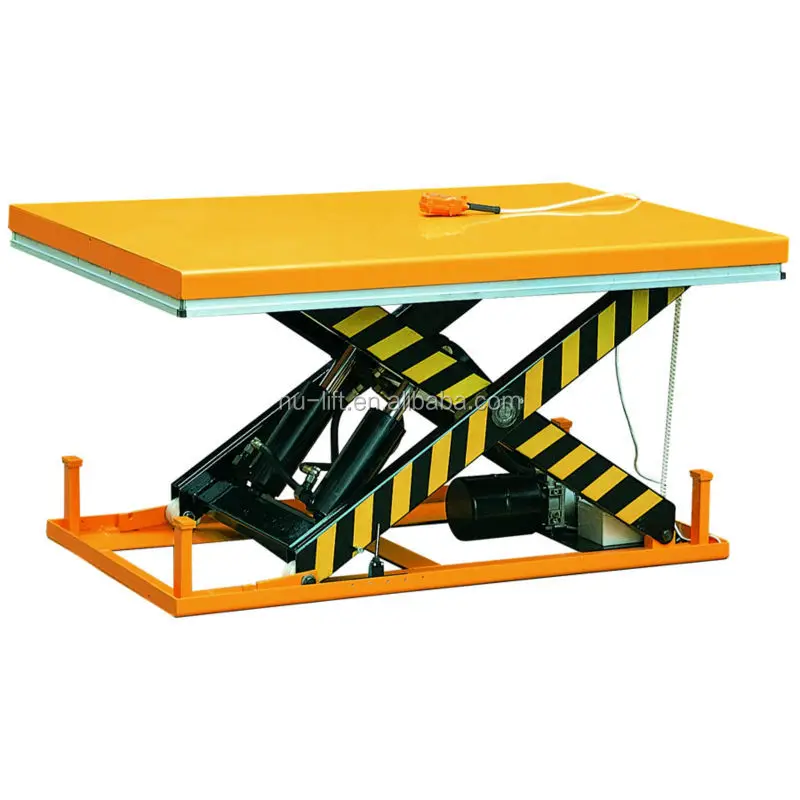

Product Description
HW series lift tables meet EN norm and ANSI/ASME safety standards.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention(24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation.

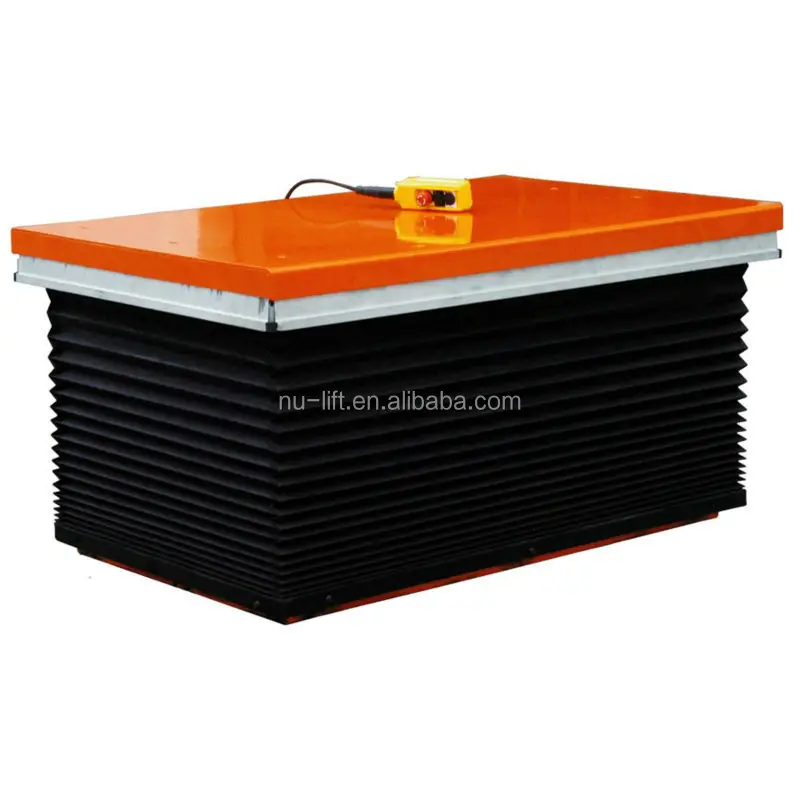

with optional protection curtain
| Model | Capacity | Lowered Height | Raised Height | Platform Size | Base Frame Size | Lift Time | Power pack | Net Weight |
| kg | (mm) | (mm) | (mm) | (mm) | (second) | (kg) | ||
| HW1001 | 1000 | 205 | 1000 | 820×1300 | 640×1240 | 20-25 | 380v/50HZ,AC1.1kw | 160 |
| HW1002 | 205 | 1000 | 1000×1600 | 640×1240 | 20-25 | 186 | ||
| HW1003 | 240 | 1300 | 850×1700 | 640×1580 | 30-35 | 200 | ||
| HW1004 | 240 | 1300 | 1000×1700 | 640×1580 | 30-35 | 210 | ||
| HW1005 | 240 | 1300 | 850×2000 | 640×1580 | 30-35 | 212 | ||
| HW1006 | 240 | 1300 | 1000×2000 | 640×1580 | 30-35 | 223 | ||
| HW2001 | 2000 | 230 | 1050 | 850×1300 | 785×1220 | 20-25 | 380v/50HZ,AC1.5kw | 235 |
| HW2002 | 230 | 1050 | 1000×1600 | 785×1220 | 20-25 | 268 | ||
| HW2003 | 250 | 1300 | 850×1700 | 785×1600 | 25-35 | 289 | ||
| HW2004 | 250 | 1300 | 1000×1700 | 785×1600 | 25-35 | 300 | ||
| HW2005 | 250 | 1300 | 850×2000 | 785×1600 | 25-35 | 300 | ||
| HW2006 | 250 | 1300 | 1000×2000 | 785×1600 | 25-35 | 315 | ||
| HW4001 | 4000 | 240 | 1100 | 1200×1700 | 900×1600 | 30-40 | 380v/50HZ,AC2.2kw | 375 |
| HW4002 | 240 | 1100 | 1200×2000 | 900×1600 | 30-40 | 405 | ||
| HW4003 | 300 | 1400 | 1000×2000 | 900×2000 | 45-50 | 470 | ||
| HW4004 | 300 | 1400 | 1200×2000 | 900×2000 | 45-50 | 490 | ||
| HW4005 | 300 | 1400 | 1000×2200 | 900×2000 | 45-50 | 480 | ||
| HW4006 | 300 | 1400 | 1200×2200 | 900×2000 | 45-50 | 505 | ||
| HW4007 | 300 | 1400 | 1500×1700 | 1200×1600 | 45-50 | 420 | ||
| HW4008 | 300 | 1400 | 1800×2200 | 1500×2000 | 45-50 | 540 |
