 MYJ50T Hydraulic Cold press/Screw Press





Brief Introduction of cold press

This machine is mainly used in gluing and pressing for the wood products,with high effeciency and good quality.It is used for manufacturing and the wood componets of furnature.



Main Structure and Functions of cold press

This machine is composed of body frame,up and down worktable,transmission system,electrical control system,etc.

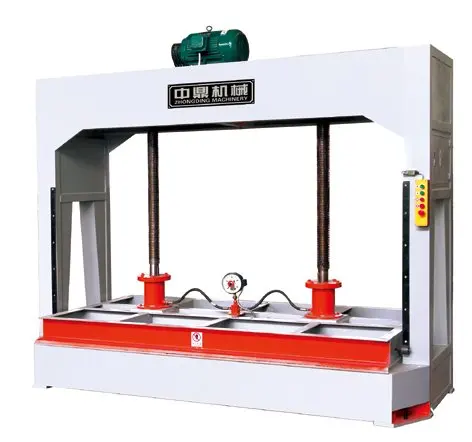

1.The display of the cold press machine:











2.The technical specification of cold press

a.MYJ50T



MAX. pressure	50T
Dimension of the platen	2500*1250mm
Working speed	180mm/min
Total power	5.5kw
Overall dimensions	2860*1300*3400mm
Net weight	2300kg
Stroke	1000mm

b.MYJ80T



MAX. pressure	80T
Dimension of the platen	3150*1320mm
Working speed	180mm/min
Total power	5.5kw
Overall dimensions	3640*1700*2580mm
Net weight	3400kg
Stroke	1300mm







  3.Advantages of cold press:



 1.Easy to operate, reasonable design, stable performance



2.fast and efficient pressing.



3.Emergency safety braking.



4.Trip limited device.



5.Automatic compression and unloading pressure function



6.Work-table height convenient for human body







 Our company :Qingdao zhongding machinery company













 Our company entered the fairs:







the package of cold press







We are manufacture, so if you have some special need in specification , we can change it for you. If you need the machine, please contact me, I can recommend you a most appropriate one.
