LEC Prestressed Construction Front Pulling Mono Stressing Jack

Product Description

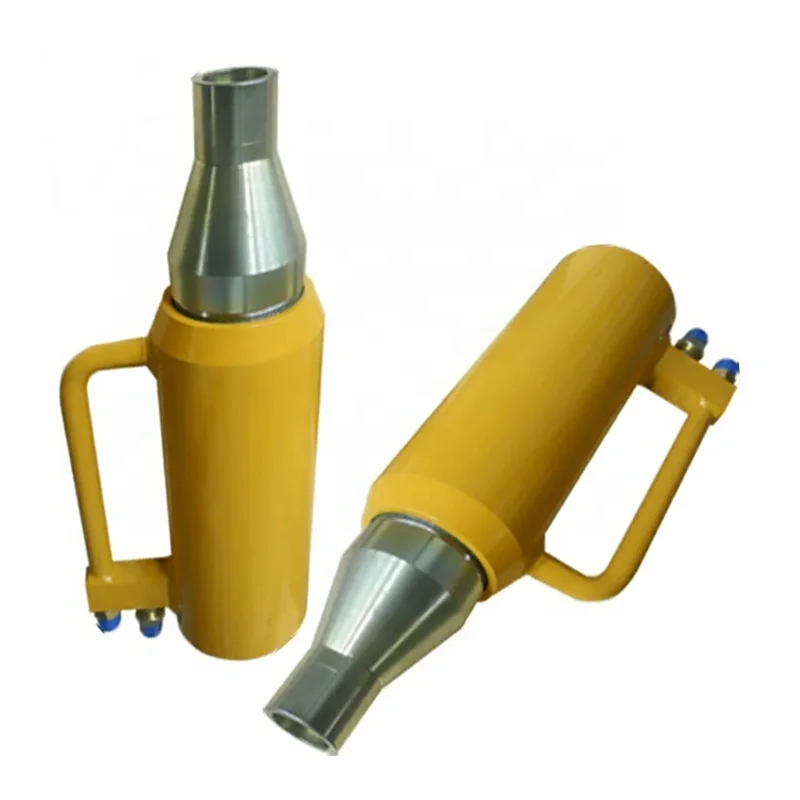

mono stressing jack

1. Model: QYC270(27 tons), QYC240(24 tons)

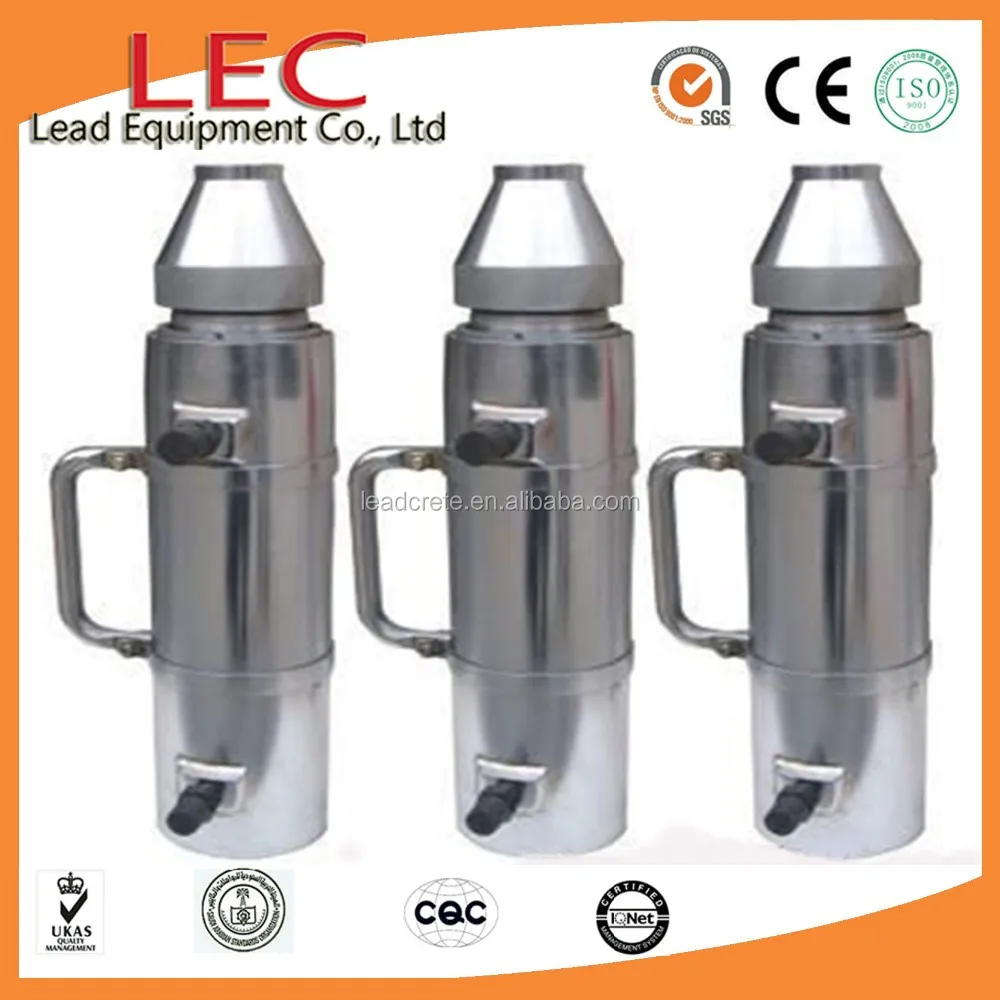

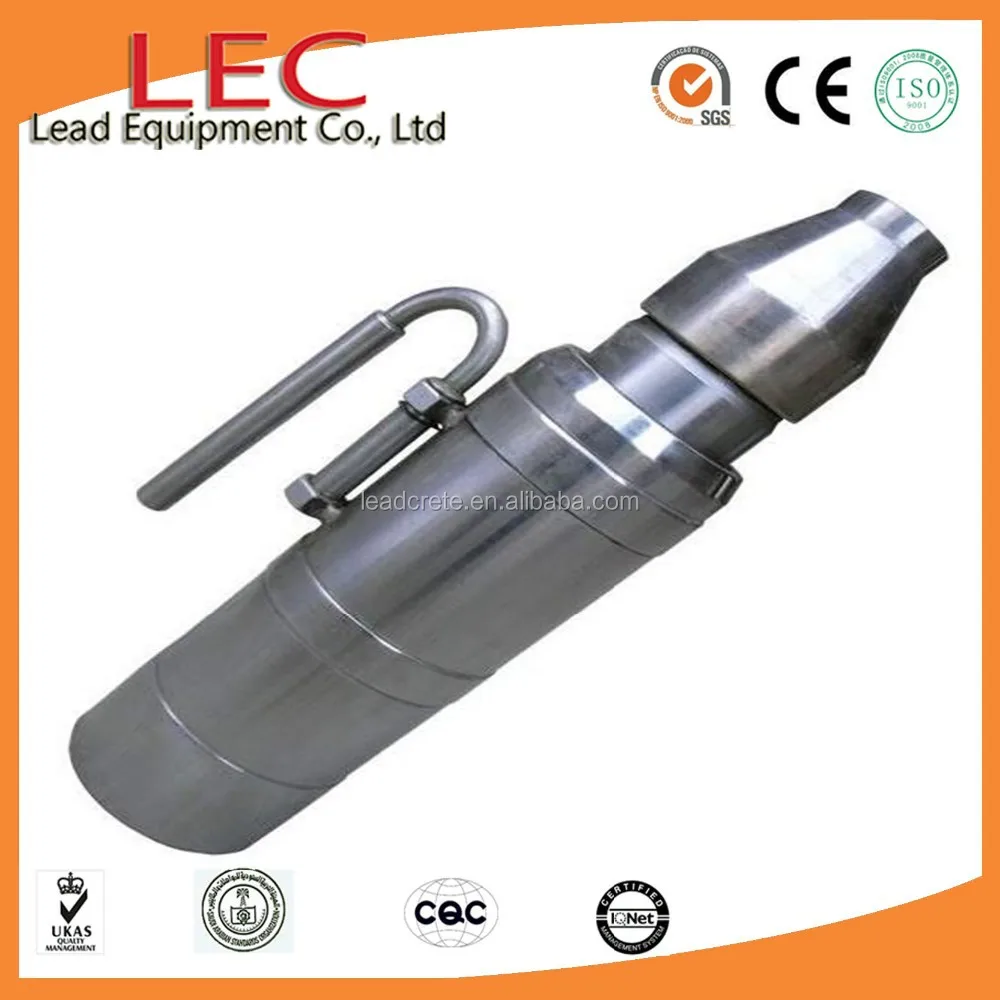

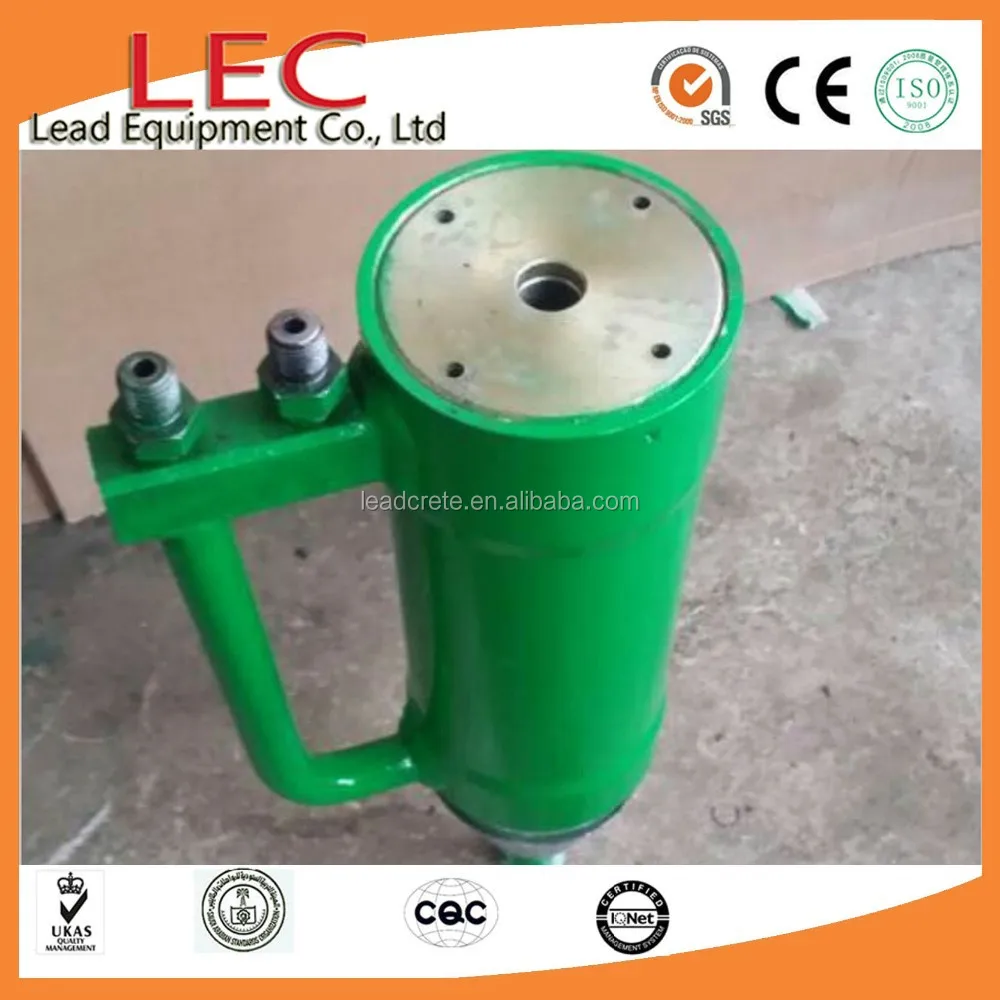

mono stressing jack

2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Cross Core Diameter: 18mm, Tension Cylinnder Area: 44.5cm²,

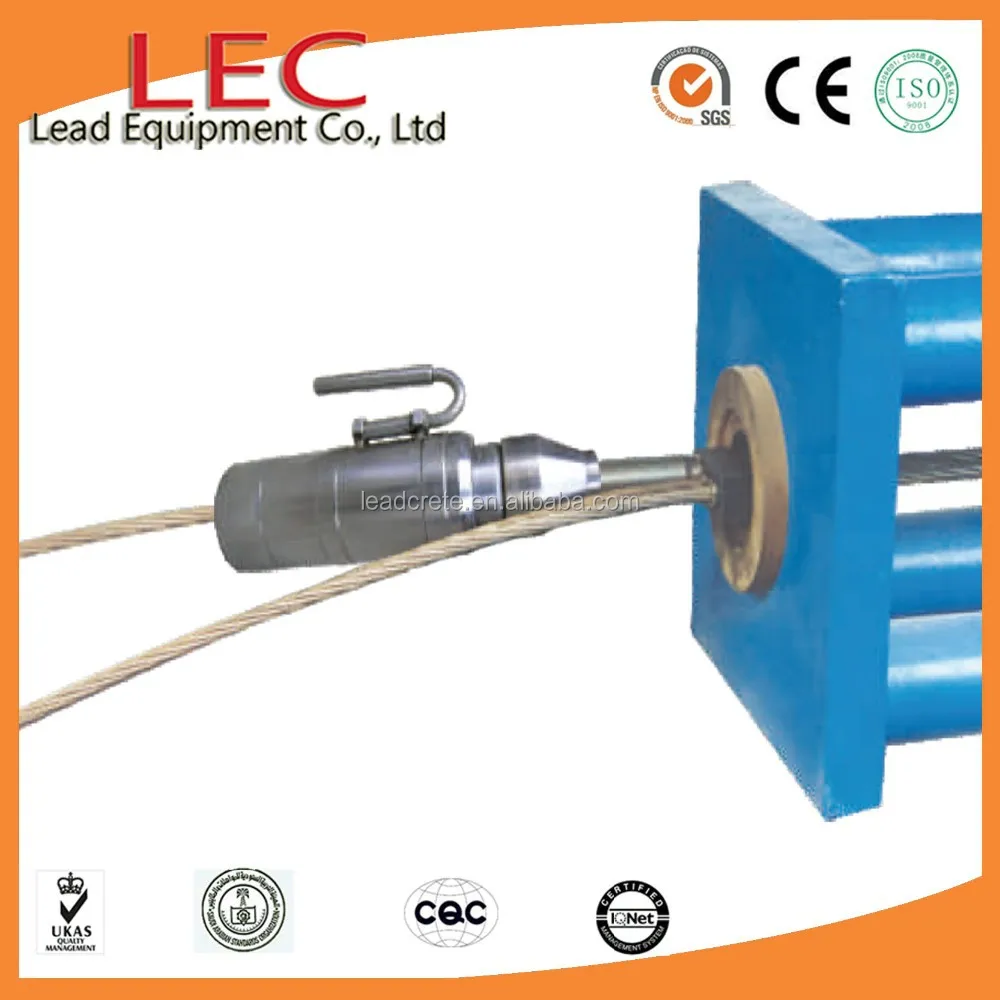

3. Usage: To tension single strand or flat anchor system

4. Applications: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .

5.Features: It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.

A: It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.

B: It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.

C: It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.

6. Competitive price: USD450-550 pert set FOB price, if you order much the price will be more lower.

Our Advantages:

We supply full complete set anchor system and equipment for construction, please see following:

A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire

B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.

Flat anchor system

LEC Prestressed Construction Front Pulling Mono Stressing Jack

C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.

D: Equipement: hydraulic jack, oiln pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.

E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.

PC Strand:

Corrugated Pipes(Ducts)

The technical parameter of front pulling mono stressing jack

Parameter table of QYC front-end fixed jack
Model	Nominal	Diameter of	Area of	Stroke of	Rated oil pressure	Overall		Minimum		The reserved
	tensionin	minimum	stressing	stressing		dimension		working		length
		centre hole	cylinder					space(mm)		of strand
	KN	mm	mm²	mm	Mpa	out dianeter(mm)	length(mm)	L	E	mm
QYC70	74	10	1437	150	50	63	296	616	54	120
QYC240	240	18	4009	200	60	102	425	825	86.7	200
QYC270	270	18	4415	200	61	105	427	827	89	200
QYC1100	1100		22619	200	49	265	336
QYC2000	2000		42332	200	48	355	386
