Double Sigma Blade 500L резиновый смеситель для хлеба Banbury
- Категория: >>>
- Поставщик: Permix,Tec,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5058.96 $* | 5311.74 $* |
| Aug-18-2025 | 5015.94 $* | 5266.85 $* |
| Jul-18-2025 | 4208.4 $* | 4418.5 $* |
| Jun-18-2025 | 4930.44 $* | 5177.33 $* |
| May-18-2025 | 4293.46 $* | 4508.58 $* |
| Apr-18-2025 | 4845.5 $* | 5087.34 $* |
| Mar-18-2025 | 4803.45 $* | 5043.82 $* |
| Feb-18-2025 | 4760.19 $* | 4998.10 $* |
| Jan-18-2025 | 4718.30 $* | 4954.80 $* |
Характеристики
Products Description
PerMix Advantages & Services: | ||||||||
● PerMix machines are designed and manufactured as “tailor-made” ones to meet our customers’ individual requirement. | ||||||||
● Since 1954, PerMix has been building our know-how in mixing and processing with our design team located in both Israel and China. | ||||||||
● PerMix has been setting up a global network of agents and representatives to serve our worldwide customers locally and on time. | ||||||||
● PerMix has a lot of experience to sub-contract mixers for well-known equipment suppliers in Europe and USA, and we build the machines to fulfil the highest standard. | ||||||||
● PerMix has its workshop located in Shanghai area, China; where there is a complete and endless production capability at a reasonable price. | ||||||||
● PerMix mixers price is competitive compared with the quality of the same level. | ||||||||
● PerMix offers a comprehensive range of industrial mixing equipment in the market. | ||||||||
● Applications of PerMix industrial mixers cover wherever there is a need for mixing, including but not limited to chemicals, food, cosmetics, rubber, plastics, pharmaceuticals. | ||||||||
INTRODUCTION:

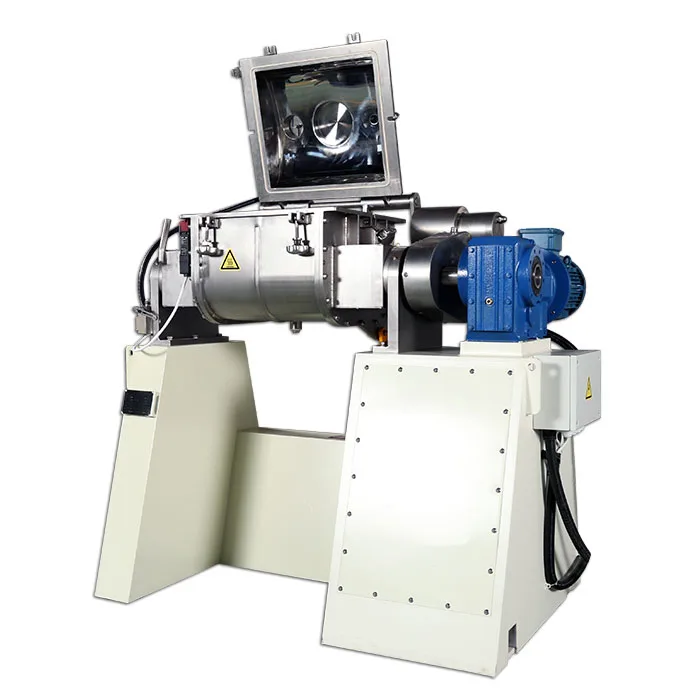

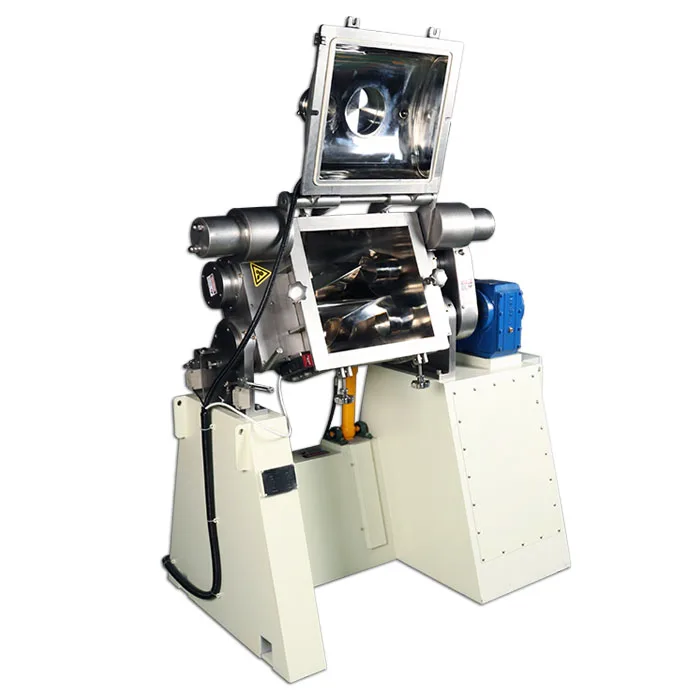

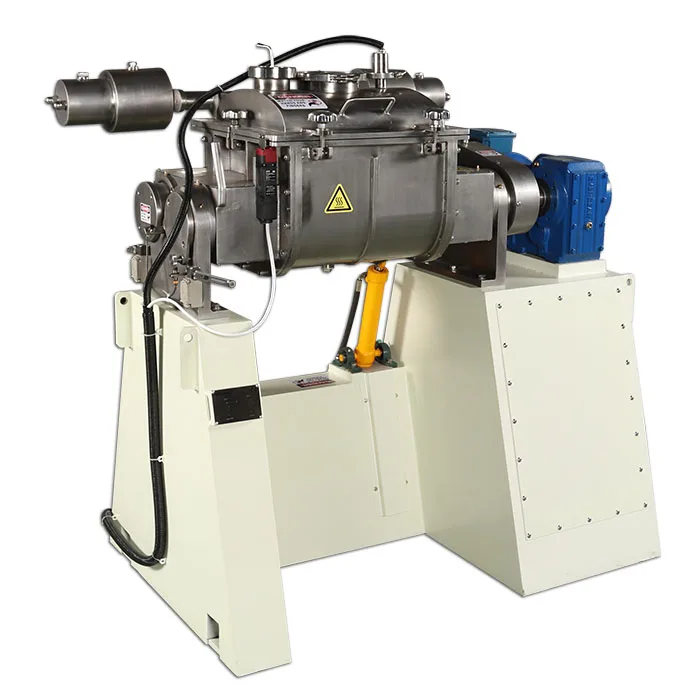

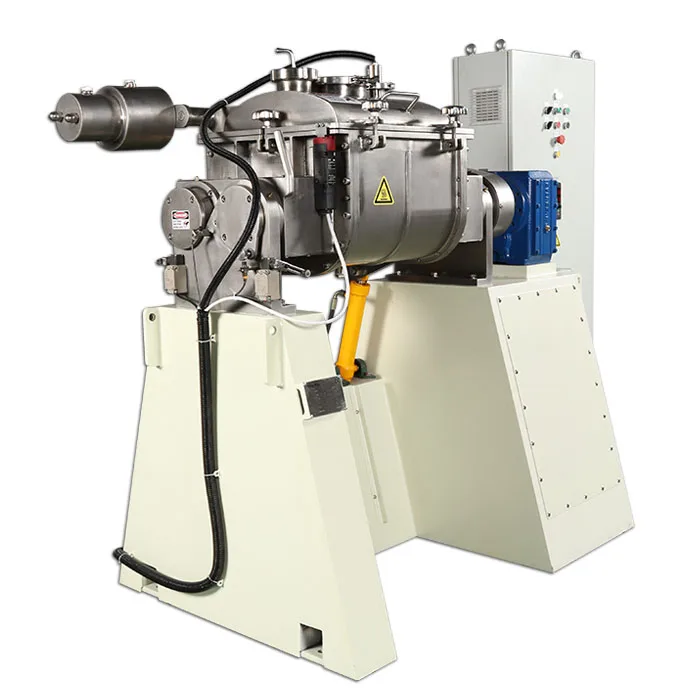

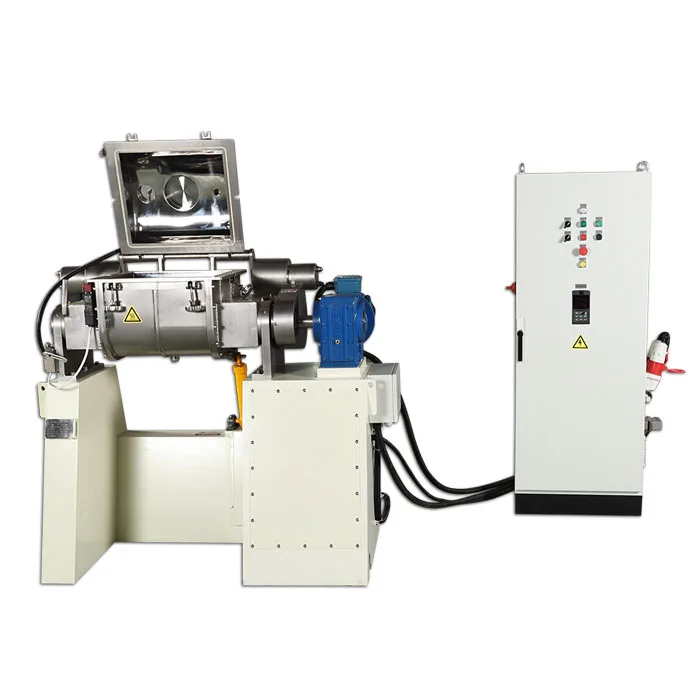

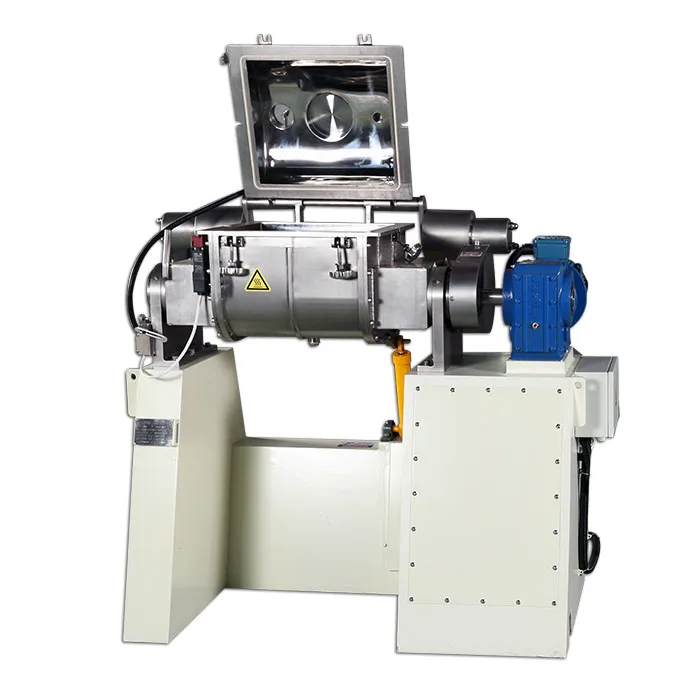

The PerMix PSG series Sigma Mixer, which is also known as the Double Sigma Mixer, or Double Z Blade Mixer, is used for the mixing-kneading of materials with very high viscosity (over 500,000 cps).
With its unique design of Z-shaped mixing tools installed in two semi-cylinders, the PerMix PSG series Sigma Mixer is able to provide a combined functions of compressing, stretching, folding, kneading & mixing, which makes it widely used in the chemical, food, sealing compound and paint industries, among others. If a screw extruder is applied for discharging, the mixer is also called Sigma Mixer Extruder, or Mixtruder.
With its unique design of Z-shaped mixing tools installed in two semi-cylinders, the PerMix PSG series Sigma Mixer is able to provide a combined functions of compressing, stretching, folding, kneading & mixing, which makes it widely used in the chemical, food, sealing compound and paint industries, among others. If a screw extruder is applied for discharging, the mixer is also called Sigma Mixer Extruder, or Mixtruder.
WORKING PRINCIPLES:
In the PerMix PSG series Sigma Mixer, there are two special designed Z-shaped rotating elements installed in a W-shaped chamber, the intersection of which forms a saddle piece and meeting tangentially just above the saddle. They rotate at different speeds (usually in the ratio of 3:2) and in opposite direction.
INSTALLATION AND SET-UP:
There are mainly two ways for discharging the product after mixing:
(1) Tilting Tank
For small machines (PSG-1 to PSG-15), tilting can be done manually with a mechanical type (handlever or handwheel). For greater machines, electro-mechanically or hydraulically powered tilting system is supplied. PerMix supplies the feature that at tilted position, the blade will rotate at low speed (usually 20% of full speed) in reverse direction to aid the discharge by pushing two buttons with both hands.
(2) Extrusion Screw
The extrusion-discharge screw is located in the saddle section and runs in a cylindrical trough tangential to, and below the 2 mixing blades. During the mixing cycle the screw moves the material within the reach of the mixing blades, thus assuring a thorough blending of all the ingredients, and, at the same time, accelerating the mixing process. At discharge time, the direction of rotation of the screw is reversed and the mixed material is extruded through suitable die openings in the side of the machine. The extrusion screw has its own separate drive so that blades and screw operate independently.
(1) Tilting Tank
For small machines (PSG-1 to PSG-15), tilting can be done manually with a mechanical type (handlever or handwheel). For greater machines, electro-mechanically or hydraulically powered tilting system is supplied. PerMix supplies the feature that at tilted position, the blade will rotate at low speed (usually 20% of full speed) in reverse direction to aid the discharge by pushing two buttons with both hands.
(2) Extrusion Screw
The extrusion-discharge screw is located in the saddle section and runs in a cylindrical trough tangential to, and below the 2 mixing blades. During the mixing cycle the screw moves the material within the reach of the mixing blades, thus assuring a thorough blending of all the ingredients, and, at the same time, accelerating the mixing process. At discharge time, the direction of rotation of the screw is reversed and the mixed material is extruded through suitable die openings in the side of the machine. The extrusion screw has its own separate drive so that blades and screw operate independently.
SPECIFICATION:
Model | Total Capacity (liters) | Working Capacity (liters) | Power (kW) [Arms] | Speed (rpm) [Arms] | Length (mm) | Width (mm) | Height (mm) |
PSG-1 | 1 | 0.6 | 1.1 | 45/30 | 550 | 450 | 700 |
PSG-3 | 3 | 2 | 1.1 | 65/40 | 650 | 500 | 700 |
PSG-5 | 5 | 3.5 | 1.1 | 65/40 | 700 | 550 | 730 |
PSG-10 | 10 | 6 | 1.5 | 50/35 | 900 | 580 | 691 |
PSG-15 | 15 | 10 | 2.2 | 50/30 | 1053 | 623 | 861 |
PSG-50 | 50 | 30 | 1.5-5.5 | 42/27 | 1330 | 910 | 1350 |
PSG-100 | 100 | 60 | 2.2-7.5 | 42/27 | 1588 | 984 | 1452 |
PSG-150 | 150 | 90 | 3-7.5 | 42/27 | 1780 | 990 | 1600 |
PSG-200 | 200 | 120 | 4-11 | 42/27 | 1988 | 1000 | 1829 |
PSG-300 | 300 | 180 | 4-15 | 33/22 | 2730 | 1930 | 1745 |
PSG-400 | 400 | 240 | 5.5-18.5 | 33/22 | 2850 | 1950 | 1800 |
PSG-600 | 600 | 360 | 11-37 | 33/22 | 3070 | 2080 | 1870 |
PSG-800 | 800 | 480 | 11-45 | 33/22 | 3270 | 2250 | 1950 |
PSG-1000 | 1000 | 600 | 15-55 | 33/22 | 4080 | 1560 | 2055 |
PSG-1500 | 1500 | 900 | 18.5-75 | 28/19 | 4600 | 1700 | 2330 |
PSG-2000 | 2000 | 1200 | 30-75 | 28/19 | 5100 | 1850 | 2600 |
1) All specifications are as accurate as is reasonably possible, but they are not binding.
2) Arms speed can be specified by the customer.
3) Customized sizes are available against request.
4) PerMix reserves the right to modify the design without notice.
2) Arms speed can be specified by the customer.
3) Customized sizes are available against request.
4) PerMix reserves the right to modify the design without notice.
Options:
- Quick disassembly & Easy cleaning design
- Lab-size for R&D applications (Full volume of 1, 3, 5, 15L)
- Overlapping arms
- Special 'Duplex' kneading arms for intensive kneading
- Variable speed drive
- Hydraulic powerpack for tiltable trough
- Vacuum execution
- Welded jacket to the trough for heating & cooling
- Bored shaft / arms for heating & cooling
Special 'Duplex' Kneading Arms
- Lab-size for R&D applications (Full volume of 1, 3, 5, 15L)
- Overlapping arms
- Special 'Duplex' kneading arms for intensive kneading
- Variable speed drive
- Hydraulic powerpack for tiltable trough
- Vacuum execution
- Welded jacket to the trough for heating & cooling
- Bored shaft / arms for heating & cooling
Special 'Duplex' Kneading Arms
Product Details
More Products
Our Advantage
Company Information
Our Customers
Packaging & Shipping
FAQ
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the
big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.
We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,
we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the
big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.
We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,
we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
