Новый стиль 30 дБ комнатная HDTV цифровая ТВ антенна
US $3.85-$4.50

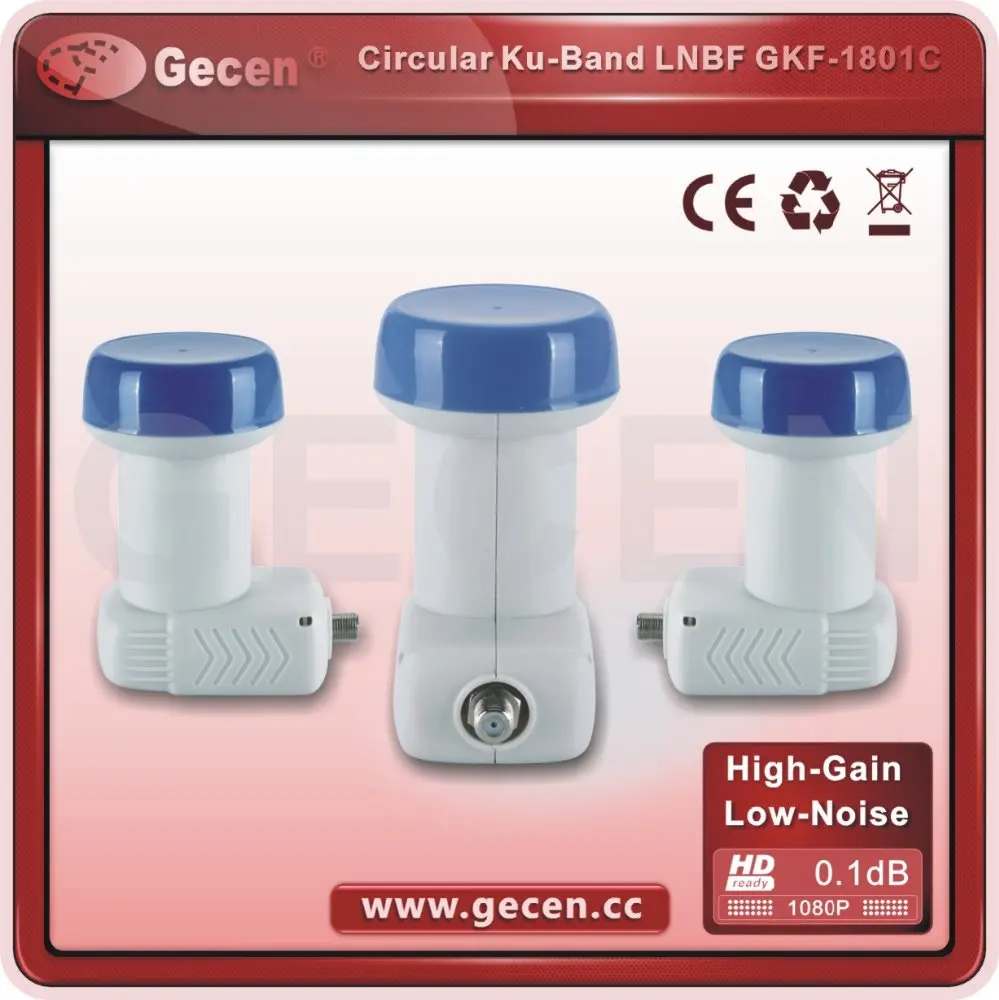

Ku-Band Dual Polarity Circular Single LNBF universal ku band single
- Категория: ТВ антенна >>>
- Поставщик: Zhuhai,Gecen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.33 $* | 0.53 $* |
| Aug-19-2025 | 0.96 $* | 0.99 $* |
| Jul-19-2025 | 0.77 $* | 0.13 $* |
| Jun-19-2025 | 0.34 $* | 0.69 $* |
| May-19-2025 | 0.64 $* | 0.85 $* |
| Apr-19-2025 | 0.68 $* | 0.23 $* |
| Mar-19-2025 | 0.98 $* | 0.45 $* |
| Feb-19-2025 | 0.75 $* | 0.75 $* |
| Jan-19-2025 | 0.15 $* | 0.56 $* |
Характеристики
Product Description
Product Name | Universal Ku-Band LNBF |
Material | ABS |
Function | Low Noise Figure |
Package | Gift box |
Details Images
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/26MHz |
High Band:11.70~12.75GHz | Cross POL. Isolation | 25dB(Typ.) | |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
High Band:1100~2150MHz | Output VSWR | 2.0:1(Max.) | |
L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
High Band:10.60GHz | DC Current Consumption | 80mA(Typ.) | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Low/High Band Switching | Low Band:0Hz |
±2.0 MHz (Max.)@-30℃~+70℃ | High Band:22KHz±4KHz | ||
L.O. Phase Noise | -60dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
-80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
-100dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
Conversion Gain | 60dB(Typ.) | Operating Temperature | -30℃~+70℃ |
Noise Figure | 0.6dB(Typ.) | Connector Type | 75Ω Female Connector |
Recommend Products
Company Introduction
Zhuhai Gecen Electronic Co.,Ltd has been operating in the electronics industry for more than 20 years.
We have our own factory, which has more than 20,000 square meters.
What’s more, we are building our new factory which will be started to be run at the end of 2020 and our production capacity will
be increased remarkably. We have strict quality control from raw materials to processing to finished products.
We have our own factory, which has more than 20,000 square meters.
What’s more, we are building our new factory which will be started to be run at the end of 2020 and our production capacity will
be increased remarkably. We have strict quality control from raw materials to processing to finished products.
