Двойная шкала бар фунтов на квадратный дюйм манометр с хромированным покрытием

Описание и отзывы

Трекер стоимости

Характеристики

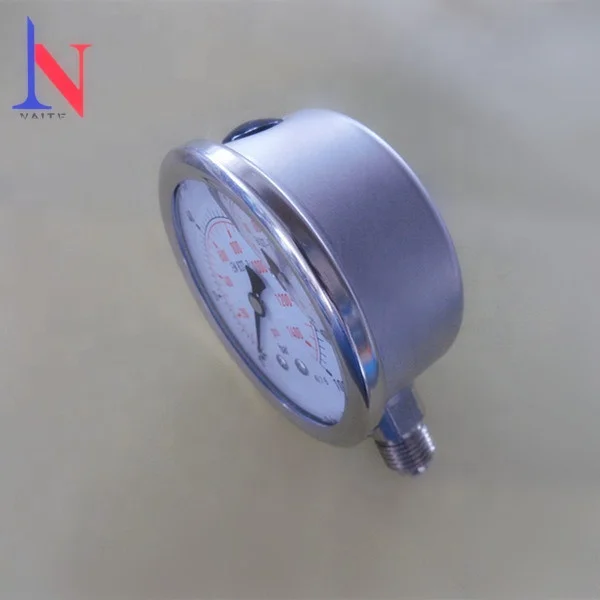

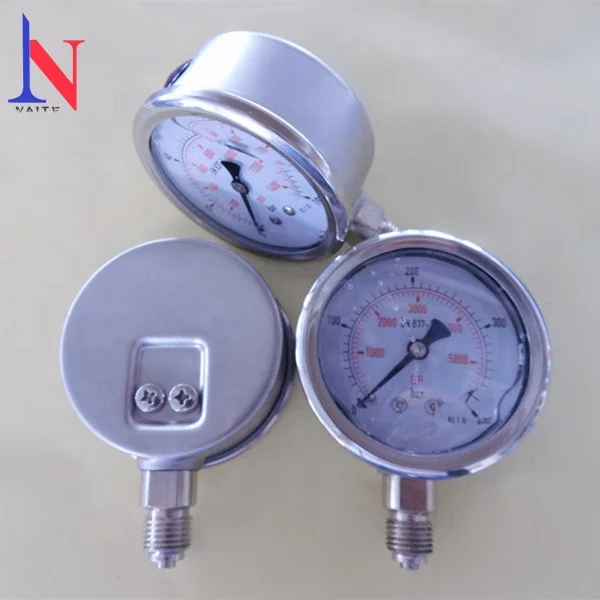

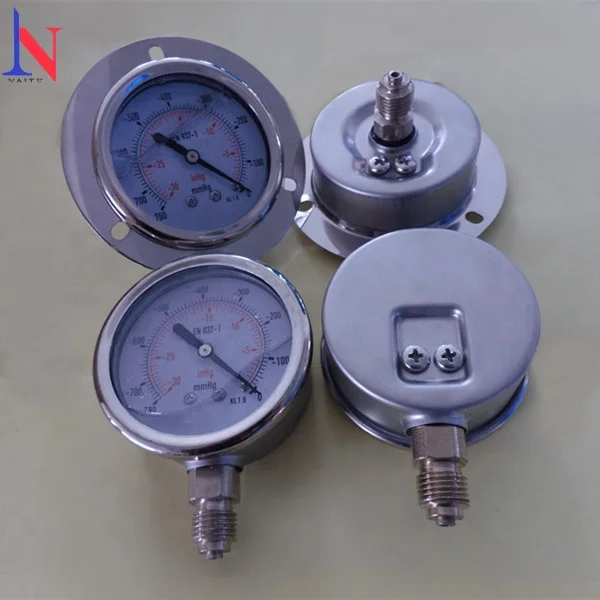

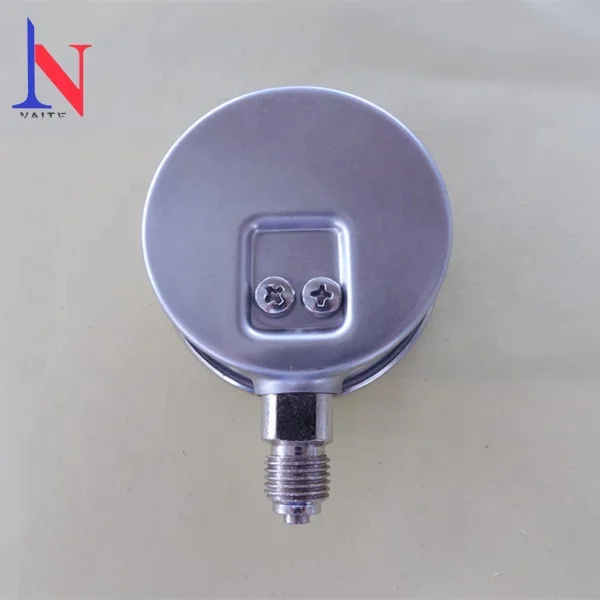

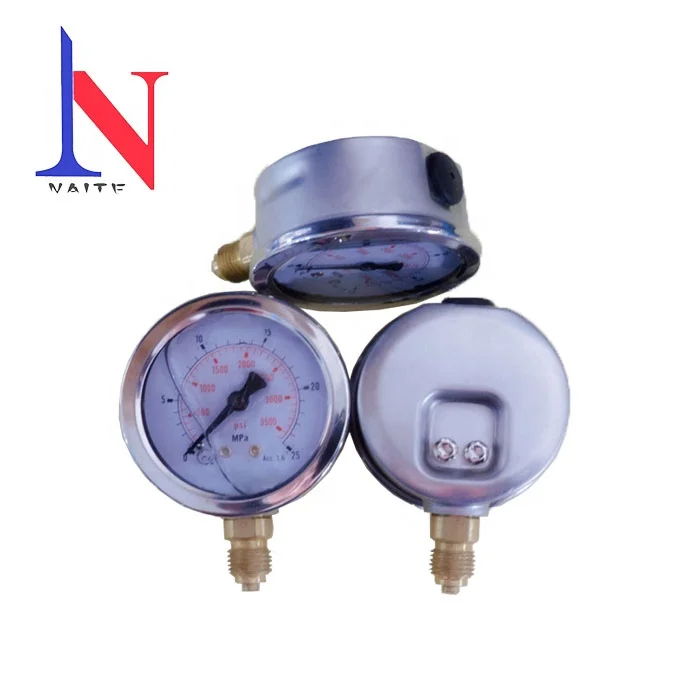

Dual scale bar psi Pressure Gauge with chrome plating mount



Special Feature
Dials Size	1.5, 2, 2.5, 3, 3.5, 4 and 6 inches
Pressure range	- 0.1 - 0 -100Mpa
Case	stainless steel, plastic , forged brass and steel
Bezel	stainless steel, steel or wihtout
Movement	stainless steel, brass
Socket	stainless steel, brass
Connection sizes	1/8, 1/4, 3/8 and 1/2 inches
Connection threads	NPT, BSP (G, PF), BSPT (ZG, PT)
Connection mounting	bottom, top, left, right and center back
Connector	stainless steel, Brass
Bourdon tube	stainless steel, phosphor bronze
Dial and pointer	aluminum
Dial plate	single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible
Window	tempered glass, polycarbonate
Accuracy range	1%, 1.6%, 2.5% full scale
Working temperture	-20°C- 70°C
Filled medium	glycerine,Silicone
Filling cap	neoprene Or Silica gel
Note: The above can be optioned
