Высокое качество автоматический трубками пластина орбитальный

Высокое качество автоматический трубками пластина орбитальный

Категория: Другие дуговые сварочные аппараты >>>
Поставщик: Zhengzhou,Kehui,Technology,Co.,Ltd.

Цена:10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	11900.18 $*	12495.92 $*
Aug-17-2025	11800.67 $*	12390.47 $*
Jul-17-2025	9900.98 $*	10395.9 $*
Jun-17-2025	11600.21 $*	12180.51 $*
May-17-2025	10100.82 $*	10605.69 $*
Apr-17-2025	11400.97 $*	11970.67 $*
Mar-17-2025	11300.96 $*	11865.74 $*
Feb-17-2025	11200.27 $*	11760.49 $*
Jan-17-2025	11100.79 $*	11655.10 $*

Характеристики

Product Description

High quality automatic tube to tube plate orbital welding machine

KHB12-80 automatic orbital welding machine is specially used for welding of tube diameter 12mm to 80mm Tube - Tubesheet, including flat end connection (flat welding) and outreach angle connection (outer fillet welding).

It is also suitable for welding methods without filling and filling. It adopts argon arc welding method, which has beautiful weld seam and excellent welding quality. The welding torch can be adjusted circumferentially, axially and radially. The whole machine is compact in structure, light in weight and convenient and reliable in adjustment.

Advantage:

1. Mature technology and advanced technology. 23 years for intelligent welding; The leader of China domestic intelligent welding, and cooperation with many well- known factory.

2, Imported motor, stable and reliable. Panasonic IGBT motor; Maintain excellent arc stability and high welding efficiency in low electric drainage area and high speed welding

3, Cost savings, High efficient. TIG water-cooled welding torch,16-liter stainless steel water tank, can work 24 hours one day.

4, Easy operation, intelligence control system can store up to 100 welding specifications; It can be operated with simple training without special foundation and special language.

Detailed Images

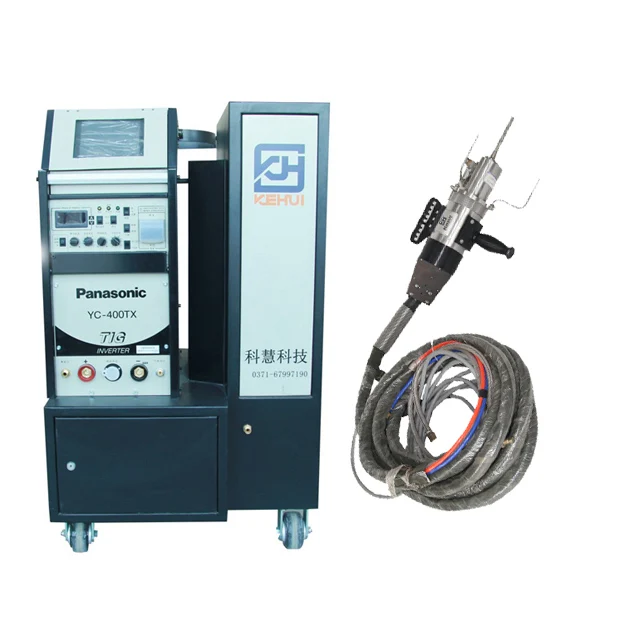

Power Supply

Welding Gun

Remote-Control Unit

Pipe Cutting Machine

Tungsten Carbide Grinding Machine

Pipe Beveling Machine

Technical Parameter Of Automatic Welding Machine
Voltage (3-Phases 50/60Hz)	220/380V	Rated Input Power	13.9kw
Rated input capacity	14KVA	Filler Wire Speed	0~1500mm/min
Welding Current Setting Range	8~400A	Welding speed	50-150mm/min
Capacity of Internal Memory	100 Programmer	Weldable tube diameter	12-80mm
Rated load sustained rate	60%	Weldable wall thickness	1-6.5mm
Rated welding voltage	TIG welding 22.6V	Tube biggest stretch out length	8mm
The rated voltage no-load	70V	Tube biggest indentation length	2mm
Current up time	0.1-20S	Cooling water pressure	1.2㎏.f/m㎡
Tungsten pole adjustable Angle	<45°	Argon gas flow	8-12L/min
Pulse frequency	0.5-500HZ	Welding Speed	0.5~5rpm

Application

Application for chemical, boiler, heat exchanger, pressure vessel, pharmaceutical, construction machinery, military and nuclear power industries.

Packing & Delivery

Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.

Our Service

Pre-Sale

Experienced sales to offer you the most suitable solution

After-Sale

Professional engineers team provided technical support

Certifications

Kehui always point to technology accumulation on intelligent welding since 1996. Up to now, we has 28 national patents and 6 software Copyrights. Kehui always the leader of Intelligent welding factory system. This showed some certifications of our welding machine.

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer specialized in Robot Welding Machines, automatic welding system since 1996, located in Zhengzhou, Capital city of Henan Province, China.

Q2. How could I know if this machine is suitable for me?
A: Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable machine for you.

Q3.How long is the warranty time for your products?

A: Our officially promised fiber laser marking machine warranty time is two whole year after delivery at best.

Q4. Can I visit your factory?

A: Welcome to visit our factory. We build business relationship with many well-known factory. We can visit the cooperative factories if you need, and you could know more thing about kehui according that.

Q5.I haven't done business with you guys before,how can i trust your company?
A: We would trade on Alibaba online to make sure your money is safely; Kehui build on 1996, we has rich experience of intelligent welding factory solutions. Kehui had established business relationship with so many famous brands. Quality is reliable.

Q6.What's the shipment terms and delivery time of your company?
A: It depends on the quantity of your order. Meanwhile,our board attach importance to foreign orders ,thus the orders aboard will have priority over it at home.

Our Company

Zhengzhou Kehui Technology is a professional integrated welding project solution supplier. We located in zhengzhou - capital of henan province, and we have more than 300 employees.

We have four manufacture basements in China, total 26000 m2, Each basement has experienced workers, is capable of technical programming, site construction, manufacture, technical support, installation, commissioning and system integration. What is more, share resource and well cooperation could strongly support big project.

Some cooperation factory show
