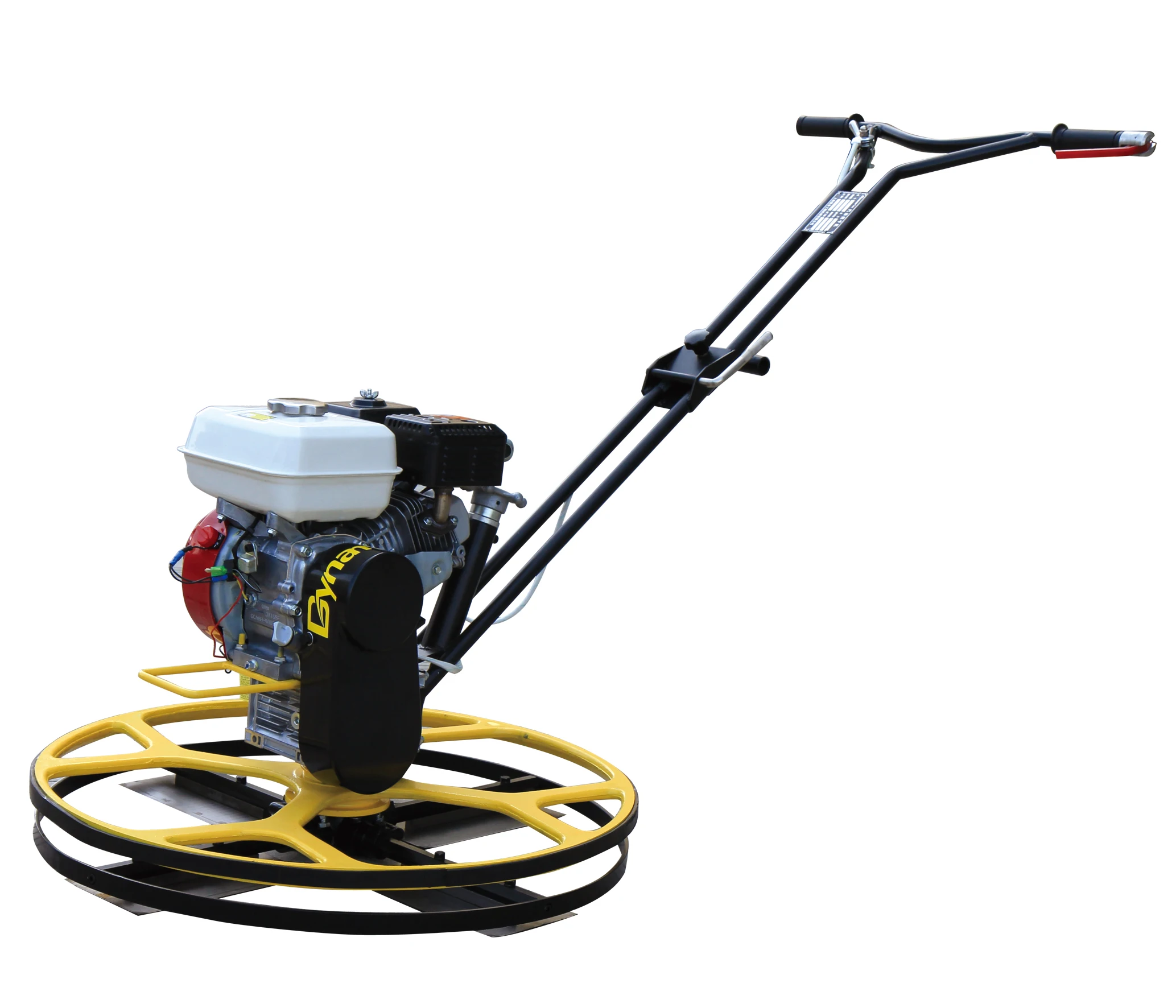

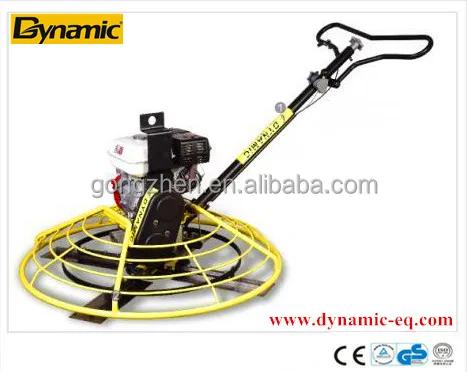

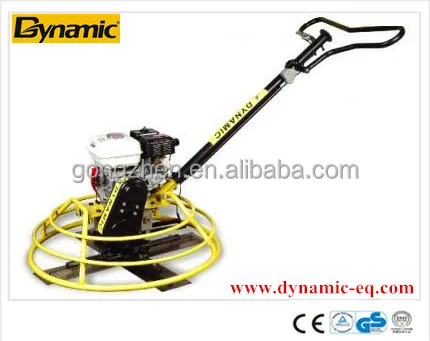

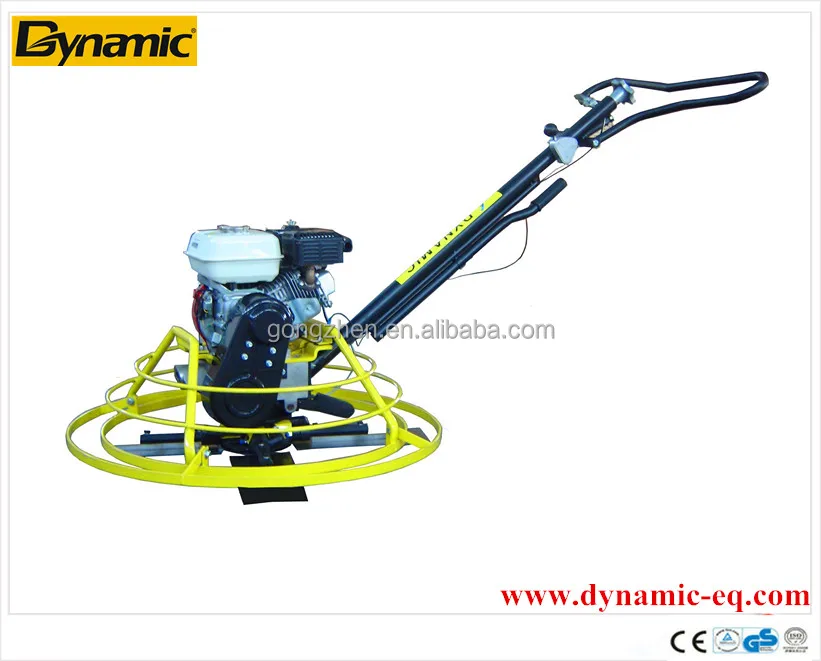

  Concrete 24 polishing machine edging power trowel QJM-760



Dynamic edging power trowel is designed for edge finishing. This trowel eliminates the need for manual work along walls or edges and thus helps to improve productivity and quality. Dynamic’s range of edging power trowel offers you a cost efficient option to achieve a high quality finish and flat floor in a quicker time.









QJM-800 wipe side machine is suitable for cement concrete surface lift to pulp; Around the corner, cylinder and small

area with flat area. This machine is used for them or the professional wall with light, independent rotating ring structure

its diameter is slightly bigger than the knife dish homework diameter, wipe on the assignment, the rotation of the activities

of the machine rings can be clingy corner or column edge, not only avoid the knife dish was scraping and ensure the finishing

touch no dead Angle, is your obstacles of floor construction more than a good helper.





Unique design of the structure of the handle, can adjust the height of the handle, make handlers operation and comfortable, reduce fatigue.

After heat treatment toughness alloy blades more durable; The light quality, low gravity, the operation of relaxed and comfortable.





FEATURE

1. Over-built gearbox with high performance and durability

2. Safety switch can shut off engine at once to ensure security of operator

3. Foldable handle for easy transportation and storage

4. Special handle for easy transportation



SPECIFICATION



Weight: 55  kg

Diameter: 750mm

Float pan diameter: 760mm

Trowel blade rev: 70r/min~140r/min

Overall diameter: 1560x760x1000mm

Blades:4

Gearbox oil: WA320

Gearbox oil capacity: 300ml

Power output:5.5hp

Engine type: HONDA GX160

Fuel capacity (L): 3.6L

Engine oil type: Recommended SAE10W-30

Engine oil capacity (L): 0.6L





Brand	DYNAMIC
Model	QJM-800
Weight           kg	76
Dimension     mm	L1610 X W760 X H830
Working diameter   mm (in)	760
Speed         rpm	70 - 140
Engine	Air-cooled, 4-cycle, Gasoline
Type	Honda GX160 Robin EX17
Max. output   kw (hp)	4.0(5.5)     4.2(5.7)
Max. speed     rpm	3600       3600
Fuel Tank   Liter (gal)	3.6(0.95)     3.6(0.95)





Our Staff have engaged in the light construction machinery for over 30 years, with abundant experience we believe we can supply you with superior product quality and professional service.
