Новый буровой станок для водяных скважин 8
- Категория: Детали оборудования для горнодобычи >>>
- Поставщик: Hejian,Deris,Petroleum,Drilling,Equipment,Co.,Ltd.Hejian,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 116097.23 $* | 118419.5 $* |
| Jul-19-2025 | 94157.41 $* | 96040.73 $* |
| Jun-19-2025 | 114269.18 $* | 116554.27 $* |
| May-19-2025 | 113355.97 $* | 115622.19 $* |
| Apr-19-2025 | 90501.81 $* | 92311.73 $* |
| Mar-19-2025 | 111526.98 $* | 113757.31 $* |
| Feb-19-2025 | 110612.94 $* | 112824.81 $* |
| Jan-19-2025 | 109698.65 $* | 111892.8 $* |
Характеристики
Product Overview

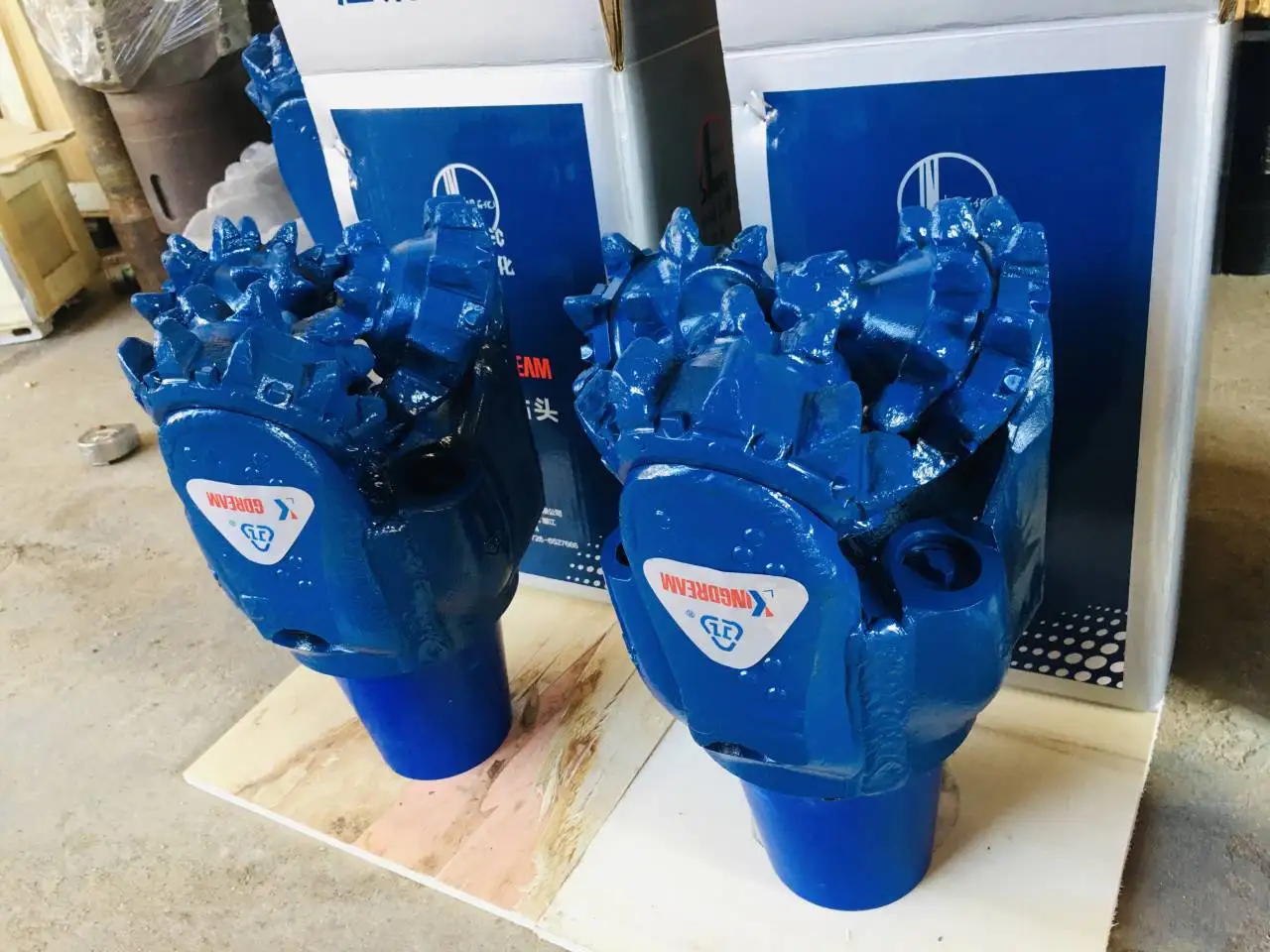

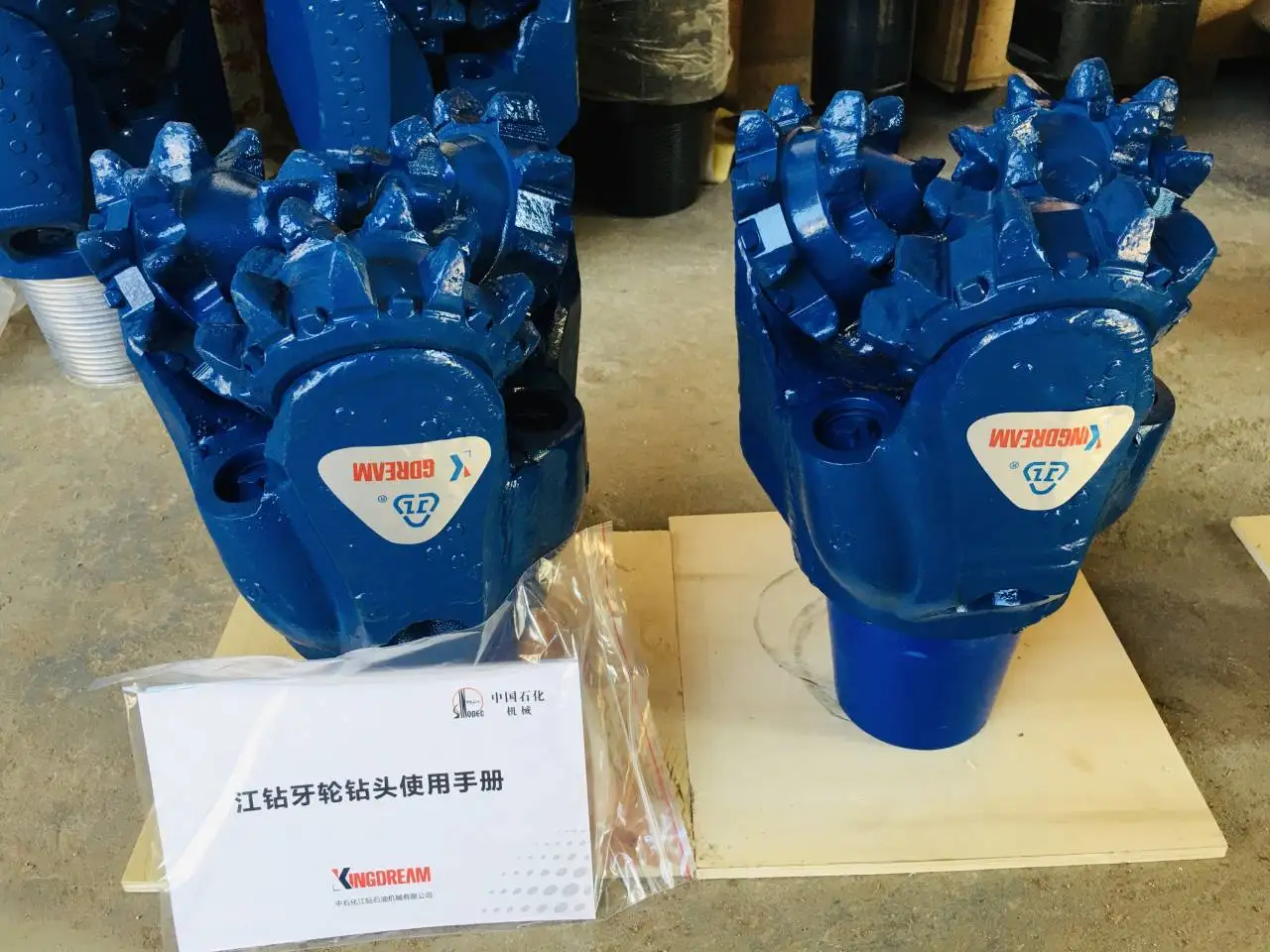

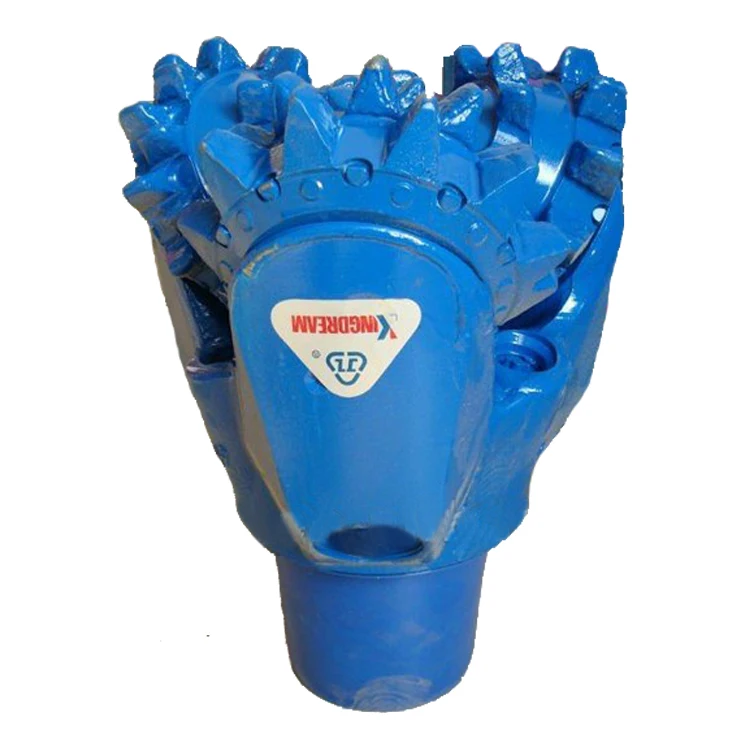

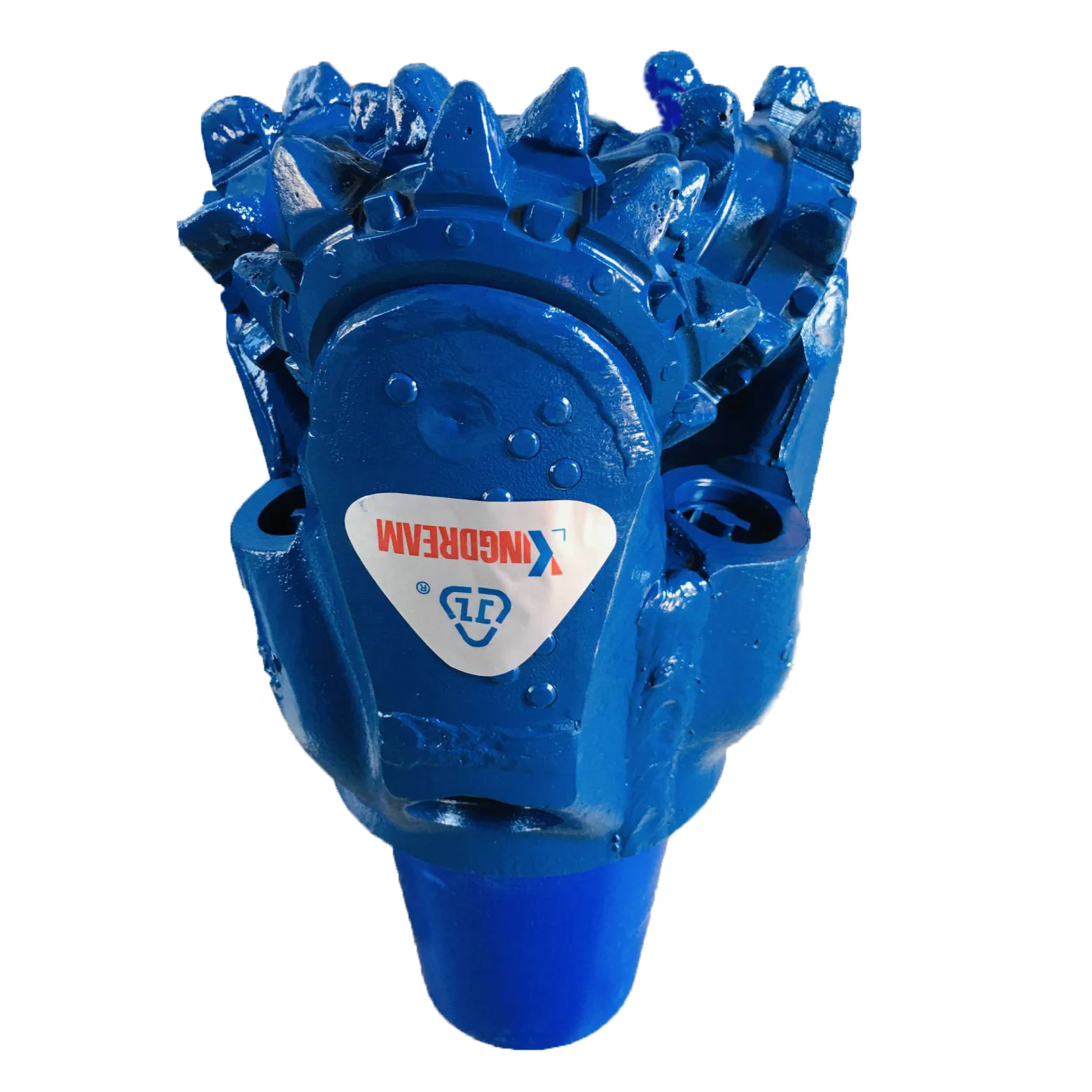

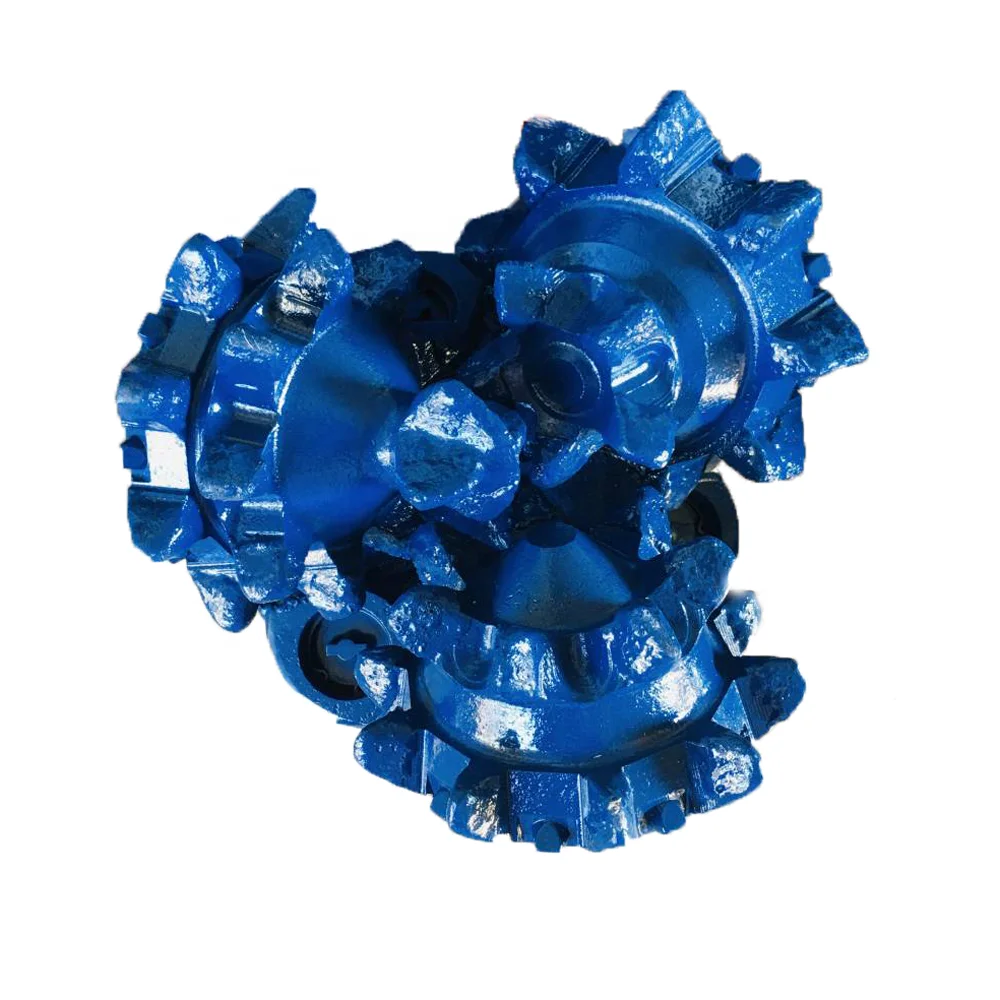

8 1/2" king dream tricone steel tooth new water well drilling bit
The tricone drill bit is the most popular drilling bit in the world,it can be widely used for Oil&Gas Drilling,Mining,Water
Well,Geological Exploration areas.Our tricone bit divideds into metal sealed drill bit and rubber sealed bit.
1. The jet can avoid the formation of a ball in the bit, eliminate the fluid area at the bottom of the well, accelerate
the upward flow of drilling cuttings and improve ROP.
2. High saturation NBR bearings can reduce sealing pressure and improve sealing reliability.
3. The G-Gauge protection improves the measuring ability and prolongs the service life of the bit.
4. Adding a row of teeth between the rear taper and the outflow to trim the borehole and protect the cone.
Well,Geological Exploration areas.Our tricone bit divideds into metal sealed drill bit and rubber sealed bit.
1. The jet can avoid the formation of a ball in the bit, eliminate the fluid area at the bottom of the well, accelerate
the upward flow of drilling cuttings and improve ROP.
2. High saturation NBR bearings can reduce sealing pressure and improve sealing reliability.
3. The G-Gauge protection improves the measuring ability and prolongs the service life of the bit.
4. Adding a row of teeth between the rear taper and the outflow to trim the borehole and protect the cone.
Suitable Formation | ||||||
IADC CODE | Rock Formation | WOB KN/mm | PRM(r/min) | |||
115 | Extremely soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk. | 0.3~0.75 | 180~60 | |||
117 | Extremely soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk. | 0.35~0.8 | 150~80 | |||
127 | Soft strata with low compressive strength and high drilla-bility, such as mudstone, gypsum, salt rock, soft shale, and soft limestone. | 0.35~0.9 | 150~70 | |||
217 | Soft to medium strata with low compressivestrength, such as medium soft shale, medium softlimestone, medium soft sandstone, and soft strata with hard intercalation. | 0.4~1.0 | 100~60 | |||
SIMILAR PRODUCTS
COMPANY
Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial
Park,close to Tianjin Port, Beijing Airport, convenient transportation. Specializing in the production and sales of drilling tools
such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars, etc. A
professional design, production, inspection and foreign trade sales team has been established.
Park,close to Tianjin Port, Beijing Airport, convenient transportation. Specializing in the production and sales of drilling tools
such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars, etc. A
professional design, production, inspection and foreign trade sales team has been established.
♦Advanced technology&Equipment, International standard.
♦R&D center for rock drilling tools, high precision CNC machines, drilling machines, milling machines, quality testing equipment API&ISO Certified.
♦20+ Years & 30 Countries service experience.
♦Optimized solutions for various of requirement Any inquiry please ask us
Each product is manufactured and inspected in strict accordance with the industry's highest technical quality standards and API specifications. The quality assurance system established in accordance with the requirements of ISO 9001 ensures the best quality of the products and the effective operation of the company. Professional team at your service .
Each product is manufactured and inspected in strict accordance with the industry's highest technical quality standards and API specifications. The quality assurance system established in accordance with the requirements of ISO 9001 ensures the best quality of the products and the effective operation of the company. Professional team at your service .
FAQ
1. About lead time?
Answer: Answer: We always have regular model stock, i.e. payment on delivery, which is our advantage. Batch production depends on the number of orders. It usually takes three to five days to get to Tianjin Port or Beijing Airport in China. Even small or urgent orders can be shipped to you by air upon receipt of your consent. According to the distance from China to your port, it takes about 30 days to ship from China to Europe. It takes about 25 days to ship to the west of the United States.
2. About payment terms?
Answer : We accept all regular payment terms, including letters of credit, T/T, etc. 100% payment through Alibaba Trade. Please pay 30% T / T in advance for customization.
3. How to get an exact quotation?
Answer: Drilling depth in vertical drilling, drilling length in hard disk, hardness of rock, and capacity of drilling rig. FOB or
CIF or CFR, by plane or ship, destination port / unloading. An easy way to do this is to send us a photo, the more information you provide, the more accurate the quote.
4. Do you accept customization according to customer requirements?
Answer:Yes, we accept customization. Product size and type support customization. The minimum quantity is one piece.
5..How do you guarantee your quality?
Answer: All of our production are in lines of API rules and ISO 9001 strictly , from signing contract , to raw materials, to
each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.
Answer: Answer: We always have regular model stock, i.e. payment on delivery, which is our advantage. Batch production depends on the number of orders. It usually takes three to five days to get to Tianjin Port or Beijing Airport in China. Even small or urgent orders can be shipped to you by air upon receipt of your consent. According to the distance from China to your port, it takes about 30 days to ship from China to Europe. It takes about 25 days to ship to the west of the United States.
2. About payment terms?
Answer : We accept all regular payment terms, including letters of credit, T/T, etc. 100% payment through Alibaba Trade. Please pay 30% T / T in advance for customization.
3. How to get an exact quotation?
Answer: Drilling depth in vertical drilling, drilling length in hard disk, hardness of rock, and capacity of drilling rig. FOB or
CIF or CFR, by plane or ship, destination port / unloading. An easy way to do this is to send us a photo, the more information you provide, the more accurate the quote.
4. Do you accept customization according to customer requirements?
Answer:Yes, we accept customization. Product size and type support customization. The minimum quantity is one piece.
5..How do you guarantee your quality?
Answer: All of our production are in lines of API rules and ISO 9001 strictly , from signing contract , to raw materials, to
each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.
