Factory manufacture double rollers wood bark peeling machine



1. The working principle:

Our this wood bark peeling machine is the rotor teeth with stripping produced a unique force, so that wood in the hopper tank plate section of a recurring cycle of movement, but also around its own axis to do wood turning motion segment and irregular beating.

To this paragraph with wooden teeth,  wood and keep the friction between the storage tank, impact, compression, fast bark are separated, to achieve effective peeling effect.



 2. Usage:

It had single and double roller type according to different wood with different diameter. This machine adopts open groove peeling room, the wood come into the peeling room from one side and come out from the other size.

So it is continuous working. It conquer the defect of rolling drum and improve capacity greatly. It is suitable for big diameter wood and large scale factory.



3. The arrange of peeling wood

 Can suit for many kinds of different trees , especially for the bend one  have more high peeling rate than the traditional rotary type



4.Technical data:

Model	Jx-8000	Jx-10000
Motor	11kw, 3 phases, 380v.50 hz	15kw,3 phases,380v,50hz
Capacity	6-8 t/h	10-12 t/h
Barking rate	> 95%	>95 %
Log length	< 8 m	< 10m
Log loss rate	< 2%	< 2%
Log diameter	No limitation	No limitation
Diamension	8.6*1.4*1.7 m	12*1.5*1.7 m

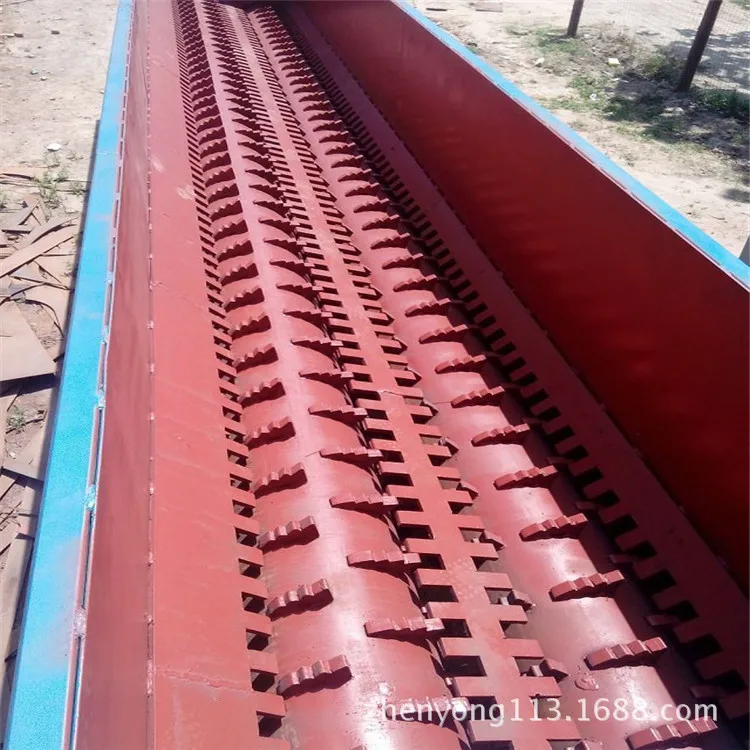

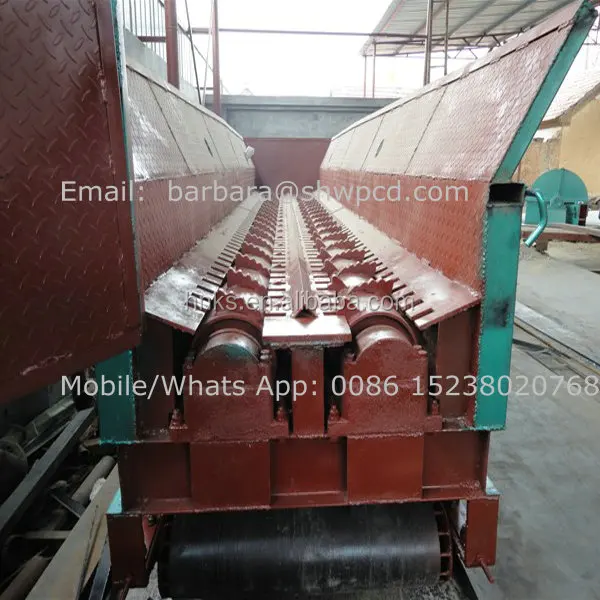

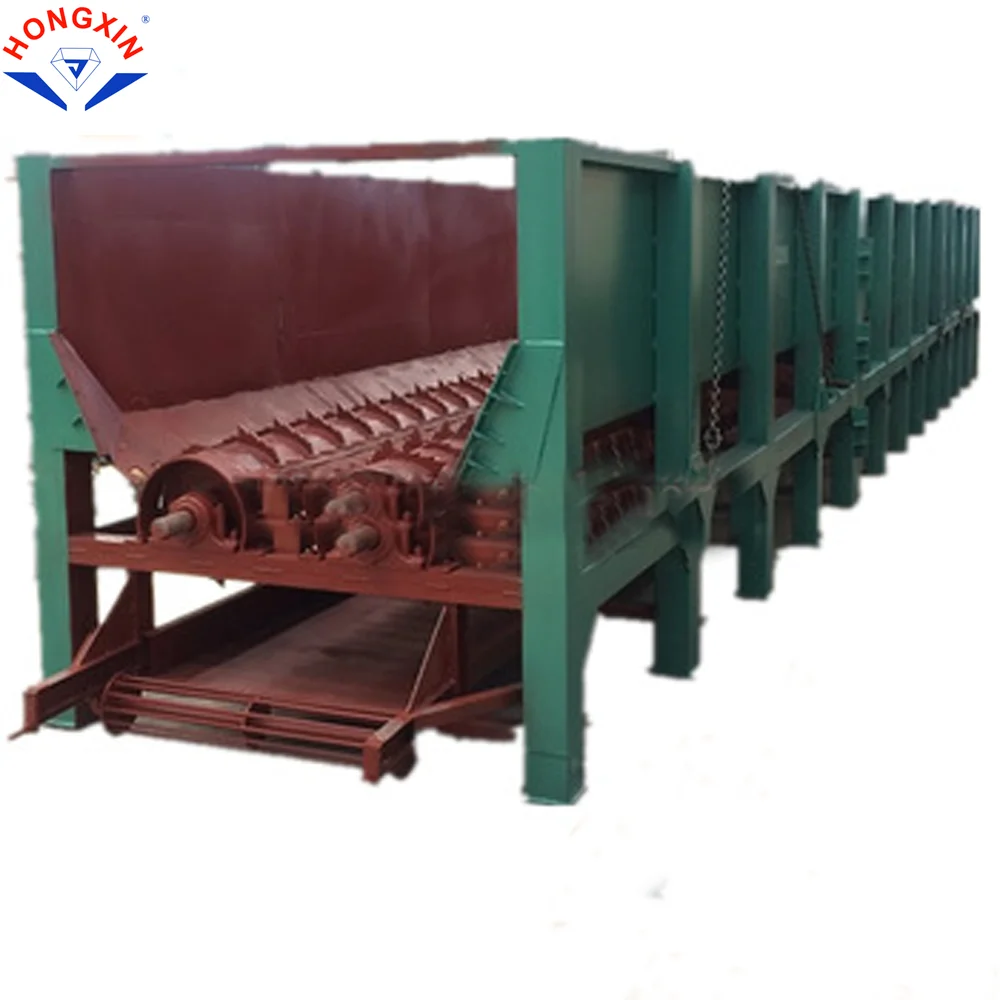

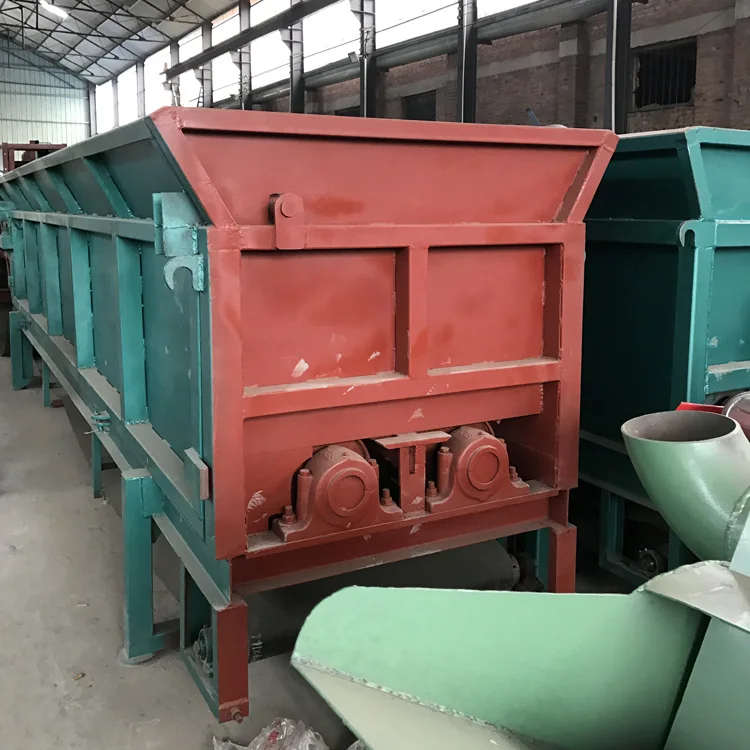

5.Pictures:



My friend, if you have any question about our machine, or you need other wood machine, such as, wood crusher, wood shaving machine, wood chipper, wood charcoal briquette making machine, and wood pallet making machine and so on, pls tell us freely.
