Инвертор немодулированного синусоидального сигнала 24 В 220 инвертор ups мощности с зарядным устройством 1600 Вт всплеск
- Категория: Power Supplies >>>
- Поставщик: MPPSOLAR,INC.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.66 $* | 0.83 $* |
| Aug-18-2025 | 0.92 $* | 0.97 $* |
| Jul-18-2025 | 0.85 $* | 0.44 $* |
| Jun-18-2025 | 0.62 $* | 0.77 $* |
| May-18-2025 | 0.66 $* | 0.7 $* |
| Apr-18-2025 | 0.83 $* | 0.66 $* |
| Mar-18-2025 | 0.0 $* | 0.13 $* |
| Feb-18-2025 | 0.40 $* | 0.76 $* |
| Jan-18-2025 | 0.23 $* | 0.91 $* |
Характеристики

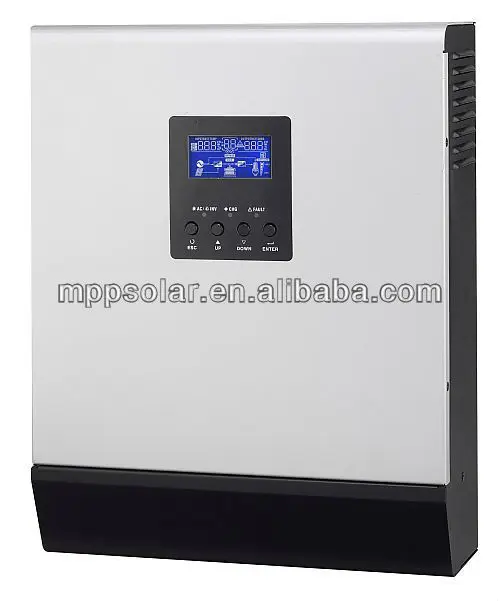

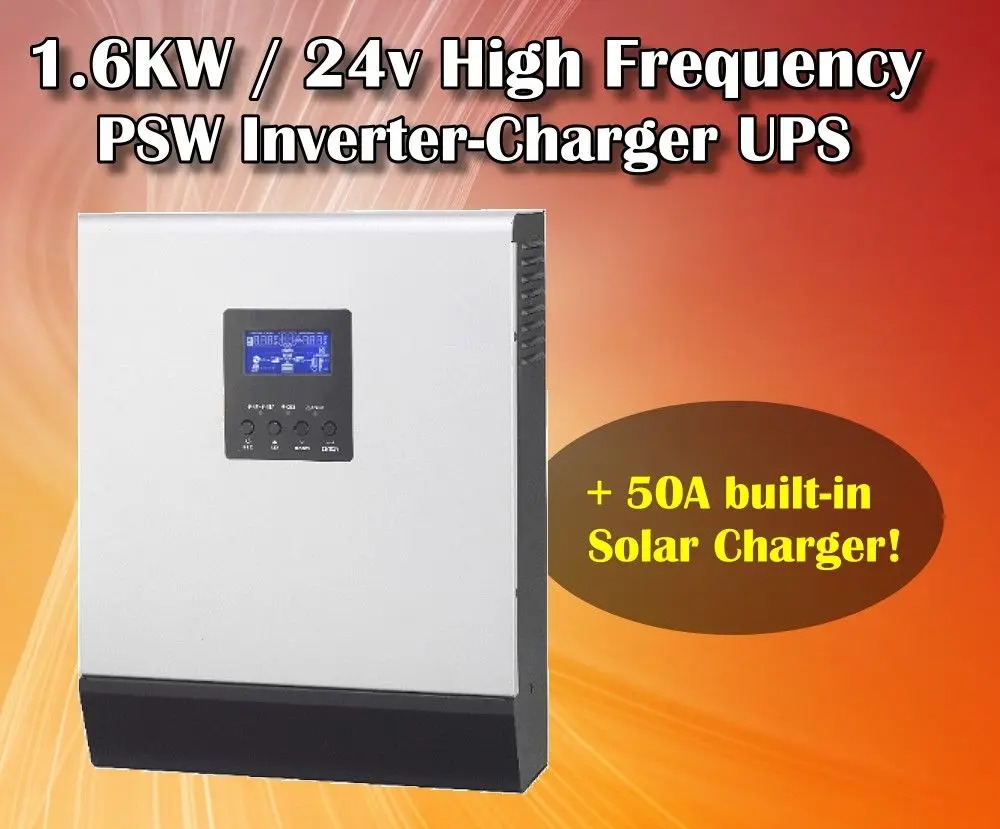

This inverter is 24v 1600w surge 3200w pure sine wave inverter 220v inverter ups power inverter with charger + 50A PWM solar charger
- Adjustable AC input voltage 90~280VAC
- 1600W pure sine wave output with up to 2X surge max 5 seconds
- Built-in 3-stage high efficiency battery charger 30A
- Built-in SOLAR charger max 50A (non-mppt)
- Total system charging current = AC + SOLAR = MAX 50
- Dual priority operation selectable: AC vs. DC mode
- Free monitoring software
- with genset starter
- Works with 24V battery system only
- transformerless, light weight design
- Transfer time <10ms
- Programmable LCD with menu
- 24 hour operation
- Intelligent battery charging control
- Built-in alarms and protections
- CE, EMC certified
Suitable for wide range of loads, this inverter features a transformerless design and supports continuous 24/7 operation. Also supports dual-system priority: utility priority (AC) or solar priority (DC)
**Note: this item is for 220~240vac output only.
| PIP-HS series | 812 | 1624 | 2424 |
| ELECTRICAL SPECIFICATIONS | |||
| Continuous/Surge Output | 800/1600W | 1.6/3.2KW | 2.4/4.8KW |
| Surge Rating | 5 seconds max | ||
| Input Power Factor | 0.8 | ||
| Input Voltage Range | 90~280VAC (Appliance mode), 170~280VAC (UPS mode) | ||
| Input Max Voltage | 300VAC | ||
| Input/Output Frequency | 50Hz | ||
| Output Voltage | 230VAC±15% | ||
| Output Waveform | Pure Sine Wave | ||
| Output Regulation | < 3% RMS for battery voltage range | ||
| Output Short Circuit | Circuit Breaker | ||
| Peak Efficiency | 91% | ||
| Input VDC / Range | 12V | 24V | |
| Transfer Time | <10ms (UPS mode), <20ms (Appliance mode) | ||
| Charging Voltage | 3-stage | ||
| Boost Voltage (Flooded/MF) | 14.6V/14.1V | 29.2V/28.2V | |
| Float Voltage (Flooded/MF) | 13.5V/13.5V | 27.0V/27.0V | |
| AC Recharging Current | 10/20amp | 20/30amp | |
| No Load Power Consumption | <15W | <20W | |
| Max PV Input Voltage | 22V | 45V | |
| Solar Charger | |||
| Type, Max Charging Current | PWM, max 50 Amp | ||
| Max PV Input Voc | 125V | ||
| Standby Power | 1W | 2W | |
| ENVIRONMENTAL / MECHANICAL SPECIFICATIONS | |||
| Certification | CE | ||
| Operating/Storage Temp. | 0°C ~ 55°C / -15°C~ 60°C | ||
| Operating Humidity | 20~90%RH Non-Condensing | ||
| Dimension | 330*250*95mm | 367*272*100mm | |
| Weight/Packing | 4.5Kg | 5.9Kg | 6.9Kg |
