Ручка для вытягивания кабеля из проволоки сетчатые


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.13 $* 0.20 $*
Aug-19-2025 0.33 $* 0.81 $*
Jul-19-2025 0.42 $* 0.22 $*
Jun-19-2025 0.91 $* 0.95 $*
May-19-2025 0.22 $* 0.47 $*
Apr-19-2025 0.27 $* 0.42 $*
Mar-19-2025 0.75 $* 0.62 $*
Feb-19-2025 0.35 $* 0.90 $*
Jan-19-2025 0.18 $* 0.47 $*

Характеристики



Hot Sale Products


















Product Description


 _01

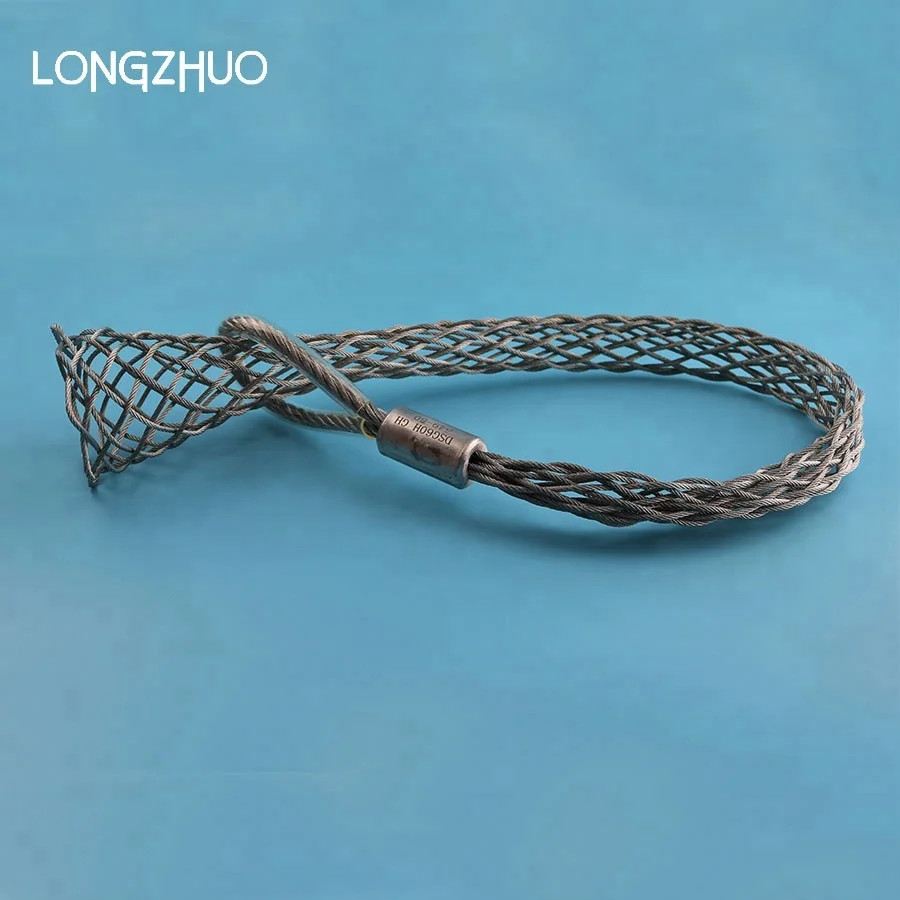

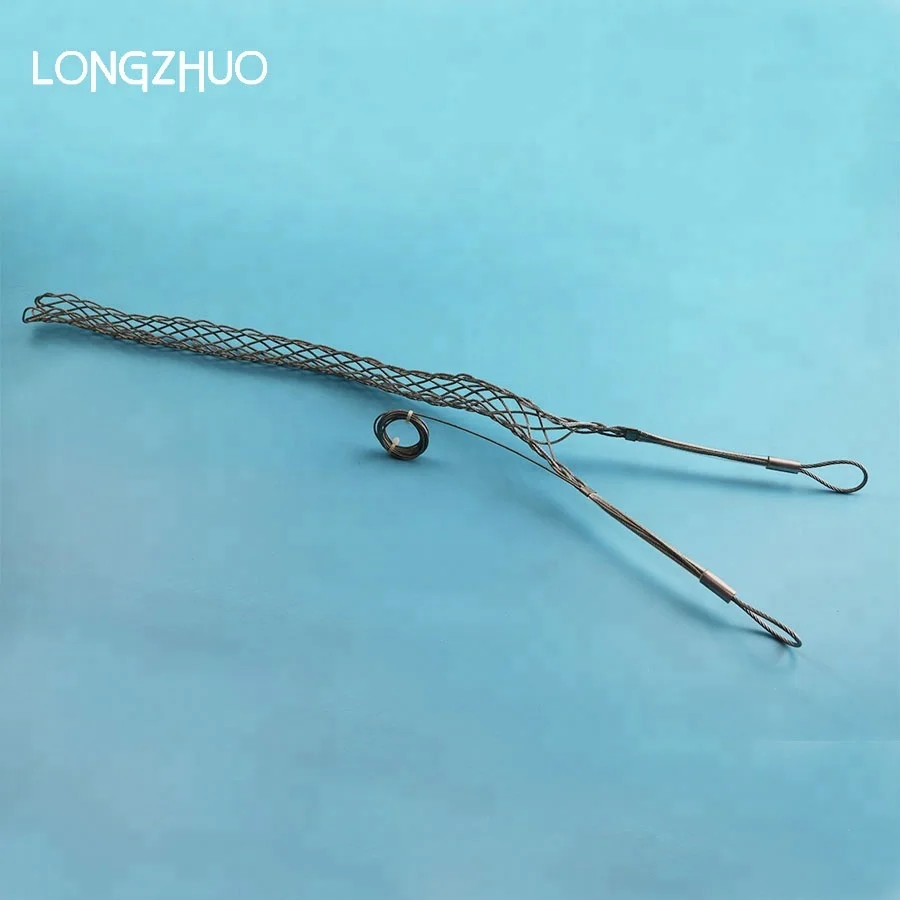

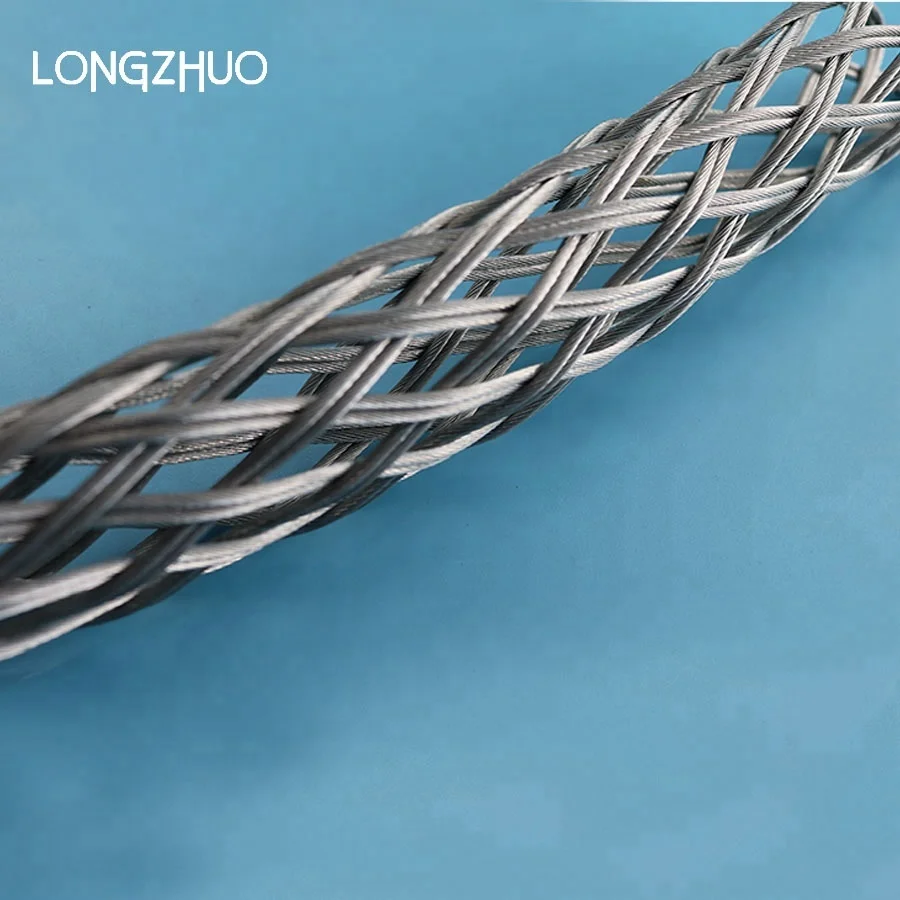

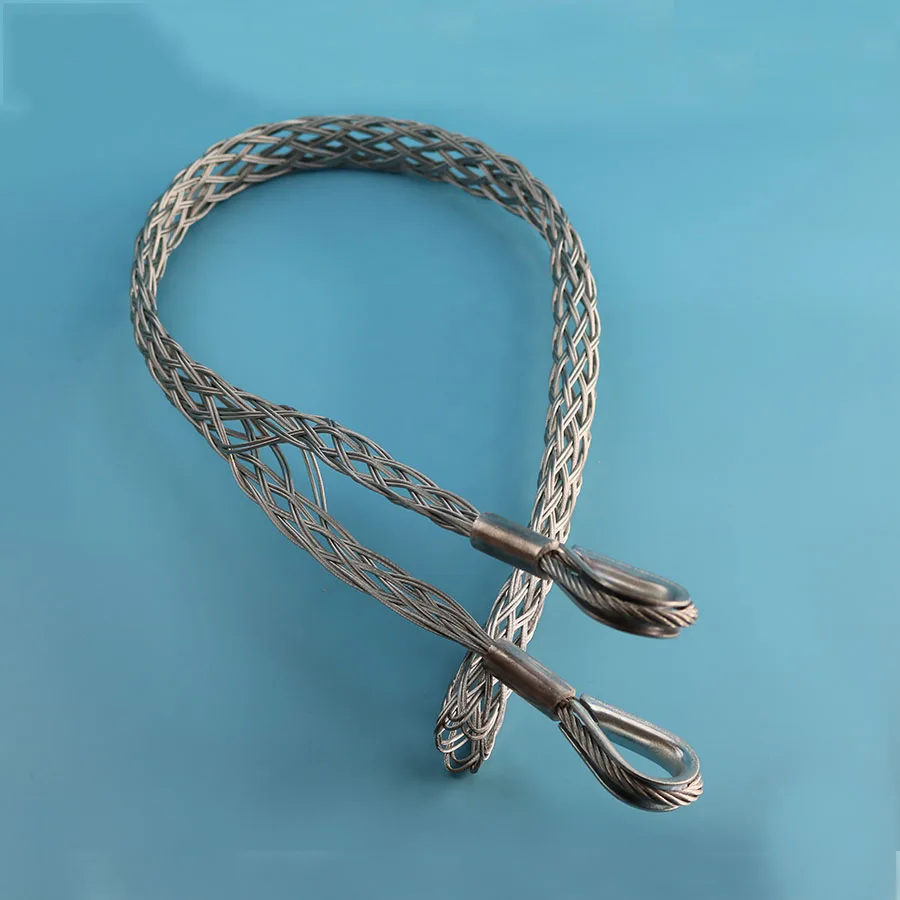

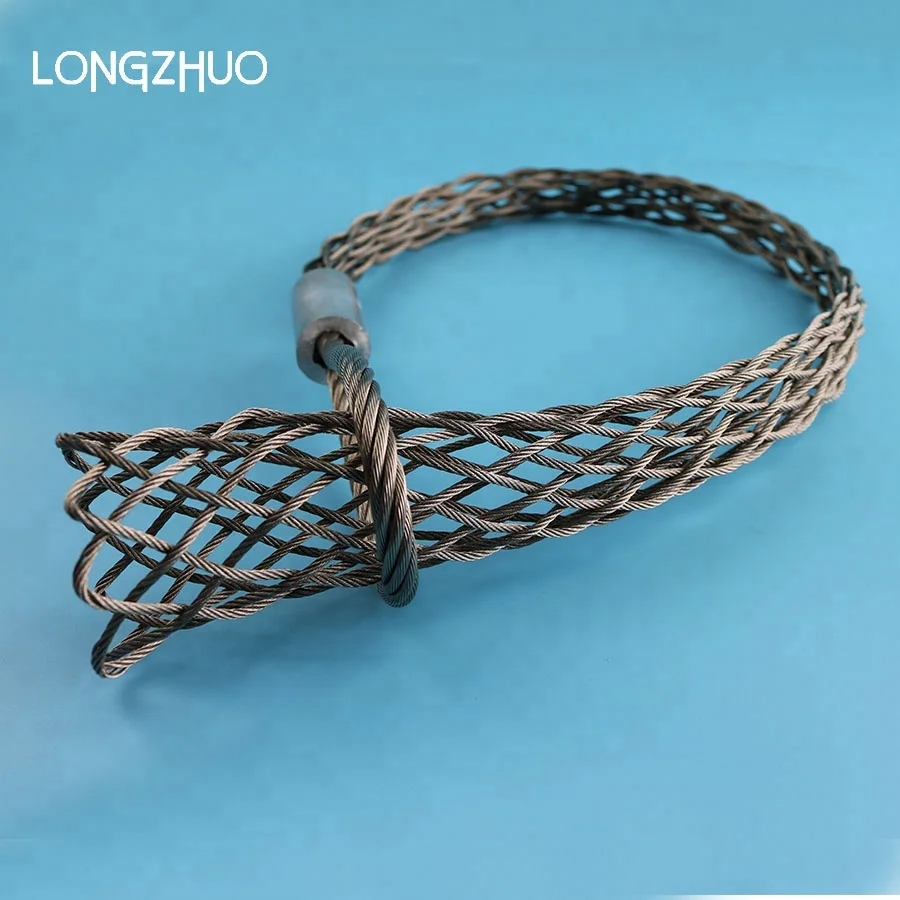

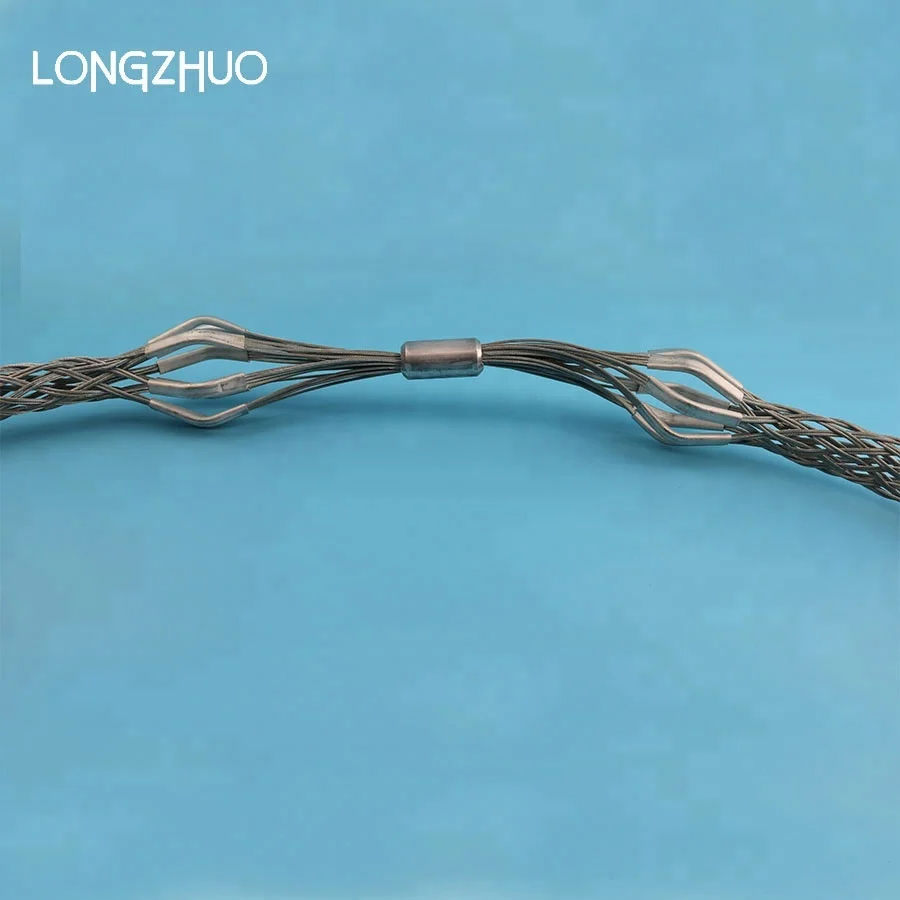

Wire Mesh Cable Grip





Wire Mesh Safety Grips are built tough to provide the strength, reliability and gripping force required for today’s demanding wire management applications. They are designed to distribute stress over a large area so they can securely hold, pull or support the wire, rope, tubing or fiber optic cable to which they are applied.





Wire Mesh Safety Grip products offer a wide selection of style, weave, attachment and wire options designed to meet the highest standards for strength, flexibility, durability and longevity.





Wire Mesh Safety Grips are flexible holding devices used to pull cable, rope, or tubing into place; to support it after it has been installed, to prevent cable pullout; or to provide strain-relief that reduces the arc of bend at points of wire connections or terminations.













1. Pulling Grips
Pulling Grips are reusable tools for pulling insulated conductors or bare wires, cable, nylon and wire rope, fiber optic cable etc. Both flexible eye and rotating eye attachments are available.
2. Strain-Relief Grips

Strain-Relief Grips are used to connect cable or flexible conduit to electrical enclosures and equipment.This prevents pullout and bending due to tension at the inner conductors at the point of termination.

3. Support Grips

Support Grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so that the cable is not subject to damage. A variety of hangers and bales are available. These grips are also available in stainless steel
for additional corrosion-resistance.











Product Display


 _03_04








Specification








Selecting Proper Sized Pulling and Support Grips



How to Select Proper Grip Size?


Select grip size based on the outside diameter or circumference of the cable(s) to be pulled. Refer to reference tables (on this and following page) for convenience in determining cable diameter.





























































































































Size Range


(mm)



Mesh Length


(mm)



Total Length


(mm)



Breaking


(KN)



Strength


(KG)



4-6



140



200



0.981



100



7-12



200



270



5.88



600



13-18



270



350



8.82



900



19-24



300



400



11.8



1200



25-34



420



550



15.6



1592



35-48



520



650



29.4



3000



49-60



680



820



39.2



4000



60-75



800



950



43.2



4408



75-90



950



1120



49



5000



90-105



970



1290



49



5000



110-135



1200



1350



58.8



6000



130-150



1320



1500



58.8



6000



150-180



1500



1750



78.4



8000



180-230



1850



2100



78.4



8000



230-280



1950



2200



88.2



9000



280-320



2000



2300



88.2



9000












Other Types


 _06





Application


 _02





Packing & Delivery


 _07





Our Factory


 _08





summer 18830180591
