Пластиковый вертикальный и горизонтальный датчик направления потока для

Пластиковый вертикальный и горизонтальный датчик направления потока для

Категория: Датчики расхода >>>
Поставщик: Ningbo,Mingrui,Sensors,Co.,Ltd.

Цена:2,40 $ - 3,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	2.14 $*	2.53 $*
Aug-16-2025	2.4 $*	2.82 $*
Jul-16-2025	2.87 $*	2.49 $*
Jun-16-2025	2.76 $*	2.46 $*
May-16-2025	2.45 $*	2.18 $*
Apr-16-2025	2.84 $*	2.30 $*
Mar-16-2025	2.4 $*	2.61 $*
Feb-16-2025	2.47 $*	2.47 $*
Jan-16-2025	2.31 $*	2.50 $*

Характеристики

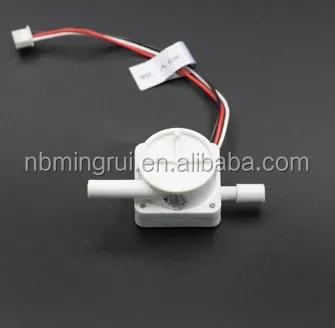

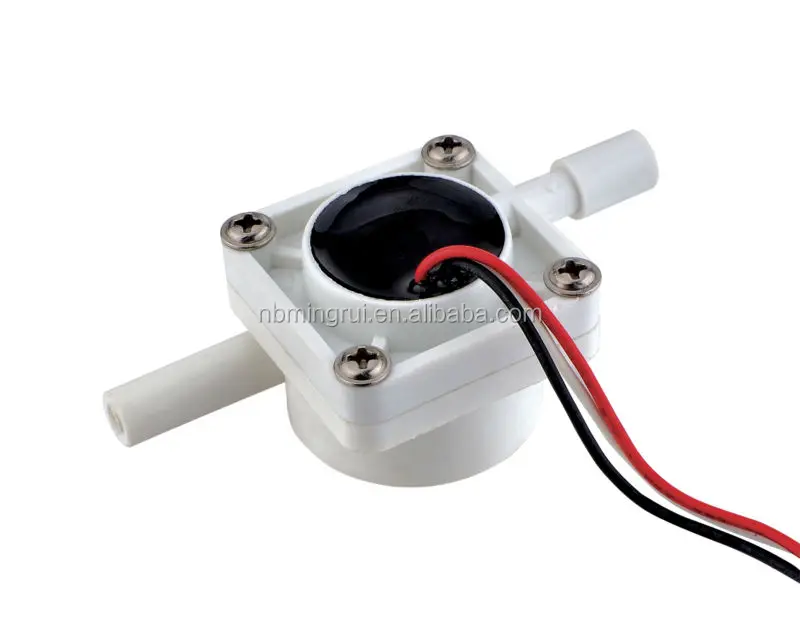

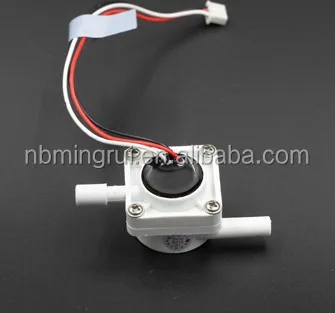

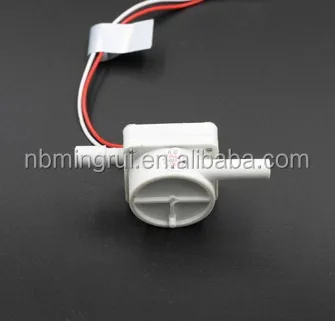

Plastic Vertical And Horizontal Direction Flow Sensor For Coffee Machine

1.Special designed 2.Low cost 3.Simple installation 4.high precision

.jpg

MR-A68

Specifications

         Electronic water flow sensor FLW01001
         1.Low cost
         2.Long life
         3.Simple installation
         4.Wide applications

Introduction

flow sensor consists of magnetic core, rotating impeller, external casing and sensor.Flow through the sensor activates the magnetic core to trigger switch action, with signal output.

Features

imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.

Applications

it is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

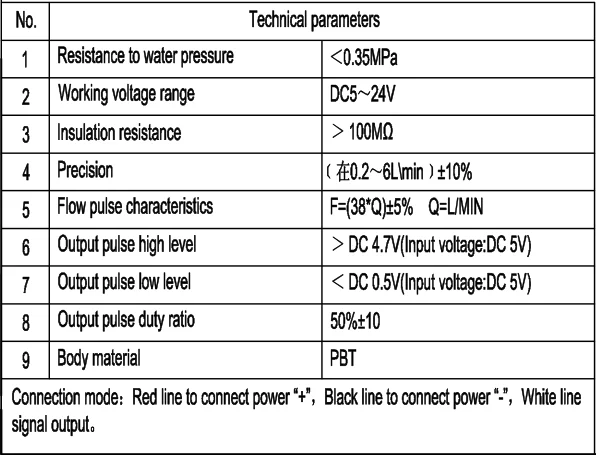

withstand hydraulic pressure	≤0.35Mpa
voltage rating	DC5V-24V
insulation resistance	>100MΩ
precision	10-132L/H
flow pulse	F=(18Q)+5% Q=L/min
output pulse duty cycle	50%±10%
max output pulse voltage	>DC4.7V
min output pulse voltage	<DC0.5V
body material	Nylon
