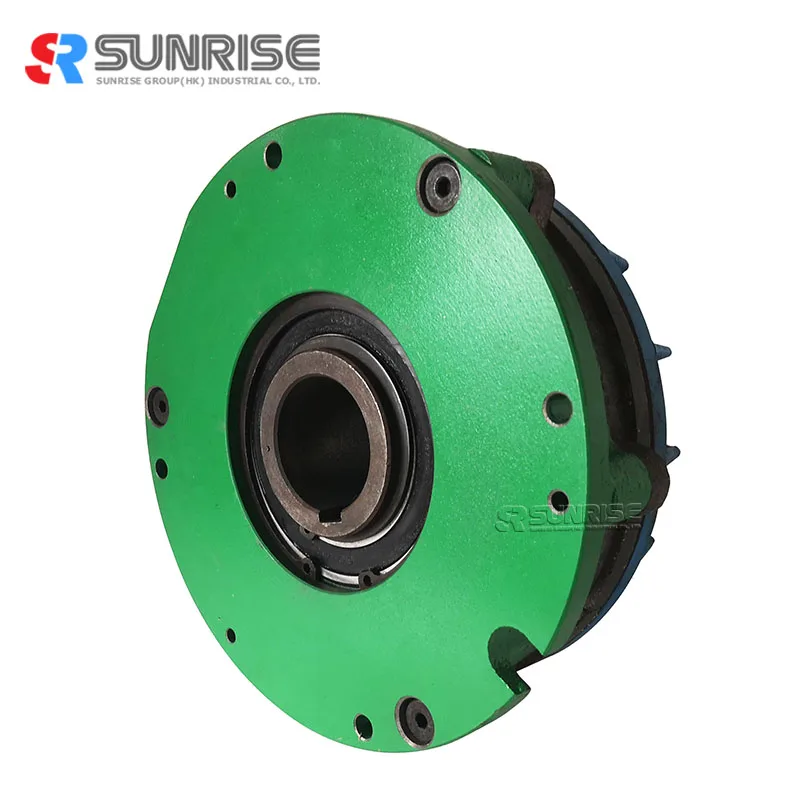

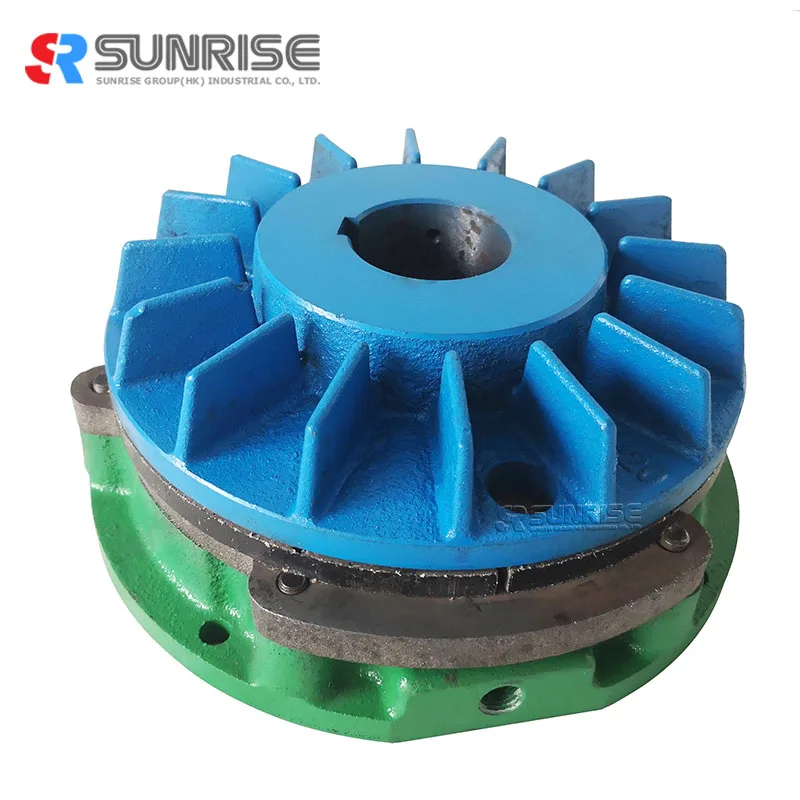

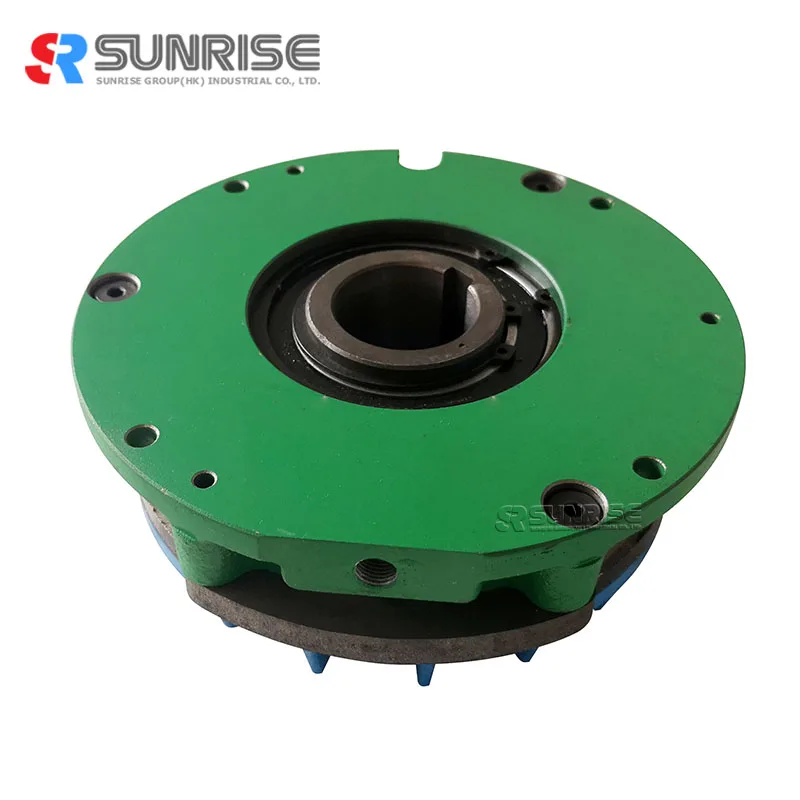

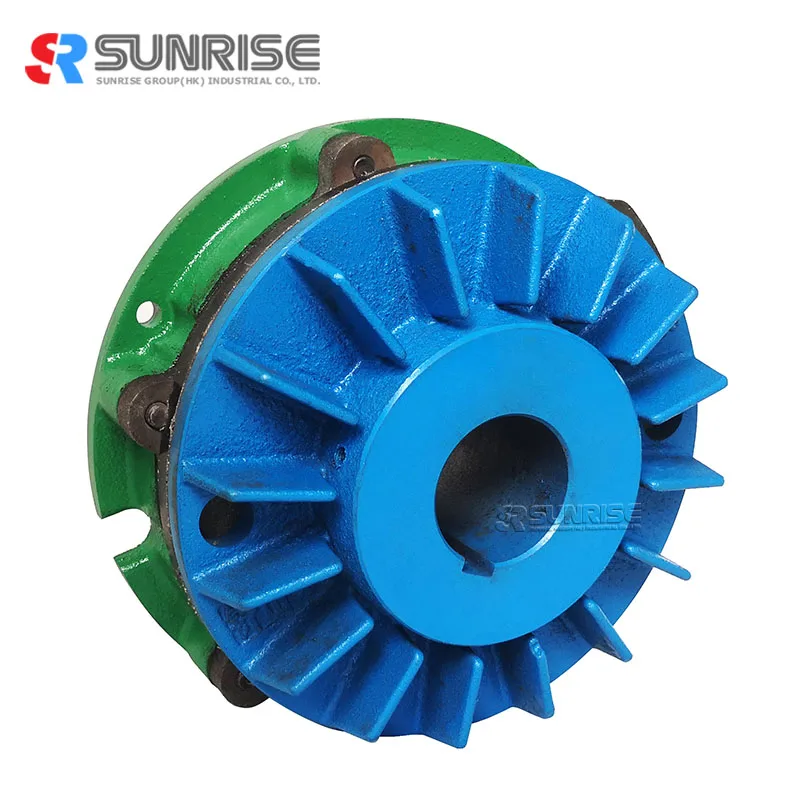

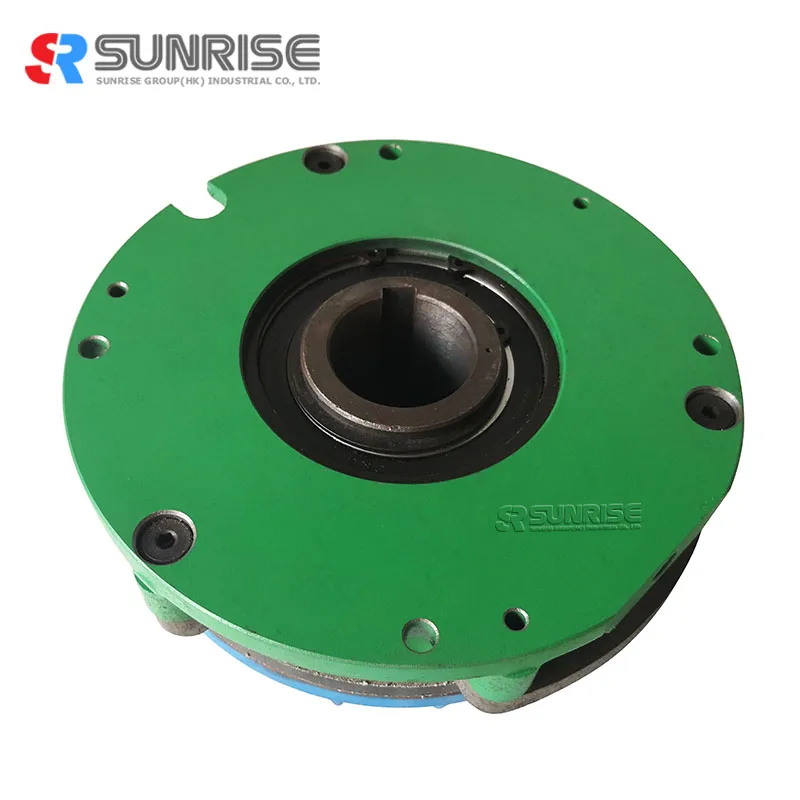

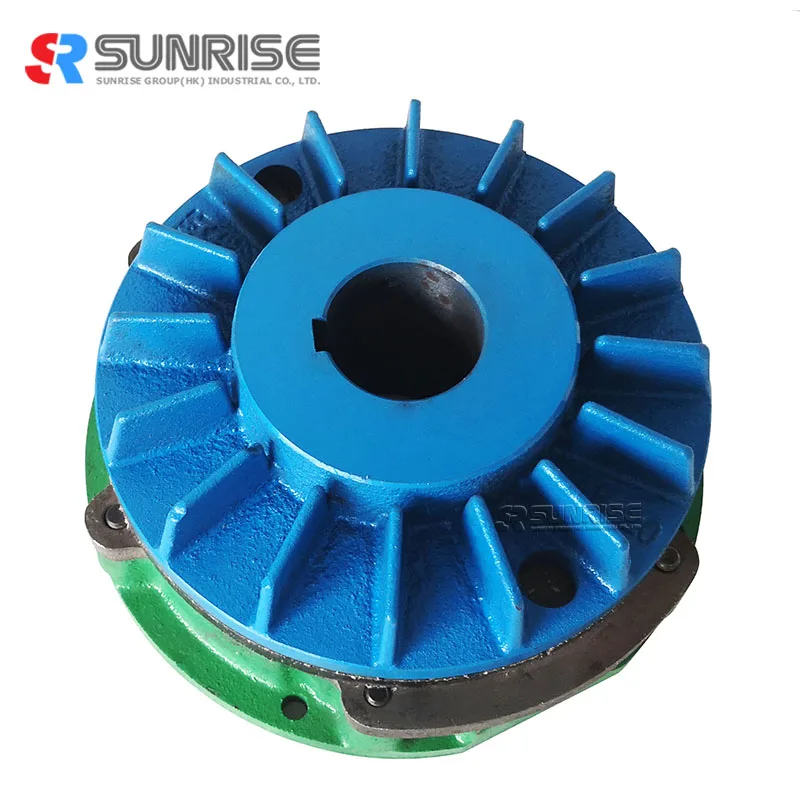

High Quality Slitting Machine Wholesale Air brake NAB series



Air Brake advantage:



*Dimensionally smaller units, giving a more compact machine design

*Reduction in price due to smaller design

*Lower top speeds minimized the wear of the linings

*Constant controllable torque from a stable friction lining material

*Suitable for all types of applications

*Suitable for high heat dissipation



Air brake data:

NAB-S with shaft                                                                                  NAB-s w/o shaft
Model	Static Torque [kgf-m] (N-m) at 0.6 Mpa	Air chamber capacity (cm³)		Plate allowed clearance Vf  (cm³)	Max rotation speed Nc(r/min)	Moment of inertia (cm²)	Key(mm)	Weight(kg)
		Min Vn	Max Vo
NAB5	5.3(53)	10.31	23.31	14.74	3600	9.69x10-4	6x6x25	3.5
NAB10	10 (100)	16.78	34.55	25.12	2800	4.59X10-3	10X8X30	6.6
NAB20	21.6(216)	17.03	54.20	58.05	2200	1.694X10-2	12X8X45	12
NAB40	41(410)	28.5	141.9	146.6	1800	4.74X10-2	12X11X65	25
NAB65	63.6(636)	34.54	193.9	299.8	1600	10.76X10-1	12X11X65	36



	A	B	C	D	E	F	G	H	J	K	L	M	N	P	T	U
NAB5	25	150	68.5	27.8	117	12	6.5	34.5	64	PT1/4	135	7	10	16.5	6	27.8
NAB10	35	182	79.5	38	155	12	10	44	77	PT1/4	165	9	16	17	10	38.3
NAB20	50	228	96	57	204	11	10	47	87	PT1/4	210	9	20	20	12	53.3
NAB40	75	302	120	83	256	18	13	58.5	114	PT1/4	278	14	22	22	18	79.4
NAB65	75	350	134	83	280	20	18	70	141	PT1/4	320	18	25	30	18	79.4



*Textile machinery: fiber twisters, treatment machines, weaving machines

* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines





Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?

You’ve come to the right place!

Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...









1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



3.    What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.



4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.



5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
