Two-Platen Injection Molding Machine

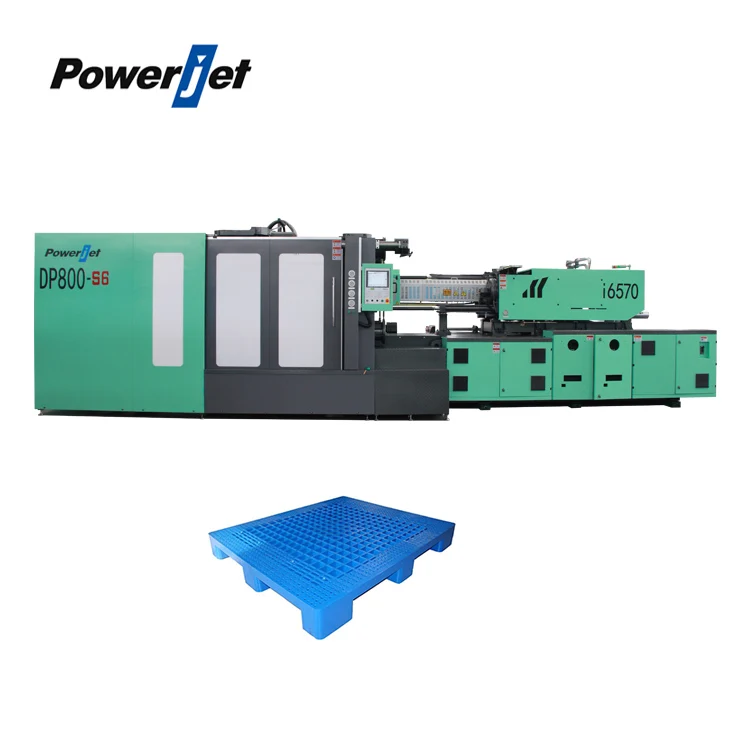

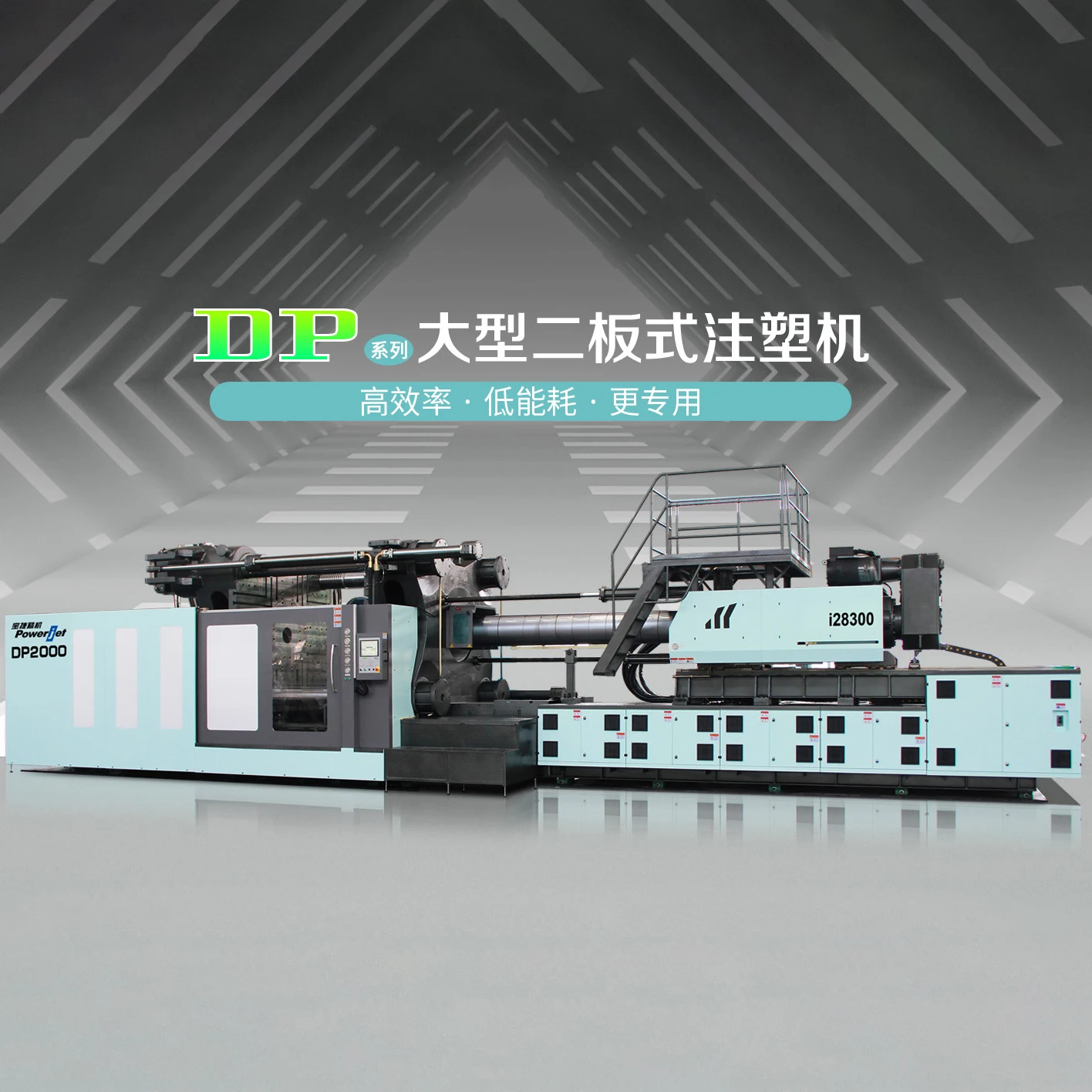

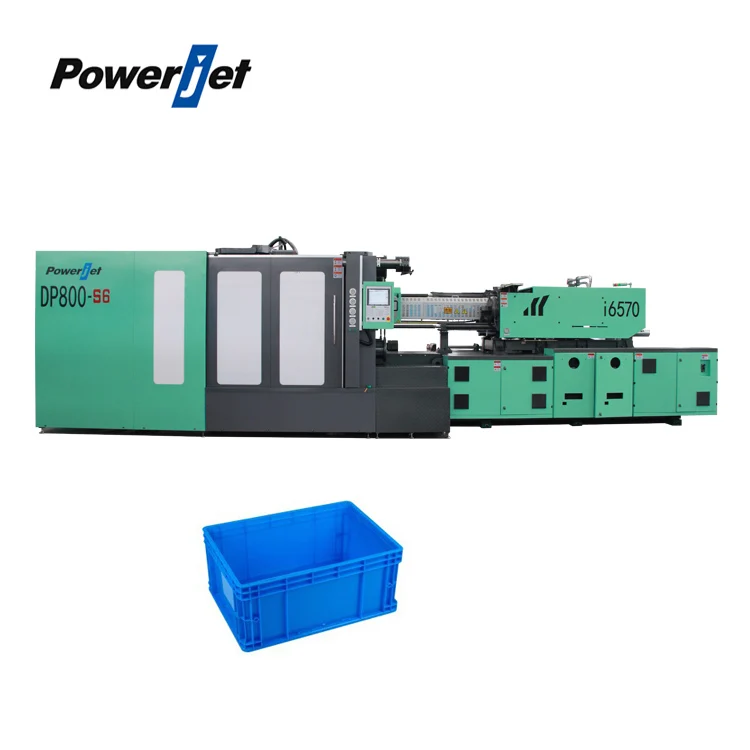

DP Series Two-Platen Large Injection Molding Machine For Deep Cavity Products Like: Home Appliances, Car Parts, Outdoor Dustbin, Plastic Pallet, Plastic Crate, etc.

FEATURES:
1:Saving More Space – Small footprint, bigger mold carrying capacity.

2:Saving More Power – Servo system configuration, more energy-saving ability.

3:High Precision – Less production flash.

4:Lower Noise – Small hydraulic impact, lower noise and oil consumption.

5:More Automation – Accurate mold positioning meets the needs of automatic pickup and insert.

6:Longer Lifetime – Even mold force insures long service life.

7:High Rigidity Slider – With better orientation and parallelism, can carry heavier molds.

8:Step-less Adjustment – Ensures the accurate and stable clamping force.

9:High Rigidity Clamping Frame – Makes the whole machine running more smoothly.

10:High Precision Linear Guide – Faster injection response and accurate positioning.

11:Variety Of Screw Available – Adapts to different types of products.

12:Higher Standard Configuration – With 12" colorful display screen, CPU memory upgrade to 1.4G.



LAMPING UNIT	Clamping force	KN	8000
	Opening stroke	mm	900-1400
	Max.datlight	mm	1850
	Platen size	mm	1600*1420
	Space between bars	mm	1160*980
	Max.mold height	mm	950
	Min.mold height	mm	450
	Ejector stroke	mm	320
	Ejector force	KN	230
	No.of pins	PCS	21
	Max.mold weight	T	11
INJECTION UNIT	Screw diameter	mm	85          90          100
	Screw L/D Ratio	L/D	23.5       22.4       20
	Injection Pressure	MPa	213       190         154
	Shot volume	cm3	2554      2863        3534
	Shot weight (ps)	g	2319      2600       3210
		oz	82         92         113
	Injection rate	g/s	499       559        690
	Plasticizing capacity	g/s	94         104        127
	Screw stroke	mm	450
	Screw speed	rpm	167
POWER UNIT	Hydraulic system Pressure	MPa	17.5          24
	Pump motor power	KW	40+31+14
	Heater power	KW	38
GENERAL	Oil tank capacity	L	1000
	Machine weight	T	28
	Machine dimensions (L*W*H)	m	9.52*2.08*2.3
