Серия PRB коммерческий современный ленточный смеситель сухого порошка для сухих
- Категория: Mixing Equipment >>>
- Поставщик: Permix,Tec,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5058.51 $* | 5311.13 $* |
| Aug-18-2025 | 5015.61 $* | 5266.53 $* |
| Jul-18-2025 | 4208.36 $* | 4418.57 $* |
| Jun-18-2025 | 4930.38 $* | 5177.81 $* |
| May-18-2025 | 4293.91 $* | 4508.83 $* |
| Apr-18-2025 | 4845.12 $* | 5087.76 $* |
| Mar-18-2025 | 4803.65 $* | 5043.39 $* |
| Feb-18-2025 | 4760.41 $* | 4998.43 $* |
| Jan-18-2025 | 4718.40 $* | 4954.73 $* |
Характеристики
Products Description
PerMix Advantages & Services: | ||||||||
● PerMix machines are designed and manufactured as “tailor-made” ones to meet our customers’ individual requirement. | ||||||||
● Since 1954, PerMix has been building our know-how in mixing and processing with our design team located in both Israel and China. | ||||||||
● PerMix has been setting up a global network of agents and representatives to serve our worldwide customers locally and on time. | ||||||||
● PerMix has a lot of experience to sub-contract mixers for well-known equipment suppliers in Europe and USA, and we build the machines to fulfil the highest standard. | ||||||||
● PerMix has its workshop located in Shanghai area, China; where there is a complete and endless production capability at a reasonable price. | ||||||||
● PerMix mixers price is competitive compared with the quality of the same level. | ||||||||
● PerMix offers a comprehensive range of industrial mixing equipment in the market. | ||||||||
● Applications of PerMix industrial mixers cover wherever there is a need for mixing, including but not limited to chemicals, food, cosmetics, rubber, plastics, pharmaceuticals. | ||||||||
INTRODUCTION:

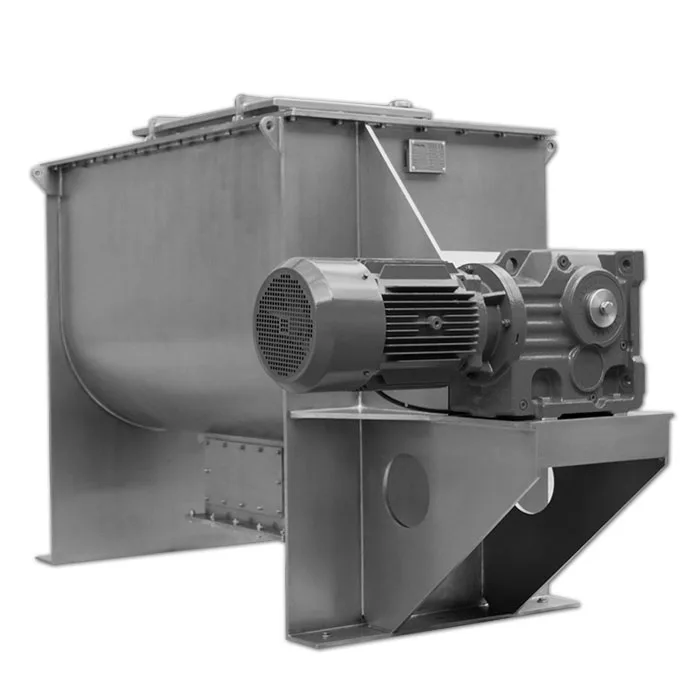

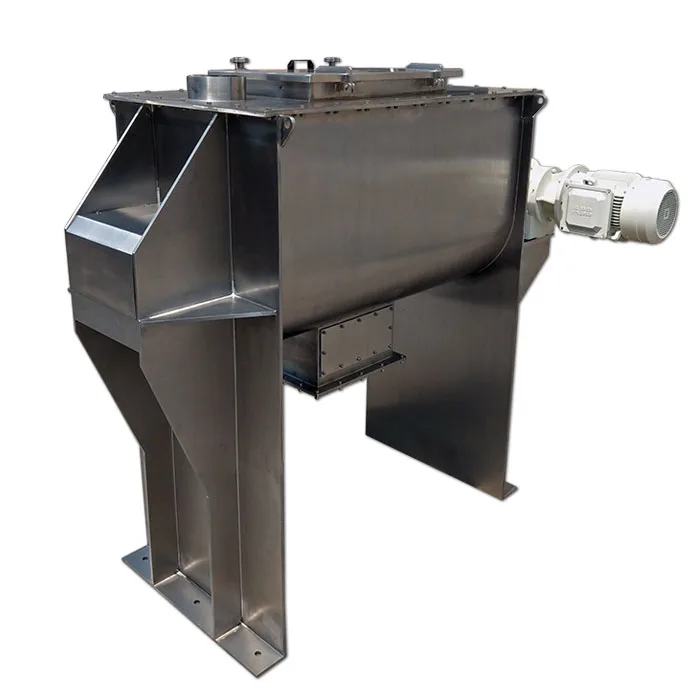

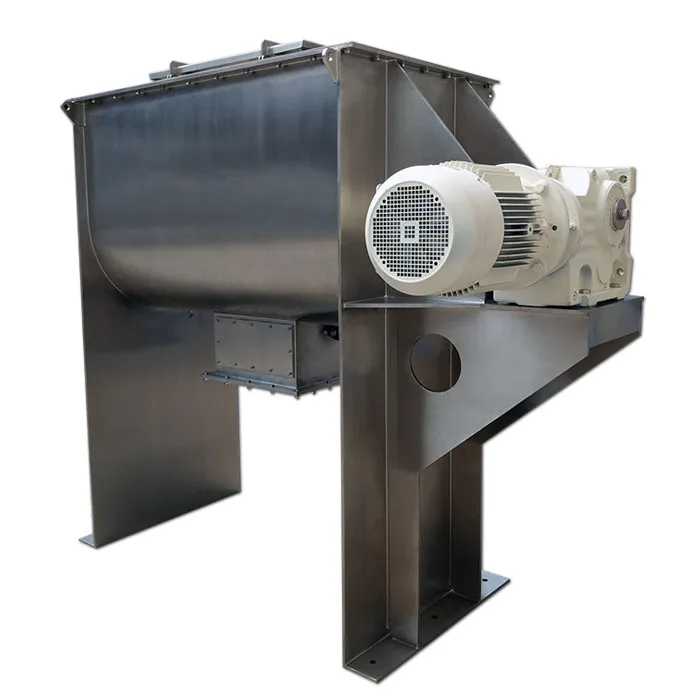

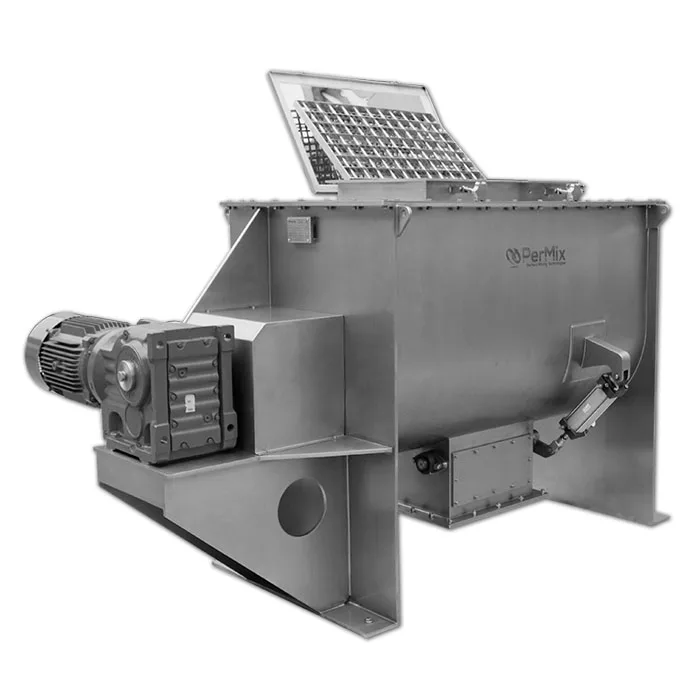

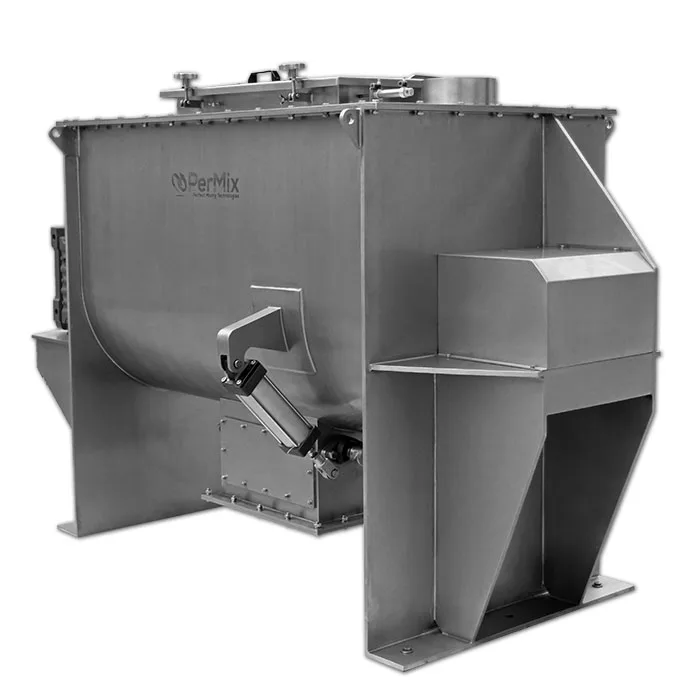

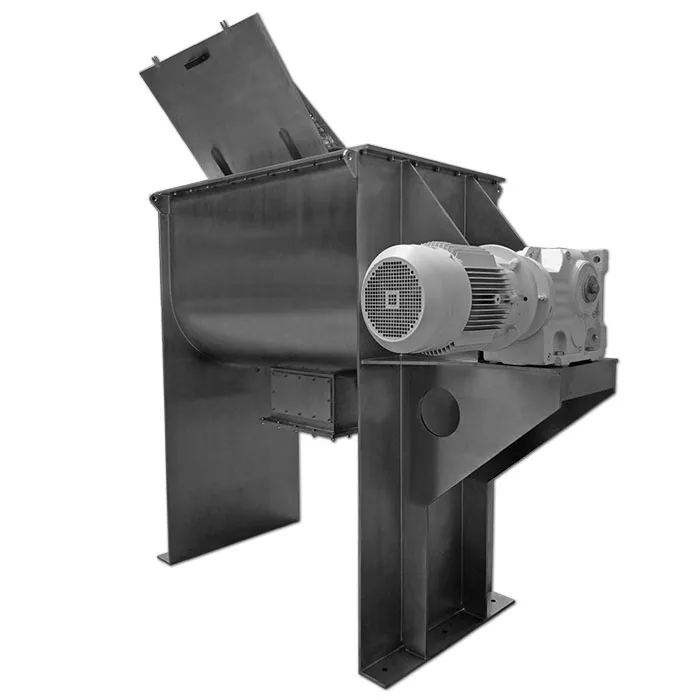

PerMix PRB series Ribbon Mixer is an efficient and versatile blending machine for mixing of dry powders, granules and viscous pastes homogeneously. It is able to give a satisfying "homogeneity grade" for mixing jobs due to the special design of a mixing agitator with dual ribbons inside of a U-shaped working trough.
WORKING PRINCIPLES:
The unit consists of one electrical motor, one reduction gear, coupling, and shaft with spiral agitator. The shaft is sealed with bush & PTFE gland housing at both ends. Materials are loaded from top side, and the discharge is located at the bottom side in the center. The discharge height can be adjusted as per requirement, so that material gets discharged into the container below it without floating dust.
INSTALLATION AND SET-UP:
PerMix PRB Ribbon Mixer consists of one electrical motor, one gearbox, and a shaft with double ribbons located in a U-shaped vessel. The external & inner ribbons are designed in such a way that the powder materials are pushed to move from center to the two ends of vessel, and meanwhile from ends to the center; besides, the powder materials are lifted up along the ribbon edges but then drop due to gravity. In such a three-dimensional way, the total powder can be mixed fast in the vessel. It asks for a short mixing time and relatively low power consumption.
SPECIFICATION:
Model | Total capacity (liter) | Useful capacity (liter) | Power (*) (kW) | RPM | L (mm) | W (mm) | H (mm) | Outlet (**) (mm) | Weight (kg) |
PRB-100 | 100 | 40-60 | 2.2 | 80 | 1,250 | 840 | 613 | 80x80 | 250 |
PRB-300 | 300 | 120-180 | 4 | 72 | 1,630 | 1,005 | 1,015 | 250x80 | 600 |
PRB-500 | 500 | 200-300 | 5.5 | 65 | 2,030 | 1,175 | 1,140 | 360x120 | 850 |
PRB-1000 | 1,000 | 400-600 | 11 | 50 | 2,460 | 1,455 | 1,375 | 360x120 | 1,300 |
PRB-2000 | 2,000 | 800-1,200 | 18.5 | 38 | 3,050 | 1,710 | 1,545 | 360x120 | 2,300 |
PRB-3000 | 3,000 | 1,200-1,800 | 22 | 35 | 3,500 | 1,865 | 1,680 | 360x120 | 3,300 |
PRB-4000 | 4,000 | 1,600-2,400 | 22 | 35 | 3,870 | 1,985 | 1,821 | 500x120 | 3,600 |
PRB-5000 | 5,000 | 2,000-3,000 | 30 | 30 | 4,090 | 2,062 | 1,945 | 500x120 | 4,620 |
PRB-6000 | 6,000 | 2,400-3,600 | 37 | 27 | 4,250 | 1,802 | 2,380 | 500x120 | 5,300 |
PRB-8000 | 8,000 | 3,200-4,800 | 45 | 24 | 4,590 | 1,956 | 2,504 | 700x120 | 6,800 |
PRB-10000 | 10,000 | 4,000-6,000 | 55 | 24 | 5,050 | 2,016 | 2,800 | 700x140 | 8,900 |
PRB-12000 | 12,000 | 4,800-7,200 | 55 | 20 | 5,500 | 2,160 | 2,753 | 700x140 | 9,520 |
PRB-15000 | 15,000 | 6,000-9,000 | 75 | 20 | 5,900 | 2,170 | 2,910 | 700x140 | 9,950 |
PRB-20000 | 20,000 | 8,000-12,000 | 90 | 17 | 7,180 | 2,690 | 2,830 | 700x140 | 13,500 |
PRB-25000 | 25,000 | 10,000-15,000 | 110 | 12 | 7,990 | 2,730 | 3,100 | 700x140 | 17,500 |
PRB-30000 | 30,000 | 12,000-18,000 | 132 | 12 | 8,450 | 2,860 | 3,300 | 700x140 | 19,500 |
1. (*) (**): Changes are available according to the customer’s request.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
2. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
3. PerMix reserves the right to modify the design without notice.
OPTIONS:
PerMix has designed a special feature for food application (salad mixing) with motorized tilting for discharge. The machine is built in full stainless steel construction for wash cleaning, a top lid with counterweight for easy manual opening.
Optional Features:
1.Ribbon (3 types available)
We offer different types of mixing ribbon for different applications. Standard ribbon is used to provide general blending purpose,with center discharge; Interrupted ribbon is applied for viscous material; Continuous ribbon is used for continuous operation with
one side feeding and the other side discharging.
2.Construction material
We are able to offer Ribbon Mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Also we produce Ribbon Mixers all by stainless steel in order to meet the high hygienic requirement.
3.Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
4.Heating/Cooling jacket
Jacketed trough for heating/cooling operation
5.Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.
6.Continuous operation
We can supply machines for continuous work when a large capacity per hour is needed for the same material.
7.Customized feeding & discharging
A variety of feeding & discharging methods can be selected by the customers. For feeding of materials, bag dump station can be mounted on the top of the U-shaped trough. Safety grid can be installed to prevent the possible injury to the worker. For discharge of the products, manual, pneumatic, or motorized operated valves can be selected according to the customers' preference. They are prepared to fit into any existing production line easily.
8.Vacuum drying & deaerating
The mixer can be designed for vacuum drying & deaerating for special applications.
9.Extended height bases
Height of our Ribbon Mixer can be defined according to customer’s condition.
10.External body by bead blasted finish
For full stainless steel mixers, external parts can be bead blasted.
We offer different types of mixing ribbon for different applications. Standard ribbon is used to provide general blending purpose,with center discharge; Interrupted ribbon is applied for viscous material; Continuous ribbon is used for continuous operation with
one side feeding and the other side discharging.
2.Construction material
We are able to offer Ribbon Mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Also we produce Ribbon Mixers all by stainless steel in order to meet the high hygienic requirement.
3.Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
4.Heating/Cooling jacket
Jacketed trough for heating/cooling operation
5.Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.
6.Continuous operation
We can supply machines for continuous work when a large capacity per hour is needed for the same material.
7.Customized feeding & discharging
A variety of feeding & discharging methods can be selected by the customers. For feeding of materials, bag dump station can be mounted on the top of the U-shaped trough. Safety grid can be installed to prevent the possible injury to the worker. For discharge of the products, manual, pneumatic, or motorized operated valves can be selected according to the customers' preference. They are prepared to fit into any existing production line easily.
8.Vacuum drying & deaerating
The mixer can be designed for vacuum drying & deaerating for special applications.
9.Extended height bases
Height of our Ribbon Mixer can be defined according to customer’s condition.
10.External body by bead blasted finish
For full stainless steel mixers, external parts can be bead blasted.
Product Details
More Products
Our Advantage
Company Information
Our Customers
Packaging & Shipping
FAQ
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
