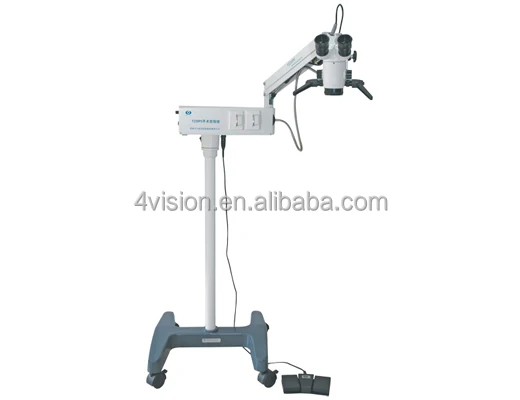

Операционный микроскоп
- Категория: Микрохирургическое оборудование >>>
- Поставщик: Suzhou,New,Vision,Meditec,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.70 $* |
| Aug-16-2025 | 0.2 $* | 0.8 $* |
| Jul-16-2025 | 0.65 $* | 0.40 $* |
| Jun-16-2025 | 0.43 $* | 0.22 $* |
| May-16-2025 | 0.70 $* | 0.84 $* |
| Apr-16-2025 | 0.79 $* | 0.43 $* |
| Mar-16-2025 | 0.81 $* | 0.77 $* |
| Feb-16-2025 | 0.1 $* | 0.0 $* |
| Jan-16-2025 | 0.63 $* | 0.18 $* |
Характеристики
| Compact structure and complete functions. | |
 | |
| Characteristics: | |
| • 4×~24×zoom magnifications, horizontal movement of foot control and fine focusing. | |
| • Germany imported Schott optics ensure the sharp image and even field of view. | |
| • Applied in operations and fine examinations of ophthalmology, ENT , surgery, etc. | |
| Specifications: | |
| Eyepiece Magnification | 12.5×/16B |
| Diopter Adjustment | ±6D |
| Pupil Distance | 50mm~75mm |
| Visual Angle of Eyepiece | 30°~90°(Eyepiece moving between 0°~180°is optional ) |
| Magnifications for Main Microscope | 4×~24×(41.5mm~7.5mm) |
| (Diameter of Field) | |
| Objective Lens | f=200(f=175/250/300 is optional) |
| Maximal Resolution | 119LP/mm |
| Working Distance | 190mm |
| Illumination Source | 15V/150W, Medical Cold-reflection Halogen Bulb |
| Illumination Type | 6°+0° Coaxial Illumination |
| Coaxial Illumination | ≥40, 000lx |
| Filters | Orange filter(cobalt filter is optional) |
| Reaching Radius of Arm | 1020mm |
| Adjustable Vertical Range | 250mm |
| Fine Focusuing Range and Speed | 30mm, ≤2mm/s |
| Speed for X-Y and Range | 50mm×50mm, ≤2mm/s |
Professional Softwares for video recording and editing
Patients' database management
Surgery trolley, for mounting monitor and camera control unit
