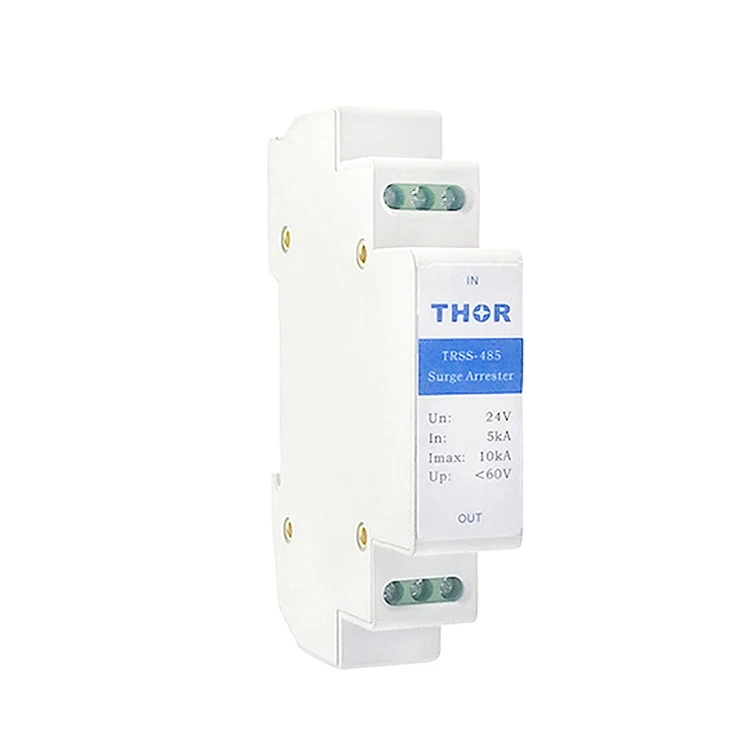

RS485 контрольный сигнал spd 24 В постоянного тока молниеотвод стабилизатор

RS485 контрольный сигнал spd 24 В постоянного тока молниеотвод стабилизатор

Категория: Other Electrical Equipment >>>
Поставщик: Zhejiang,THOR,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.92 $*	0.95 $*
Aug-19-2025	0.12 $*	0.56 $*
Jul-19-2025	0.74 $*	0.50 $*
Jun-19-2025	0.11 $*	0.25 $*
May-19-2025	0.15 $*	0.80 $*
Apr-19-2025	0.83 $*	0.11 $*
Mar-19-2025	0.45 $*	0.8 $*
Feb-19-2025	0.82 $*	0.68 $*
Jan-19-2025	0.9 $*	0.82 $*

Характеристики

Product Description

This product is suitable for analog signal system lightning protection, from damage by lightning over-voltage, induced over-voltage, electrostatic discharge.
The standard module can protect two lines. multiple standard modules can protect more lines at one place,It can be used to superimpose, and make up protect the array to protect the sensitive electronic equipment.
This product use front and back of two levels to protect, the first level is rough protection for energy dissipation; the second level is meticulous protection for clamping. The coupling go through the Front and back levels makes the surge protector really achieve the perfect lightning protection effect.

Signal Surge protector

Main technical parameters

Main technical parameters	TRSS-485
Max continuous operating voltage Uc(VAC)	6	12	24	48	120
Voltage protection level Up(V)≤	10	20	60	80	200
Insertion loss (dB)	<0.5dB
Max discharge current (8/20μS) lmax(kA)	10
Nominal discharge current (8/20μS) ln(kA)	5
Response time ns	<1ns
Degree of protection	IP20
Application	Primary protection for in line
Remarks	Other Uc can be customized
