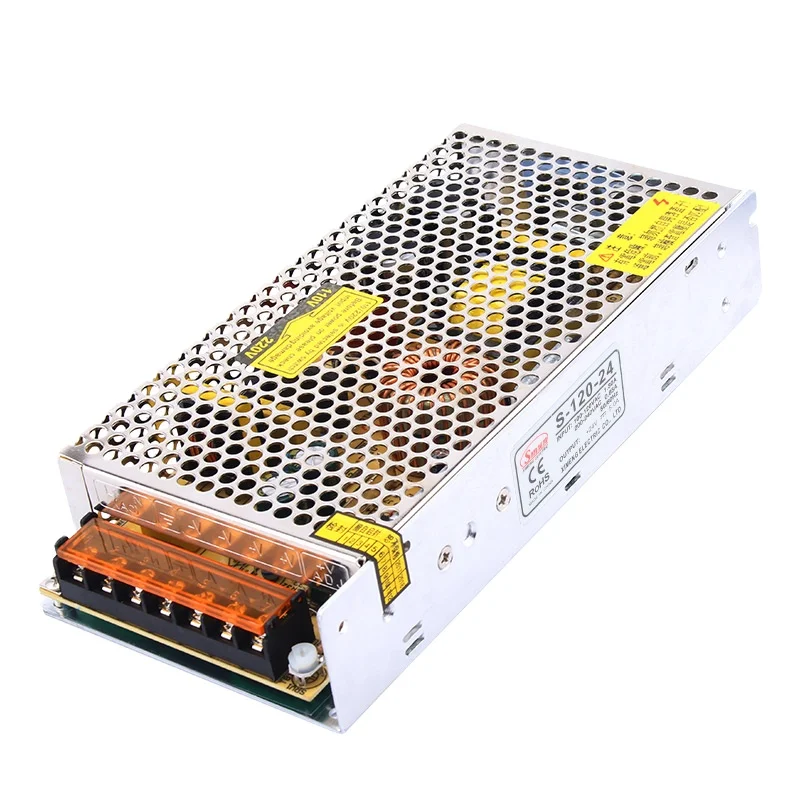

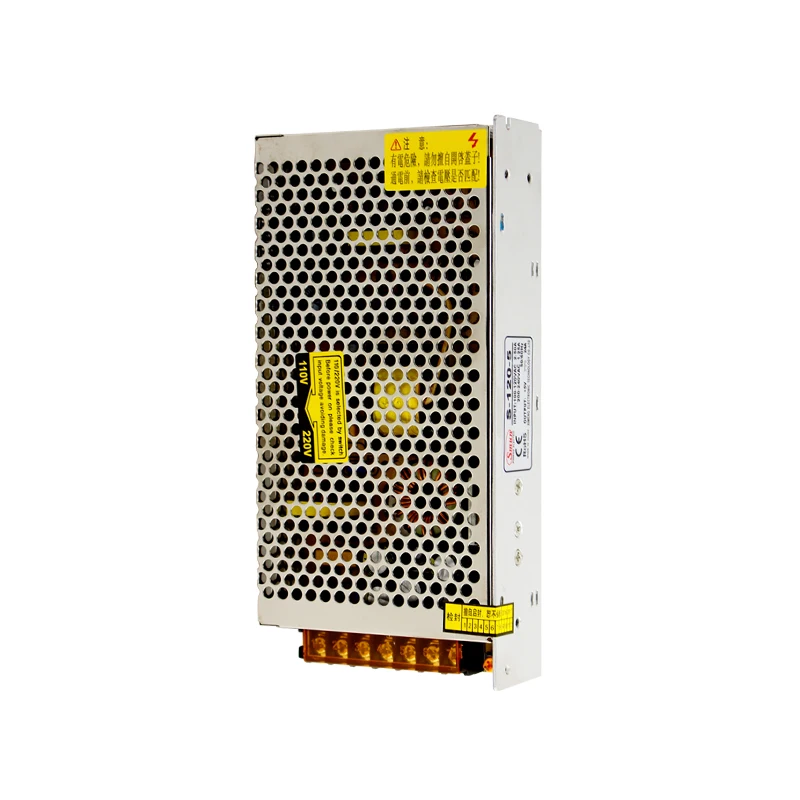

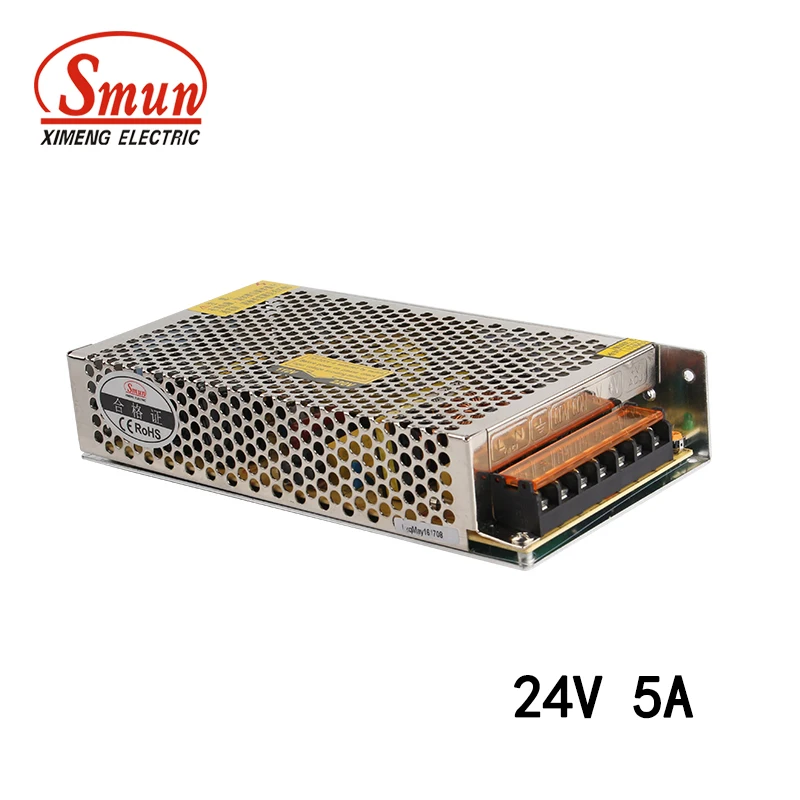

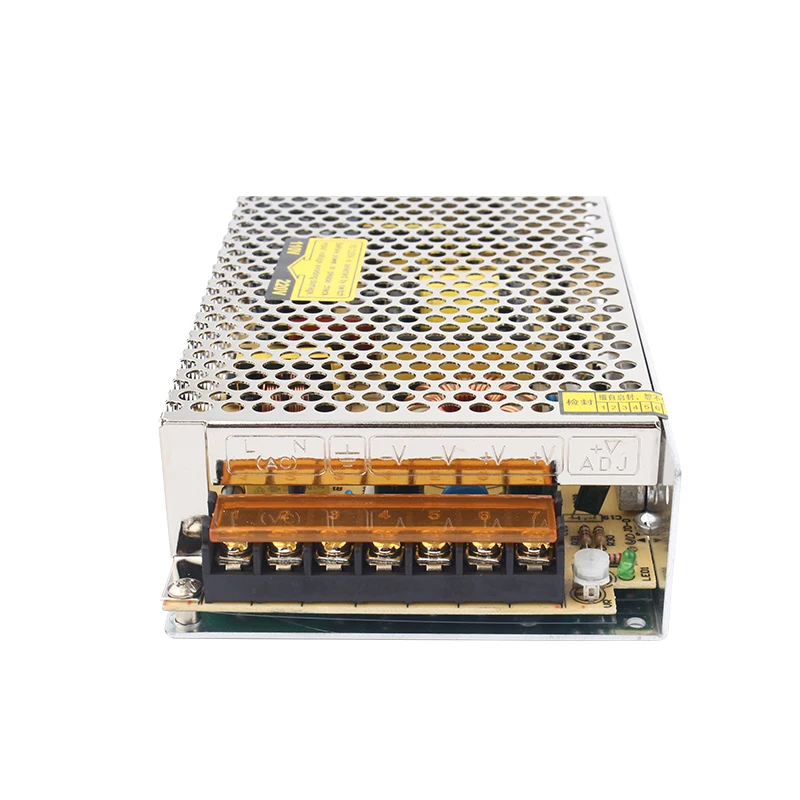

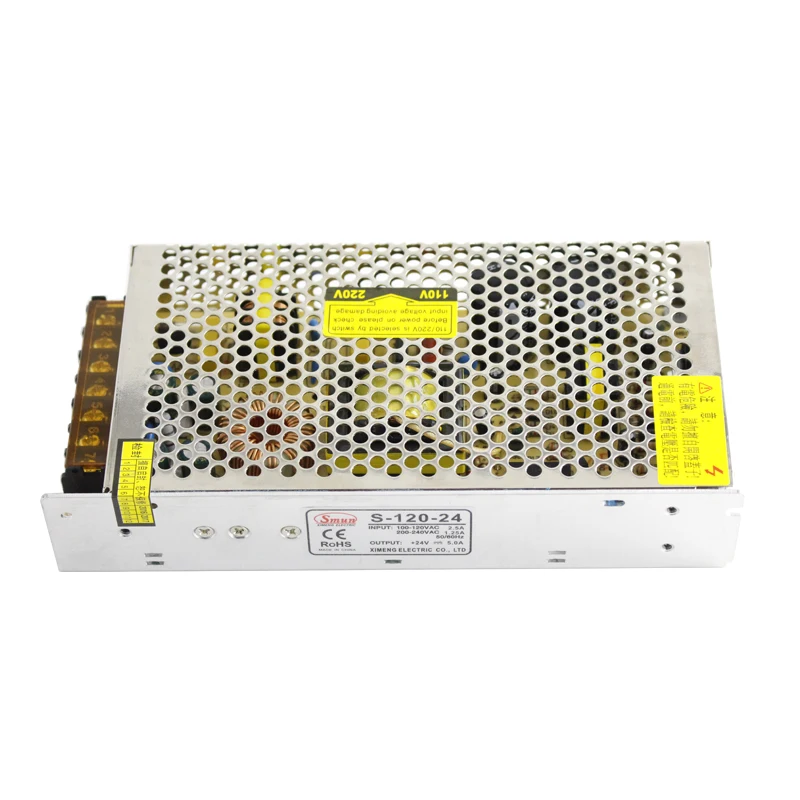

Смун S-120-24 120W 24VDC 5A выход импульсный источник питания для домашнего

Описание и отзывы

Трекер стоимости

Характеристики

Model		S-120-5	S-120-12	S-120-15	S-120-24	S-120-48
Output	DC output Voltage	5V	12V	15V	24V	48V
	Voltage tolerance	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	24A	10A	8A	5A	2.5A
	Related Power	120w	120w	120w	120w	120w
	Wave&Noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%	±10%	±10%
	Set up,rise,hold up time	200ms  100ms  20ms
Input	Voltage Range	85 ~132VAC  170-264VAC  47-63HZ 240-370VDC
	Input Current	2.4A/115VAC 1.2A/230VAC
	Efficiency	81%	81%	84%	84%%	84%
	AC inrush current	Cold start current  30A/115V 60A/230VAC
	Leakage current	<0.5mA/240VAC
Protection	Overload	Related output power 105-150% start overload protection
		Protection type: cutoff output, recovery after restart power
	Over voltage	5.75V-6.75V	13.8V-16.2V	17.2V-20.2V	27.6V-32.4V	55V-64.8V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage	I/P-O/P:1.5KVAC  1min
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard	Fit UL1012
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A
Size	size	L199*W98*H38mm
	Package	0.65kg, 30pcs/20kg
