Yuyun Sanhe развернулся вентилятор осевой промышленной вытяжной для домашней птицы
- Категория: Другие вентиляторы >>>
- Поставщик: Shandong,Yuyun,Sanhe,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 222.90 $* | 226.19 $* |
| Jul-19-2025 | 180.88 $* | 184.64 $* |
| Jun-19-2025 | 219.35 $* | 223.99 $* |
| May-19-2025 | 217.62 $* | 221.89 $* |
| Apr-19-2025 | 173.48 $* | 176.63 $* |
| Mar-19-2025 | 214.94 $* | 218.64 $* |
| Feb-19-2025 | 212.78 $* | 216.12 $* |
| Jan-19-2025 | 210.60 $* | 214.21 $* |
Характеристики
Product Description
Product Application

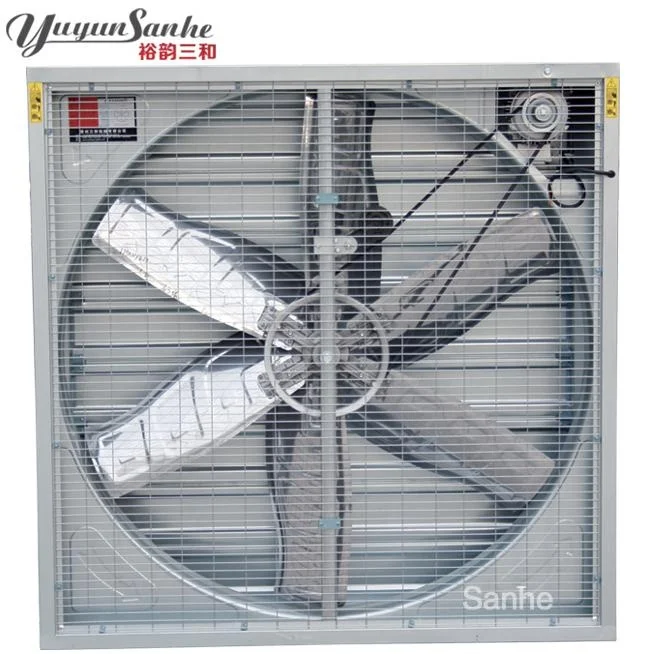

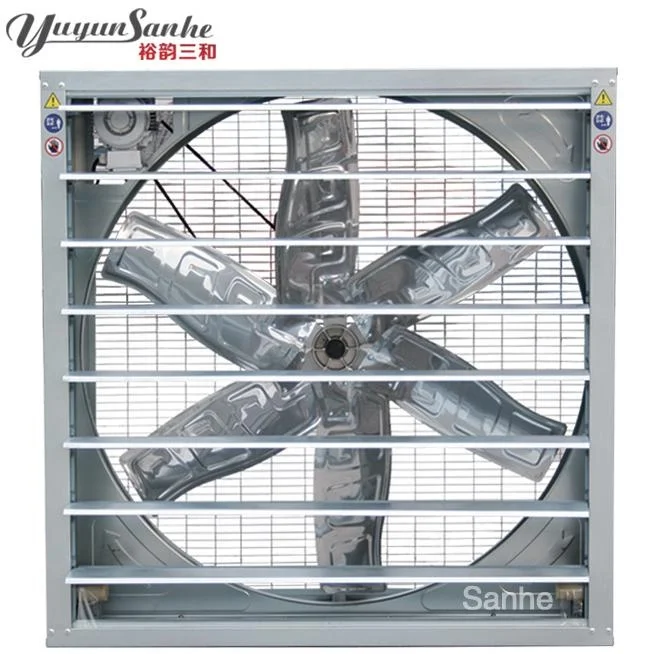

DJF(a) Series Swung Drop Hammer Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Technical Data: | ||||||||||||||
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air Flow (m³/h) | Input Power (W) | Noise (db) | |||||||
DJF(a)-620 | Direct | 500 | 1400 | 1400 | 5700 | 370 | <70 | |||||||
DJF(a)-750 | Direct | 600 | 960 | 960 | 10600 | 370 | <70 | |||||||
DJF(a)-780 | Direct | 710 | 960 | 960 | 23000 | 750 | <65 | |||||||
DJF(a)-780-2 | Belt | 710 | 650 | 1400 | 18000 | 370 | <65 | |||||||
DJF(a)-830 | Belt | 720 | 660 | 1400 | 20000 | 370 | <65 | |||||||
DJF(a)-900 | Belt | 750 | 630 | 1400 | 22000 | 370 | <65 | |||||||
DJF(a)-1000 | Belt | 900 | 610 | 1400 | 25000 | 750 | <65 | |||||||
DJF(a)-1060 | Belt | 960 | 600 | 1400 | 29000 | 750 | <65 | |||||||
DJF(a)-1100 | Belt | 1000 | 600 | 1400 | 32500 | 750 | <64 | |||||||
DJF(a)-1220 | Belt | 1100 | 460 | 1400 | 38000 | 750 | <64 | |||||||
DJF(a)-1380 | Belt | 1270 | 439 | 1400 | 44000 | 1100 | <64 | |||||||
DJF(a)-1530 | Belt | 1400 | 325 | 1400 | 55800 | 1500 | <64 | |||||||
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
Detailed Images

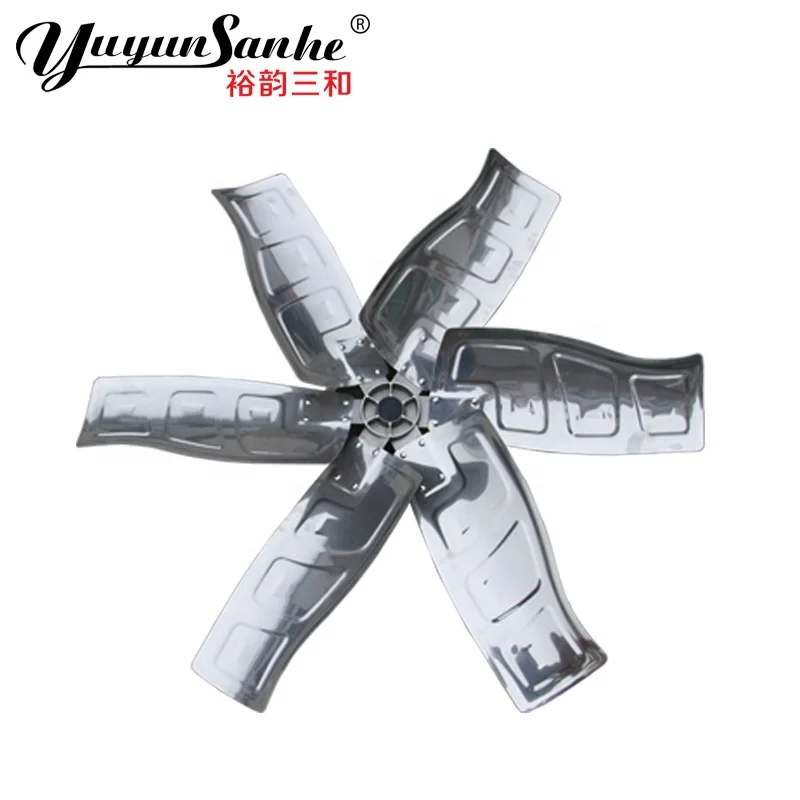

Fan blades
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Belt Pulley
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
Italligent Dynamic-balance Tester
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:Ensure the fan smooth running,lower vibration,less noise,increase stability.

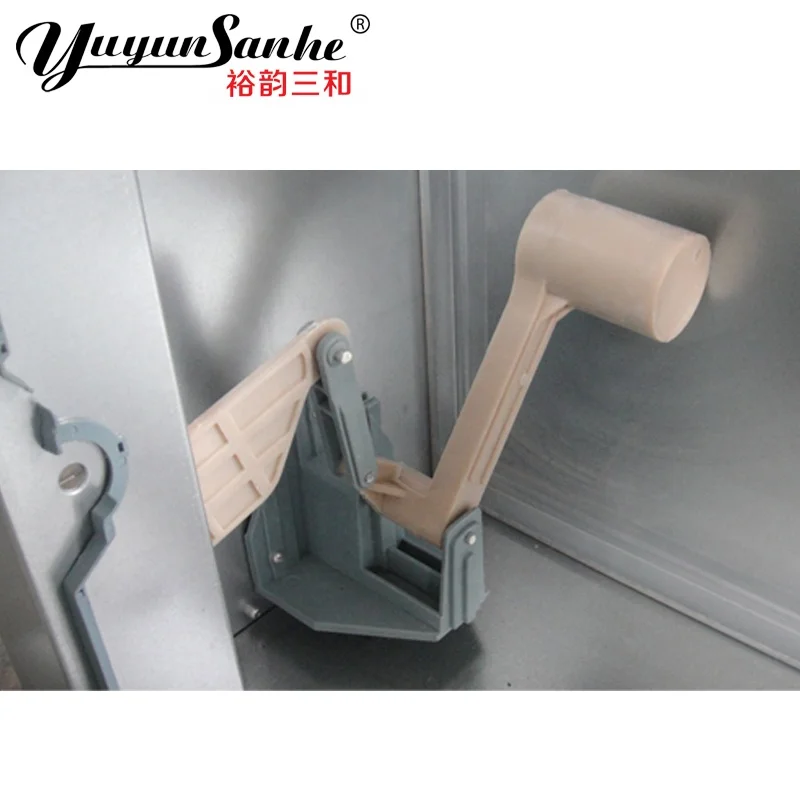

Opening System
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

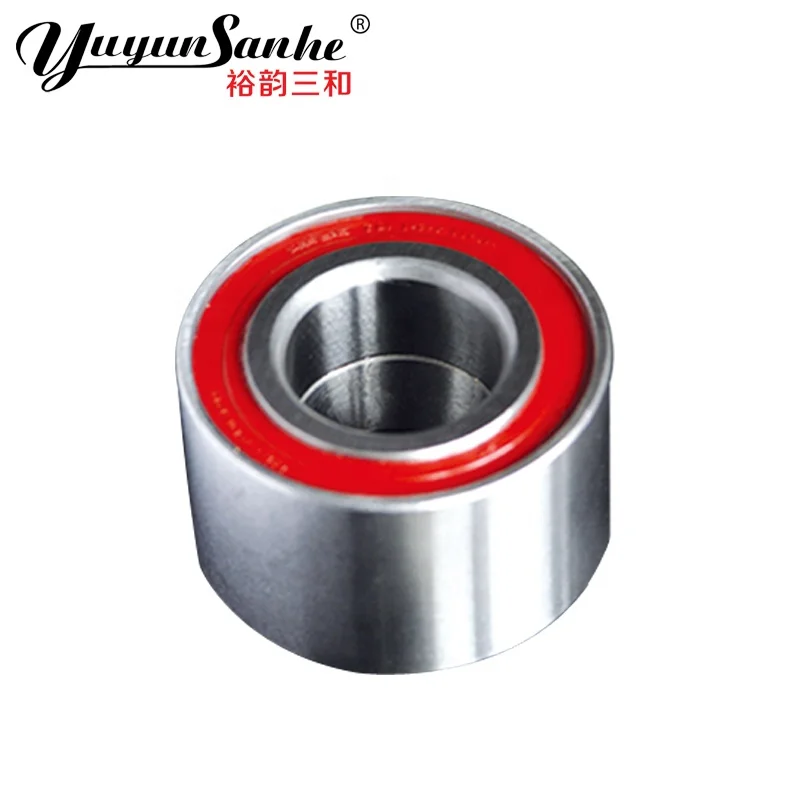

Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
Belt
Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Long service life, maintenance free
Safe Net
Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.
Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

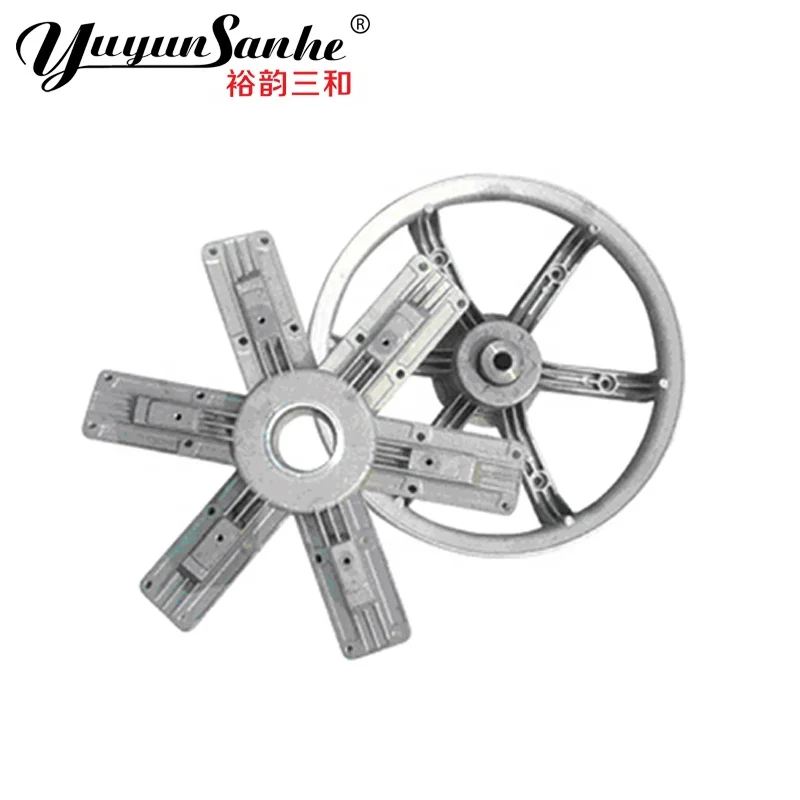

Blade Support Base
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
Certificate
Yuyun Sanhe Company have gotten many titles such as "China Ten Top Brands Fan" "AAA level of National Quality Company" "Honesty and Qualitative Enterprise", "Alibaba Assessed Supplier". International authority certified, Trustworthy
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Yuyun Sanhe Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Factory&Workshop
No.1 ventilation equipment manufacturer in China, equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers
Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.
Global service, Annual sales over $ 30 million
Yuyun Sanhe Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Our Service
Yuyun Sanhe has 20+ years of professional design and production experience, more than 300 efficient R & D and production team.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
Main Product
Yuyun Sanhe Main Products are Ventilation fan, Evaporative Cooling Pad, Evaporative Cooling Pad Production Line, Greenhouse Fan, Cow House Fan, Shutter Louver, Heater, Air Inlet, Light Filter, Winch, Pulley, Time/Temperature Controller, Laying Nest etc.
