Обработка коронавируса для ротогравюрной печатной

Описание и отзывы

Трекер стоимости

Характеристики









parameters
Generator model	CD-502

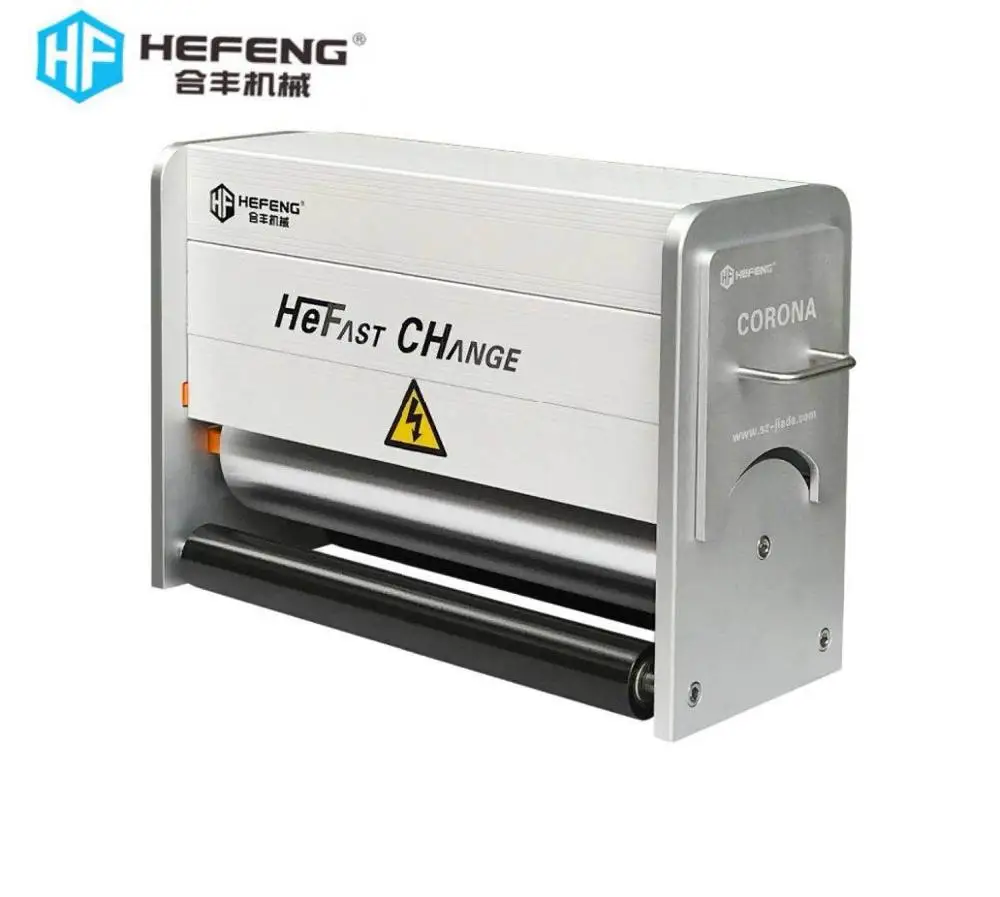

corona station model	FR-22
Input voltage	AC220V±10%
Intput frequency	50/60Hz
Output voltage	10-12KV
Output power	2KW
Output frequency	15-25khz





 1.Warranty period:12 month except ceramic electrode

2.electrode:German ceramic electrode, round ,square ,square with groove patent, ceramic electrode      quantties are based on customers requirment, transarant fireproof board in both sides, in covenient to watch the working status at any time.

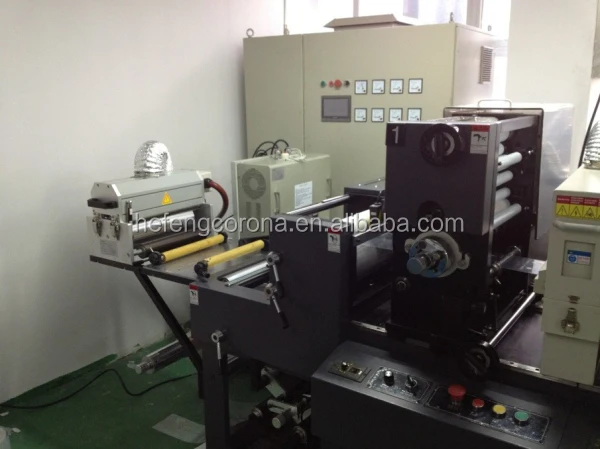

3.Used on: rotary printing press, flexographic press, rewinder, slitter, coating machine, laminating machine, etc.





Corona principle and role



Use high-frequency high-voltage on power pole in the discharge between the roller and corona,low-temperature plasma formed by ionization of air between the poles to produce ozone, which is a strong oxidizer, can change the molecular structure of plastic surface to make it   non-polar into polarity. At the same time after the corona treating , it will cause uneven surface hole roughen,It will enhance surface activity, such as the increase in surface tension, that is, ink, glue, etc. will be able to further penetrate the material and processed to achieve he ideal effect on the printing and glue applicating.











1. 15years industry experience and excellent research team.

2 best quatity, best price and best service.

3,we have our own patented products amd some products get the international CE certification.

4.the corona are custom designed for each installation as required.

we provide good quatity and best service.we are continuously developing new corona and plasma equipment to help soving adhesion problems









welcome to purchase!



if you have any other questions, pls feel free to contact us !



tel:86+755+81487643
