Selling Single bit/one cone bit/TCI oil tricone bits from factory





Hejian Deris Petroleum Drilling Equipment Co., Ltd established in 2000 ,is a professional manufacturer and supplier of drilling Located in the Junziguan industrial park,Hejiancity ,Hebei province ,China Near Beijing airport and Tianjin seaport

harpening....)









1)Cutting Structure

The reamer mainly consists of four or more cones. Cutting Structure with premium tungsten carbide hardfacing or premium tungsten carbide insert of formulas and new techniques is utilized, and increases wear-resistance capability of reamer. The pilot is three cone bit( tricone bit ).

2)Seal and Lubrication

High performance HNBR O-ring for bearing seal and advanced grease for lubrication.

3)Product Application

It is suitable for the large size well, mining and infrastructure applications.

4)Main Availability, ( Bit sizes and cone types can be customized as you special order)



Size		Bit Type
In.	mm
4 1/8	104.8	517, 527, 537, 617
4 1/2	114.3	517, 527, 537, 617
4 5/8	117.5	517, 527, 537, 617
4 3/4	120.6	517, 527, 537, 617
5 7/8	149.2	517, 527, 537, 617
6	152.4	517

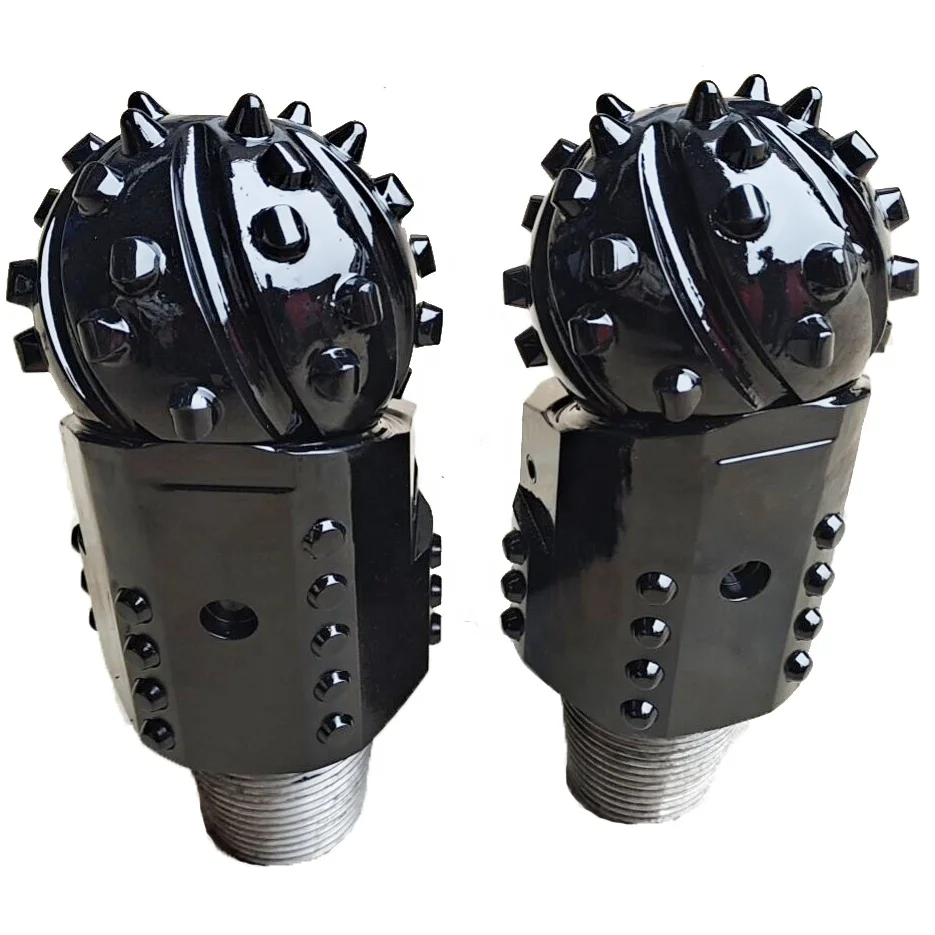

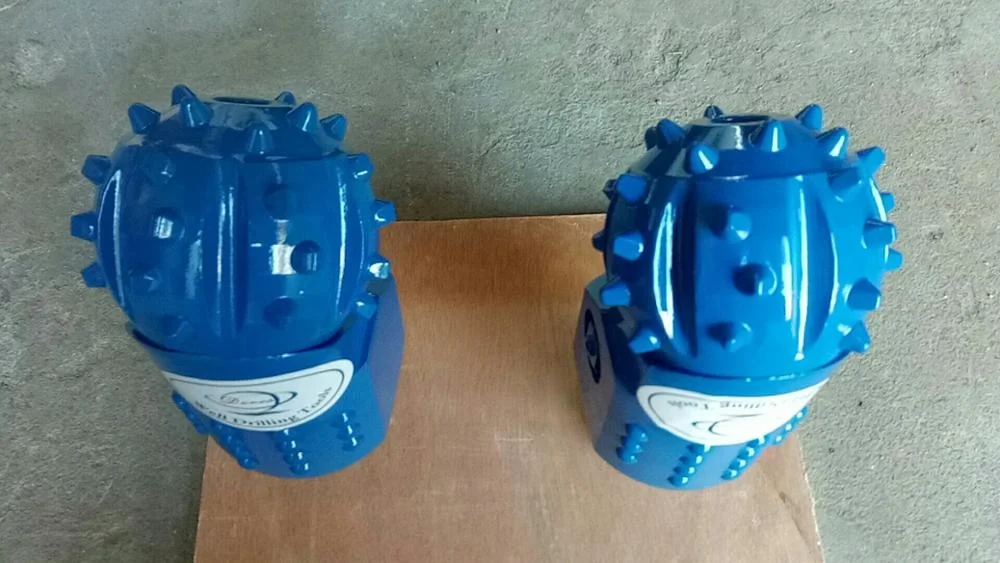

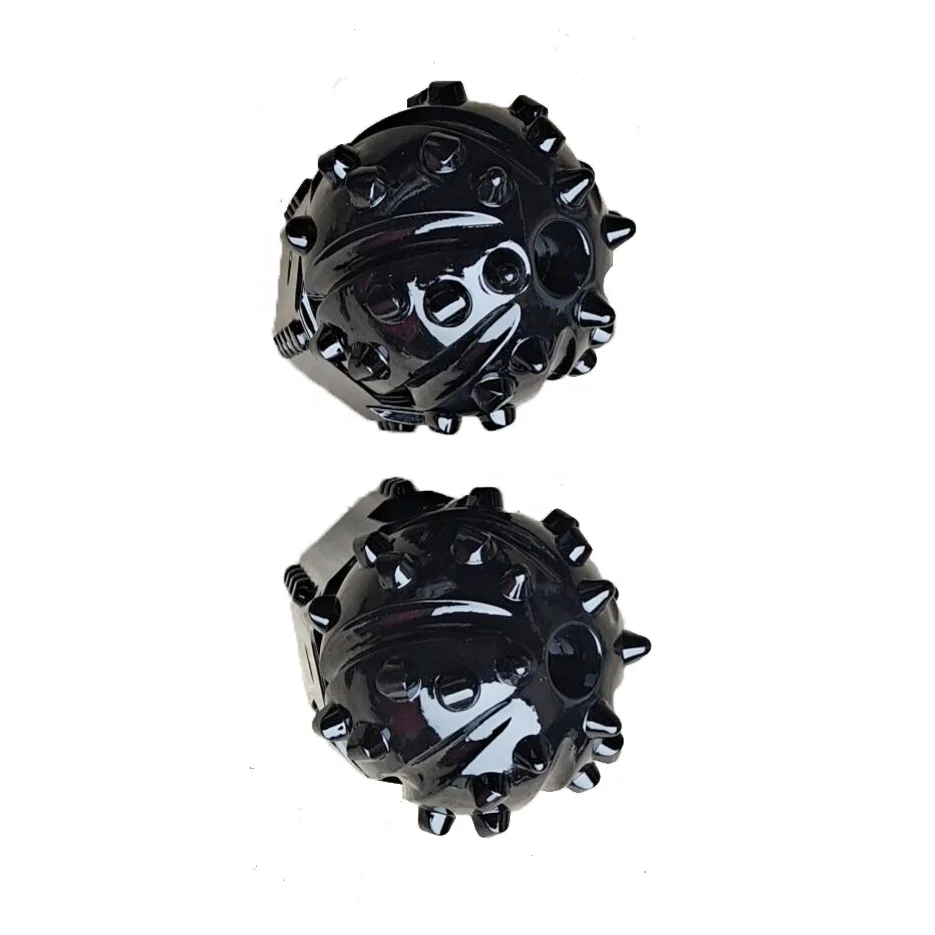

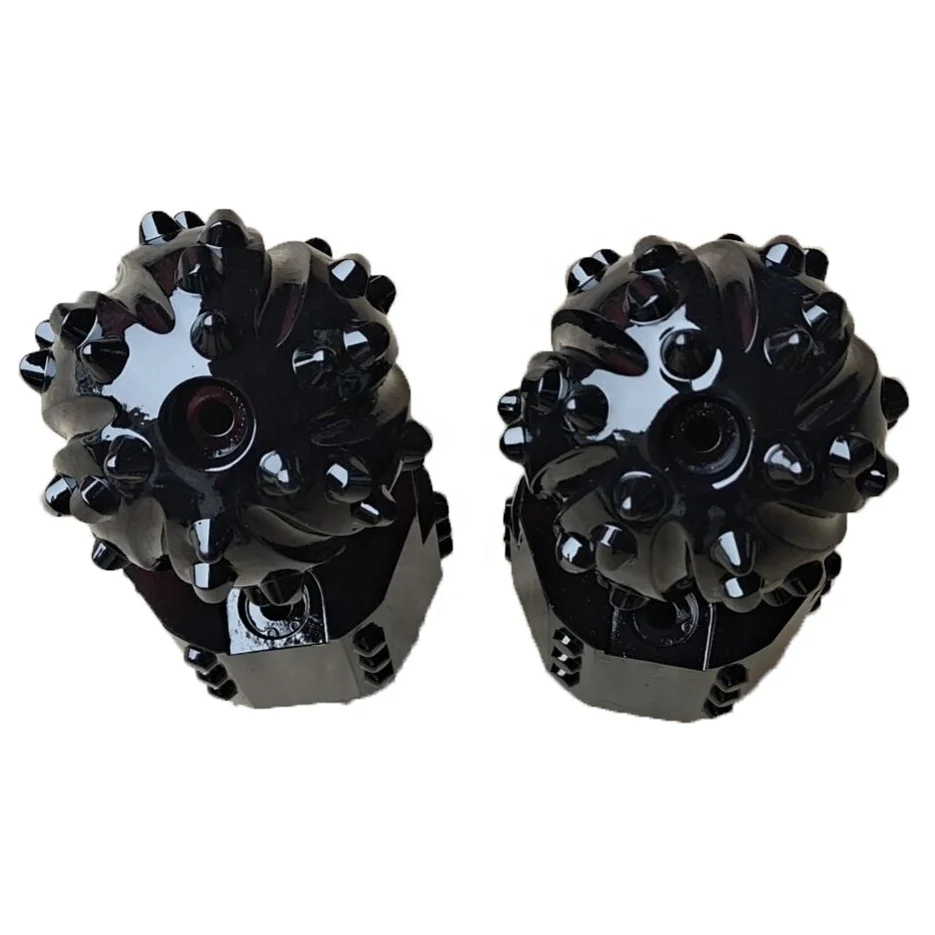

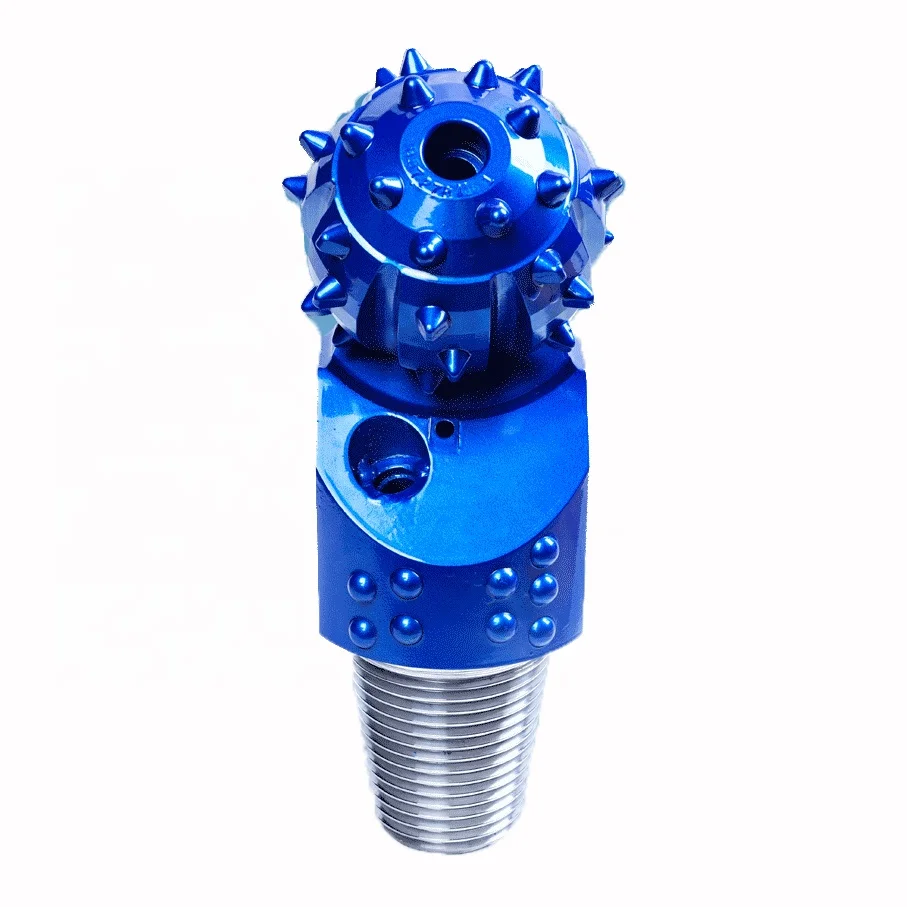

Single cone bit is a bit slow, that cone drill bit of speed than the speed of smaller, mainly chaotic cutting rock, suitable for high-speed, high pressure drilling wells sidetracking the old, old wells deepened so slim hole drilling.
1. Applications more widely applicable not only to lateral drilling, and can be used in deep wells.
2. Working torque than the PDC drill bit in the same conditions of pressure and lower strata can reduce the problem of small size drill expansion button to avoid mine accidents.
3. Single cone bit with both three-cone bit and PDC bit of advantage, there is a difference between the two Surrounded by a shortage of more than three-cone bit more suitable for large plastic formation, but also can be applied to PDC bit difficult to deal with hard interlayer, and other complex formations.
4. With the downhole drill motor to achieve high speed and special drilling needs.
5. Size: various sizes 3 3 / 4 "(95.3mm) --- 6 1 / 8" (155.6mm



5) TCI cone bit
1. Covers almost all IADC codes.
2. Rapid delivery time
3. Meet with API Spec7-1 Standard



6)Please specify the following on enquiry,
1.Bit diameter
2.Drilling formation
3.guide bit/pilot bit diameter
4.cutters type
5.Thread Connection

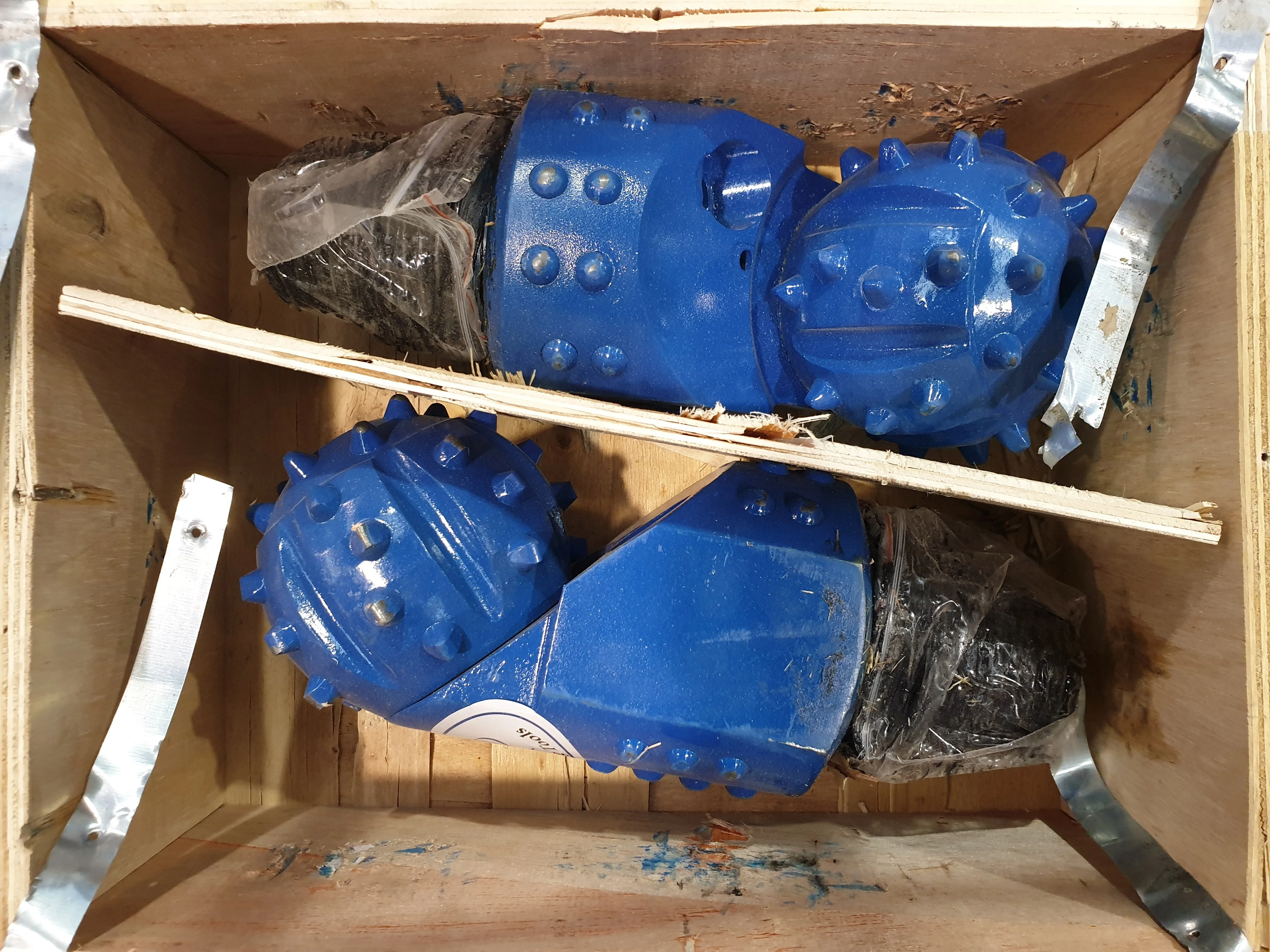

 Package Type : wooden case ,also be packaged according to customers requirement
Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better
Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit,
we have stock.
If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.







 This is Jenny, already have 7 years working experience for this section. Already make many friends from different countries. I am very pleasure to help them solve some difficult problems for the HDD drilling reamer and tricone bit, and find the more suitable drilling products. We believe double win is what we want. If you have any questions, welcome to talk with me.
