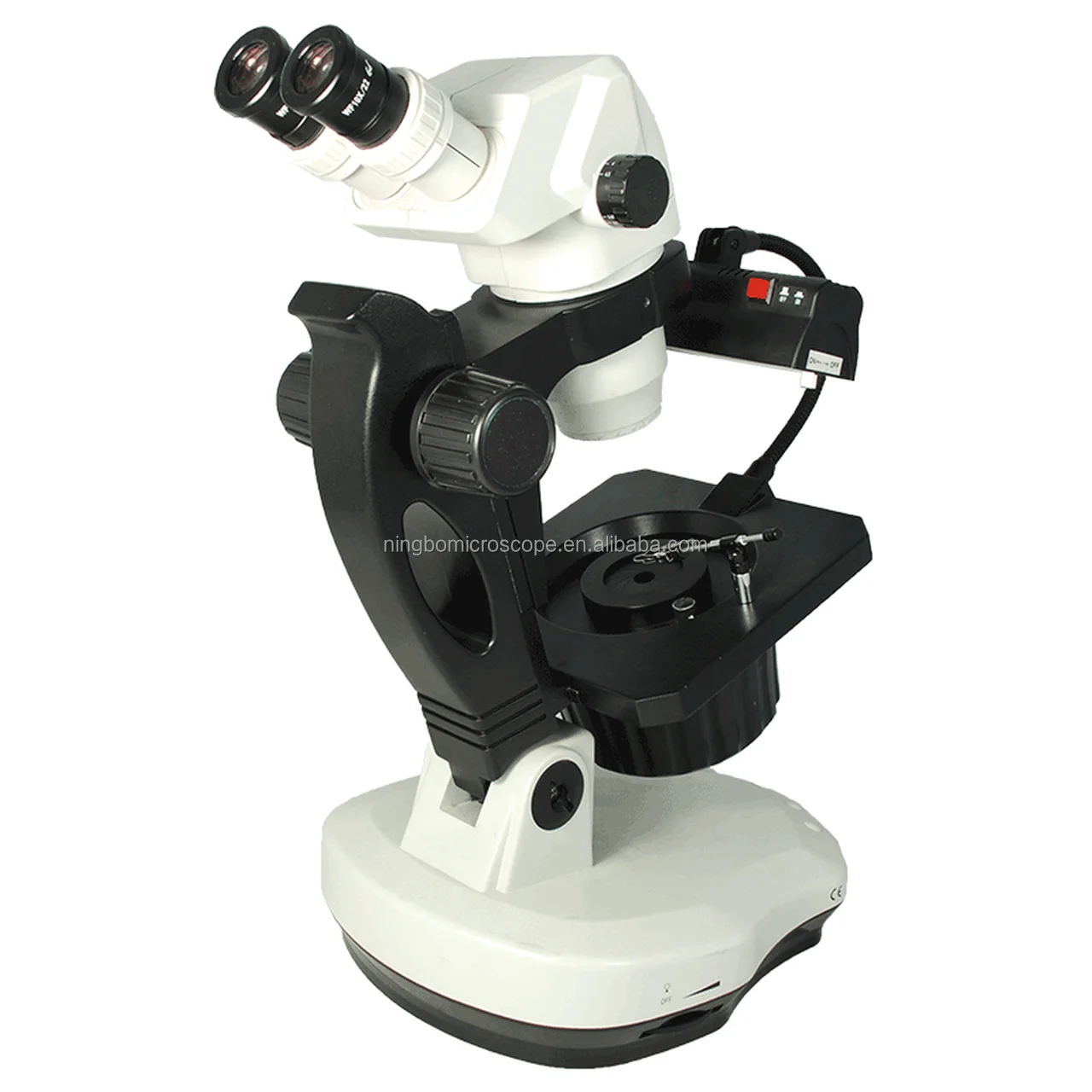

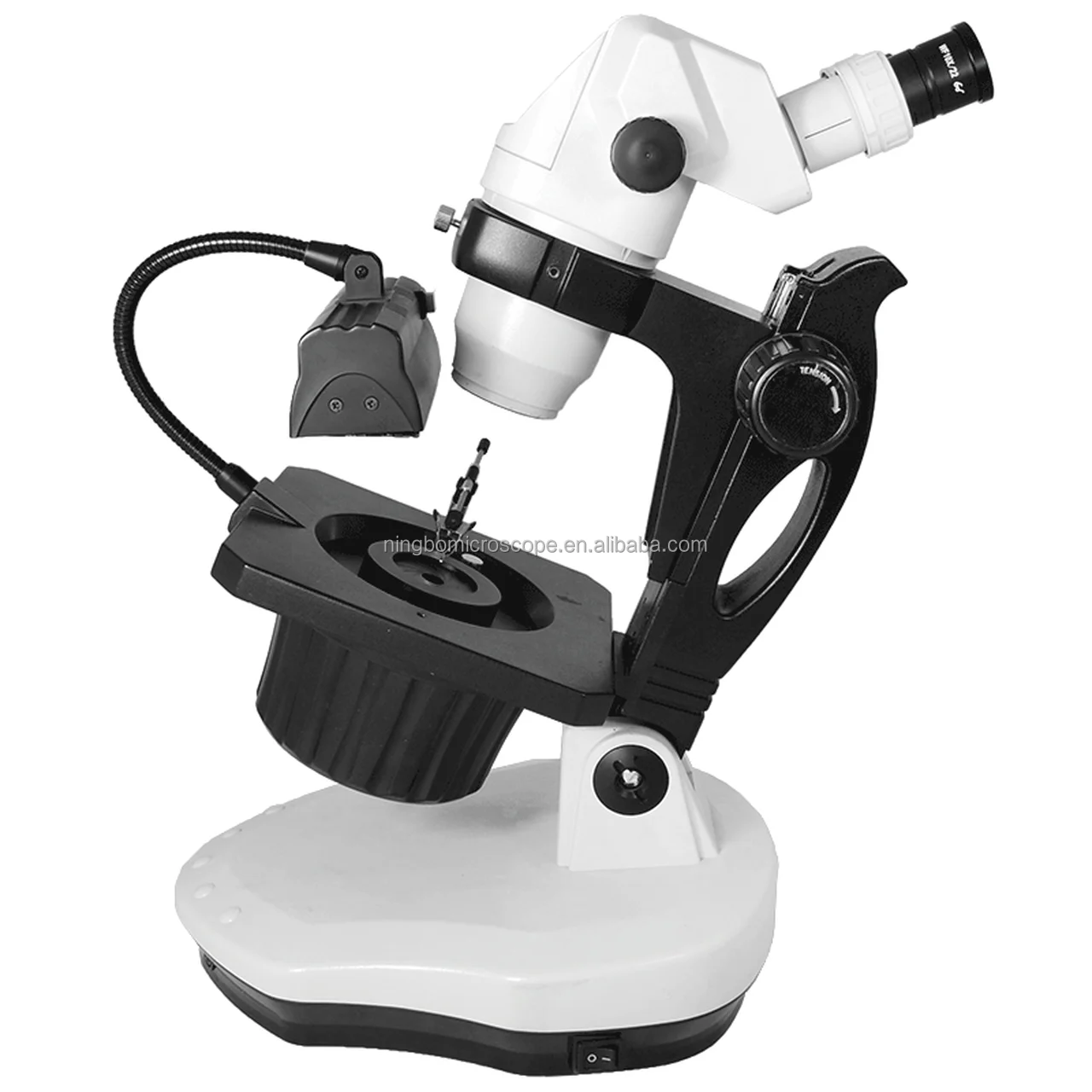

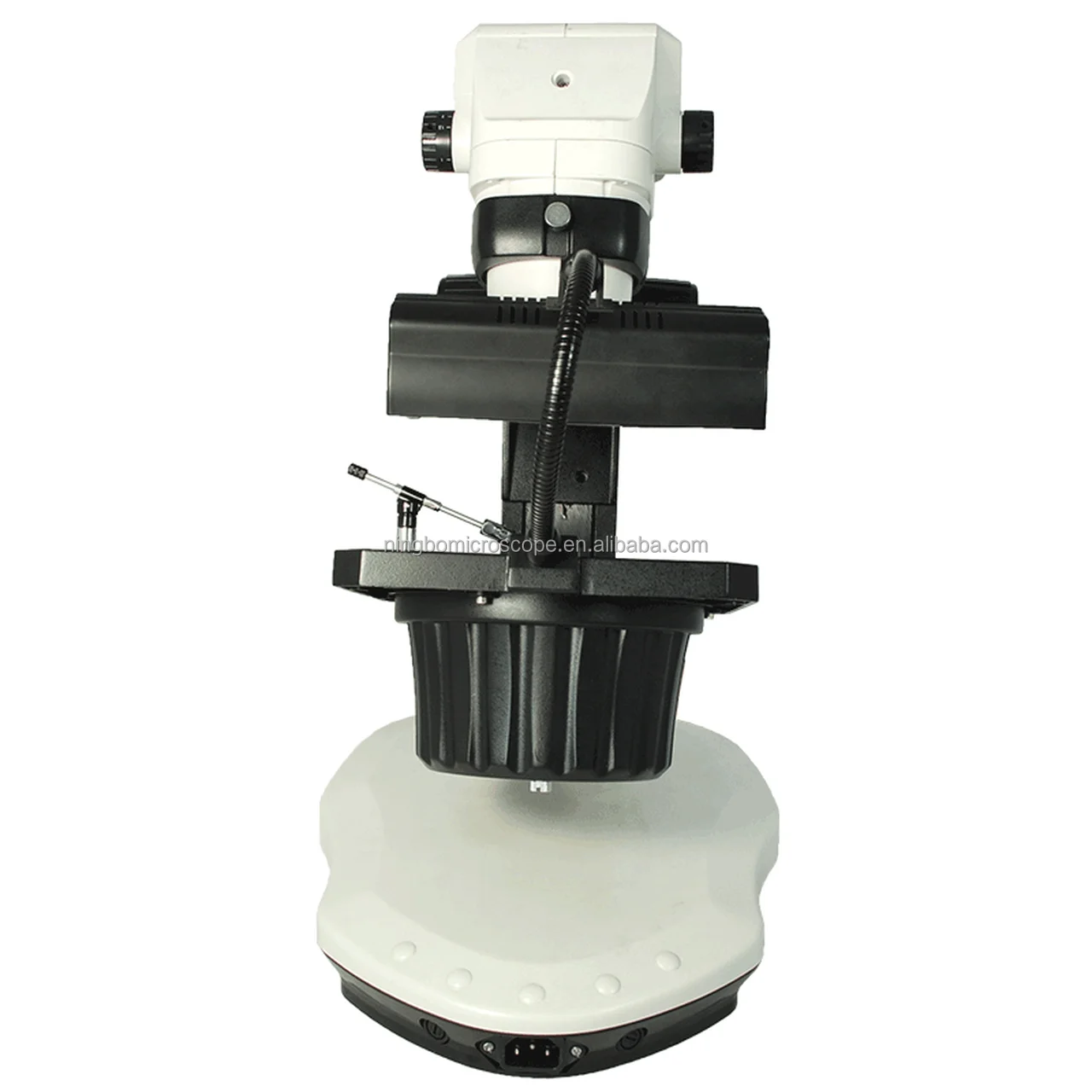

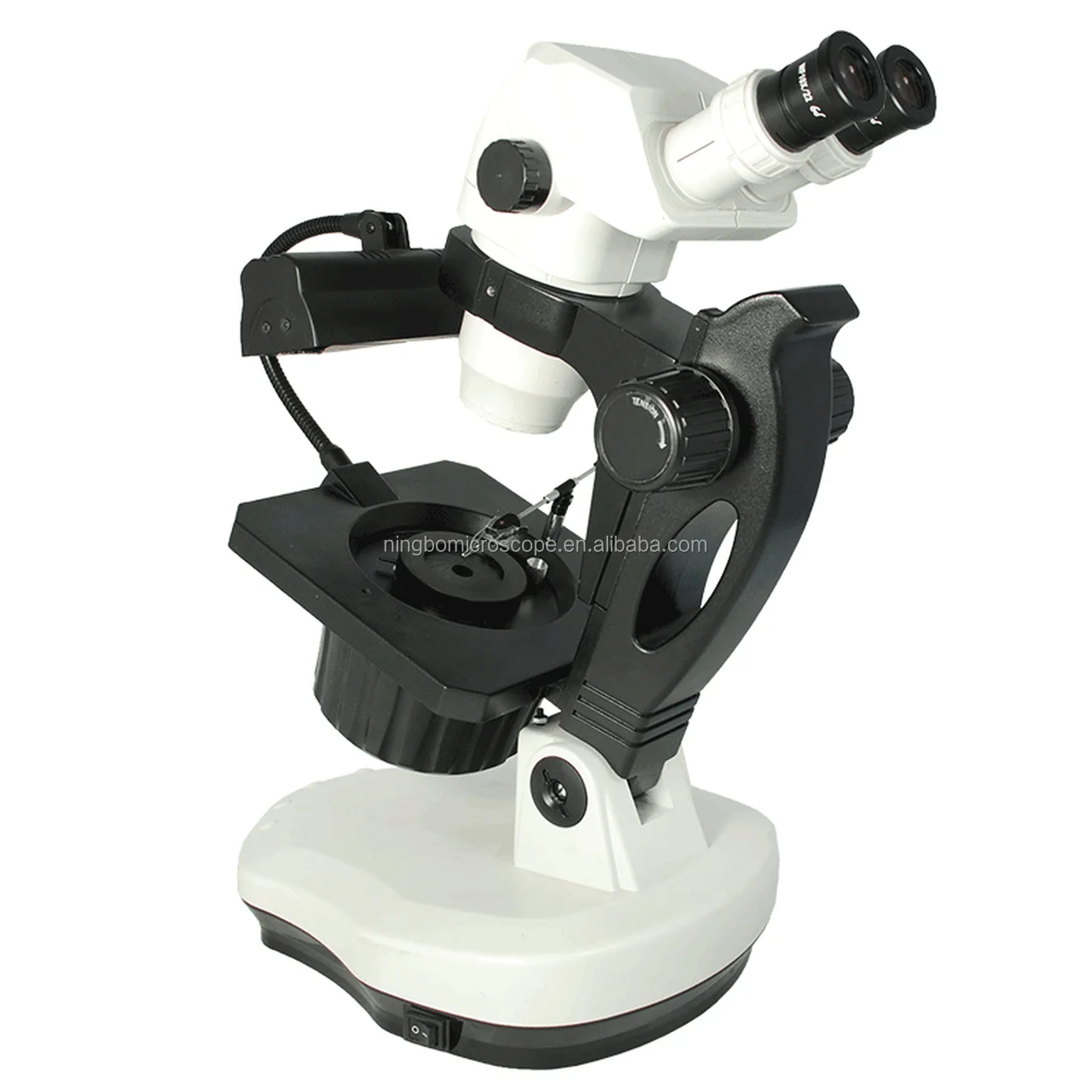

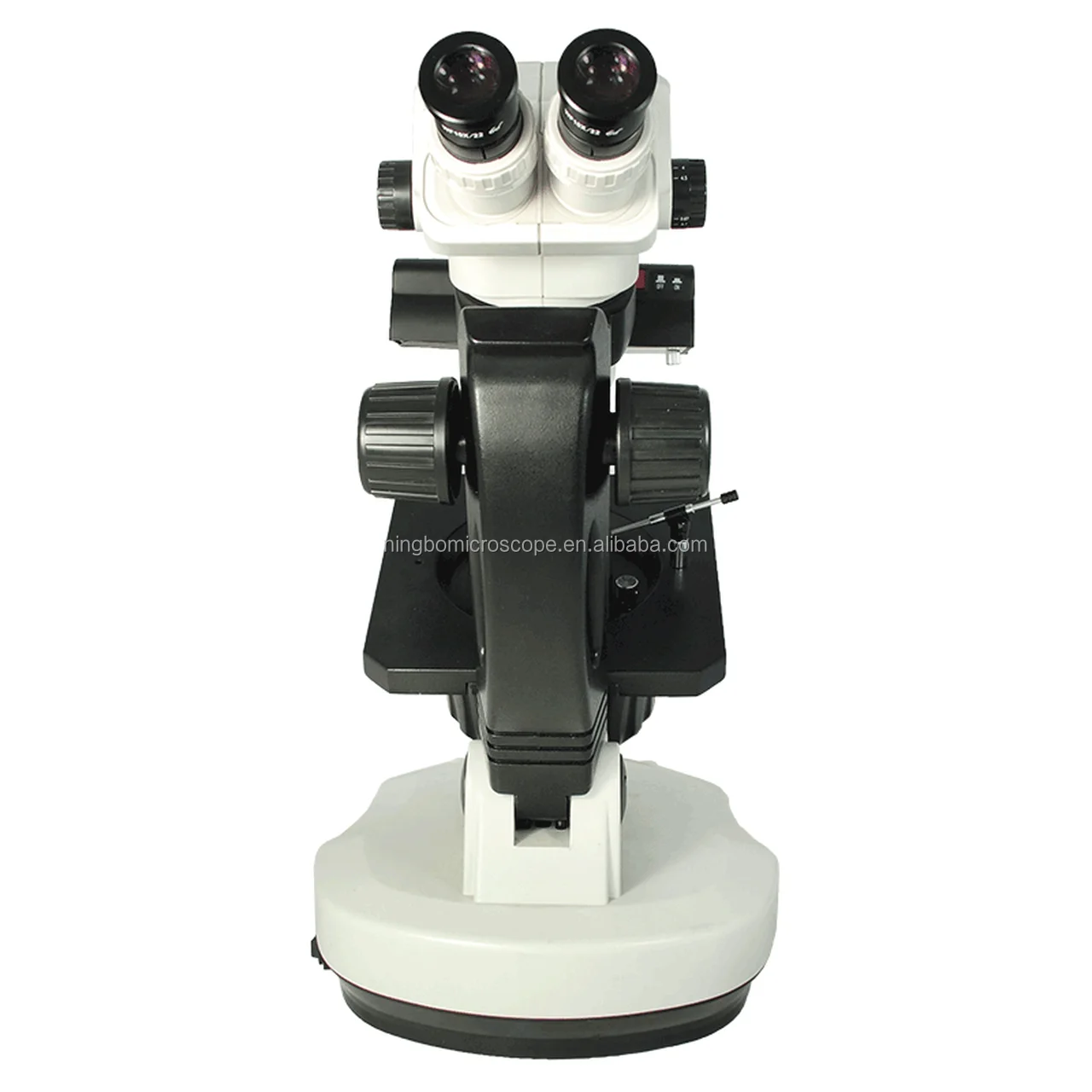

6.7X-45X Advanced Diamond Jewelry Gem Inspection Stereo Zoom Microscope GEM.03.G20N





Key Features



• Total Optical Magnification 6.7x~45x

• Professional jewelry microscope stand with base rotating and inclination adjustable

• Bright field transmit, reflect, polarizing and dark field observation

• Fluorescent bulb or LED (top) and transmitted (bottom) illumination system

• Fully coated optical system offering sharp and clear image



Specification



Observation Ways	Bright field transmit, reflect, polarizing and dark field observation
Head	Binocular, 45° inclined, 360° rotatable, +/-5° diopter adjustable, interpupillary adjustment 54~75mm
Zoom Range	0.67x~4.5x
Zoom Ratio	1: 6.7
Eyepiece	WF10x/22mm, both with eye-cup
Magnification	6.7x~45x, up to 225x with auxiliary lens
Working Distance	100mm, with standard 1x lens. Up to 26~287mm with auxiliary lens
Gem Clamp	Wire clamp for bigger objects, flat clamp for smaller objects
Stand	Professional jewelry microscope stand, with base rotating and inclination adjustable, with built-in dark field, polarizing device
Illumination	Top illumination 7w fluorescent or 1w led
	Bottom transmitted illumination 6v 30w halogen lam



Optional Accessory



Items	Specification
Eyepiece	WF10X/FN22, High-eyepoint, Wide Field with adjustable diopter, Dia:30mm(Micrometer mountable)
	WF15X/FN16, High-eyepoint, Dia:30mm(Micrometer mountable)
	WF20X/FN12, High-eyepoint,12mm field of view, Dia: 30mm(Micrometer mountable)
	WF25X/FN9, High-eyepoint and wide field of View, Dia:30mm.
Objective	0.3X, WD: 287mm
	0.4X, WD: 217mm
	0.5X, WD: 177mm
	0.75X, WD: 177mm
	1.5X, WD: 47mm
	2.0X, WD: 26mm











1. What is your MOQ?

>>>For most of our products, MOQ is one piece.



2. How to purchase it?

>>>First, please finalize the items, payment methods and shipping ways, share us with your company name(if there is), address and telephone, then we will prepare the invoice for you to make payment. After we get the payment, we will prepare the goods and ship them to you.



3. How to make payment?

>>>You can make payment through bank wire transfer, Alibaba trade assurance, Western Union, or Paypal.



4. What is the lead time?

>>>The lead time differs based on the goods, order quantity.



5. Can you do OEM?

>>>Yes, OEM is available. Logo, user manual and packing can be all OEM.
