Машина для вакуумной металлизации пластика/вакуумная металлизирующая машина АБС ПП ПК и т.

Машина для вакуумной металлизации пластика/вакуумная металлизирующая машина АБС ПП ПК и т.

Категория: Other Plastic & Rubber Machinery >>>
Поставщик: Guangdong,HuiCheng,Vacuum,Technology,Co.,Ltd.

Цена:50 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	59500.35 $*	62475.13 $*
Aug-17-2025	59000.10 $*	61950.27 $*
Jul-17-2025	49500.75 $*	51975.81 $*
Jun-17-2025	58000.61 $*	60900.16 $*
May-17-2025	50500.89 $*	53025.6 $*
Apr-17-2025	57000.54 $*	59850.74 $*
Mar-17-2025	56500.6 $*	59325.47 $*
Feb-17-2025	56000.33 $*	58800.91 $*
Jan-17-2025	55500.6 $*	58275.19 $*

Характеристики

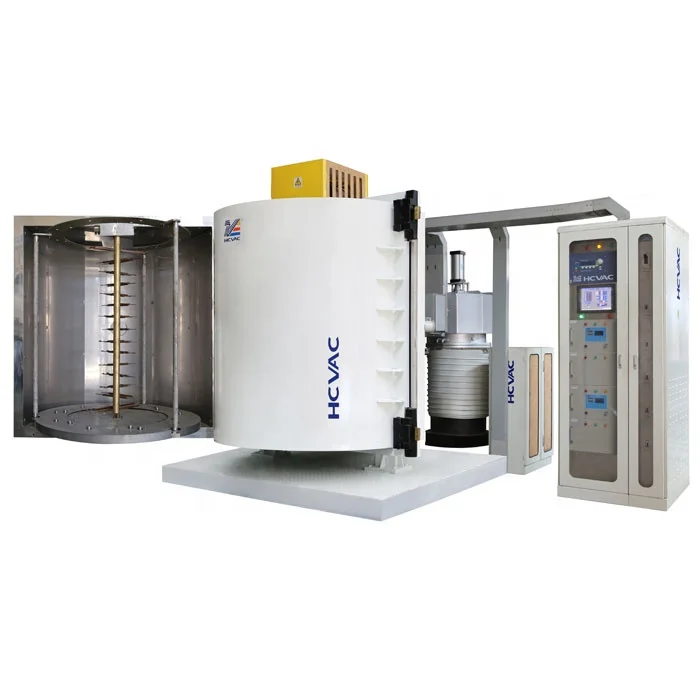

Plastic vacuum metallization coating machine is evaporation-coated device in a vacuum chamber using electrical resistance heating, it will close in the resistance wire on the metal wire (Lvsi) vaporization melting, vaporization of the metal elements deposited on the substrate, but was Smooth high reflectivity of the coating to the surface of decorative items landscaping purposes.

The equipment is: a reasonable structure, coating evenly into good-quality, pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability. Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys and other industries.
Machinable materials include: ABS, PS, PP, PC, PVC, nylon, metal, Boli, glass, ceramics, such as TPU.

Electroplating effects can include: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, 288;

Coating color: gold, silver, red, blue, green, purple, 288, and so on.

This machine is not only for coating plastic,also glass,metal,ceramic.

The company can design all based on user requirements specification models of Vacuum Coaters. Vacuum units and electric control system can be designed according to user requirements configuration.

Technical parameter:

Mode Dimension	ZZ-1200	ZZ-1600	ZZ-1800
	1200*1400mm	1600*1800mm	1800*2000mm
Film Type	Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, rainbow color, etc.
Power source Type	Thermal evaporation power, ion bombard power, RF power
Vacuum chamber structure	Vertical double/single door, horizontal single door, pump system postposition
Ultimate vacuum	8.0*10-4Pa
Vacuum s ystem	Diffusion pump +Roots pump +Mechanical pump +Holding pump
Pump time	Pump from atmosphere to 5.0*10-2,≤6 minutes
Work piece motion mode	Public rotation/Frequency control
Control mode	Manual/Automatic all-in-one mode, Touching screen+PLC
Remark	We can design the dimension of the vacuum chamber according to customer’s demand.
