Macor/слюдяное стекло керамический
- Категория: Electrical Ceramics >>>
- Поставщик: Xiamen,Wintrustek,Advanced,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.75 $* | 0.39 $* |
| Aug-15-2025 | 0.34 $* | 0.96 $* |
| Jul-15-2025 | 0.11 $* | 0.82 $* |
| Jun-15-2025 | 0.28 $* | 0.6 $* |
| May-15-2025 | 0.21 $* | 0.82 $* |
| Apr-15-2025 | 0.2 $* | 0.62 $* |
| Mar-15-2025 | 0.2 $* | 0.79 $* |
| Feb-15-2025 | 0.6 $* | 0.58 $* |
| Jan-15-2025 | 0.49 $* | 0.29 $* |
Характеристики
Product Description
| - Material: | Macor / Machinable Glass Ceramic |
| - Typical Characteristics: | 1. Zero Porosity And No Outgasing 2. Low Thermal Conductivity 3. Outstanding Electrical Insulation 4. Easily Machinable 5. Holds Tight Tolerances |
| - Process Advantages: | 1. Short Production Process (Raw Material - Machining - Finished Parts) 2. Ordinary Machining Tools 3. Complex Design Shapes 4. Not Post Firing Required 5. Fast Turnaround And Cost Effective 6. Quick Delivery Time |
| - Typical Applications: | 1. Ultra-high Vacuum Environments 2. Laser Technology 3. Nuclear 4. Lightening Conductor 5. Missle Gyroscope 6. Medical And Lab Equipments 7. Aerospace |
Material Properties
| Properties / Material | Macor / Machinable Glass Ceramic |
| Density (g/cm3) | 2.60 |
| Color | White |
| Porosity | 0% |
| Compressive Strength(MPa) | 488 |
| Rockwell Hardness | 40 |
| Young's Modulus(25°C, GPa) | 65 |
| Max Working Temp. (°C) | 1000 |
| Max Long Standing Working Temp. (°C) | 800 |
| Thermal Conductivity(25°C, W/mk) | 1.68 |
| Dielectric Strength(KV/mm) | 40 |
| Dielectric Loss Tangent(@1KHz) | 4x10-3 |
Dielectric Loss Tangent(@8.5KHz) | 7x10-3 |
| Volume Resistivity (Ω.cm) | >1014 |
Regular Size

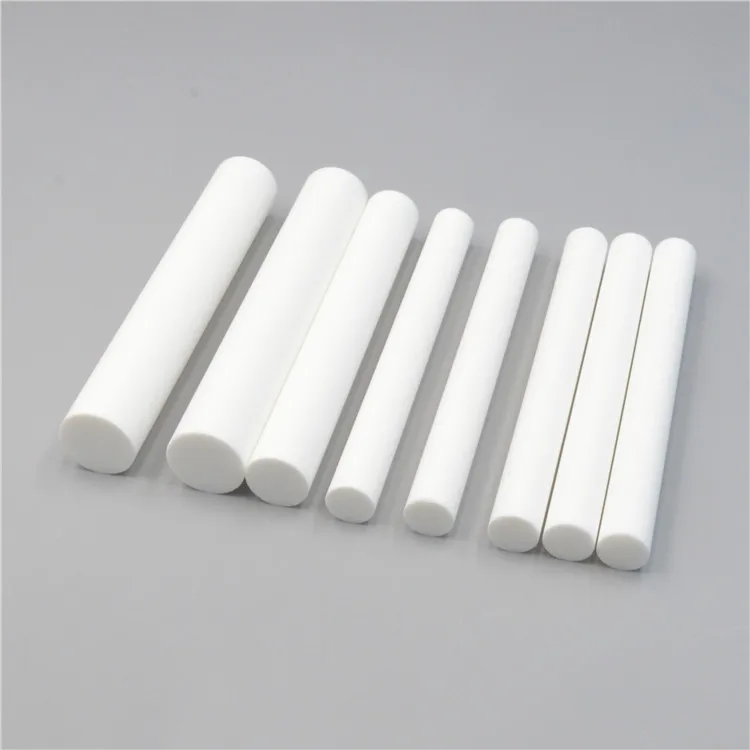

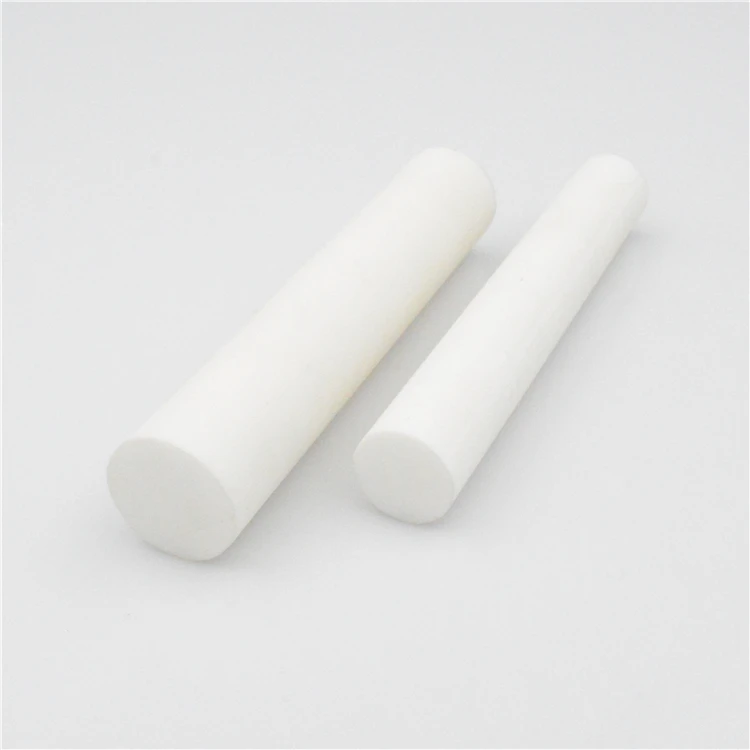

ROD
| D10 x L100 mm | D35 x L150 mm | D60 x L100 mm | D70 x L150 mm | D95 x L100 mm |
| D15 x L100 mm | D40 x L150 mm | D60 x L150 mm | D75 x L100 mm | D100 x L100 mm |
| D20 x L150 mm | D45 x L150 mm | D65 x L100 mm | D75 x L150 mm | D105 x L100 mm |
| D25 x L150 mm | D50 x L150 mm | D65 x L150 mm | D80 x L100 mm | D110 x L100 mm |
| D30 x L150 mm | D55 x L150 mm | D70 x L100 mm | D85 x L100 mm | D120 x L100 mm |
*Standard length of 305mm (1 foot) is also available.
*Custmized sizes are available.
PLATE
| L 50 x W 50 x T 5 mm | L 200 x W 100 x T 5 mm | L 100 x W 100 x T 10 mm |
| L 100 x W 50 x T 5 mm | L 50 x W 50 x T 10 mm | L 200 x W 100 x T 10 mm |
| L 100 x W 100 x T 5 mm | L 100 x W 50 x T 10 mm | L 300 x W 200 x T 50 mm |
Product Show
Production Process
Buying Guides
In your inquiry, please provide as detailed imformation as you can for our evaluation.
1. Material:
If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.
2. Drawing:
Please make sure the drawing is clear with all of your technical requests to get our offer at the soonest.
3. Quantity:
The last but not the least, don't forget to tell us the quantity so that we can quote our best price.
