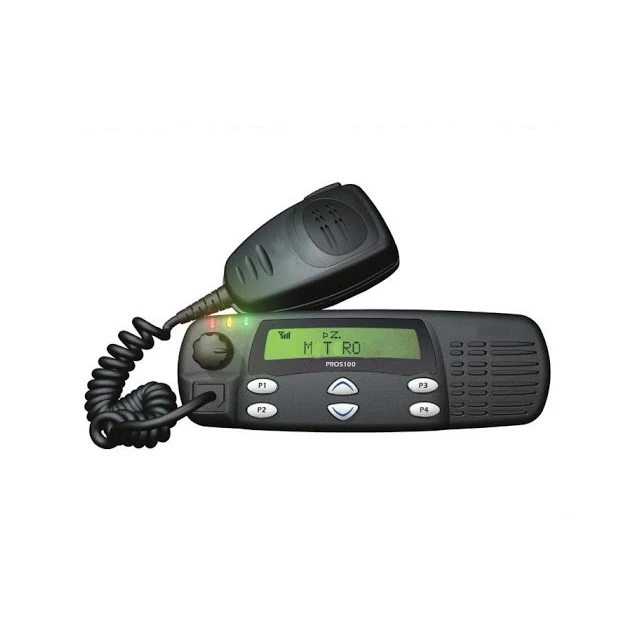

45W PRO5100 PRO-5100 VHF or UHF Mobile radio



Key Features:



1. Frequency Range: VHF136-174MHz/ UHF400-470MHz

2. 64 Channels
3. High Power 25W/45W RF Output
4. Emergency Mode
5. DTMF, QT and DQT Signalling
6. Embedded Message, PTT ID and Electronic Serial Number
7. Wide/Narrow Channel Spacing
8. PC Programmable plus Wired Cloning Facility





Specification:



Technical Specifications:


1. Frequency Range - VHF136-174MHz

    Frequency Range - UHF400-470MHz
2, Number of Channels 64

3. Channel Spacing Wide: 25 kHz
                                     Narrow: 12.5 kHz
6. Antenna Impedance - 50 Ohm Yes
7. Frequency Stability ± 2.5 ppm (-30 °C to + 60 °C)
8. Operating Temperature Range -30 °C to + 60 °C
9. Operating Voltage 13.6 V DC ± 15% Negative Ground
10. PLL Channel Steps 2.5 kHz/5.0 kHz/6.25 kHz/7.5 kHz
11. Dimensions 160 x 43 x 137 mm
12. Weight (net) 1.0 kg





Receiver Specifications:



1. Adjacent Channel Selectivity 75 dB at 25kHz
                                                         65 dB at 12.5 kHz
2. Audio Output 4 W with less than 5% distortion
3. Circuitry - Double Conversion Superheterodyne Yes
4. Intermodulation 70 dB at 25 kHz
                                  60 dB at 12.5 kHz
5. Sensitivity - EIA 12 dB SINAD 0.28 µV at 25 kHz
                                                          0.35 µV at 12.5 kHz
6. Spurious Reponse Rejection (Analogue) 75 dB



Transmitter Specifications:

1. RF Power Output 25W/45 W
2. FM Noise (EIA) 45 dB at 25 kHz
                                 40 dB at 12.5 kHz
3. Microphone Impedance 600 Ohm
4. Modulation Distortion Less than 3%
5. Spurious Response (EIA) 70 dB



PMR General Features



1. Busy Channel Lock-out Yes
2. Channel Spacing (Wide/Narrow) Yes
3. Compact Design Yes
4. Companded Audio Yes
5. DTMF Function Yes
6. Ease of Operating Use Yes
7. Embedded Messages Yes
8. Emergency Call Function Yes
9. Illuminated Keys Yes
10. ESN (Electronic Serial Number) Yes
11. PTT ID Yes
12. QT (CTCSS) / DQT (digital) Yes
13. Scan Yes
14. Selectable Microphone Sensitivity Yes
15. Time-Out Timer Yes
16. Windows PC Programming and Tuning Yes
17. Wired Cloning Function Yes



What includes in Standard Package:

1 x Mobile Radio

1 x Speaker Mic.

1 x Power Cable

1 x Installation Bracket

1 x Installation Kits (Screws .etc)

1 x User Manual



Optional Accessories:

-  Mobile Radio Antenna Kit (Antenna + Magnet Base with Feeder Line)

-  Power Supply (for Base Radio,110V/220V AC to DC13.8V)
