Преобразователь сигнала дали-ШИМ
- Категория: Трансформаторы освещения >>>
- Поставщик: Ningbo,Dericsson,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.38 $* | 0.78 $* |
| Aug-18-2025 | 0.97 $* | 0.99 $* |
| Jul-18-2025 | 0.67 $* | 0.38 $* |
| Jun-18-2025 | 0.91 $* | 0.63 $* |
| May-18-2025 | 0.68 $* | 0.65 $* |
| Apr-18-2025 | 0.49 $* | 0.78 $* |
| Mar-18-2025 | 0.93 $* | 0.66 $* |
| Feb-18-2025 | 0.46 $* | 0.51 $* |
| Jan-18-2025 | 0.0 $* | 0.33 $* |
Характеристики
Welcome to the world of MEAN WELL!
DAP-04 DALI to PWM signal converter

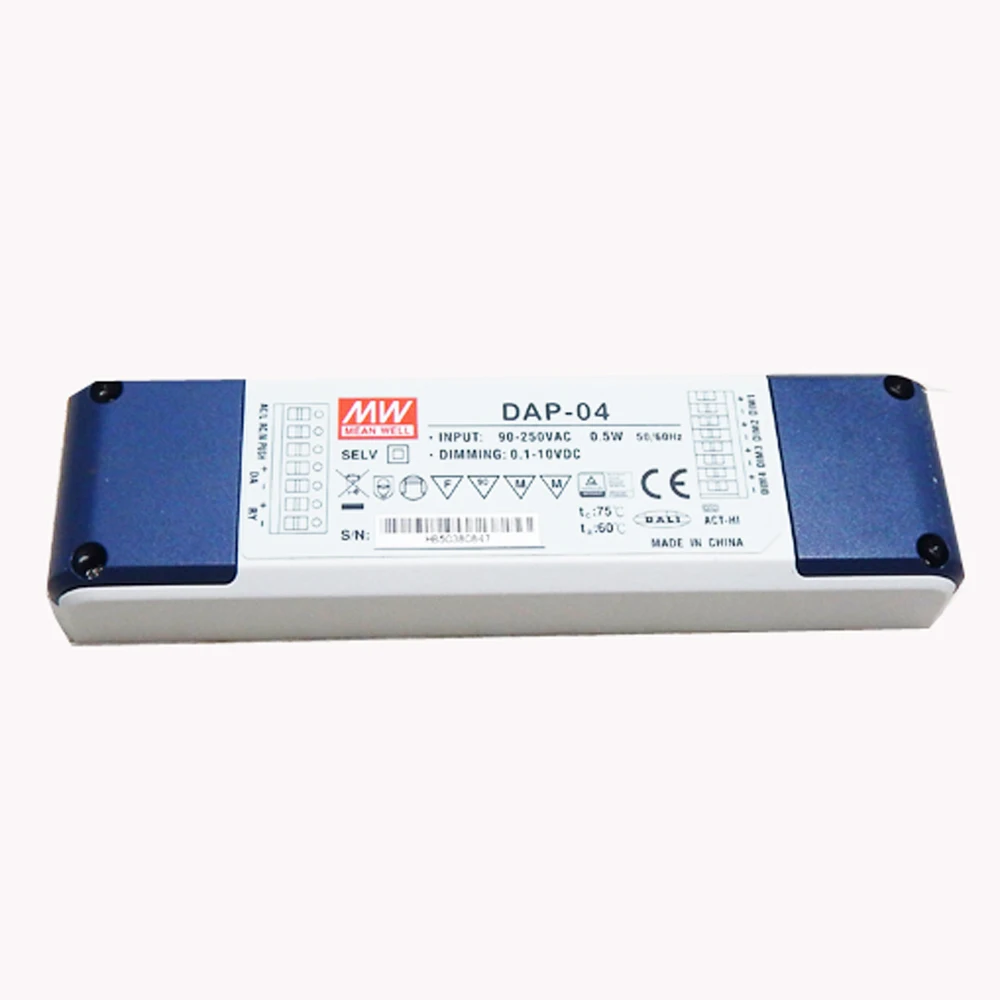

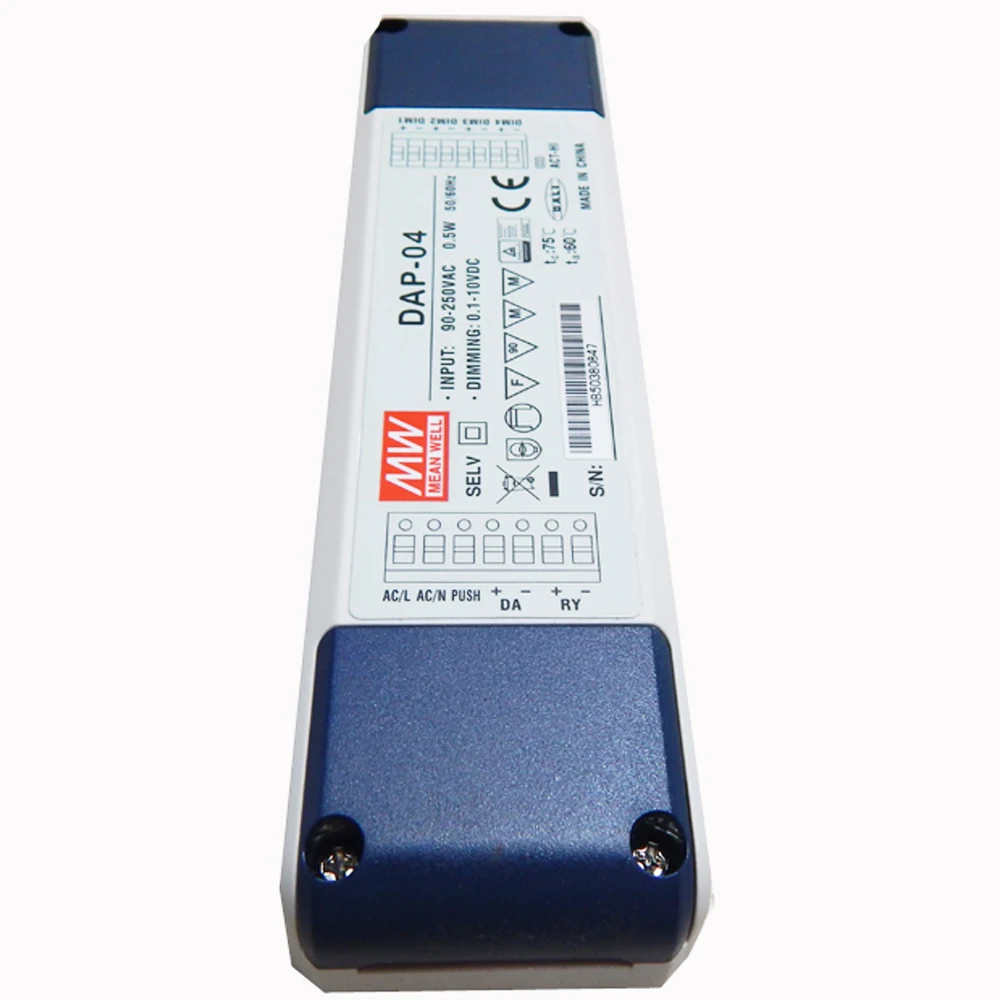

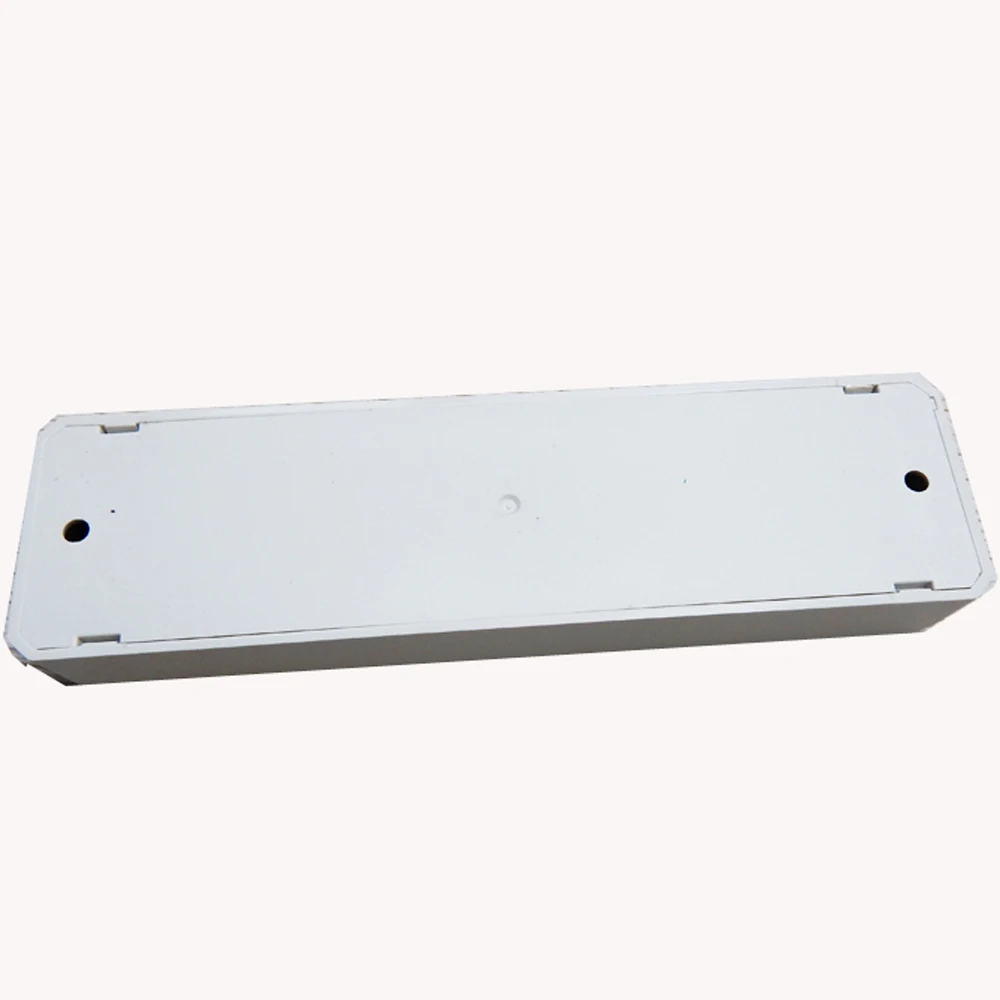

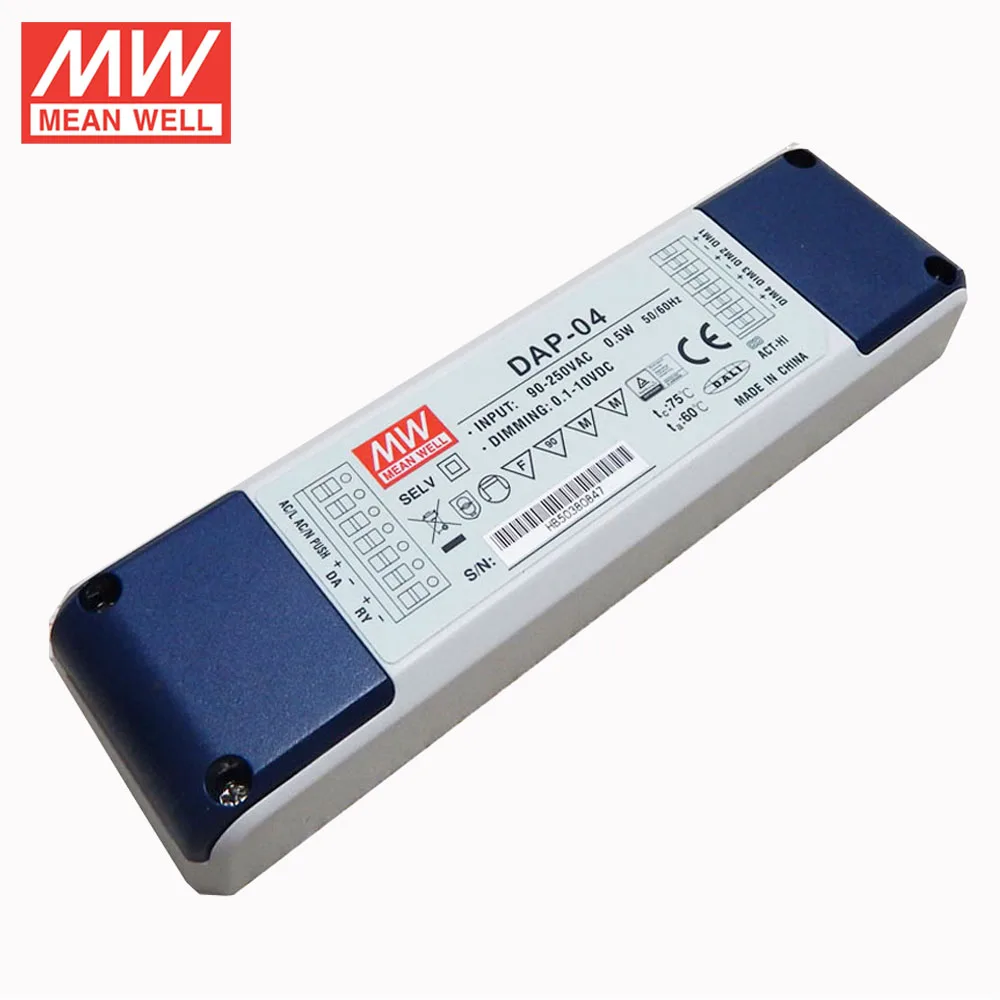

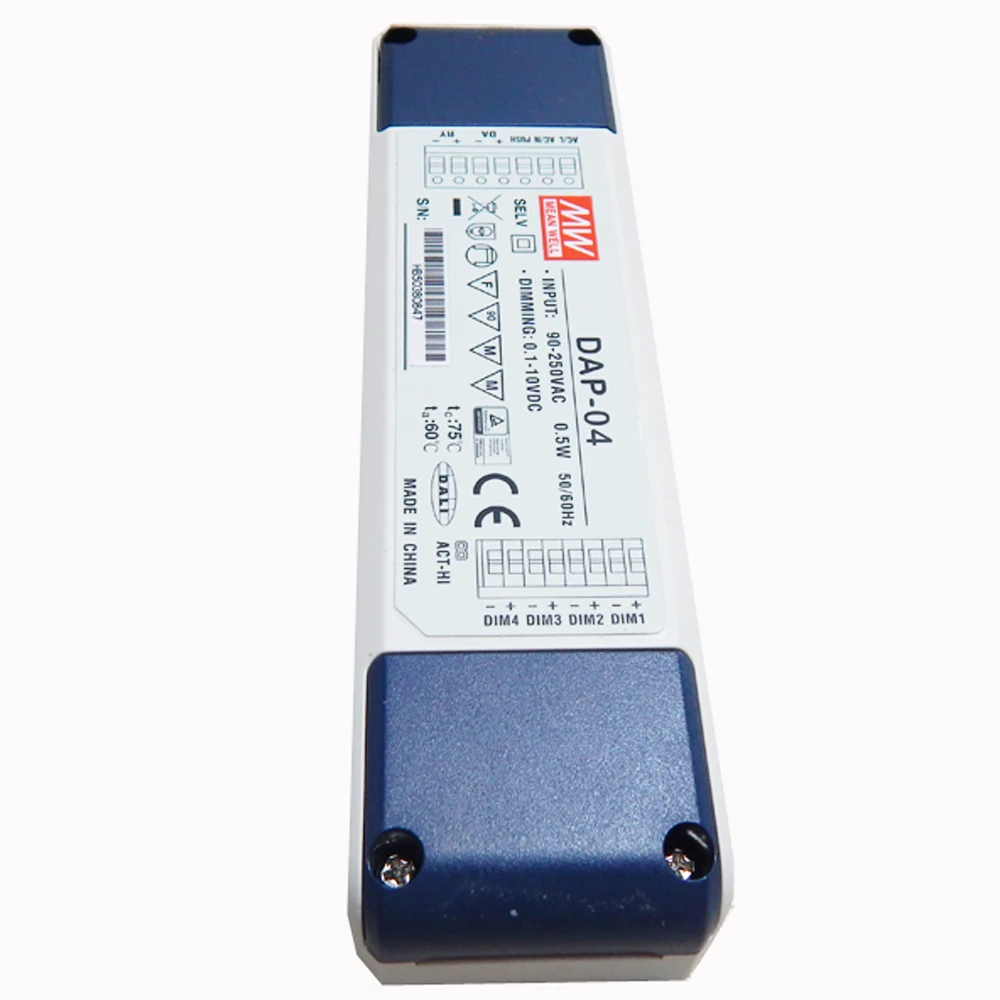

Product Pictures
Here is the detailed info for my MEAN WELL DALI to PWM Signal converter DAP-04 with TUV CE. Hope you like it.
Product Information
Features :
- Universal AC input / Full range (up to 305VAC)
- Convert DALI signal to PWM signal
- Built-in push dim function
- Comply with DALI standards (IEC62386-101,102,207)
- PWM active high or active low selectable by jumper
- IP67 / IP65 design for indoor or outdoor installations
- Dimming range : 1% ~100%
- Built-in relay for ON/OFF control of LED power supply
- Full Isolated plastic case
- Class II power unit, no FG
- IP20 design
- Power consumption < 0.5W
- 3 years warranty
MODEL | DAP-04 | |
OUTPUT | NUMBER OF OUTPUT CHANNELS | 4 |
OUTPUT SIGNAL | PWM, 1KHz (Typ.) | |
OUTPUT PWM LOGIC | Active high or active low selectable by jumper ; Factory setting is active high | |
DIMMING RANGE | 1 ~ 100% | |
INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
FREQUENCY RANGE | 47 ~ 63Hz | |
AC CURRENT (Typ.) | 0.1A | |
INRUSH CURRENT (Typ.) | COLD START 7A(t =500 s measured at 50% I ) at 230VAC | |
LEAKAGE CURRENT | <0.5mA / 240VAC | |
POWER CONSUMPTION (Typ.) | 0.5W | |
INPUT SIGNA | DALI or push dim | |
FUNCTION | RELAY SWITCH | 240VAC / 8A, ON / OFF control refer to DIM1 |
ENVIRONMENT | WORKING TEMP. | -30~ +60 °C |
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
STORAGE TEMP., HUMIDITY | -40 ~ +80 °C, 10 ~ 95% RH | |
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
SAFETY & EMC | SAFETY STANDARDS | EN61347-1, EN61347-2-11, EN61058-1 Clause 8/17/20/25 approved |
DALI STANDARDS | Comply with IEC62386-101, 102, 207 | |
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH | |
EMC EMISSION | Compliance to EN55015, EN61000-3-2,3 | |
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547 light industry level (surge 2KV), criteria A | |
OTHERS | MTBF | 246.9K hrs min. MIL-HDBK-217F (25 ) |
DIMENSION | 165*46*23mm (L*W*H) | |
PACKING | 0.16Kg; 84pcs/14.4Kgs/1.14CUFT | |
Dimming methods
Certificate

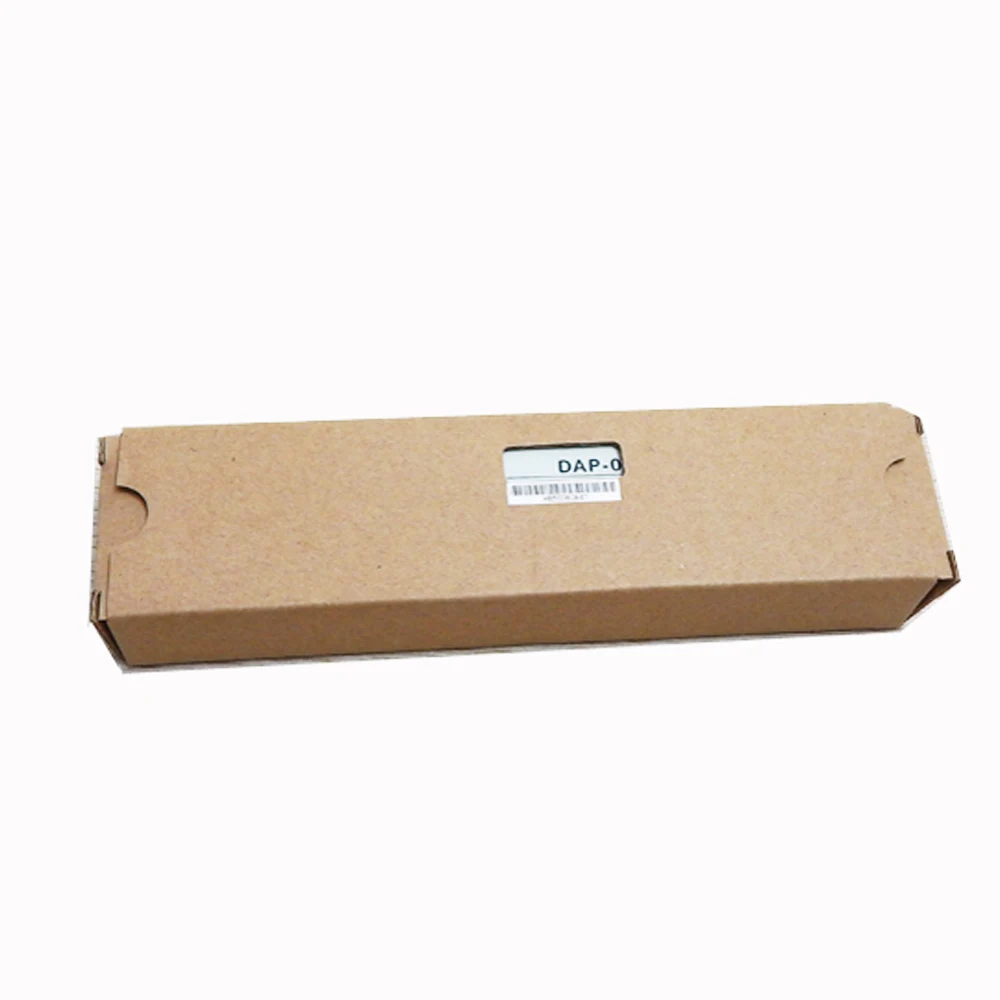

Storage and Packing
Shipping
