EJ080NA-05B 8 дюймов tft ЖК модуль с FPC TTL драйвер

Описание и отзывы

Трекер стоимости

Характеристики



HD MI-VGA -2AV LCD driver board +OSD keypad with cable+Remote control with receive +8 inch LCD panel EJ080NA-05B 800*600

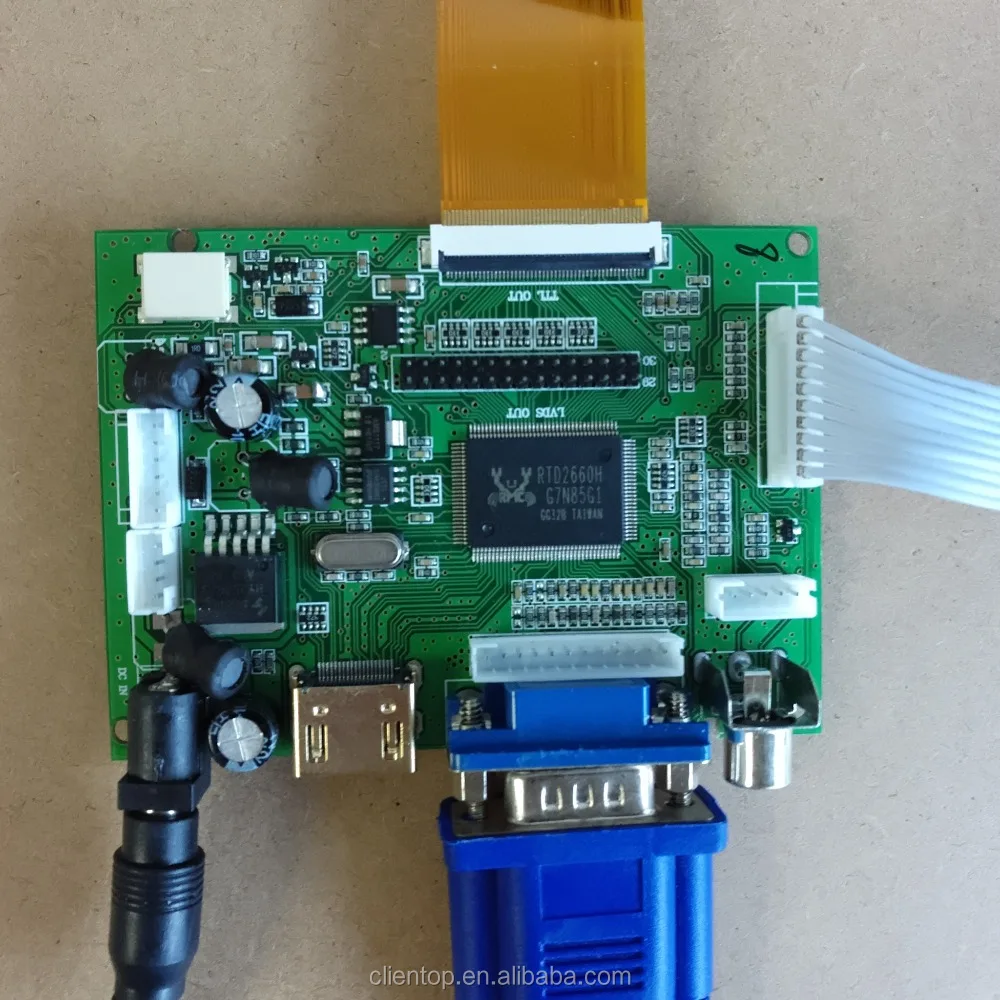

Brief description of LCD controller board
1.Main chip : RTD2662 or RTD26602
2.Support HD MI+VGA +2 AV
3.Support LCD panel interface : a. Single/Dual Channel LVDSb. b. 50 pin TTL interface
4.Support Resolution: 1920*1080
5.Working voltage:+5V~+24V
6.Power to panel:+3.3V
7.OSD language: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional)
8.Key function: Auto/Menu/Left/Right/Exit/Power
9.Audio output power:<2 W10
10.Support IR Control
11.Dimension(mm):90.5(L)*60.7(W)*17(H)
Brief description of LCD panel
Panel module	EJ080NA-05B
Panel size	8 inch
Resolution	800*600
Aspect ratio	4:3
Outline dimension	183mm*141mm
Brightness	250
Contrast Ratio	500:1
Interface pins	50
Lamp Type	WLED

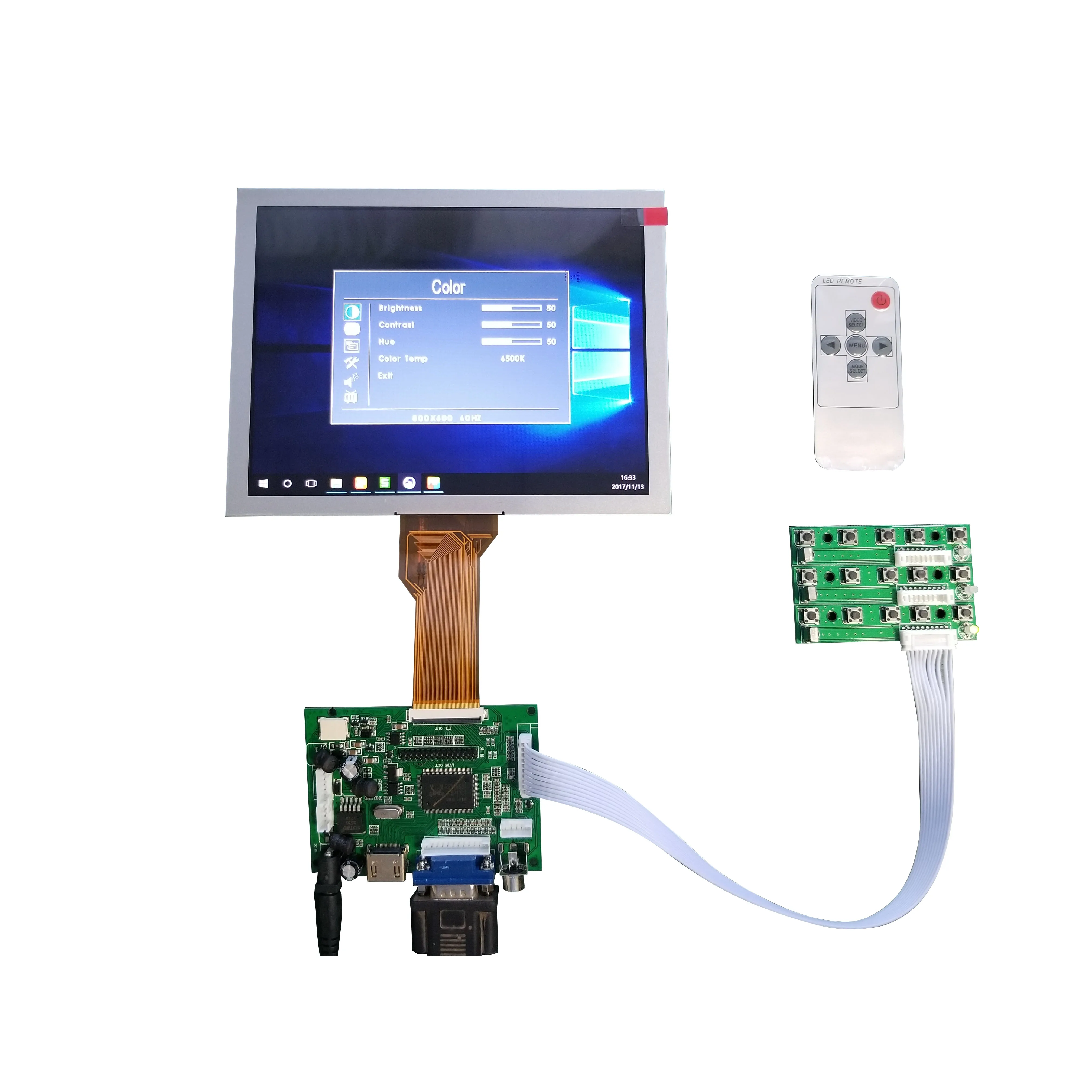

Package content
1*EJ080NA-05B
1*LCD controller board (RTD2660)
1*OSD keypad with cable
1*Remote control with receiver

 1. About Package





2. About shipping

We will send out the goods as soon as possible . Usually lead time should be within three days if your purchase order is not special .

 A DHL/UPS/Fedex/4xp :2-7 days
B Singapore EMS /China EMS:15-45 days
C Singapore post air post :20-60 days
If your country need through other transportation to send the goods, Please contact us to help you solve the transportation problem.



What we offer-Our company has offered LCD kits/PCB boards/LCD monitor/Customize display/Full technical solutions etc. for many years
Main customers-Main Customers are from foreign government and main factories in UK, USA, France, Singapore etc.

We have our mainboard(R&D) center in Shenzhen, and precision sheet metal machinery machining center in Shenzhen.
All the products in our company are 100% original, welcome to our factory for checking.
Our customers always are regarded as first by us, so we only offer a service which is suitable and good price for you
Sincerely hope we can have a long-term mutual successful relationship with your company.

1. About the quality

All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to our saleman .
We will be willing to deal with your problem at the first time .



2. About the payment

Sample  order :A  Aliexpress     B  Paypal     C  Union Western
Large  order: HSBC bank (Company account)
If you choose A,Then we will send the link of your order  for your payment   .
If you choose B or C ,Please send your shipping information (Name, address,postal code,telephone number) to me ,
Then I will send the PI for your payment (PI include our Paypal or Union Western account).



 3. About warranty and Return

We will give our customer a best after-sale service , So we will offer one year warranty for most of our products and professional technical support .

Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
    --   1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
    --   2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
