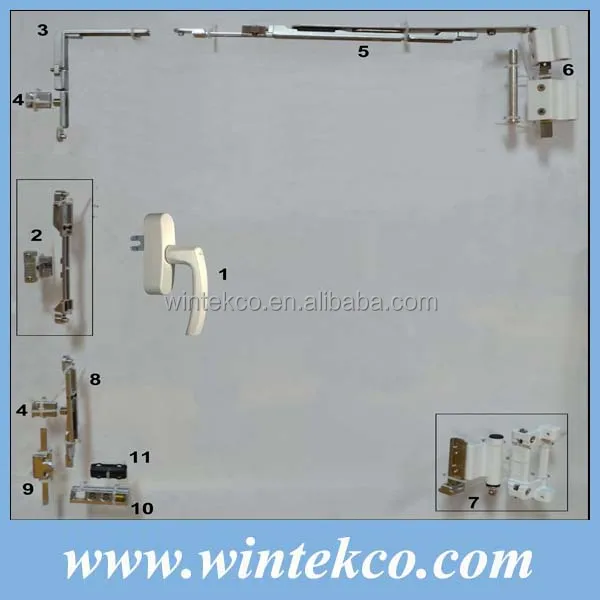

Aluminum Turn and Tilt Window Hardware Photos





Aluminum Turn and Tilt Window Hardware Drawing





Specifications for Aluminum Turn and Tilt Window Hardware

No.	Item Name	Item No.	Qty	Remark
1	Handle		1	Optional
2	Misuse Preventer		1	Including misuse block
3	Corner Device		1
4	Locking Plate		2
5	Transmission Rod		1	According to window type optional
6	Upper Pivot Hinge		1
7	Bottom Pivot Hinge		1
8	Overturn Bolt		1
9	Overturn Hasp		1
10	Trolley supporting Block		1
11	Drag Block		1
12	Limiter Series		1	Optional



Configuration Instruction:

1. You can select handles on page 9-10 of aluminium window hardware catalogue.

2. Keep distribution distance of two locking points within 400mm.(Recommendation)

3. This configuration is suitable for sash with height ranged from 450mm to 600mm and width ranged from 600mm to 1800mm.

4. Maximum load bearing capacity of aluminium tilt and turn is 90kg. The recommended proportion is height : width = 1.5 :1



How to place an order for aluminum turn and tilt window hardware?

1	Select the aluminum turn and tilt window hardware model you want, tell us the model number or show us the picture.
2	Let we know your purchase plan for the aluminum turn and tilt window hardware, include qty and delivery time you prefer.
3	Send us inquiry or leave message, will reply you within 24 hours.
