Распределитель HDMI 1X4 V2.0 Аудио Видео сплиттер 1 в 4 выхода 4k 60 Гц

Описание и отзывы

Трекер стоимости

Характеристики

Weight

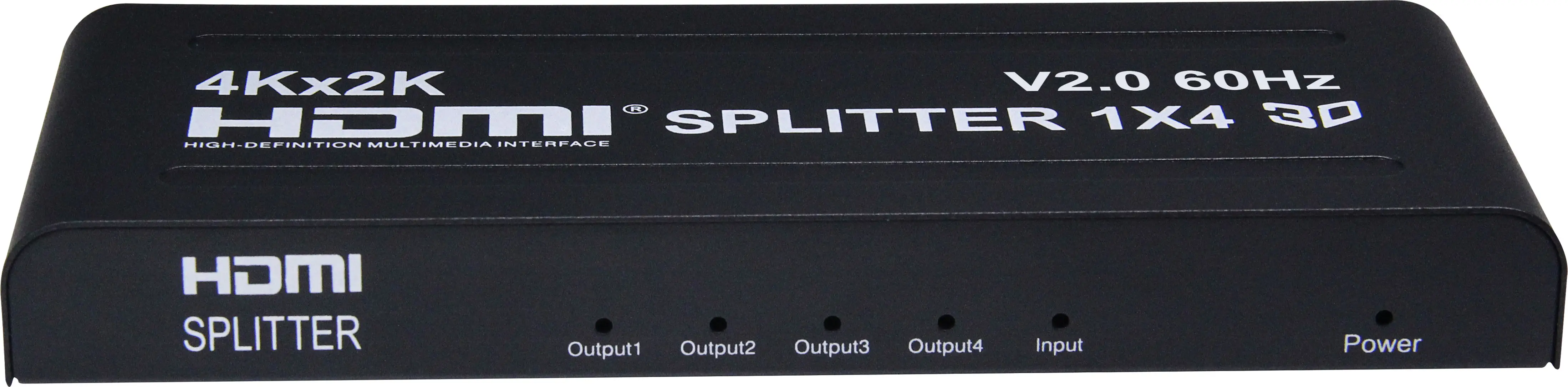

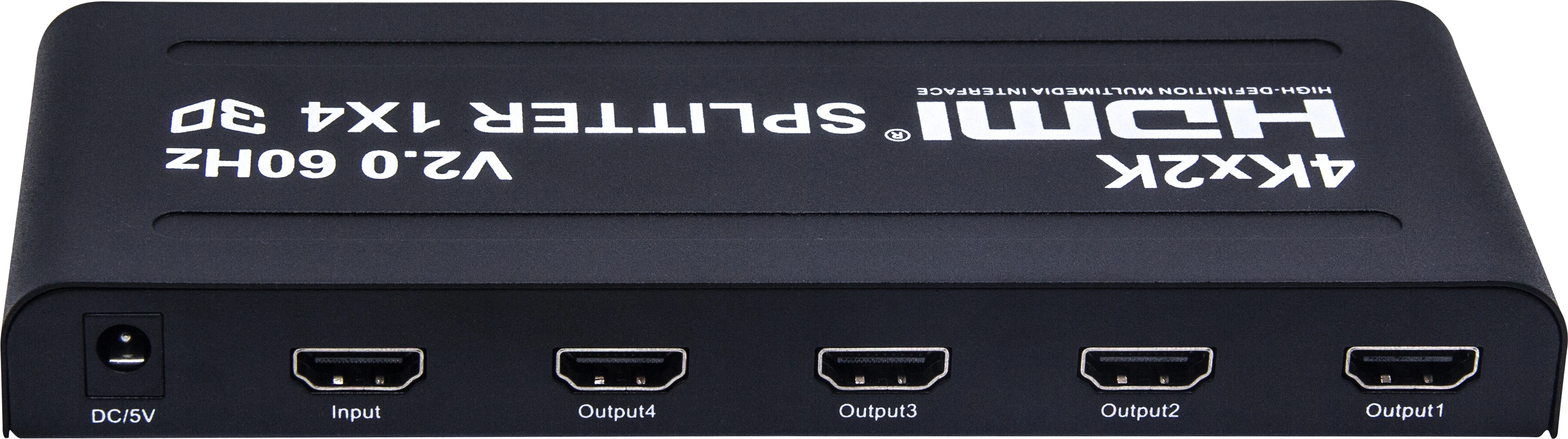

HDMI Distributor 1X4 V2.0 audio video splitter 1 in 4 out 4k 60Hz HDMI splitter 1080p





Model No:HDSP4-V2.0

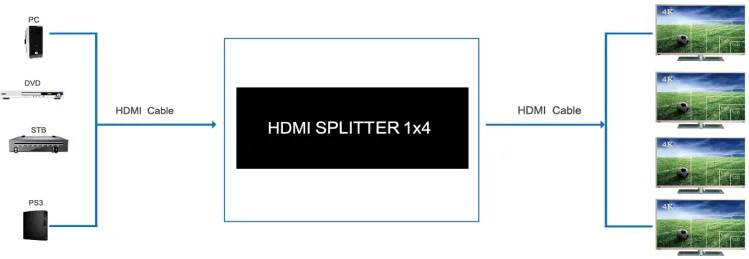

This 1x4 hdmi splitter use a single HDMI source,accessing to multiple HDMI sinks .It allows one HDMI device to be split easily to four HDMI compatible monitors or projectors.In addition,It can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60HZ.





Features :



l Support HDMI 2.0b version

l Support 3D video format

l Support high resolution up to 3840X2160/60HZ

l Support highest rate of 6G and TMDS clock can be up to 600 MHz

l Support 8/10/12 bit deep color

l Support AWG26 HDMI standard cable: input up to 15 meters,output up to 20 meters.(resolution 1080P,4K/30Hz)

l Support AWG26 HDMI standard cable: input up to 5 meters,output up to 5 meters(resolution 4K/60HZ)

l Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect

l 5V/1A power adapter





Specifications:

HDMI resolution	up to 3840*2160/60Hz
Support video color format	8/10/12 bit deep color
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	600MHz
Max baud rate	6Gbps
Input cable distance	1080p,4K/30Hz resolution)≤15m, (4K 60hz resolution)≤5m AWG26 HDMI standard cable
Output cable distance	1080p,4K/30Hz resolution)≤20m, (4K 60hz resolution)≤5m AWG26 HDMI standard cable
Max working current	650mA
Power adapter format.Input	input AC(50Hz, 60Hz)100V-240V; DC5V/1A
Operating Temperature range	(-15 to +55°C)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	178x67x23(mm)
Weight	230g

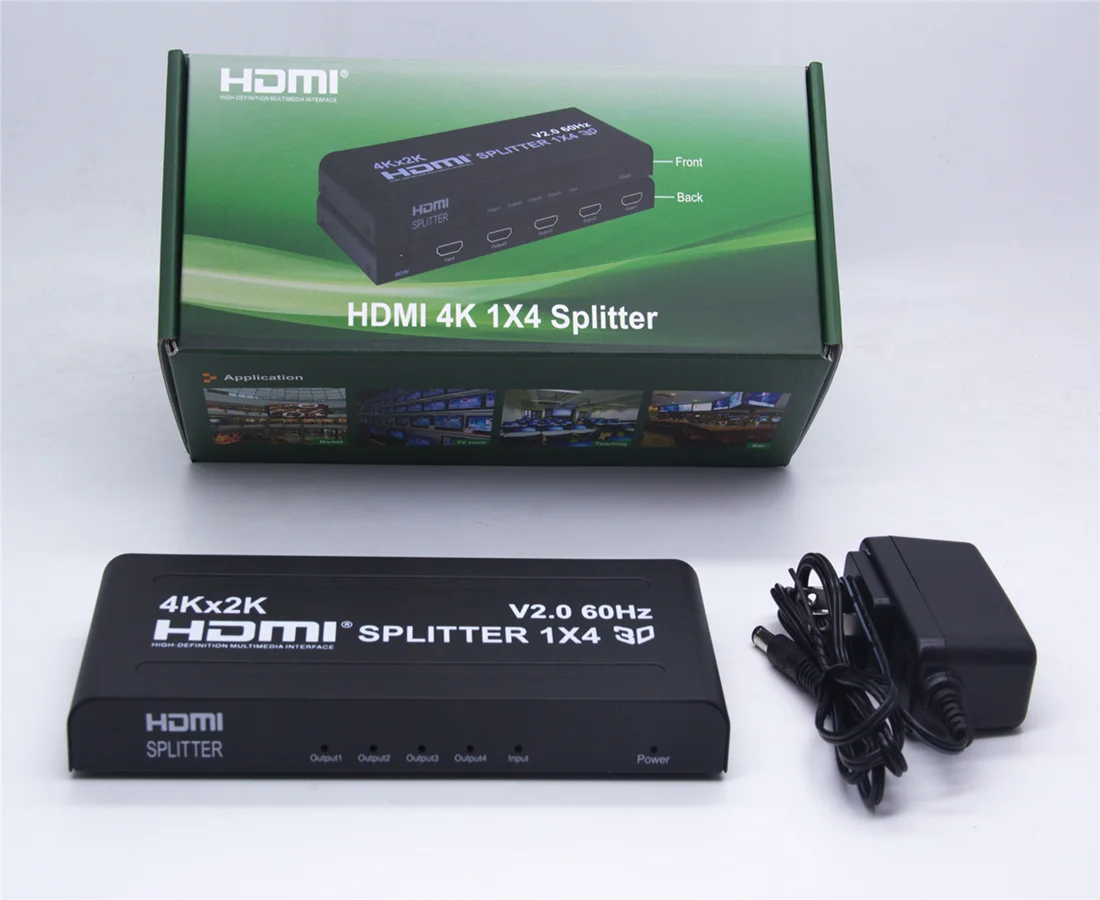

The Package includes:



1. HDMI Splitter



2. 5V Power adapter



3. User Manual
