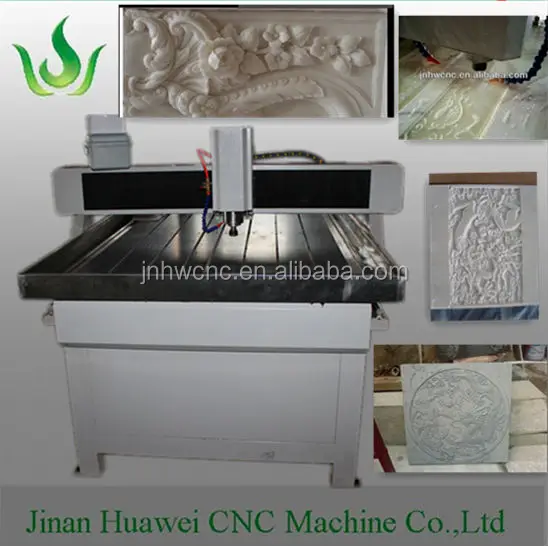

Китайский производитель поставка высокая точность красивая гравировка и резка дешевый камень ЧПУ маршрутизатор для
- Категория: Stone Machinery >>>
- Поставщик: Jinan,Huawei,CNC,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.74 $* | 0.76 $* |
| Aug-15-2025 | 0.35 $* | 0.31 $* |
| Jul-15-2025 | 0.4 $* | 0.8 $* |
| Jun-15-2025 | 0.90 $* | 0.29 $* |
| May-15-2025 | 0.46 $* | 0.90 $* |
| Apr-15-2025 | 0.45 $* | 0.66 $* |
| Mar-15-2025 | 0.89 $* | 0.50 $* |
| Feb-15-2025 | 0.89 $* | 0.95 $* |
| Jan-15-2025 | 0.66 $* | 0.31 $* |
Характеристики
China manufacturer supply high precision beautiful engraving and cutting work cheap stone cnc router for stone/metal/jade
1. One year warranty.
2. CE certificate good quality.
3. 0.05\\300mm high precision.
4. 30m/min max. idlling speed.
5. 24 hours after-sales service.
6. 8m/ min max. working speed.
7. More than 10 years long service lifetime.
8. About 3 days easy machine learning time.
Parameter of cheap stone cnc router
Certificate | CE |
|
| |||
Machine material | Steel/ Cast iron |
|
| |||
Model | SW-1212 | SW-1218 | SW-1224 | SW-1325 | SW-2030 | SW-2040 |
X,Y working area | 1200*1200mm | 1200*1800mm
| 1200*2400mm | 1300*2500mm | 2000*3000mm | 2000*4000mm |
Z feeding height | Customized/ optional | |||||
Guide rail | X,Y, Z Taiwan HIWIN/ THK/ TBI linear square guide rail | |||||
X,Y, Z circular square guide rail | ||||||
Transmission | X,Y helical rack and pinion/ Z Taiwan TBI rolling ball screw | |||||
X, Y, Z Taiwan TBI rolling ball screw | ||||||
Workpiece fixture | T-slot/ Vacuum adsorption | |||||
Drive system | Yako stepper motors and drivers | |||||
Leadshine/ Delta servo motors and drivers | ||||||
Japan imported Panasonic/ Yaskawa servo motors and drivers | ||||||
Spindle | 1.5/ 2.2/ 3/ 4.5/ 5.5/ 7.5KW water-cooled spindle | |||||
1.5/ 2.2/ 3/ 4.5/ 5.5/ 7.5KW air-cooled spindle | ||||||
Italy HSD spindle | ||||||
Machine protection | Dust cover | |||||
Spindle rotating speed | 6000-24000rpm | |||||
Max. engraving speed | 20000mm/min | |||||
Accuracy | <0.04/300mm | |||||
Tool holder | ER25/ ER20/ER11 | |||||
Cutter diameter | 3.175mm, 4mm, 6mm, 12.7mm, 20mm | |||||
Inverter | Fuling/ Sifang/ Rituo/ Delta inverter | |||||
Control system | DSP/ NC Studio/ Mach3 | |||||
Software compatibility | Type3/Artcam/Artcut/Ucancam/JDpaint etc. | |||||
Working voltage | 380/ 220V, 50HZ | |||||
Command language | G-code | |||||
Computer interface | USB | |||||
Flash memory | 128/ 512M(U Disk) | |||||
Environment temperature | 0-45 centigrade | |||||
Relative humidity | 30%-75% | |||||
Optional | Rotary device for cylindrical, 3d carving and cutting | |||||
Working area | ||||||
Quality control
1. After order, engineers discuss manufacturing procedure.
2. Every component and part elaborately selected and assembled, making sure minimum breakdown rate.
3. 48 hours continuous test of the machine before leaving the factory.
Any question,Just ask me .
