Выключатель для пианино с 3 режимами

Категория: Fan Parts >>>
Поставщик: Shenzhen,Hongming,Qiang,Technology,Limited

Цена:0,42 $ - 0,45 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.3 $*	0.2 $*
Aug-20-2025	0.46 $*	0.34 $*
Jul-20-2025	0.12 $*	0.2 $*
Jun-20-2025	0.41 $*	0.35 $*
May-20-2025	0.83 $*	0.86 $*
Apr-20-2025	0.29 $*	0.96 $*
Mar-20-2025	0.12 $*	0.66 $*
Feb-20-2025	0.75 $*	0.39 $*
Jan-20-2025	0.8 $*	0.63 $*

Характеристики

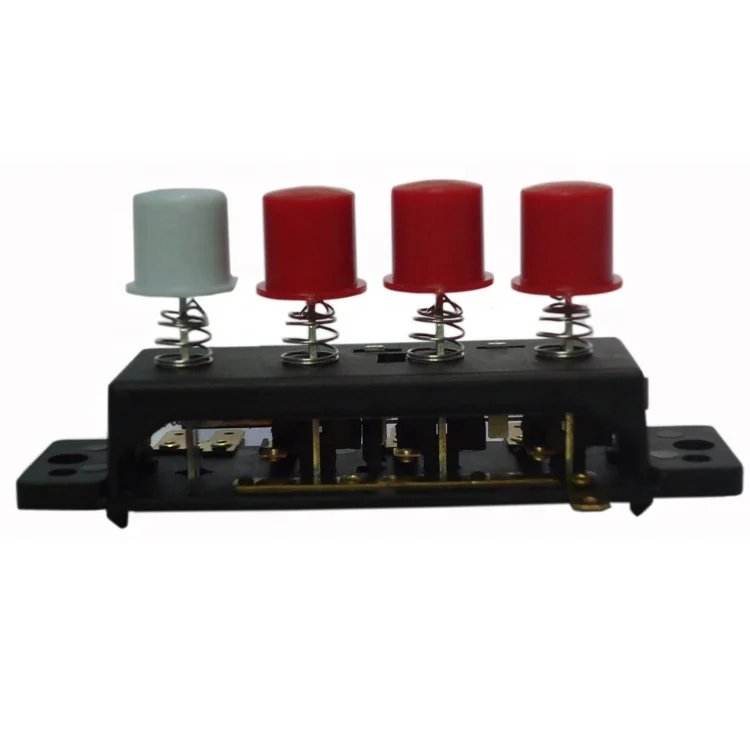

Stand fan 3 speed control piano switch

3.picture& demensions& functions:

QQ20150511171717

Standard carton:45*35*30cm

001 002

specifications

function 1

off 1 2 3 . position off is top bits,1 2 3 position are interactive lock which means only single one of them can be pressed done at one time

function 2

off 1 2 3 , off positon is stop bits, both 1 and 2 are interactive lock which means only single one of them can be pressed done at one time. 3 position is single one it can be locked by itself and rest

Electrical Rating	1A250V AC, 4A250V AC
Button distance	18mm
Temp(C)	80°C
Circuit/ Functions	OFF L1 L2 L3 montary or off L1 L2 momentary
Wiring specifications	22-18AWG UL1015
The keyboard distance	18mm
materials	PC V0 ABS spring copper
Wire Connect	Soldering wires or Inserting wires (without terminals outside)
life time	10000cycles
used	table fan, standing fan,wall fan blender,toaster,hot-heated equipment.and all kinds of home appliance etc.
