9BH-420 Wood Shaving Machine







1. Introduction

1.1) Wood shaving machines can make the logs, tree branch, edge processed wood into wood shavings.

1.2) The shaving is the same as that produced from the fumitory factory and is uniform.

1.3) They are mainly used as the bed of the horse or chicken or other animals by farm or horse club. stable bedding, poultry, animals farms.



2.The advantages

2.1) Easy to use,
2.2) Easy to maintain,
2.3) No limitation on the place.



3. Main data for 9BH-420

Model: 9BH-420
Motor: 7.5 kw
Voltage: 380 V
Capacity: 300 kg/h
Speed of mainshaft: 700 min/h
Blade quantity: 4PCS
Cutter diameter: 420mm
Size of blade(mm): 90×60×8mm
Size of the feeding inlet: 140×100 mm
Outer dimension: 1200×500×700 mm
Weight: 140 Kg

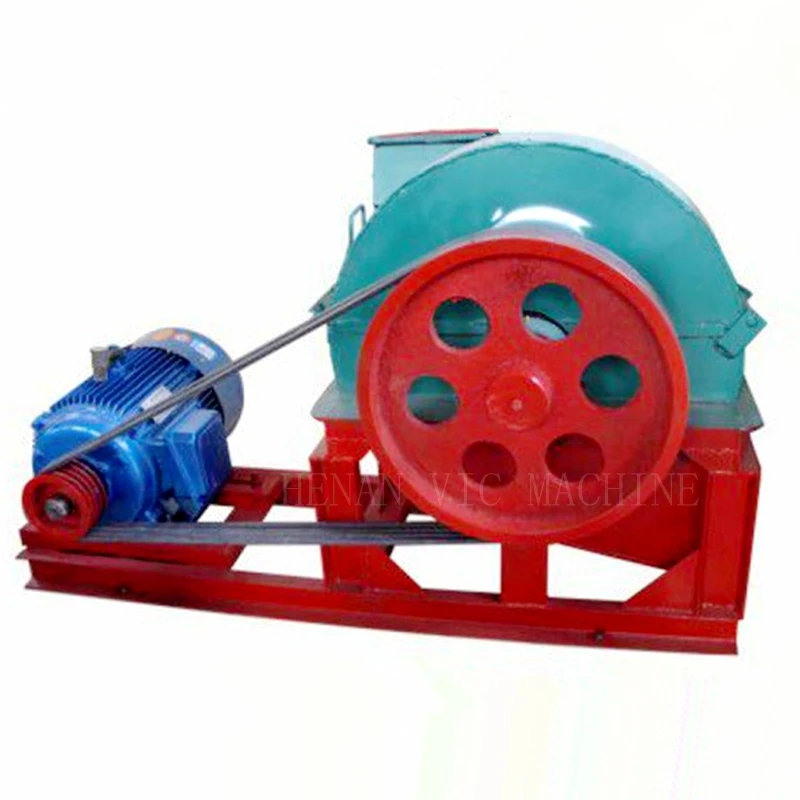

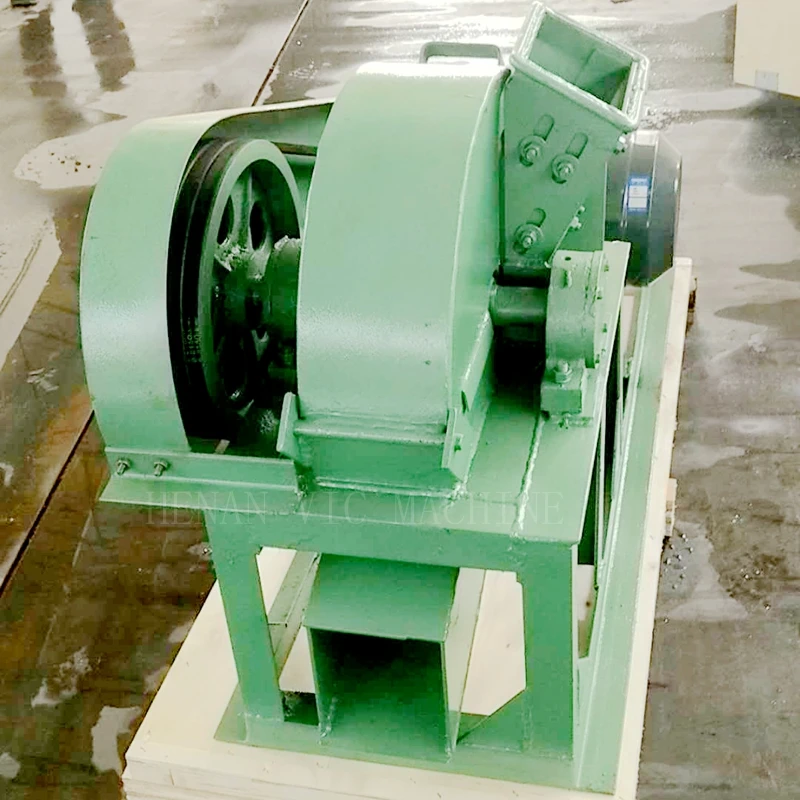

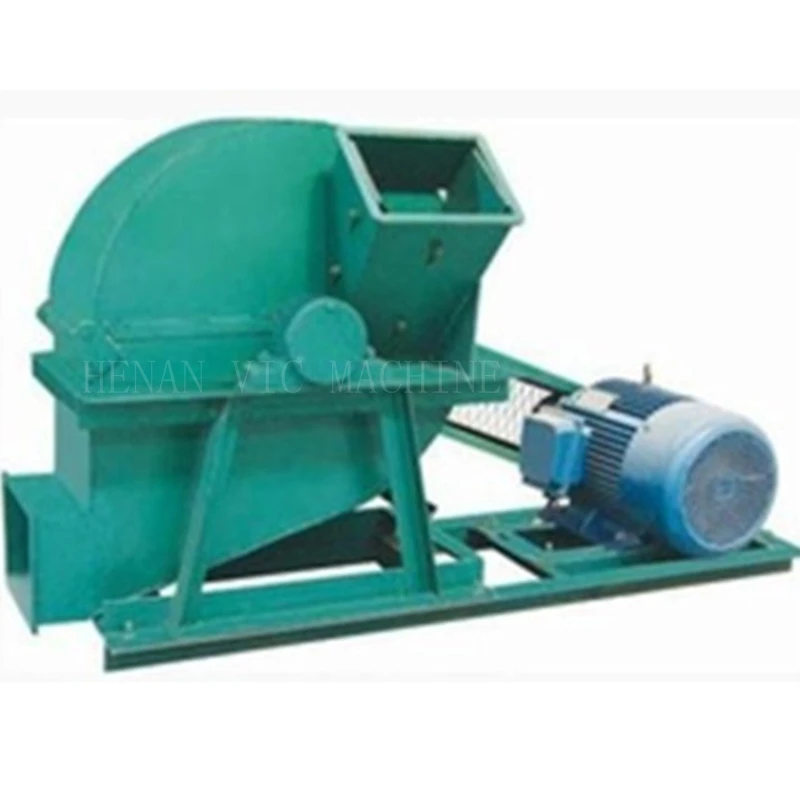

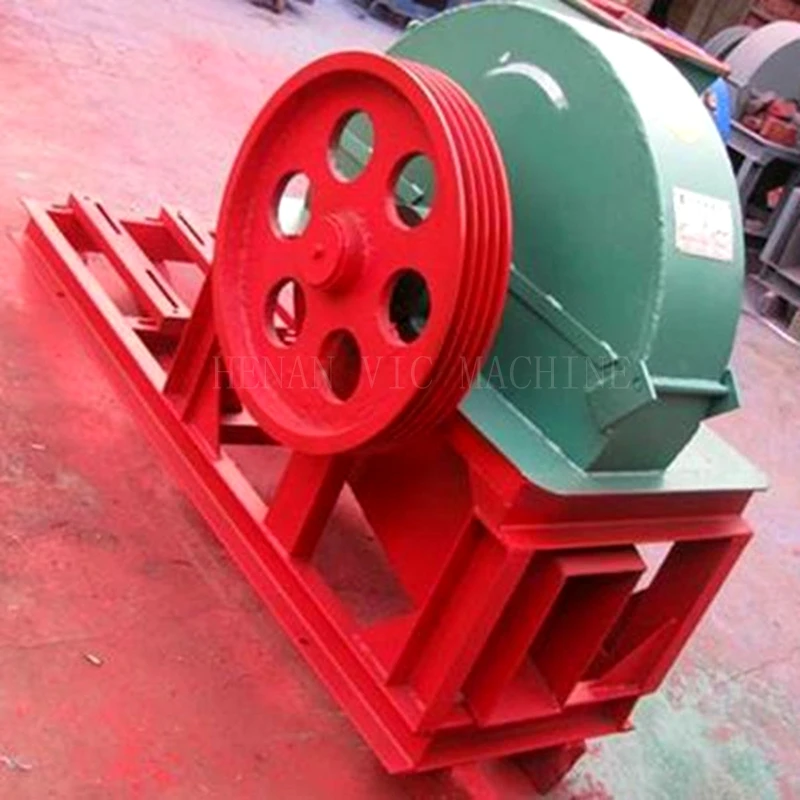

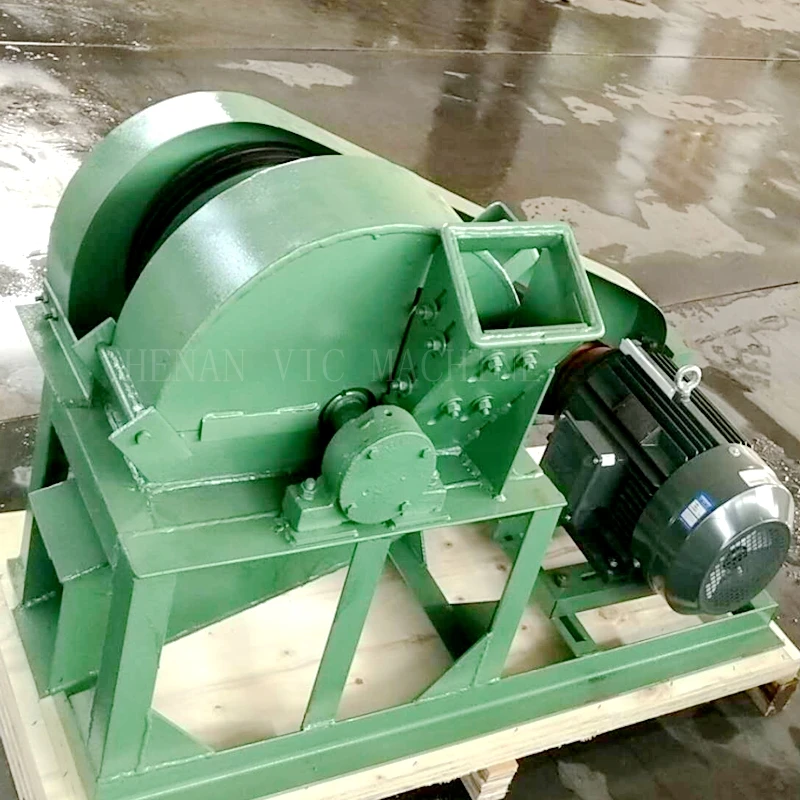

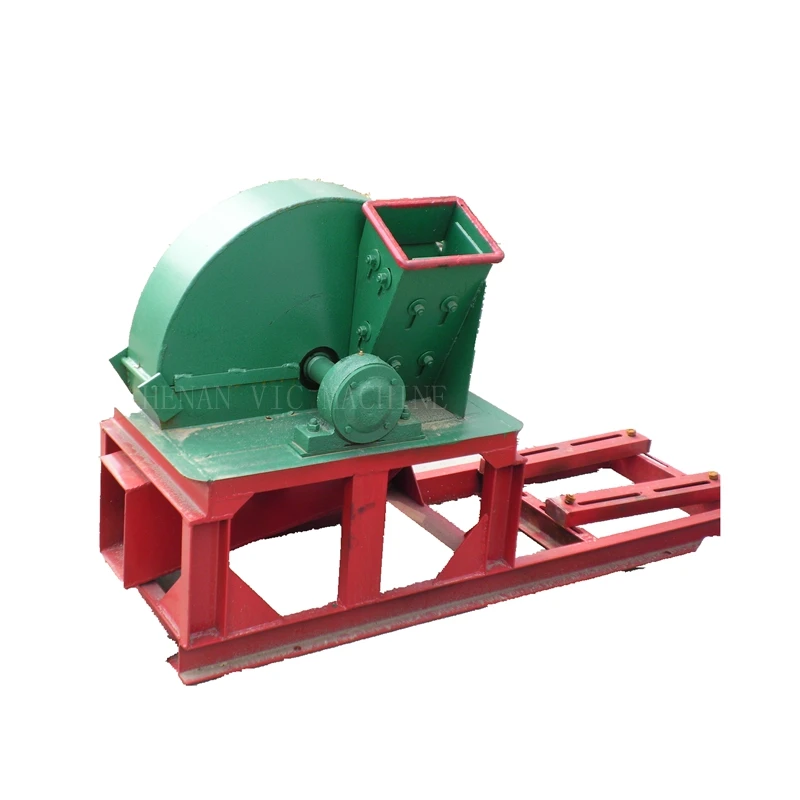

4. Pictures for 9BH Series Wood Shaving Machine

 Parts



Final production

5. Related Models:

Model	9BH-420	9BH-600	9BH-800	9BH-1200	9BH-1500
Motor	7.5 kw	15 kw	30 kw	55 kw	75 kw
Voltage	380V	380V	380V	380V	380V
Capacity	300 kg/h	500 kg/h	1000 kg/h	1500 kg/h	2500 kg/h
Speed of main-shaft	700 min/h	600 min/h	560 min/h	560 min/h	560 min/h
Blade quantity	4PCS	4PCS	8PCS	9PCS	12PCS
Cutter diameter	420 mm	610 mm	750 mm	1000 mm	1150 mm
Size of blade(mm)	90×60×8	150×70×8	150×100×10	150×120×10	150×120×10
Size of feeding inlet	140×100mm	190×150mm	140×220mm	220×300mm	330×420mm



Packaging:

Package: In wooden Box



Shipping:

By sea.



Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
