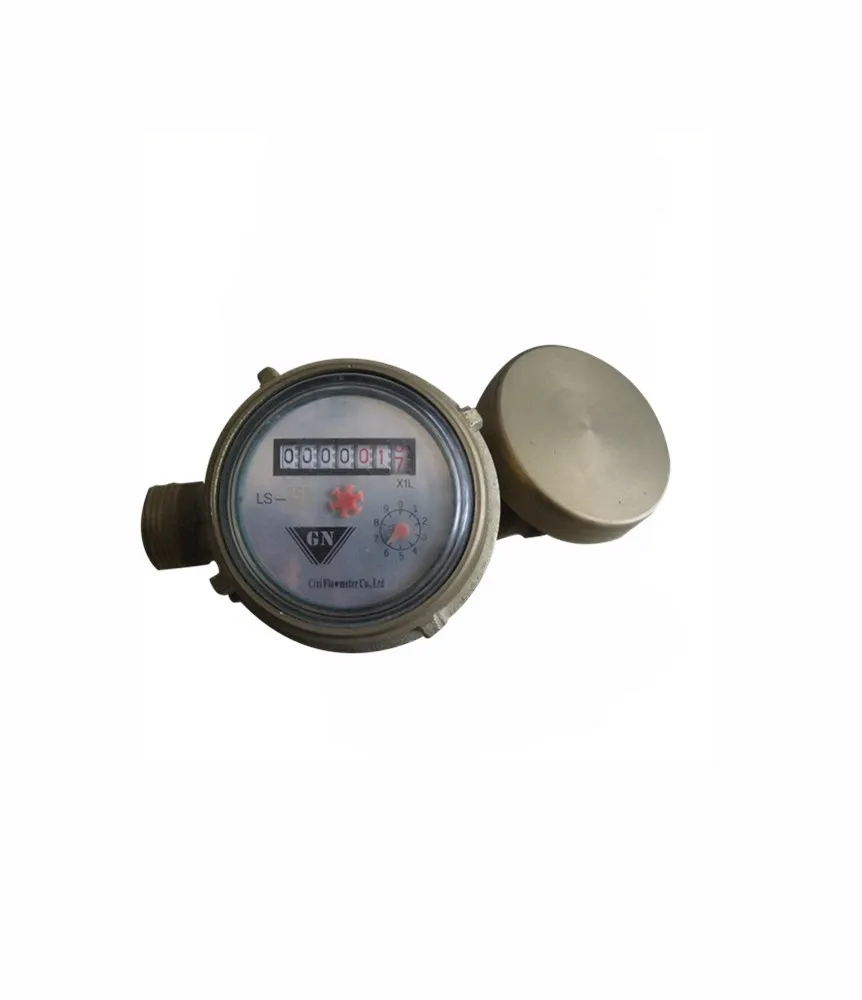

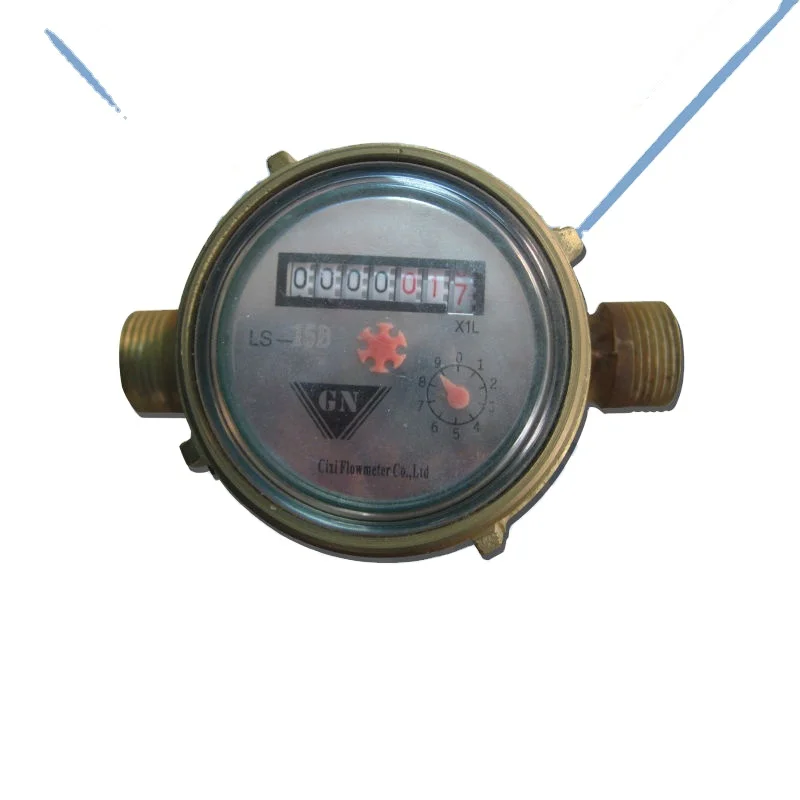

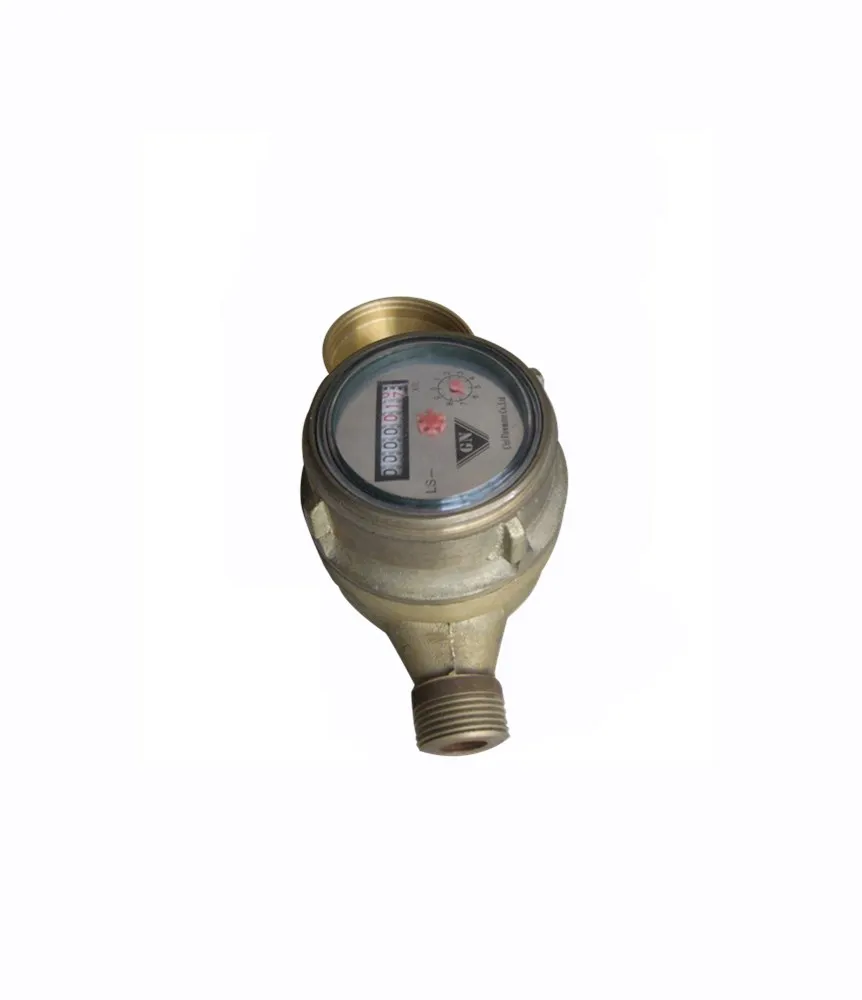

CX-RPFM Rotary Piston Flow Meter

LS series rotary piston flow meter(positive displacement type)

Application

LS series flow meter is a new type of rotary piston positive displacement meter with high-quality which has been designed for the first time in China. Since it owns many advantages such as smaller flow rate, wide flow range, high accuracy, optimized structure, high reliability, more competitive than the similar type positive displacement flow meter, LS series flow meter becomes an ideal oil flow meter used in all kinds of vehicles that take the most popularity in all the energy measuring system, scientific research system, traffic system, dockyards and other factories.

LS series flow meter can be directly installed in train, bus, tractor, engines, vessel sailing in the river or sea to measure how much oil consumed on all kinds of driving machine. This flow meter also has been used to measure the heavier liquid when liquid was loaded to warehouse or unloaded from warehouse and can be used to measure the liquid crossing the pipes. Meanwhile this product is the best meter used on the liquid accessing management which does good for saving energy resources.



Principle

LS series flow meter consists of body, piston and etc. The counter operates by the magnetism, which is

completely isolated from oil liquid. When the flow meter has been connected with pipe, oil liquid across

them, the pressure distinction between entry and exit drive the piston reciprocating. Then the magnet

coupling which is connected with piston is moving around it. The circling numbers of piston direct

proportion the flow rate of meters, so the reading of counter is same as the multiple of flow rate. The

counter consists of the gears with magnet, worm gear, worm shaft, totalizer, teeth wheel etc. There are a

pointer and 7-digital totalizer on dia

Workshop on site pictures



Package



Exhibition photos



Certification

 Products range

Payment term

1.Loading Port: Shanghai China

2. Samples Leading Time: 3-7 working days

3. Delivery Time: Within 7-15 days after payment

 4.Payment:  T/T, Western Union, Paypal



 After-sales service After

 1. Warranty: The warranty period is 12 months starting from the shipping date

 2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality

 3. For on-site services not arising from manufacturing quality, we shall charge a certain ser After-sales service vice fee at our discretion based on actual charges incurred such as travel exp

 4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
