Одобренная CE небольшая промышленная сушилка

Описание и отзывы

Трекер стоимости

Характеристики

Appliction And Properties:

1.With the development of plastic products industry,out company adopts advanced technology for manufacturing Heated Air Drier.

2.It is applicable for various plastic shaping machines with high popularities from manufactures of plastic mechanical products.

3.RFC Series Heated-Air Dryer can thoroughly dry the raw materials and can save labor,improve quality and drop the cost,and assure 100% qualification for plastic products.

4.Adopt fully stainless steel with complete materials cleaning,design with bended hot air pipe for avoiding burn caused by powder in hot air pipe.

5.The new hot air chamber features high efficiency with energy saving reaching 30%,and features precise temperature adjustment and control,the quality electric parts boast stable performance,and the program ON/OFF function provides safe and reliable performance.

Technical parameters:

Model	Materials  Filling(kg)	Power(kw)		Voltage(v)	Overall Dimension(mm)	Installation  size(mm)	Applicable  Machine
		Electric  Heating	Wind  Heating
RFC-12C	12	1.5	0.075	220v,1Ø	690x360x1000	110x110	1-2
RFC-25C	25	3	0.14	220v,1Ø	800x450x1050	150x150	3-5
RFC-50C	50	4.5	0.16	220v,1Ø	850x520x1100	160x160	5-8
RFC-75C	75	5	0.16	380v,3Ø	950x580x1200	160x160	8-15
RFC-100C	100	6	0.22	380v,3Ø	1050x630x1300	200x200	15-30
RFC-150C	150	8	0.22	380v,3Ø	1100x730x1470	180x180	30-45
RFC-200C	200	9	0.33	380v,3Ø	1150x820x1800	230x230	45-60
RFC-300C	300	12	0.44	380v,3Ø	1230x910x1985	230x230	45-60
RFC-400C	400	18	0.44	380v,3Ø	1365x915x2097	280x280	60
RFC-600C	600	21	1	380v,3Ø	1365x1150x2130	350x350	60 above

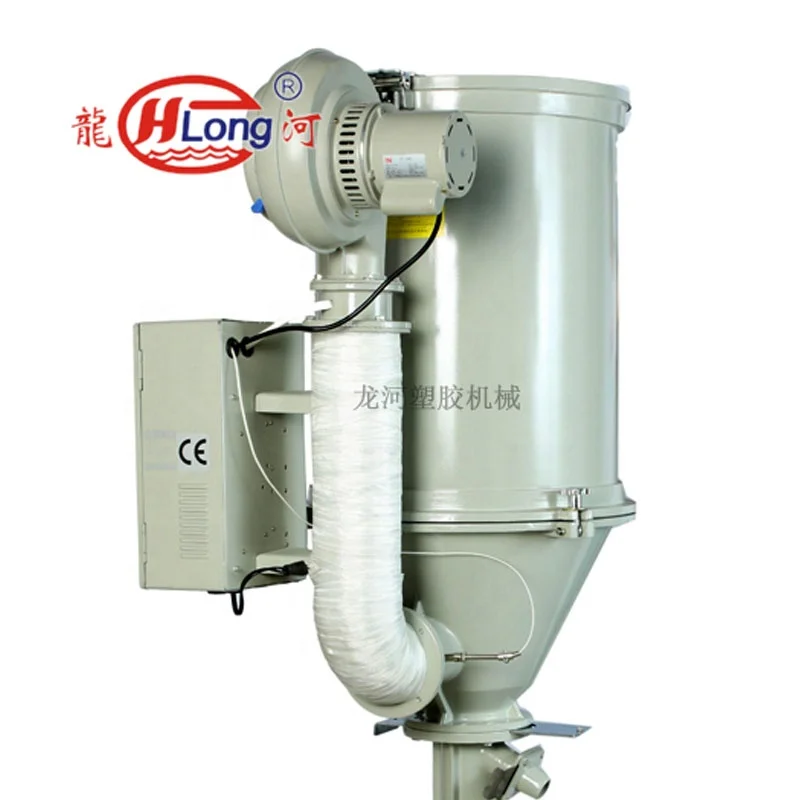

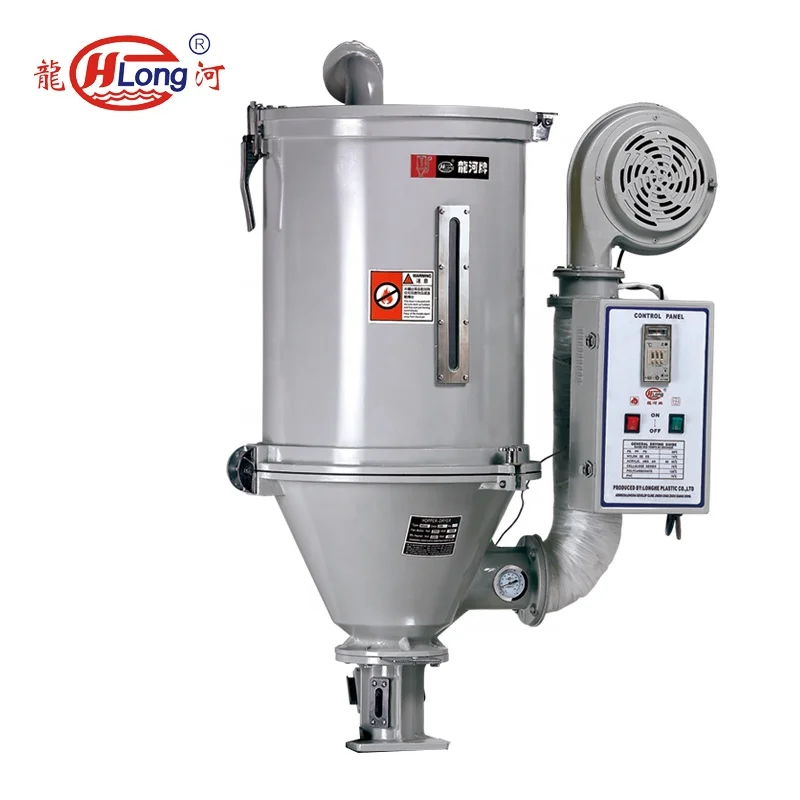

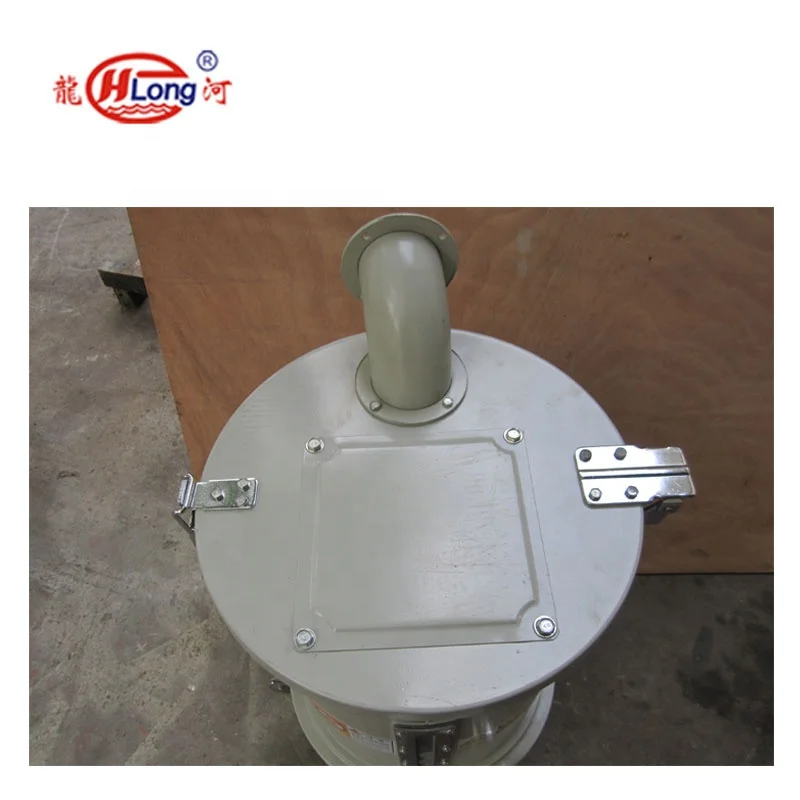

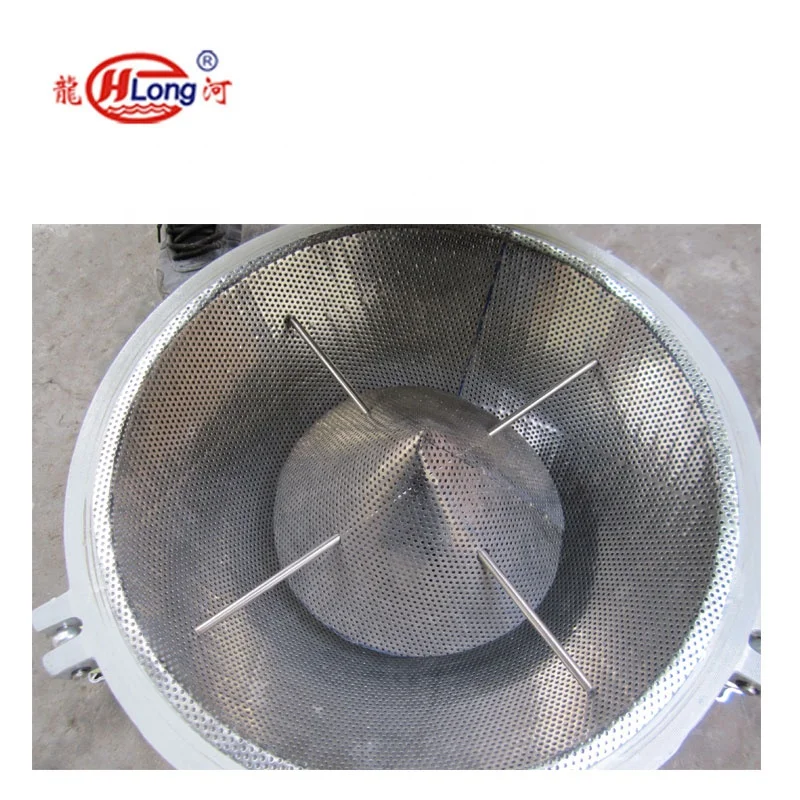

Picture of detail:



Packaging & Shipping

Packing: General defaults to using plywood case packaging.If need to packed in wooden cases,

need to be pay wooden case fee.

Transportation: Shipping by sea in Huangpu port Guangzhou China. Air transport is alsopermitted.

About our service

Quality is life,service decides development and reputation is guarantee.

A. cargo track service during transporting. and feedback service after cargo is loaded on board.

B. flexible terms of payment by T/T and L/C.

C. big discount for repeat customers.

D. smooth delivering procedure.

About us

Professional manufacturing plastic machinery over 26 years,produce plastic crusher,plastic dryer,plastic mixer,auto loader,industrial chiller,mould temperature machine,vibrating sieve,etc.

We have passed”ISO9001 International Quality Certification”and “CE”Quality Certification.

Why choose us?

1. More than 26 years experiences in the industry of plastic machine.

2. Competitive price and high quality.

3. All the inquiries will be replied within 24 hours.

Payment Terms

1. 30%T/T in advance, 70% should be paid before shippment is our regular payment terms.

2. D/P, L/C is also acceptable for discussion.

3. Per your secial requests are also welcome for communicating.

Welcome to our firm and factory.

Thanks for visiting.
