Импульсный источник питания/адаптер питания 5 в А 9 4 а 12 В 3 15 2 24

Описание и отзывы

Трекер стоимости

Характеристики

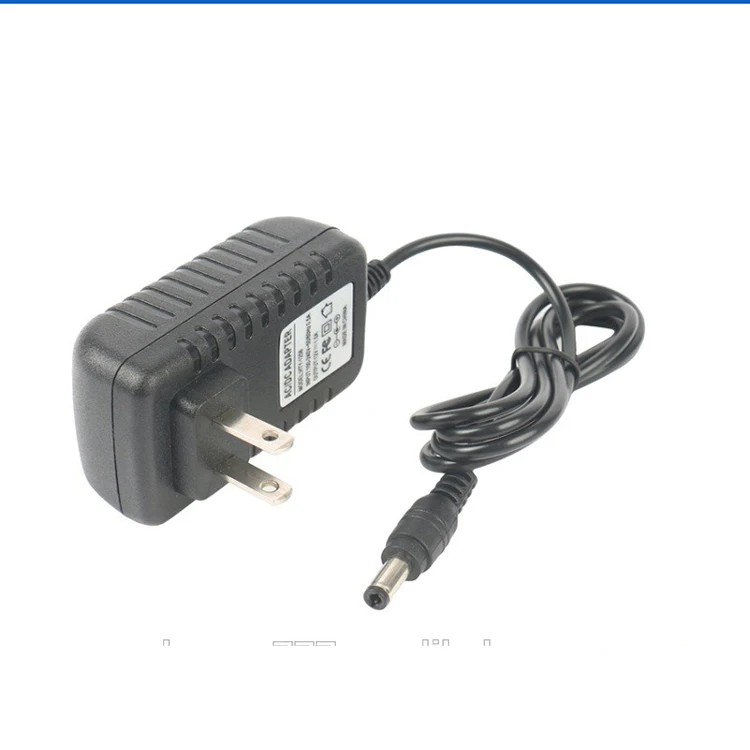

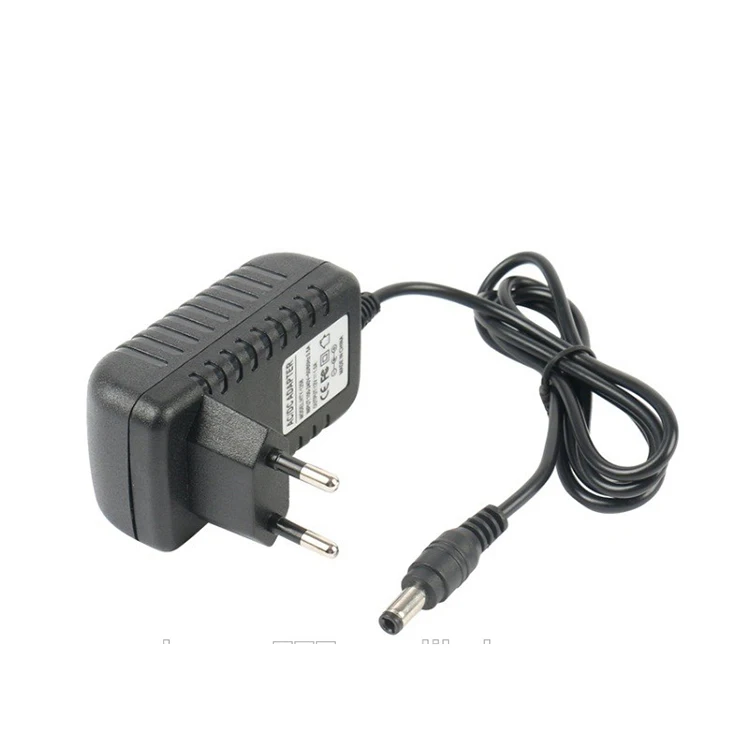

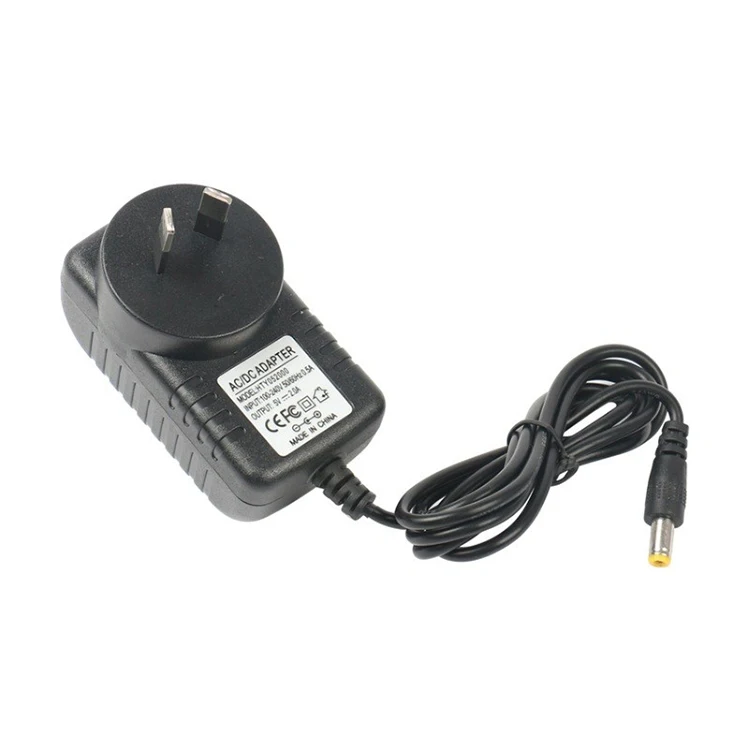

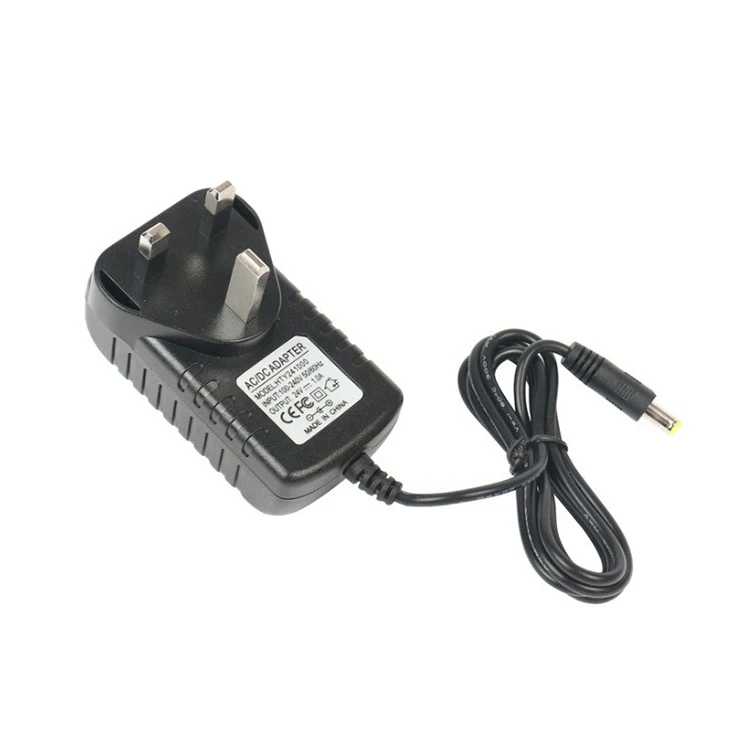

5v 5a 9v 4a 12v 3a 15v 2a 24v 1.5a switching power supply/power adapter/power adaptor





Application

♦ E-POS,LCD screen, Laptop

♦ DVR,TVB,battery charger

♦ LED, etc.



Electrical Specification

♦ Universal Input: 100 – 240V AC, 50/60Hz

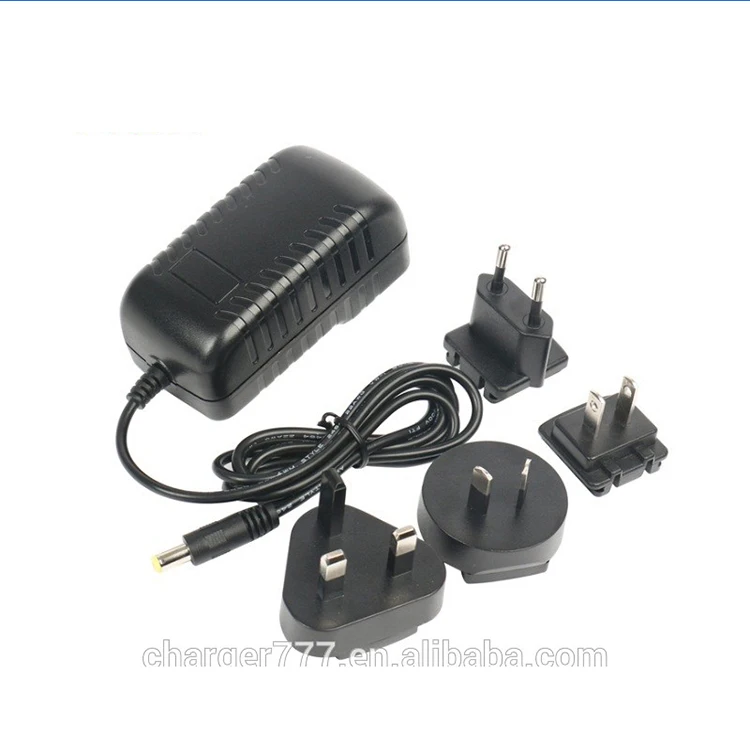

♦ Input Plug: EU  US  UK  AU  South Korea  South Africa  Plugs

♦ Output Voltage Range: 5-60V DC (Optional)

♦ Output Current Range: 0.5-10A (Optional)



♦ Output: 5v5a, 9v3a, 12v3a, 24v1.5a



♦ Ripple & Noise:1% of Output Voltage



Mechanical Specification

♦ Size:93*46*33mm

♦ Weight:165g

♦ Color:Black/White



Safety Certification

♦ CCC

♦ KC

♦ PSE

♦ SAA, C-Tick

♦ UL /cUL. FCC

♦ CE. CB. GS. BS1363



Energy Standard

♦ MEPS

♦ CEC-V

♦ ERP V

♦ Energy Star

♦ Standby Power: <0.3W



Protection Function

♦ Over voltage protection

♦ Over current protection

♦ Short circuit protection



Environmental Protection

♦ RoHS , REACH , CPSIA or PAHs Compliant On Request



Operation And Storage Condition

♦ Operation Temperature: -20°C to 40°C

♦ Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

♦ Storage Humidity: 1% to 90% R.H.

♦ MBFT: > 50,000Hours
