Манометр для воздушного компрессора Yong heng
US $8.00-$16.00
Клейна воздуха рефрижераторных осушителя сжатого для компрессора производитель
- Категория: Запчасти для воздушного компрессора >>>
- Поставщик: Hangzhou,Kelin,Aier,Qiyuan,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.10 $* | 0.52 $* |
| Aug-18-2025 | 0.44 $* | 0.39 $* |
| Jul-18-2025 | 0.71 $* | 0.68 $* |
| Jun-18-2025 | 0.58 $* | 0.65 $* |
| May-18-2025 | 0.89 $* | 0.72 $* |
| Apr-18-2025 | 0.79 $* | 0.94 $* |
| Mar-18-2025 | 0.72 $* | 0.84 $* |
| Feb-18-2025 | 0.29 $* | 0.78 $* |
| Jan-18-2025 | 0.17 $* | 0.90 $* |
Характеристики
Welcome to>>Hangzhou Kelin Aier Qiyuan Equipment Co., Ltd.
Refrigerated compressed air dryer --- KL air dryer factory with CE and TUV report, can accept OEM order.
KL with full series refrigerated dryer for customer choose:
1. 0.7~60m3/min plate heat exchanger dryer ;
2. 60~500m3/min shell tube dryer. with air cooling or water cooling, Option: ASME standard pressure vessel;
3. Non-standard dryer: Speical gas dryer ( Biogas/ H2...); Anti-explosion dryer; High pressure dryer (20~100bar); skid-mounted dryer as customer's requirement...
Comprehensive presentation

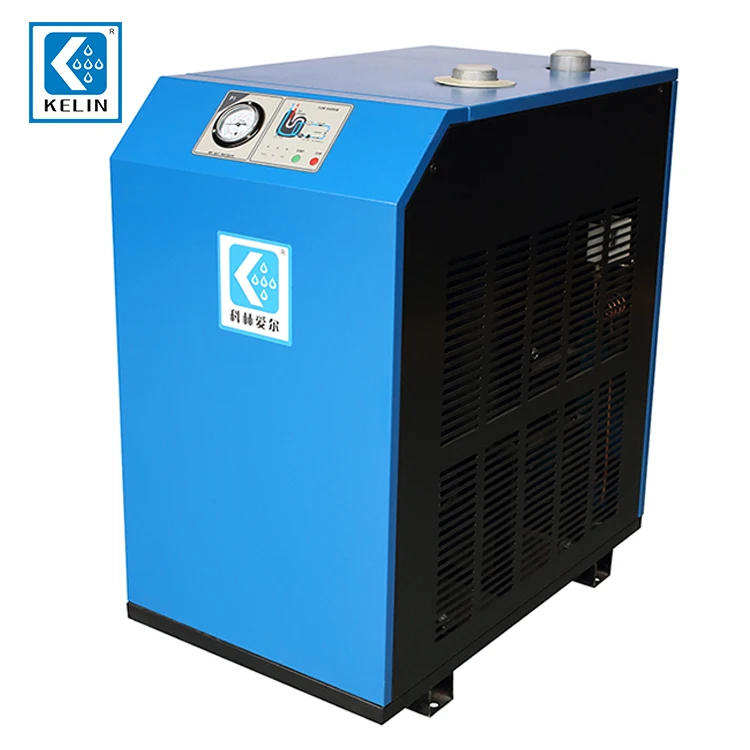

KDL small refrigerated compressed air dryer ---( Capacity 0.7~13.5m3/min)
1. Use aluminium plate heat exchanger , high heat exchange efficient and energy-saving ;

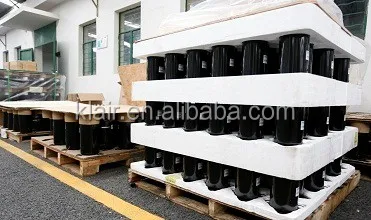

2. Refrigerated compressor use HITACHI brand , R134a/R407c /R410 friendly-environment gas;
3. All dryer with hot gas by-pass valve;
4. Condenser with blue hydrophilic film, it good for rust-poof;
5. Delix or Schneider electrical components make sure the power supply;
6. Standard voltage is 220V 50HZ, 110V 60HZ dryer we can make also;
7. Every KL dryer with 24hours quality testing before shipmnet, 13months warranty time guarantee.
Specifications
| Model | Flow Capacity | Power Cons.(kw) | Conn. | Dimensions | Weight | ||||
| m3/min | m3/h | CFM | (BSP) | L (mm) | W(mm) | H (mm) | (kg) | ||
| KDL-10F | 1.6 | 96 | 56 | 0.47 | 1" | 500 | 415 | 680 | 45 |
| KDL-20F | 2.6 | 156 | 92 | 0.85 | 1" | 630 | 450 | 790 | 50 |
| KDL-30F | 3.8 | 228 | 134 | 1.04 | 1" | 630 | 450 | 790 | 55 |
| KDL-50F | 6 | 360 | 212 | 1.65 | 1 1/2" | 770 | 530 | 890 | 70 |
| KDL-60F | 7 | 420 | 247 | 1.65 | 1 1/2" | 820 | 530 | 890 | 80 |
| KDL-75F | 8.5 | 510 | 300 | 1.67 | 1 1/2" | 870 | 580 | 890 | 90 |
| KDL-100F | 11.5 | 690 | 406 | 2.05 | 2" | 1180 | 580 | 870 | 120 |
| KDL-120F | 13.5 | 810 | 476 | 2.3 | 2" | 950 | 730 | 1130 | 140 |
Company Information
KL company was established in 1997, dedicated in the promotion and design of compressed air purifying equipments, is the first company to obtain Production Licenses and pass the examined in compressed air purifying business line. The leading product is refrigerated air dryer, desiccant air dryer, compressed air filter, water chiller , nitrogen / oxygen generator. (KL have the CE certificate and could provide the ASME code dryer for customer).
Office room info:
Factory info.:
Related products:
Exhibition:
Cooperation:
Package:
Our Services
The guarantee period for KL air dryer is 12 months dating from delivery date .During this time, KL submit after-service when damage occurred not by people.
Any delay in installation due to project, you may contact KL sales team to know the situation, KL company could extend the guarantee period but not longer than 16months after shipment date.
KL quality control---6S factory manage and ISO9001:2008
1.Components quality check;
2.Quality check in production;
3.Finally quality check before shipment, keep the testing report
FAQ
1. Are you manufacturer or Trade Company?
We are manufacturer which established in 1997, export business since 2001.
2008 we purchased Leader water chiller factory and 2010 starting the production for PSA gas generator.
2. Warranty time?
For normal machine, 12months from the first starting-up date but no more than 14months from the shipment date.
project machine we can provide the engineer oversea service.
3. What terms of payment you use?
T/T, L/C, Alibaba trade Assistance.
4. Do you have any instant chat tool?
Contact person: Ms.Jamie Xu
E-mail: Jamie(at)china-air-dryer.com
Office direct: 86-571-88791018
Fax: 86-571-88792222
