Физической терапии ифракрасное устройство для диабетиков неврологии васкулопатии

Описание и отзывы

Трекер стоимости

Характеристики



Specifications.

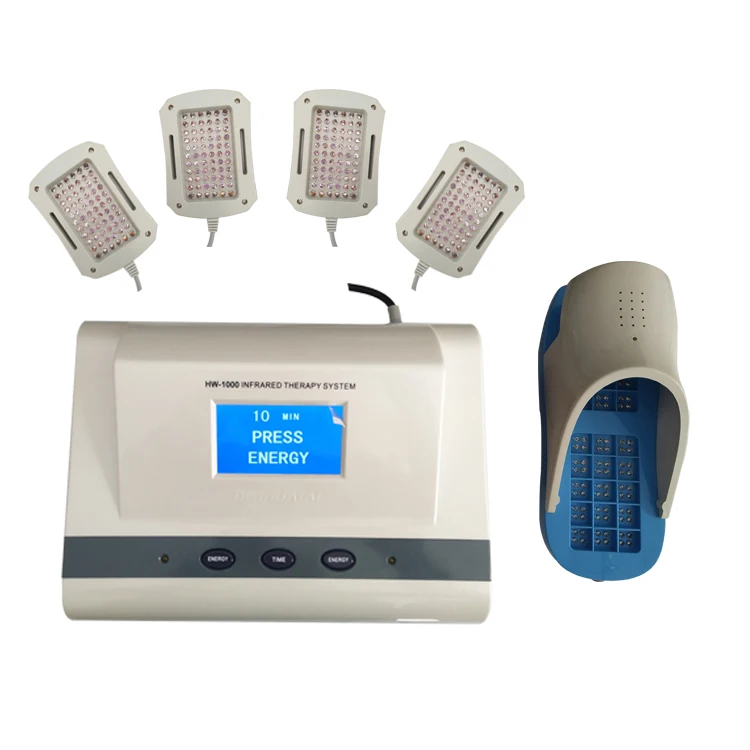

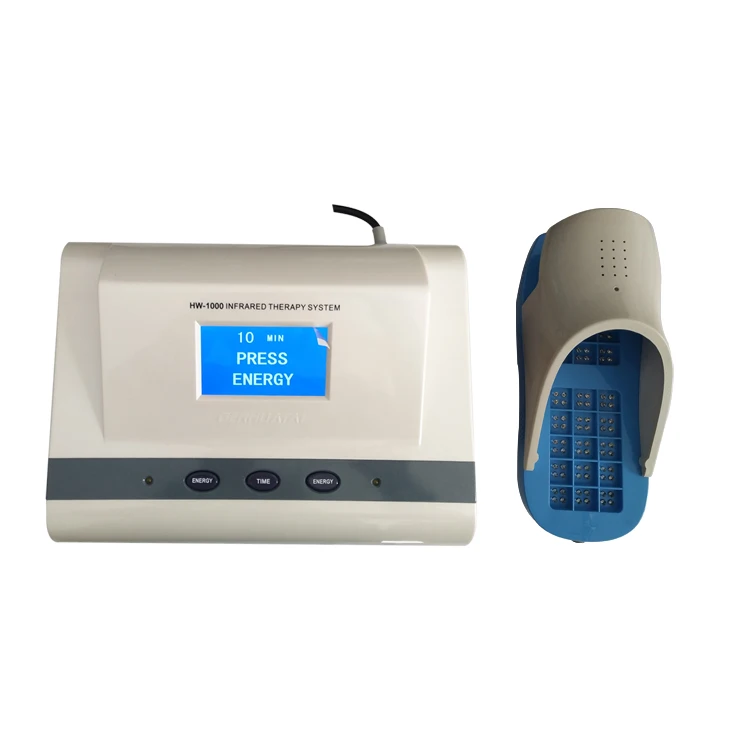

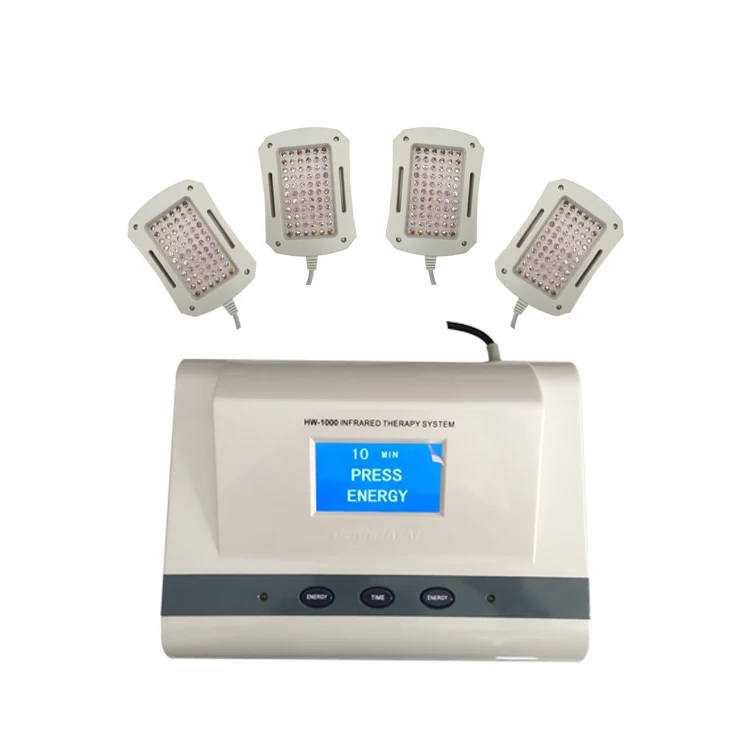

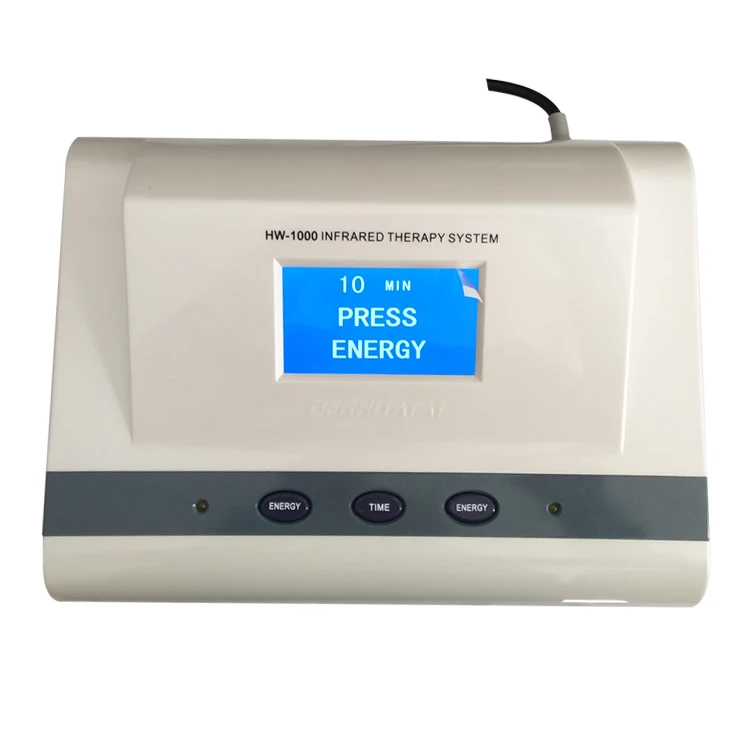

Near-Infrared Therapy  equipment		Therapy pad
Length	320mm	123mm
Width	245mm	85mm
Height	110mm	10mm
Net Weight	2.5kg	0.17kg
Color	White	White



Other parameters:



technical parameters
Alternating Current (A.C.)	220V±22V
Power Frequency	50Hz±1Hz
Ambient Temperature	0°C-40°C
Relative Humidity	≤80%
Input Power	100W
Fuse Protector Specification	220V 2A
Light Source	LED semiconductor
Wavelength Range of Infrared Ray	850-950nm
Cooling Method	Natural cooling by fan
Screen Display	colorful LCD
Control	Press the button
Security Level	Class II Type B

Clinical Application

Treatment Principle

Our Near-Infrared Therapy System,  comes from the 1998 Nobel Prize in Physiology or Medicine. The American scientists, Furchgott, Ignarro, Murad found the NO in human body is the best mediator for blood vessel dilation, The infrared ray with wavelength of 850-950nm emitting by Our near-infrared therapy system can make NO release locally. The infrared rays also can absorbed by body cells to promote angiectasis and improve blood circulation.

Smart and Safty Performance:

1.The design of diodes sag in rectangular groove could protect patients from burning, which also easy to clean with alcohol wipe.

2.The pad, with 66 diodes, could give off near-infrared between 850nm-950nm.

3.Wavelength of infrared ray: 0.85-0.95um 4.Adjustment of energy: - Strong: 3.5mw (single light-emitting diod - Moderate: 3.0mw (single light-emitting diode) - Mild: 2.5mw (single light-emitting diode)

5.Adjustment of time: 10 minutes, 20 minutes, 30 minutes, 40 min

Advantage

1.Our safety design could protect patients and avoid medical disputes.

1)Adjustment of time:10min,20min,30min.40min,never more than 40minutes

2)Adjustment of energy: Mild,Strong,Moderate

3)Temperature: never more than 41°C

4)The pad, with 66 diodes, could give off near-infrared between 850nm-950nm.

5)The design of diodes sag in rectangular groove could protect patients form burning,which also easy to clean with alcohol wipe.

2.We have passed such international authority certification,such as CE,ISO13485, Production Certificate,Utility Model Patent Certificate and Product Safety Authentication, etc.

3.Our products material are environmentally friendly and safety.

4.We are concentrate on diabetes field and the leader of this filed in China.We could not only provide the therapy equipment to the patients,but also could provide the solution project to them.And help them alleviate suffering and save lives.
