Низкая цена золотой центробежный концентратор

Категория: Другие фермы для майнинга >>>
Поставщик: Henan,Baichy,Machinery,Equipment,Co.,Ltd.

Цена:3 350,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	3987.94 $*	4186.34 $*
Aug-17-2025	3953.97 $*	4151.49 $*
Jul-17-2025	3317.49 $*	3483.85 $*
Jun-17-2025	3886.1 $*	4080.99 $*
May-17-2025	3384.79 $*	3553.55 $*
Apr-17-2025	3819.2 $*	4010.11 $*
Mar-17-2025	3786.13 $*	3975.60 $*
Feb-17-2025	3752.11 $*	3940.1 $*
Jan-17-2025	3719.69 $*	3905.56 $*

Характеристики

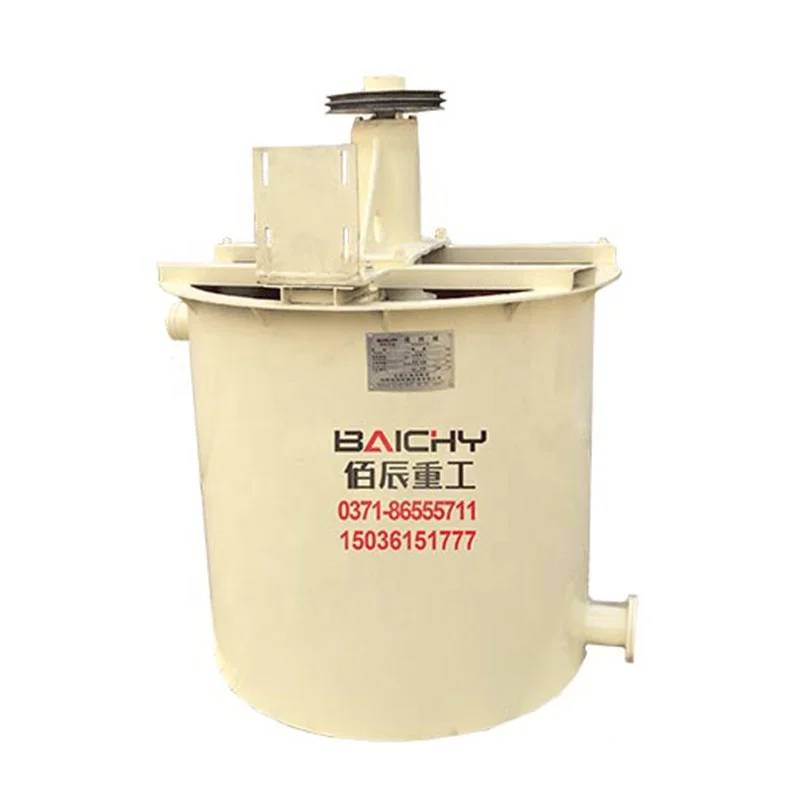

Industrial slurry agitator, mine agitator XB series mining agitation tank slurry mixer with factory price

Overview of industrial slurry agitator / slurry mixer with factory price

Agitator is mainly used to slurry before flotation in the benificiation process. It can mix chemical agentia and slurry completely. It is suitable to mix slurry with density.

Application:

Agitator is the indispensable equipment to fully mix the reagent and the ore pulp, increase the reaction time of the reagent and strengthen the quality of the reagent reaction.

Agitator is suitable for the ferrous and non-ferrous metal ore dressing plant. It is used for agitation before flotation to make thorough mixing of reagent and slurry. The slurry density is less than 30% (by weight) and the particle size are less than 1mm. It is in the circular spiral impeller mechanical agitation.

Working principle

The slurry and chemical agentia are mixed up by the agitator to form ore pulp. Then the pulp is fed to the pulp tank, meanwhile, add air to the pulp, which will form lots of bubbles. The ore particles with hydrophobic property are attached to the bubbles,and float to the pulep surface, while the ore particles which are hydrophylic stay in the pulp.

V-belt of motor drives impeller to mix chemical agentia and slurry completely. The agitator can increase reaction time and strengthen reaction quality of the chemical agentia.

Model	Internal diameter(mm)	Internal Height(mm)	Volume(m3)	Impeller speed(r/min)	Impeller diameter(mm)	Motor power		Dimension (LxWxH) (mm)
Model	Internal diameter(mm)	Internal Height(mm)	Volume(m3)	Impeller speed(r/min)	Impeller diameter(mm)	Model	Power(KW)	Dimension (LxWxH) (mm)
XB-500	500	500	0.098	600	200	Y90S-6	1.1	600×566×954
XB-750	750	750	0.33	530	255	Y90L-4	1.5	1131×880×1241
XB-1000	1000	1000	0.58	350	240	Y90L-4	1.5	1131×1130×1492
XB-1200	1200	1200	1.18	320	400	Y132S-6	2.2	1500×1480×1800
XB-1500	1500	1500	2.2	320	400	Y132S-6	3	1750×1640×2190
XB-2000	2000	2000	4.4	240	550	Y132M2-6	5.5	2380×2162×2850
XB-2500	2500	2000	9.2	272	650	Y160L-6	11	3036×2716×3543
XB-3000	3000	3000	19.1	220	700	Y225S-8	18.5	3604×3216×4250
XB-3500	3500	3500	30	183	850	Y225M-8	30	3940×3766×5386

Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.

1. Are you manufacture or trading company?

We are factory, established in 2003.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at lowest cost.

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
