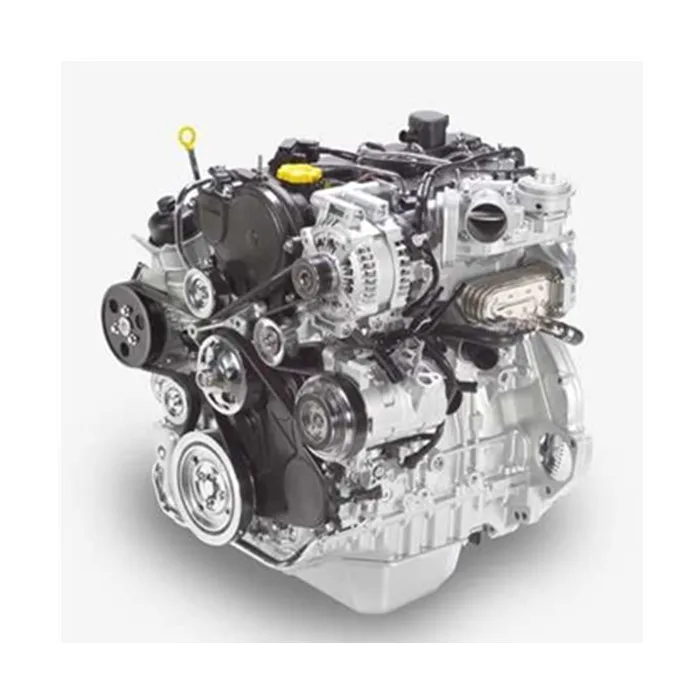

4 цилиндра VM D754 серии
- Категория: Сборка двигателя >>>
- Поставщик: Shanghai,Client,Diesel,Engine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.71 $* | 0.53 $* |
| Aug-15-2025 | 0.88 $* | 0.92 $* |
| Jul-15-2025 | 0.7 $* | 0.91 $* |
| Jun-15-2025 | 0.71 $* | 0.48 $* |
| May-15-2025 | 0.42 $* | 0.36 $* |
| Apr-15-2025 | 0.5 $* | 0.53 $* |
| Mar-15-2025 | 0.76 $* | 0.76 $* |
| Feb-15-2025 | 0.53 $* | 0.71 $* |
| Jan-15-2025 | 0.90 $* | 0.42 $* |
Характеристики
| VM D754 |
| Model | D754G68E2 | D704G82E2 | D754G95E2 |
| Type | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke, turbocharged | Vertical, water-cooled, four-stroke, turbocharged |
| No.of cylinders-bore×stroke ( mm ) | 4-94 x 107 | 4-94 x 100 | 4-94 x 107 |
| Valves per cylinder | 2 | ||
| Displacement(L) | 2.97 | 2.776 | 2.97 |
| Combustion chamber | Direct injection | ||
| Compression ratio | 18:01 | ||
| Rated output (kW) /Speed (r/min) | 50±5%@2600 | 60.5±5%@3000 | 70±5%@2600 |
| Max.torque (N.m) /Speed ( r/min ) | 210±5%@1400 | 290±5%@1400 | 335±5%@1300 |
| Specific fuel consumption (g/kW.h ) | 235 | 230 | 238 |
| Emission standard | 97/68 EC Stage2 and Tier2 limits | ||
| Fuel injection equipment | Bosch rotary pump | ||
| Camshaft arrangement | into engine block | ||
| Balance shaft | in the oil sump,optional | ||
| Overall dimensions: L×W×H(mm) | 694×518.5×685 | 720×557×736 | 720×557×736 |
| Model | D754G70E3 | D754G81E3 | D754G95E3 |
| Type | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke, turbocharged | Vertical, water-cooled, four-stroke, turbocharged and intercooled |
| No.of cylinders-bore×stroke ( mm ) | 4-94 x 107 | 4-94 x 107 | 4-94 x 107 |
| Valves per cylinder | 2 | ||
| Displacement(L) | 2.97 | 2.97 | 2.97 |
| Combustion chamber | Direct injection | ||
| Compression ratio | 18:01 | ||
| Rated output (kW) /Speed (r/min) | 51,5±5%@2600 | 59.8±5%@2600 | 70±5%@2600 |
| Max.torque (N.m) /Speed ( r/min ) | 250±5%@1800 | 274±5%@1800 | 420±5%@1000 |
| Specific fuel consumption (g/kW.h ) | 235 | 233 | 231 |
| Emission standard | 97/68 EC Stage3A and Tier3 limits | ||
| Fuel injection equipment | Bosch rotary pump | ||
| Camshaft location | in-block | ||
| Balance shaft | in the oil sump,optional | ||
| Overall dimensions: L×W×H(mm) | 720×546×687 | 720×508×740 | 720×508×736, |
If you need more information, please contact with us.
