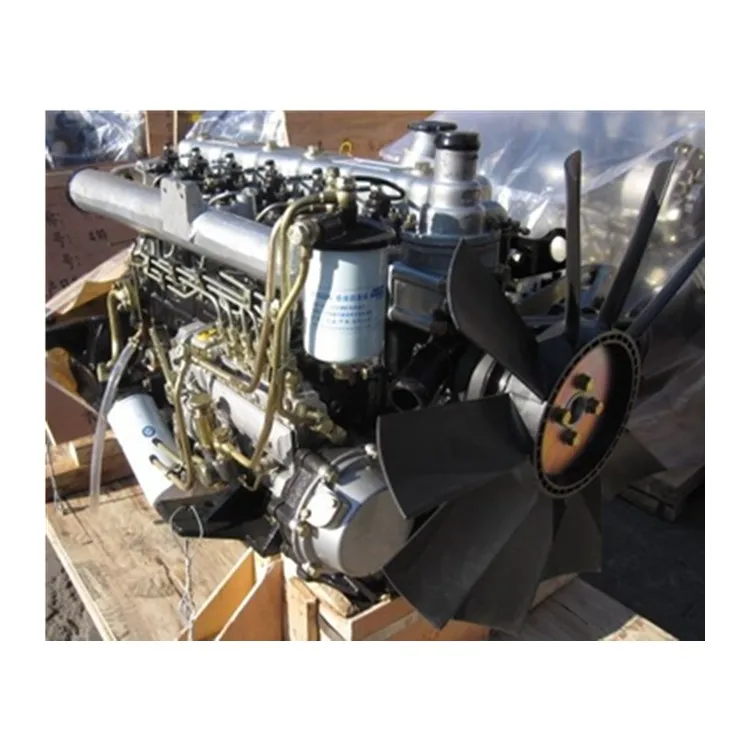

Двигатель ISU 6BD1T на
- Категория: Сборка двигателя >>>
- Поставщик: Shanghai,Client,Diesel,Engine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.57 $* | 0.86 $* |
| Aug-15-2025 | 0.74 $* | 0.75 $* |
| Jul-15-2025 | 0.56 $* | 0.85 $* |
| Jun-15-2025 | 0.3 $* | 0.84 $* |
| May-15-2025 | 0.35 $* | 0.56 $* |
| Apr-15-2025 | 0.34 $* | 0.80 $* |
| Mar-15-2025 | 0.7 $* | 0.87 $* |
| Feb-15-2025 | 0.3 $* | 0.64 $* |
| Jan-15-2025 | 0.27 $* | 0.73 $* |
Характеристики
| ISU 6BD1T |
Model | 6BD1T | |
Type | 6 cylinders in line, 4 stroke, water-cooling | |
Aspiration | turbocharged | |
Ignition Order | 1-5-3-6-2-4 | |
Bore * Stroke | 102mm (4 inch) x 118mm (4.65 inch) | |
Displacement | 5.785 L ( 353 in3 ) | |
Compression Ratio | 16.5 : 1 | |
Governor | mechanical | |
Rated Power | 107kw 2800rpm | 120kw 2800rpm |
Peak Torque | 462 N.m (341 lb.ft) | 402N.m (290 lb.ft) |
Peak Torque Speed | 1800rpm | |
Noise Level | ≤112 dB(A) | |
Idle Speed | 750 rpm | |
FSN | ≤ 3.5 | |
Net dry weight | 560 kg | |
Overall Dimensions | 1209.7mm x 662mm x 884.5mm | |
Emission Level | Euro I, II, III (optional) | |
If you need more information, please contact with us.
