Active System Solar Water Pump Controller SR1168

Introduction for VISION Split Solar System Controller:

Solar thermal systems are operated and controlled intelligently by solar controllers. There are many different varieties of controllers. It is important to choose one with additional functions to allow you to make the most of the energy available from the solar collectors.

The VISION controllers allow anyone to monitor a solar hot water system easily and safely with easy to read digital displays.

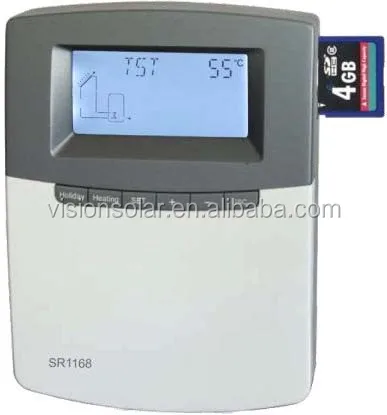

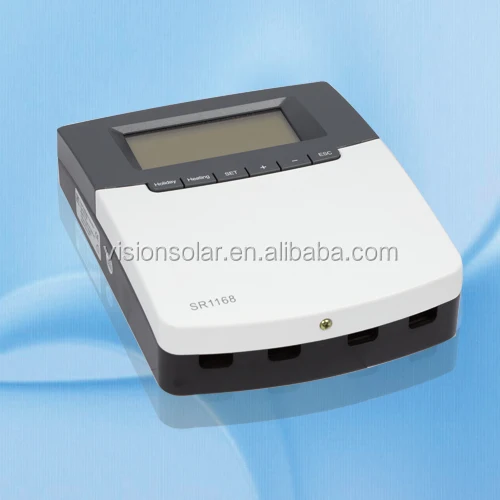

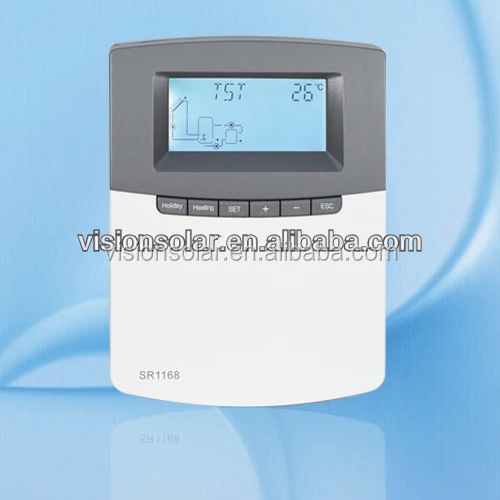

VISION SR1168 controller is specially designed for split solar water heating systems, displaying of collector and tank temperature, automatic controlling of circulation pump and auxiliary heating device etc.



APPLICATIONS CAPACITY

Datalogging onto SD memory card!

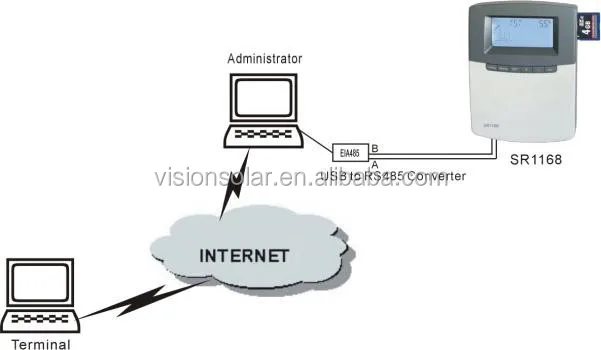

Internet access! 6 application system can be programe!

Max.number of collectors:2

Max.number of storage tanks:2

Max.number of relays:4

Max.number of sensors:5

Max.number of application system:8



Main Technical Data:
Dimension:  188mm  x140mm  x42mm
Power  supply:  200V-240V  AC  or  100V-130V  AC,50-60Hz.
Power  consumption:  < 3W
Accuracy of temperature measuring: ± 2oC
Range of collector temperature measuring: -10oC ~200oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 4 pumps possible to be connected, power of each pump < 200W .
Inputs:5 sensors,
2pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC),
3pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
Outputs:4 relays, for circulation pumps or 3-way electromagnetic valve
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP40.



Main functions:

Timing  heating
Temperature  difference  control    2*ΔT
Collector  emergency  shutdown
Collector  cooling  function
Collector  low  temperature  protection
Collector  frost  protection
Tank  re-cooling  function
Celsius  and  fahrenheit  transferring
Maximum  temperature  of  tank  (2*storage  tanks)
Maximum  turnoff  temperature
(for  solid  fuel  boiler,  return  heating,  heat  transferring  between  tanks)
Minimum  turn-on  temperature
(for  solid  fuel  boiler,  return  heating,  heating  transferring  between  tanks)
Anti-Legionella  function
Temperature  controlled  hot  water  circulation  pump
Switch  on/off  temperature  of  solid  fuel  boiler( Independent of system)
RPM  speed  controlling(2*semiconductors)
Thermal  energy  measuring
Priority  logic  of  multiple-tanks(  2*storage  tanks)
Pump  interval  function
Thermostat  function( Independent of system)
High  temperature  by-pass  function(Collector  cooling  down)
Solar  circulation Bypass
Datalogging  onto  SD  memory  card
Internet  access
Manual  Control(  for  4  outputs:P1,P2,R1,H1)
Password  setting
Recovery  to  factory  setting
Holiday  function
Manual  Heating
Temperature  query  function
Memory  Protection
Screen  protection
Trouble  shooting
Trouble  protection
Trouble  checking



Warranty for VISION Split Solar System Controller:

3 years international responsibility for VISION split solar system controller due to original quality problems.

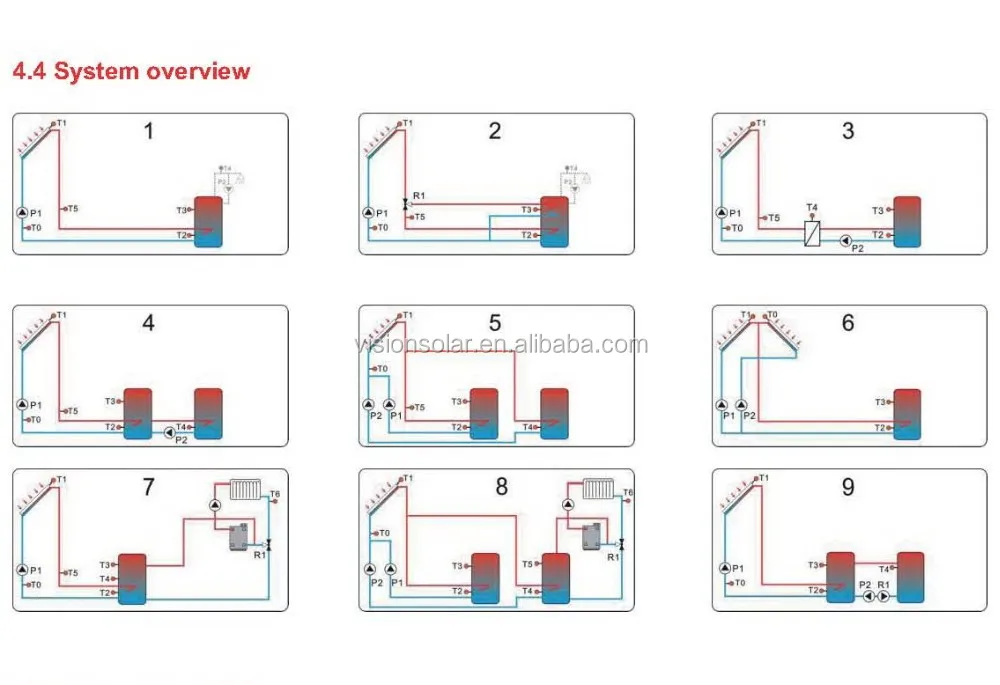

System Illustration:
